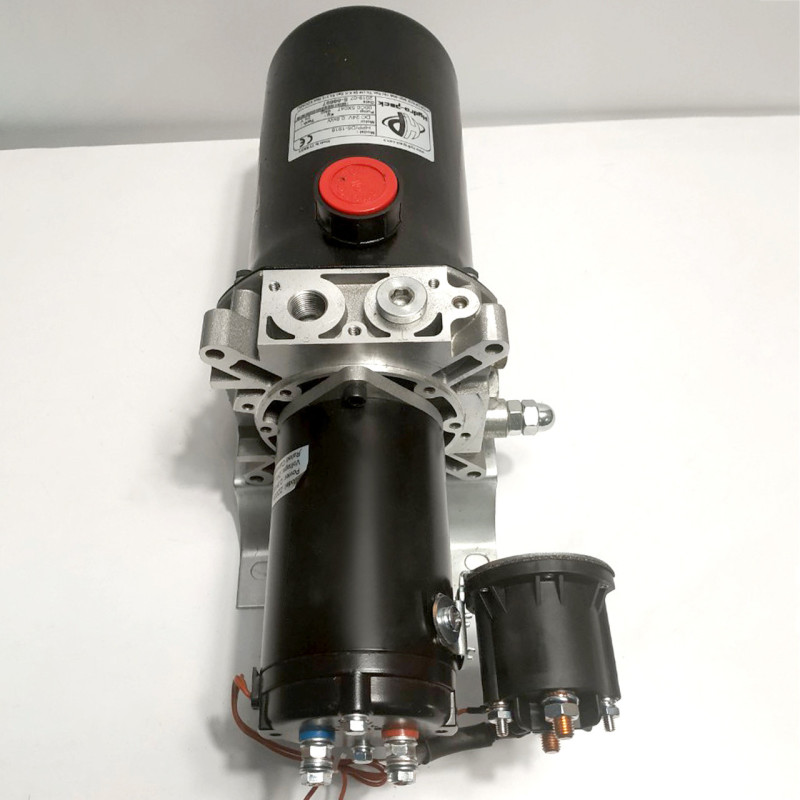

Hydro-pack HHP/D5-1916 Mini Power Unit for Any Hydraulic Cylinder (24V, 0.8 kW, 2L Tank)
The compact and reliable Hydro-pack HHP/D5-1916 mini power unit is designed to power various hydraulic cylinders in equipment such as tractors, motorcycles, ATVs, and boats. This Hydro-pack product combines a 0.8 kW electric motor at 24V DC, high operating parameters, and an ergonomic 2-liter cylindrical steel tank. The unit is designed for vertical mounting and provides a maximum operating pressure of up to 220 bar, making it suitable for a wide range of hydraulic systems with various loads.
Key technical advantages: compact dimensions and a small oil tank for installation in confined spaces, a reliable pump with a displacement of 0.5 cm³/rev, and a high-speed electric motor with a rotation frequency of 3500 rpm. This power unit is well-suited for mobile and stationary applications where autonomous hydraulic supply with 24V power is required.
Technical Specifications:
| Parameter | Value |
|---|---|
| Model | HHP/D5-1916 |
| Manufacturer | Hydro-pack |
| Electric Motor Power | 0.8 kW |
| Voltage | 24 V DC |
| Rotation Speed | 3500 rpm |
| Pump Displacement | 0.5 cm³/rev |
| Maximum Pressure | 220 bar |
| Oil Tank Volume | 2 L |
| Tank Type | Cylindrical |
| Tank Material | Steel |
| Installation | Vertical |
| No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWOP-10 | 1 |
| 2 | MDC Connecting Coupling | 1 |
| 3 | Plastic Return Element | 1 |
| 5 | AB-1/2'' | 1 |
| 6 | 00C0.5X302 | 1 |
| 7 | Filter | 1 |
| 8 | DC24V-0.8-3500 | 1 |
| 9 | TP02D | 1 |
| 10 | STT24V150 | 1 |
| 11 | HPSP-100 | 1 |
The Hydro-pack HHP/D5-1916 model is ideal for applications where compactness, quick hydraulic system response, and 24V DC connectivity are important. The power unit provides stable pressure up to 220 bar, allowing it to work with hydraulic cylinders of various capacities. The 2-liter cylindrical steel tank provides the necessary oil reserve for short operating cycles and convenient vertical mounting.
Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units. If you need consultation regarding compatibility with a specific hydraulic cylinder or assistance in choosing accessories, please contact the specialists mentioned in the product description.
