Product Code: FA94-12250-94
245 385 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery connection type to UPS: Terminals
Charge current from mains, A: 20
Charge current from panels, A: 20
Frequency range, Hz: 50/60±5 (adjustable)
All specifications
We will deliver this product:
Payment
Description

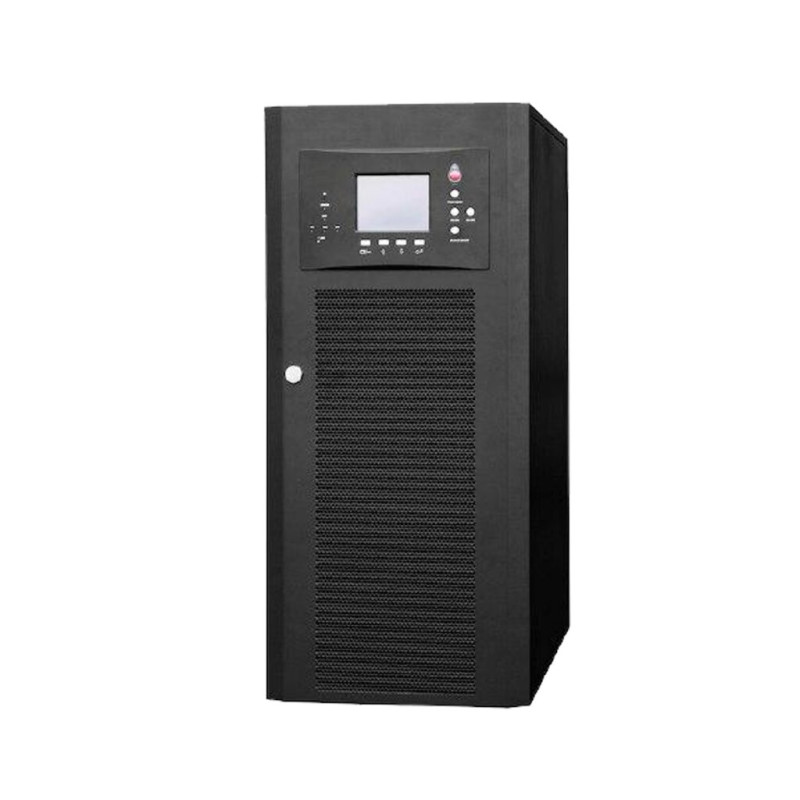

The 10kVA MPPT (3-phase) hybrid uninterruptible power supply with pure sine wave output and MPPT controller is a multifunctional device, primarily designed to provide uninterrupted power to various facilities (home, office, or small business). The UPS presented in the catalog also includes autonomous power functionality. The 10kVA MPPT (3-phase) hybrid model has optimal technical specifications and allows charging batteries from both the main grid and alternative power sources (solar energy, wind generator). When choosing a hybrid UPS, it is important to note that it will not only provide equipment and electronics with the necessary uninterrupted power supply but also offer an opportunity to generate additional income by participating in the "Green Tariff" program.

Specifications
AVR voltage stabilization function is
Battery connection type to UPS Terminals
Charge current from mains, A 20
Charge current from panels, A 20
Frequency range, Hz 50/60±5 (adjustable)
Height, mm 1100
Housing material metal
Indication type LCD
Input voltage range, V 304-456
Inverter Efficiency Mode ~ 98%
Length, mm 450
Max input voltage from panels, V 750
Network Connection Type Terminals
Nominal battery voltage, V 12
Nominal input voltage from panels, V 450-550
Number of Phases 3
Operating temperature, °C 0 ~ +40
Output voltage waveform pure sine wave
Output voltage, V 380±1%
PC connection interface RS232/RS485 - standard; SNMP, Wi-Fi, GPRS - optional
Power, VA/W 10000/10000
Power, W 10000
Protection against short circuit, voltage surges, overload, discharge, battery overcharge
Switching time, ms 0
Type hybrid MPPT with pure sine wave
Type of UPS load connection Terminals
Volume, m³ 0.684
Warranty, months 36
Weight, kg 230
Width, mm 840
Color black
