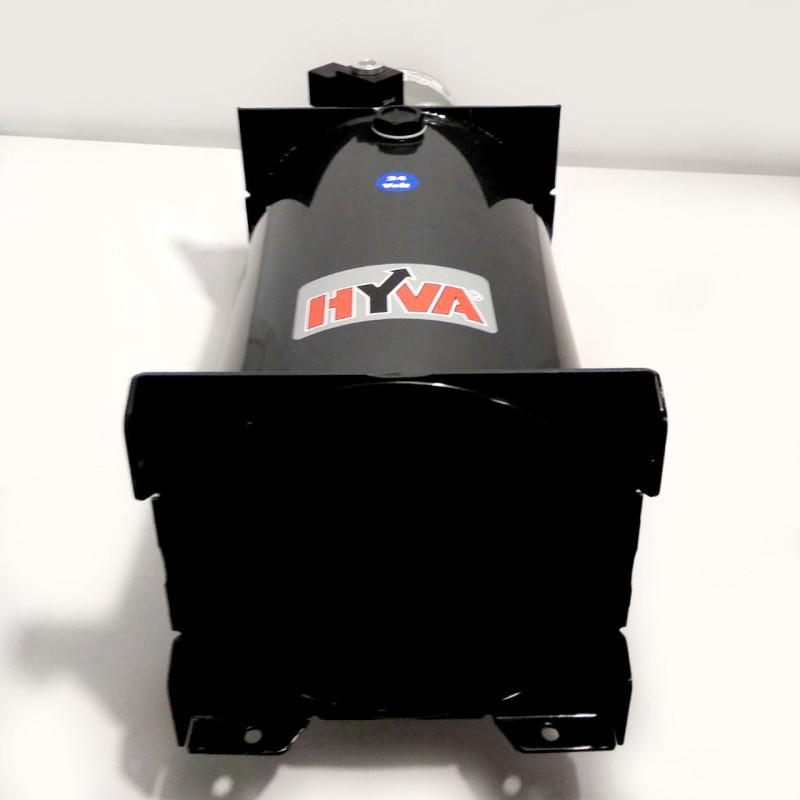

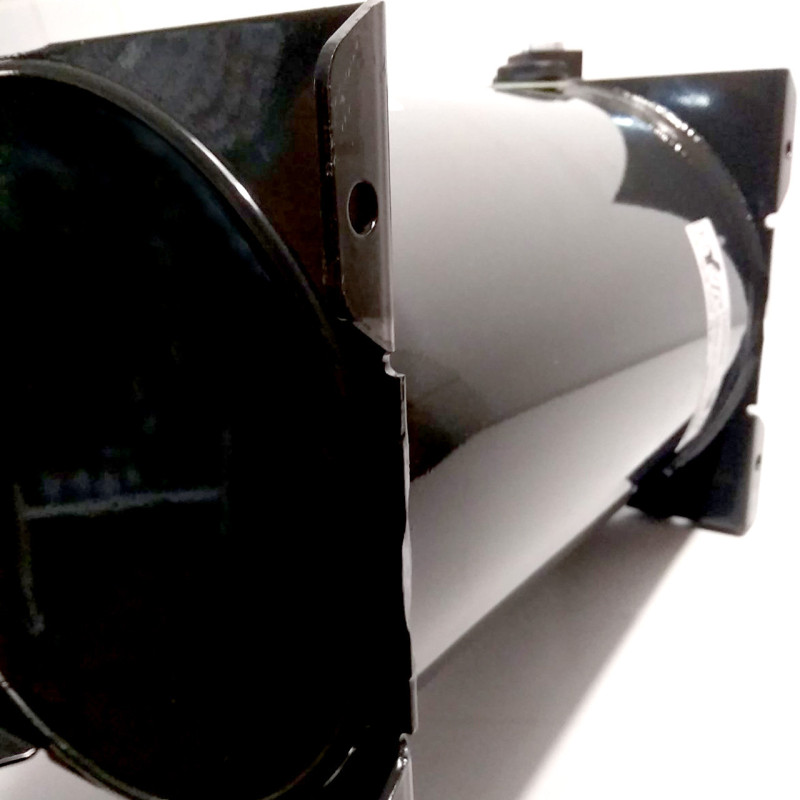

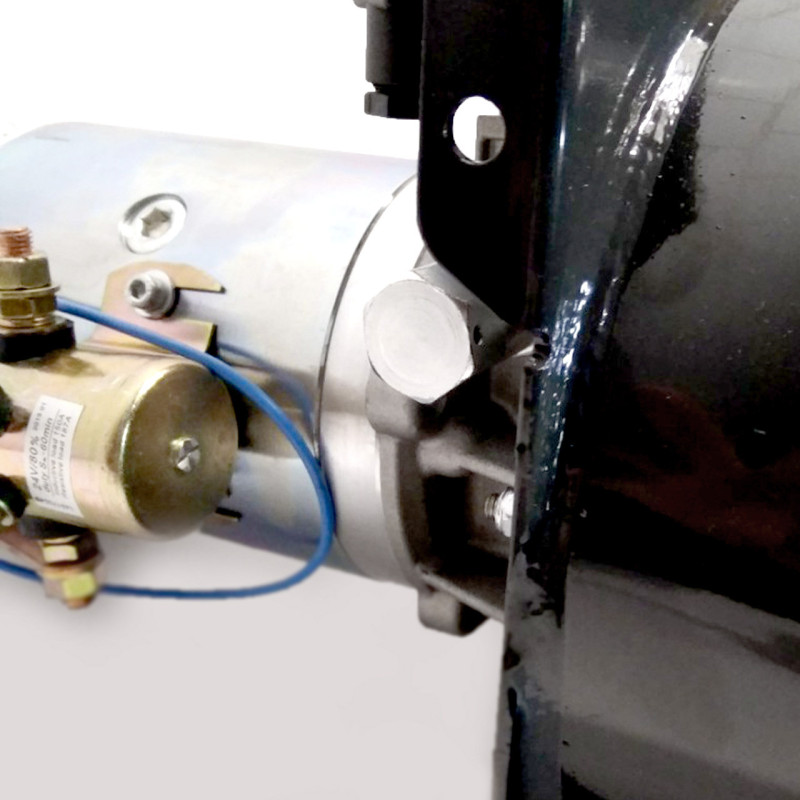

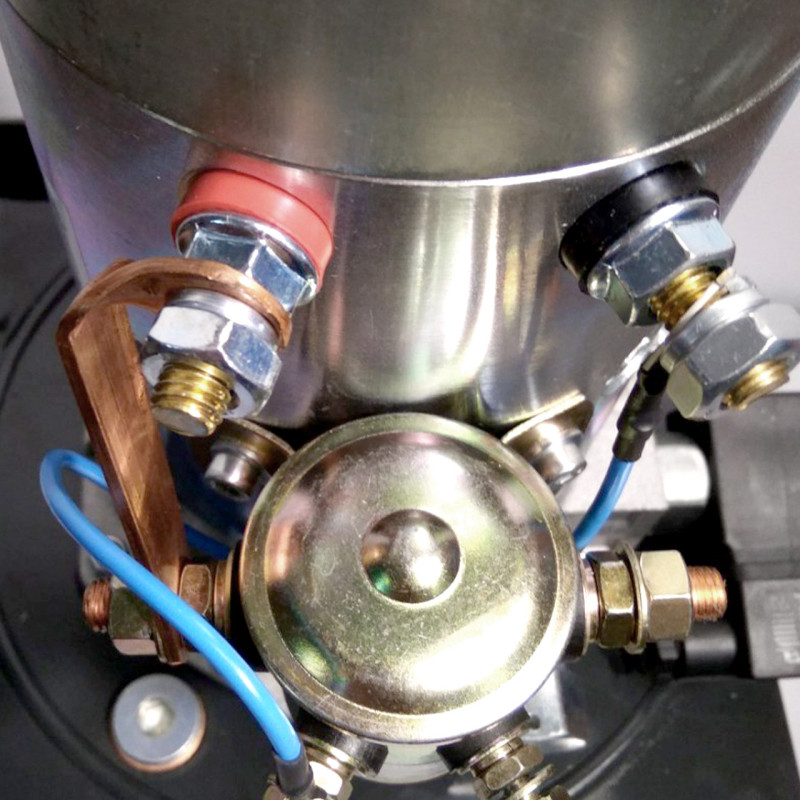

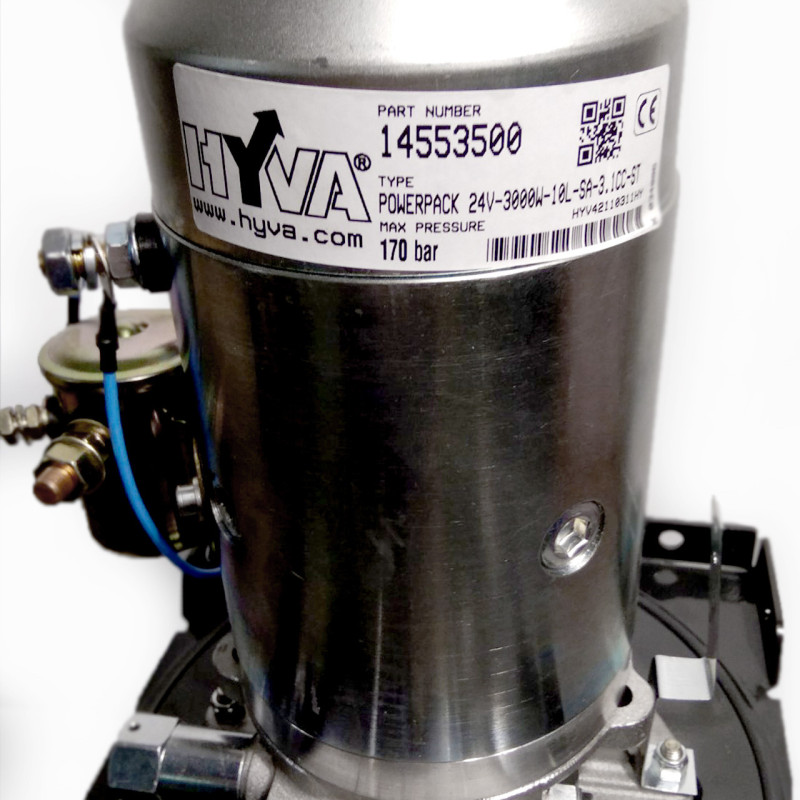

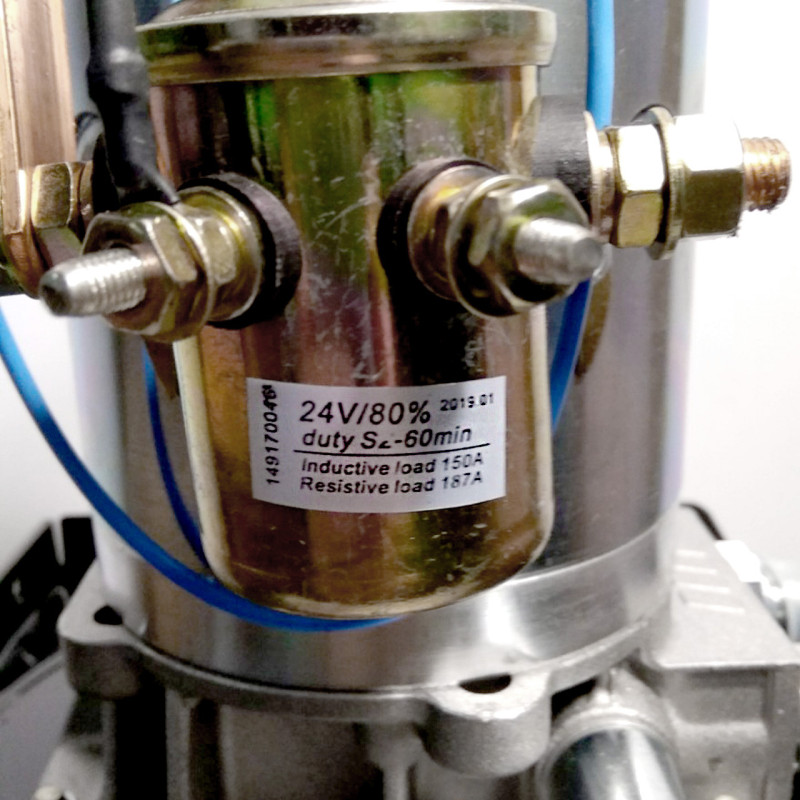

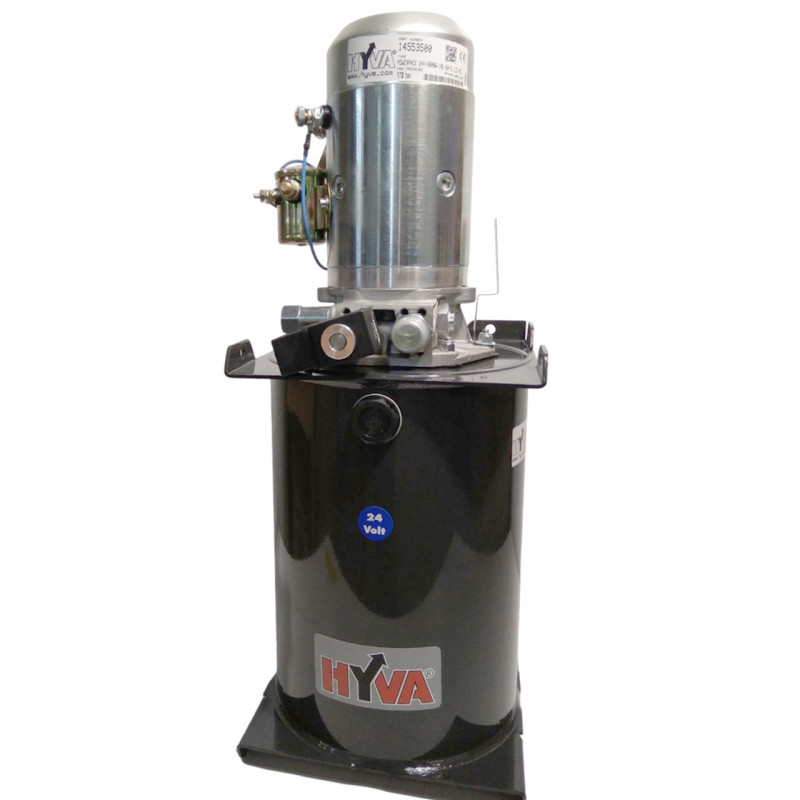

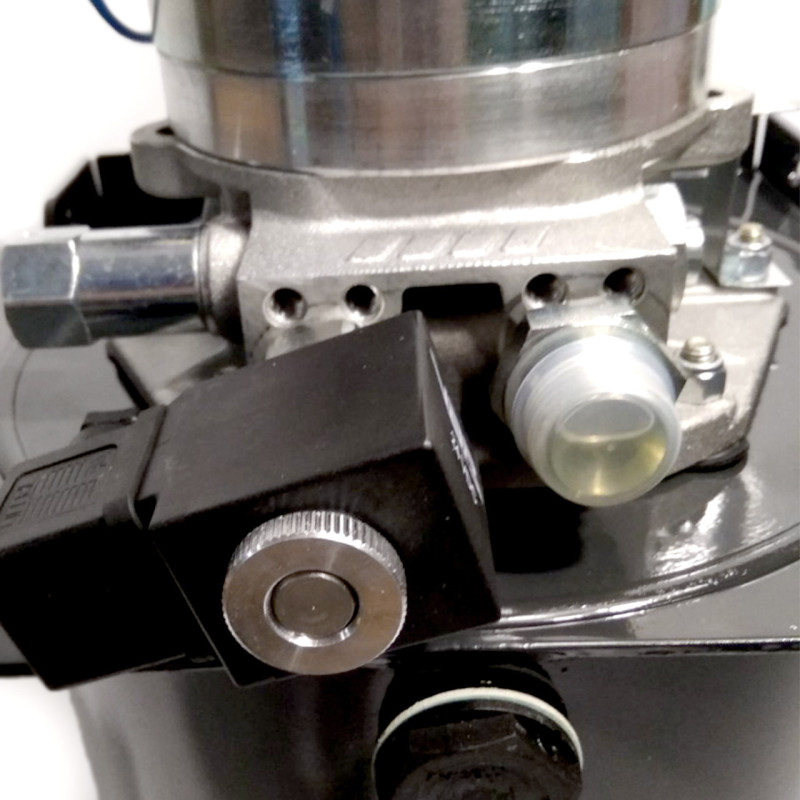

Hyva 14553500 Power Unit (24 V, 3.0 kW, 10 L Tank) for Body Lifting

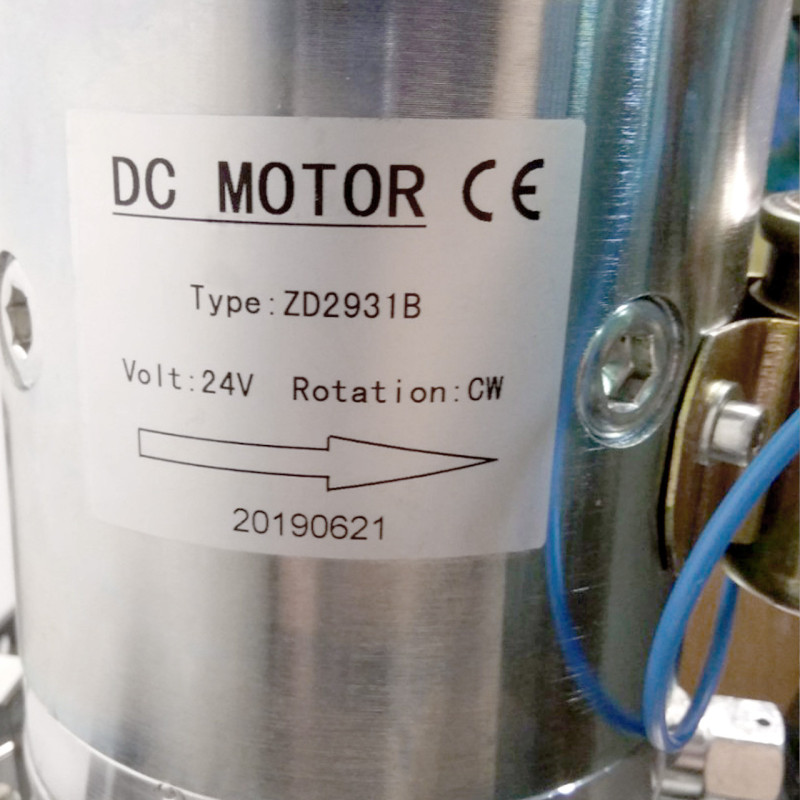

The HYVA 24V-3.0kW 3.1CM3 10L power unit is a reliable hydraulic station designed for small dump trucks and other 24-volt vehicles up to 3 tons. Model 14553500 is optimally suited for use in Pezzaioli semi-trailers and trailers, ensuring precise and stable body lifting and lowering. The package includes a body lift limiter (knock-off), which increases operational safety, and the motor's direction of rotation is clockwise (CW).
Advantages and Purpose
This power unit from Hyva combines compact dimensions with high performance: the 24 V electric motor delivers a nominal power of 3000 W, allowing for efficient operation under intensive use. The pump with a displacement of 3.1 cm³/rev provides sufficient flow for rapid body lifting, and the 10-liter tank guarantees the necessary supply of working fluid during long lifting cycles. The unit is designed with safety and reliability requirements in mind for commercial vehicles up to 3 tons.
Technical Specifications of Model 14553500
- Voltage: 24 V
- Nominal Power: 3000 W
- Pump Displacement: 3.1 cm³/rev
- Tank Volume: 10 liters
- Maximum Pressure: 150 bar
- Current at Max. Pressure: 165 A
- Flow at 100 bar: 7.2 l/min
- P Connection: 3/8" BSPOT
- T Connection: 3/8" G
Additional Information: Manufacturer Hyva; model 14553500; designed for dump trucks and semi-trailers, compatible with Pezzaioli trailers; equipped with a lift limiter (knock-off); motor rotation direction is clockwise (CW).
Dimensions (for reference): A - 570 mm, B - 302 mm, C - 322 mm, D - 340 mm, E - 210 mm, F - 220 mm.
The Hyva 14553500 power unit is an optimal choice for owners of light dump trucks and commercial vehicles up to 3 tons who need a reliable, powerful, and compact solution for body lifting. The unit provides stable operating pressure up to 150 bar, current control at maximum load, and efficient flow at 100 bar, ensuring safe operation of the hydraulic system during use on roads and in quarry conditions.
If you need a power unit with a proven reputation from the manufacturer Hyva, model 14553500 combines technical specifications and practicality for daily use.
