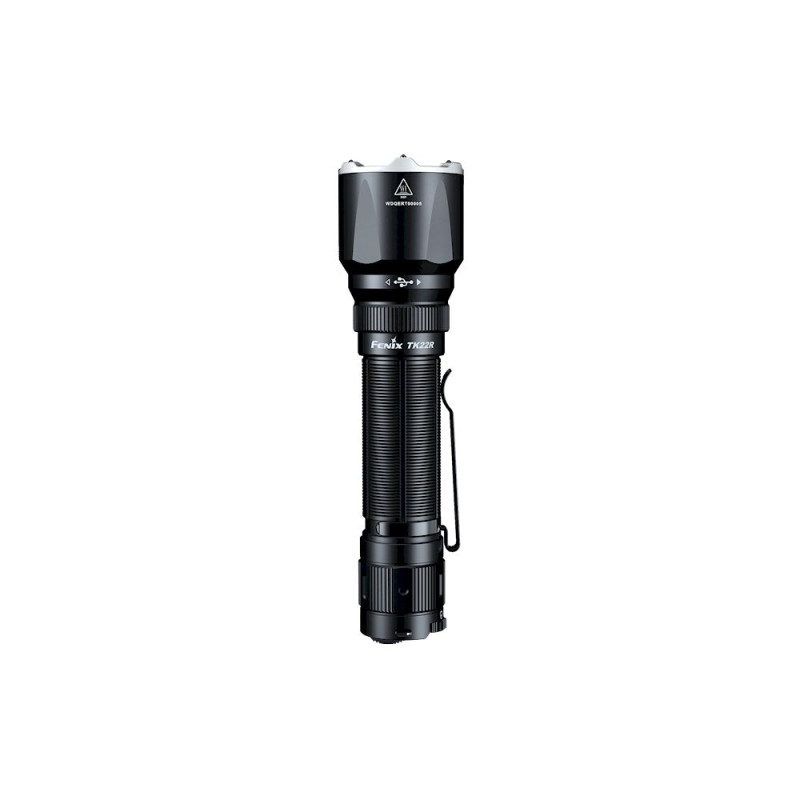

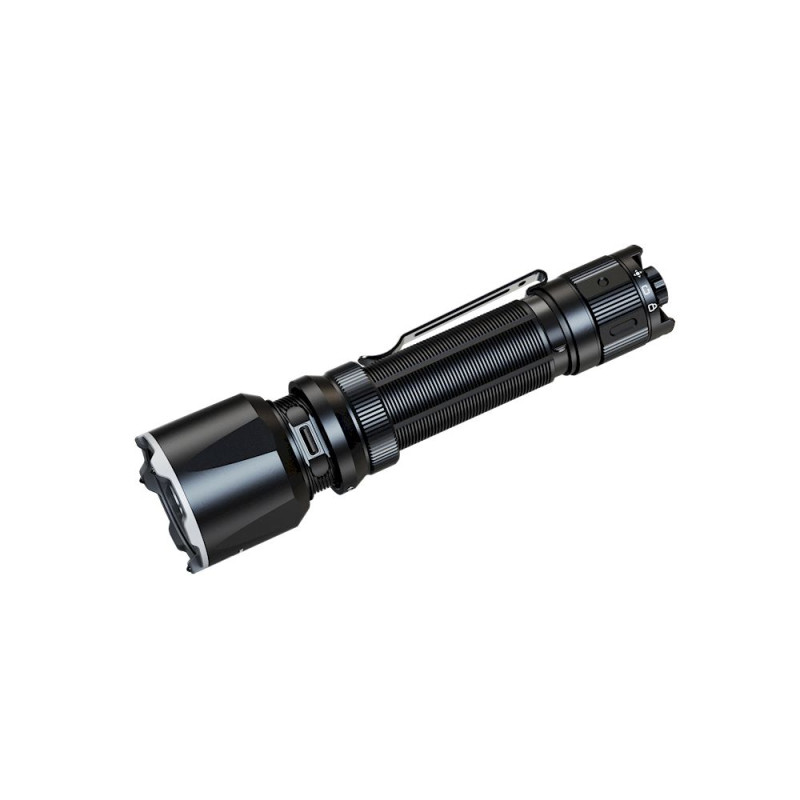

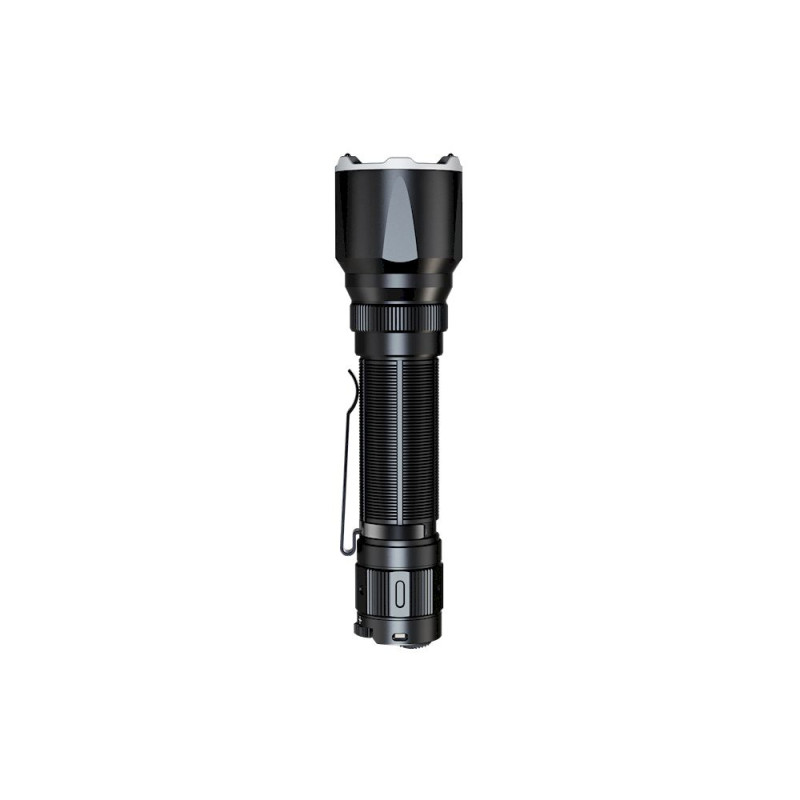

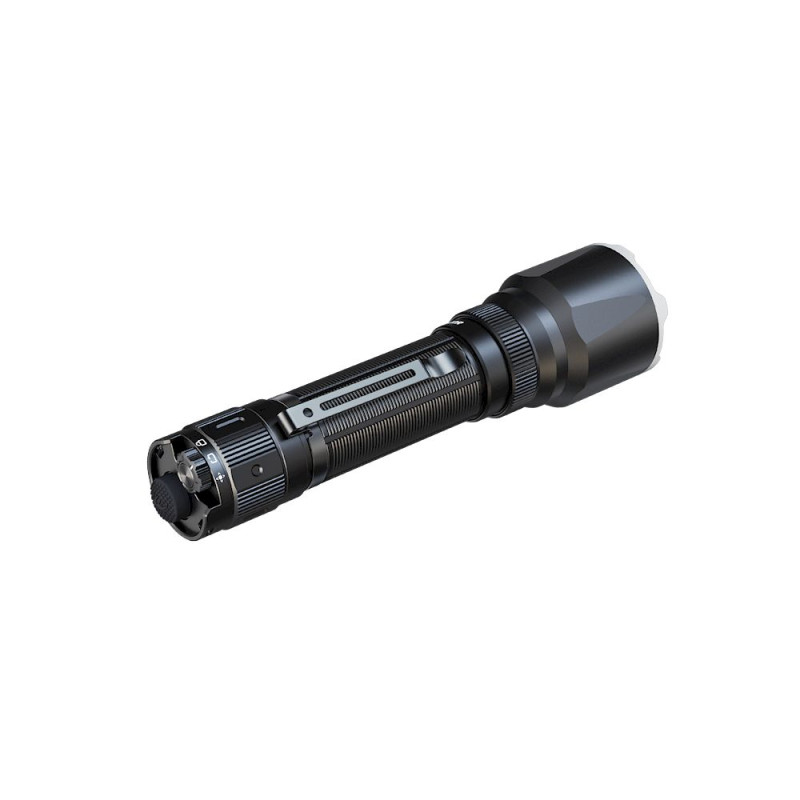

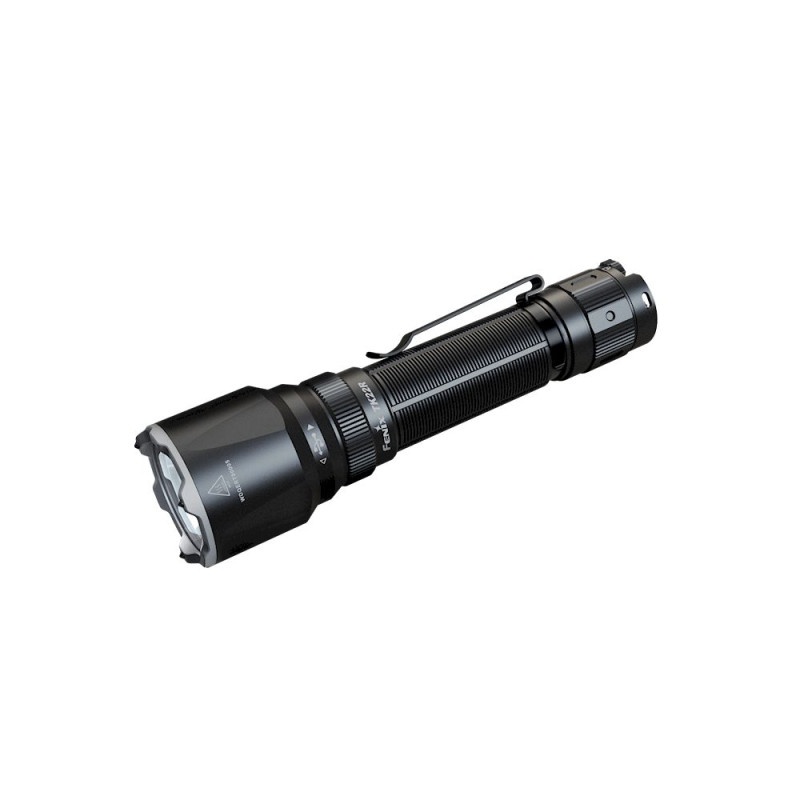

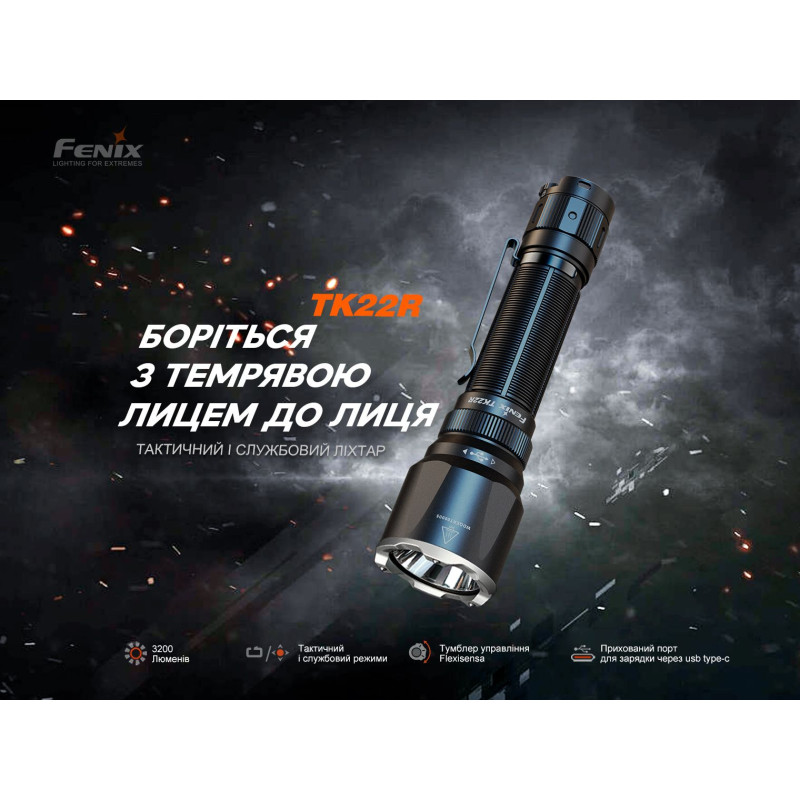

Fenix TK22R Handheld Flashlight — Reliable Tactical Lighting Device
The Fenix TK22R model is designed for professional use in tactical and duty tasks, making it ideal for law enforcement officers, hunters, and outdoor enthusiasts. This Fenix brand flashlight combines power, durability, and versatility. The body color is black.
Lighting Characteristics
Equipped with a single Luminus SST70 LED with a color temperature of 6500K, the TK22R provides a bright, cool beam. Maximum brightness in Turbo mode reaches 3200 lumens, beam intensity is 57,400 cd, and illumination distance is up to 480 meters, allowing objects to be detected at long range. A smooth metal reflector enhances the spot characteristic of the beam.
Operating Modes
The interface includes two mode groups: tactical (2 modes) and duty (4 modes). A strobe mode is also available for disorientation or signaling.

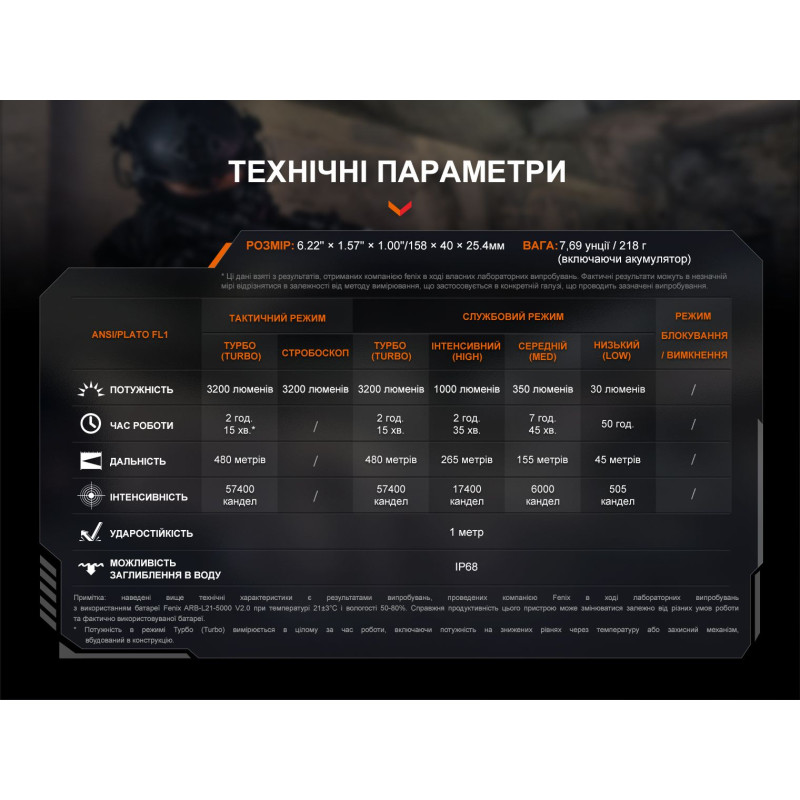

- Tactical Group: Turbo — 3200 lm, 57,400 cd, 480 m, runtime 2 hr 15 min; Strobe — 3200 lm.
- Duty Group: Turbo — 3200 lm, 57,400 cd, 480 m, 2 hr 15 min; High — 1000 lm, 17,400 cd, 265 m, 2 hr 35 min; Mid — 350 lm, 6,000 cd, 155 m, 7 hr 45 min; Low — 30 lm, 505 cd, 45 m, 50 hr.
Important! Turbo mode runtime is given with sequential brightness reduction (transition from High to Low) when the electronics heat up to ≥60°C, triggering overheating protection.
Controls

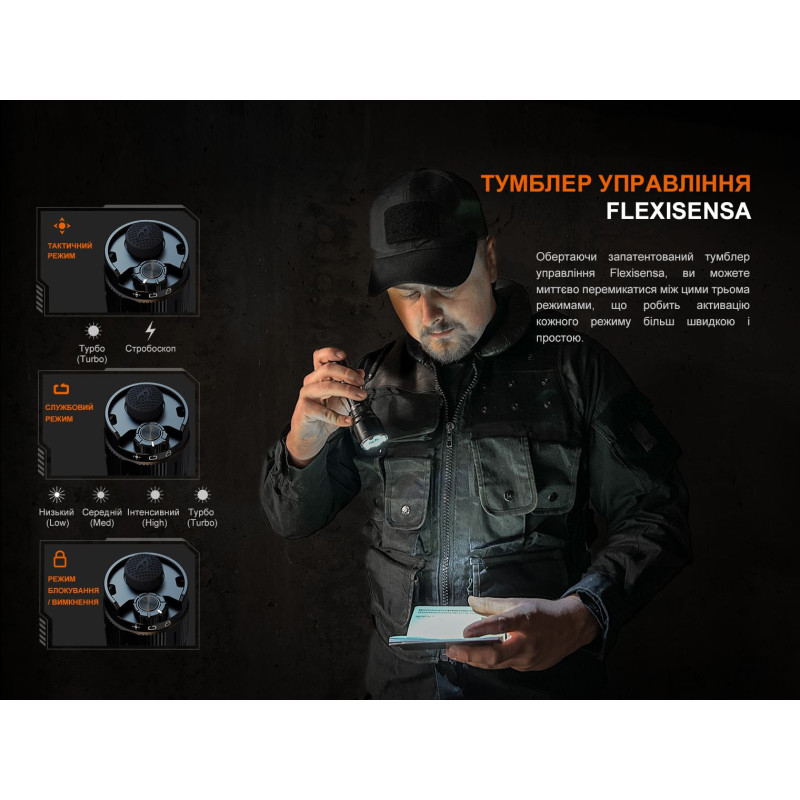

The TK22R features tactical controls with tail-cap buttons. Two switches — the rotary FlexiSensa and a standard round switch — provide quick access to modes.

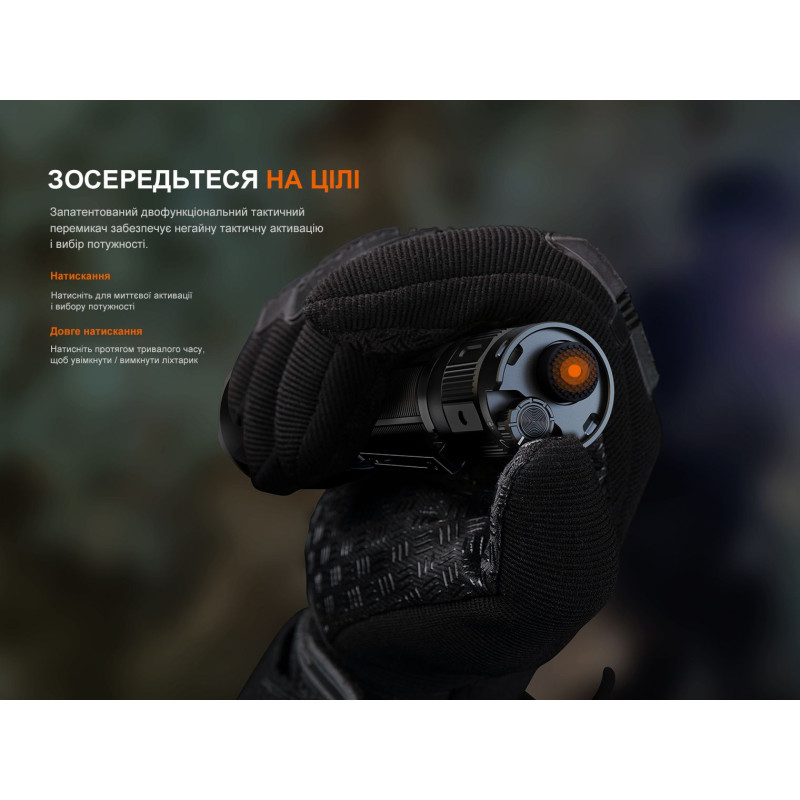

- Momentary Activation: press and hold the tactical switch (light turns off when released).
- Constant On/Off: fully press the tactical switch.
- Mode Group Selection: rotate FlexiSensa.
- Mode Change: press the tactical switch after selecting a group; in tactical group, sequence is Turbo → Strobe; in duty group — Low → Mid → High → Turbo.
- Lockout: rotate FlexiSensa to the position marked with a closed lock; after selecting a mode group, the flashlight unlocks automatically.
Note: there is a last-mode memory: when turned on again, the last used mode is activated.
Power and Charging

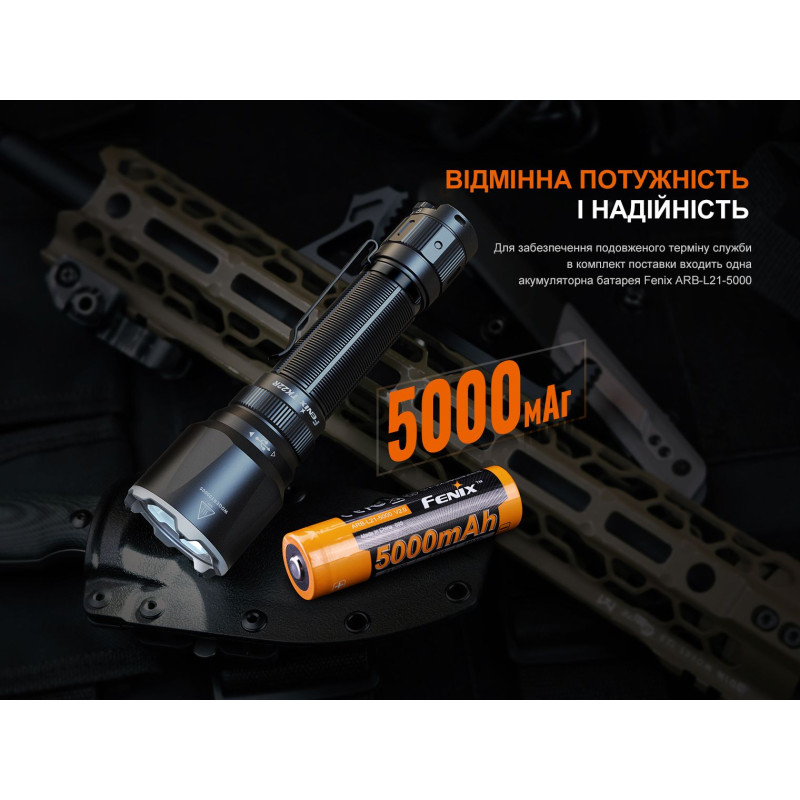

Includes ARB-L21-5000 V2.0 (21700) battery. Also compatible with 21700 standard power cells: ARB-L21-5000U or ARB-L21-4000P. For charging, a hidden USB Type-C port is located in the head of the body (to access it, unscrew the lower part of the head, which protects the port from dirt and moisture). Average charging time is 3.5 hours.
The LED charge indicator lights up for 3 seconds with each activation:
- Green (constant): 100% - 85%;
- Green (flashing): 85% - 50%;
- Red (constant): 50% - 25%;
- Red (flashing): 25% - 1%.
Warning! Do not use 18650, CR123A, or 16340 type batteries for power.
Durability and Construction
The TK22R body is primarily made of A6061-T6 anodized aluminum (HA III hard anodizing treatment), ensuring corrosion resistance. The bezel is made of stainless steel with three tungsten steel tips that withstand impact loads and can function as a glass breaker. The flashlight withstands drops from 1 meter and has dust and water protection according to IP68 standard.
Dimensions: 158 mm (length) × 40 mm (head diameter) × 25.4 mm (tail diameter). Weight — 218 g. For convenient carrying, a removable clip and a branded holster are provided, and a lanyard is also included.
Accessories and Package Contents

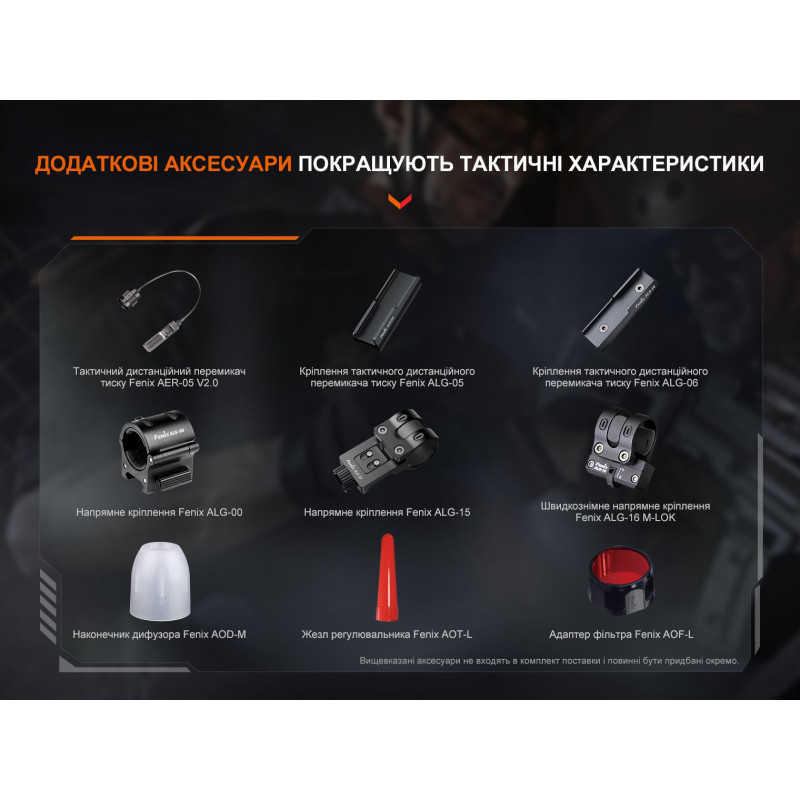

The flashlight is compatible with a wide range of branded accessories: ALG-00, ALG-15, ALG-16 mounts; AER-05 V2.0 remote tactical switch; ALG-05 and ALG-06 remote switch mounts; AOD-M diffusion filter; AOF-L color filter; AOT-L signal wand.
Package contents: Fenix TK22R flashlight, ARB-L21-5000 V2.0 battery, USB Type-C charging cable, two spare O-rings, holster, lanyard, user manual, warranty card.
Brief Technical Specifications
- Type: TK series handheld flashlight for tactical and duty purposes, also for hunters;
- Brand: Fenix;
- Color: black;
- LED: 1 × Luminus SST70 (6500K);
- Turbo brightness: up to 3200 lm;
- Beam distance: 480 m;
- Mode groups: 2 (tactical — 2 modes, duty — 4 modes);
- Controls: FlexiSensa rotary switch and tactical button;
- Power: 1 × 21700 (ARB-L21-5000 V2.0 included);
- Port: hidden USB Type-C for charging;
- Functions: overheating and short-circuit protection, last-mode memory, electronic lockout, battery level indication;
- Body material: A6061-T6 anodized aluminum;
- Bezel: stainless steel with tungsten steel tips (can serve as a glass breaker);
- Impact resistance: 1 m drop;
- Protection: IP68;
- Dimensions: 158 × 40 × 25.4 mm;
- Weight: 218 g.
