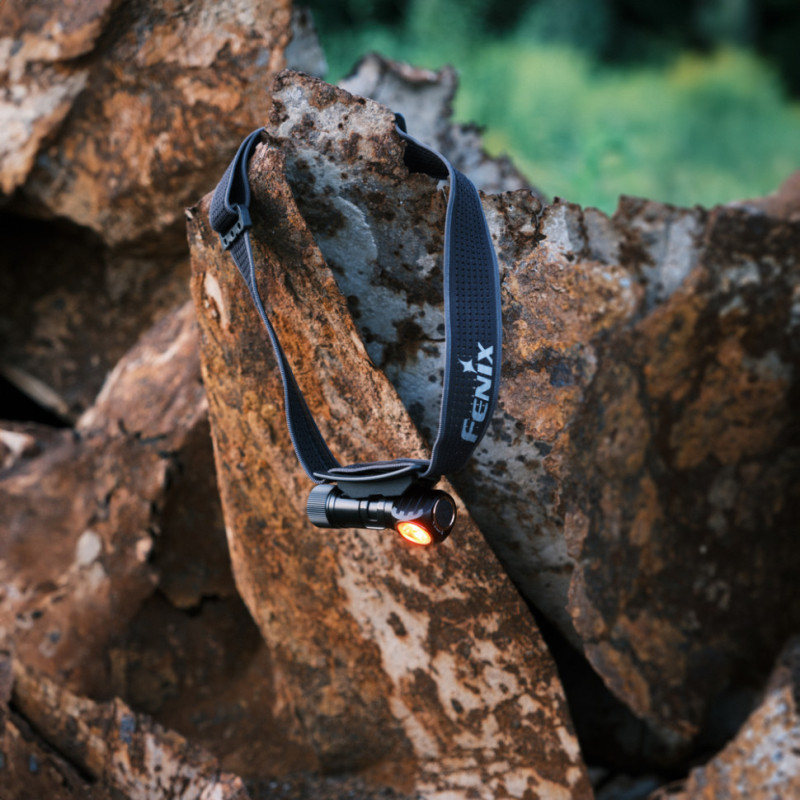

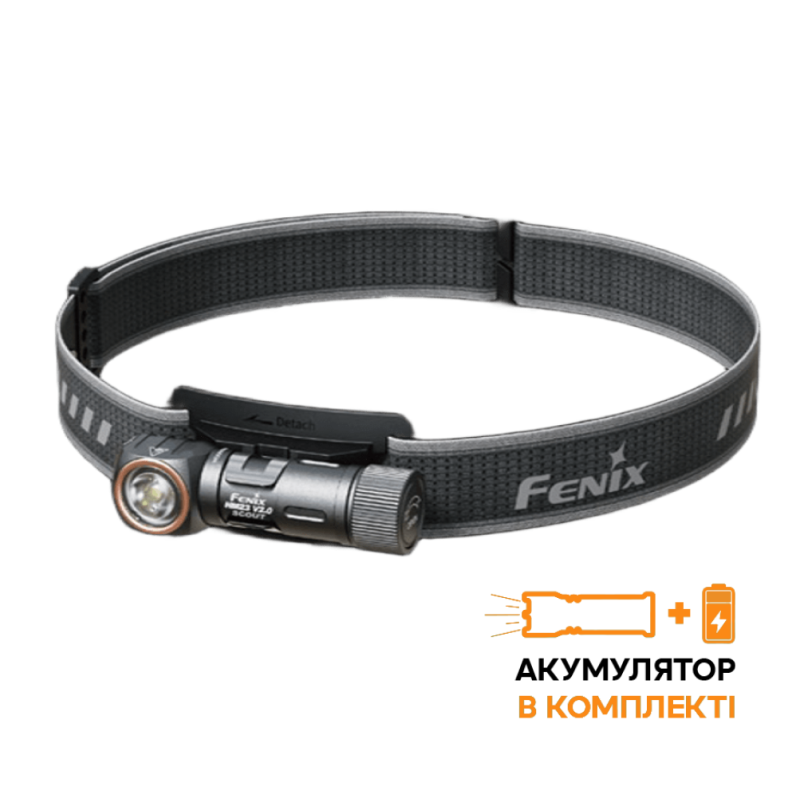

Fenix Scout (HM23 V2.0) Tactical Headlamp — Limited Edition

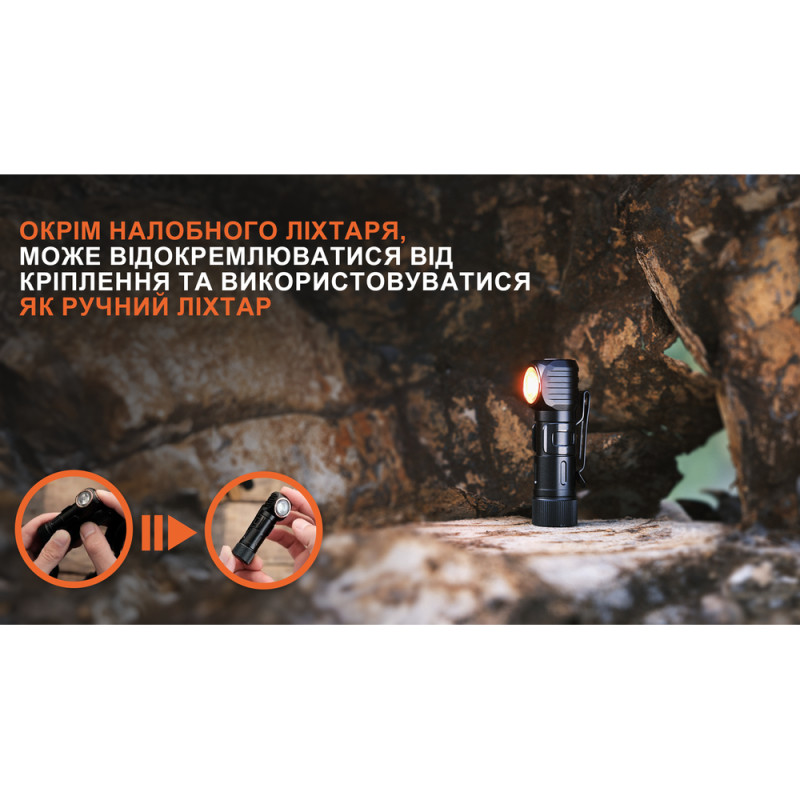

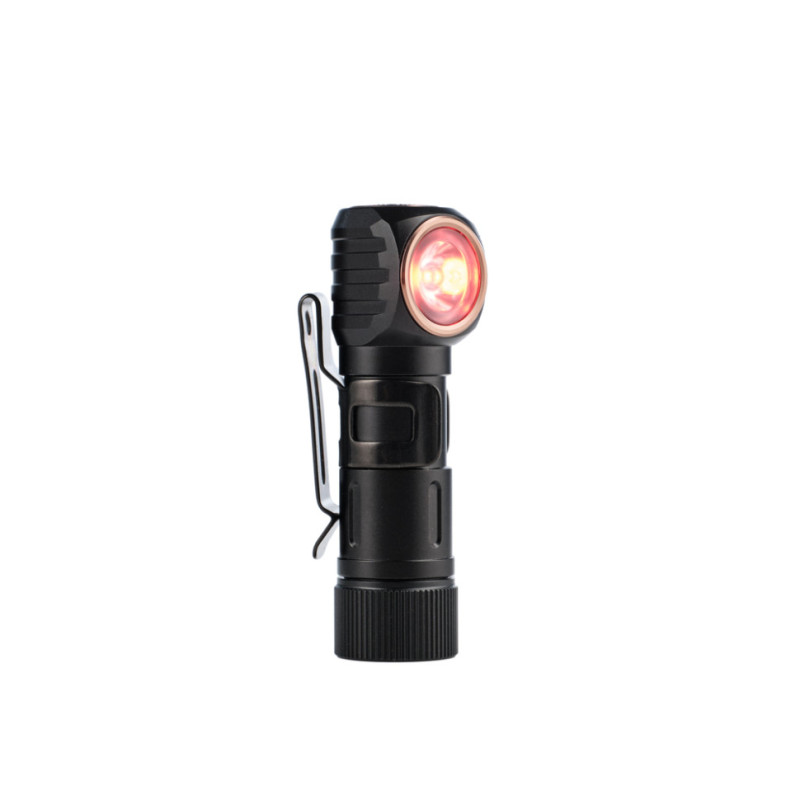

The Fenix Scout headlamp is an updated and improved HM23 model, adapted for the needs of tourists, fishermen, hunters, and military personnel in field conditions. This limited version features a detachable body from the head mount for use as a handheld flashlight, and several 2835 red LEDs have been added for expanded functionality and more anonymous illumination.
Light Modes and Control
The model has two functional blocks of modes: a red light group and a white light group. By default, the headlamp activates in red beam mode, minimizing the risk of attracting attention upon activation. Control is implemented with a single button on the body: sequential presses and holds allow switching modes, turning on/off, and activating device lockout to prevent accidental activation.
Red Light Group
- Constant Illumination: 5 lm – 5 cd – 18 h – 5 m;
- Flashing Beam: 5 lm – 36 h.
White Light Group
- High: 200 lm – 1101 cd – 10 h – 66 m;
- Medium: 50 lm – 284 cd – 14 h – 34 m;
- Low: 3 lm – 16 cd – 90 h – 8 m.
Note: Runtime in High mode is given considering the transition to less bright modes when overheating protection is triggered.
Power Source and Charging

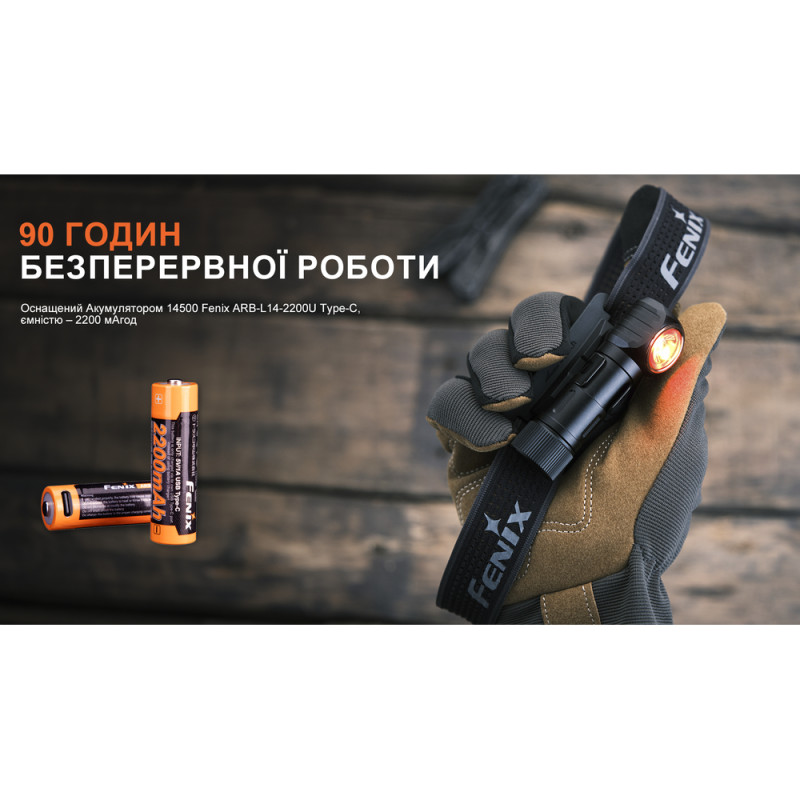

The headlamp is powered by one ARB-L14-2200U 14500 Li-ion battery (2200 mAh), which has no memory effect, is resistant to low temperatures, and withstands about 300 charge/discharge cycles. In emergencies, the proprietary battery can be replaced with an AA alkaline battery with a nominal voltage of 1.5 V. Charging is done via the built-in USB Type-C port; the charging indicator glows red during charging and green when 100% charged.
Design and Features
The body is made of impact-resistant aluminum alloy, protecting the electronics from drops up to 2 m high. The matte surface of the body improves grip and reduces the visibility of minor scratches during prolonged use. The ingress protection rating is IP68, ensuring protection against moisture, powerful water jets, and temporary submersion.

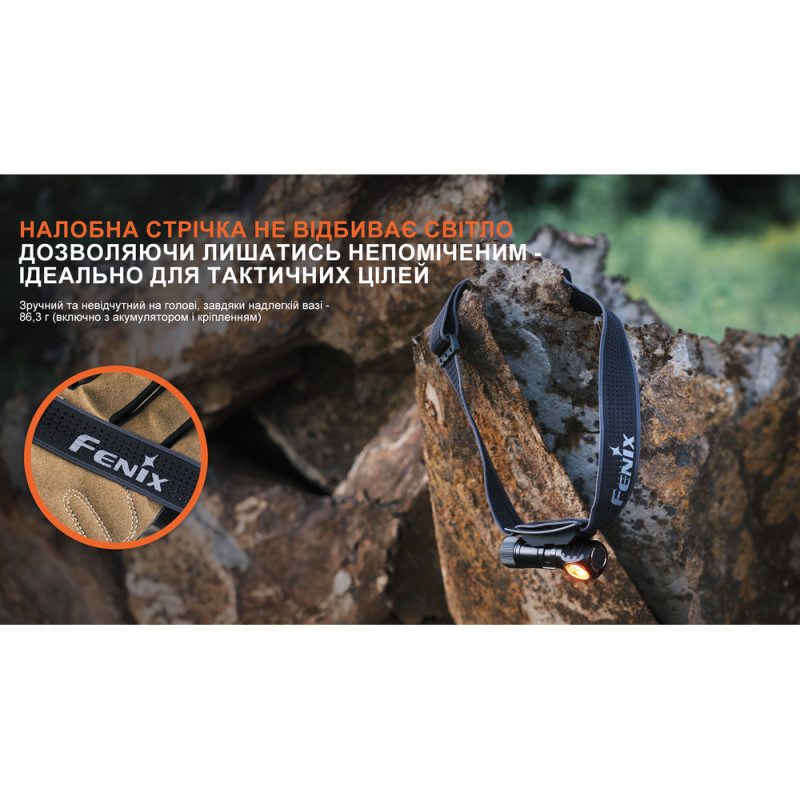

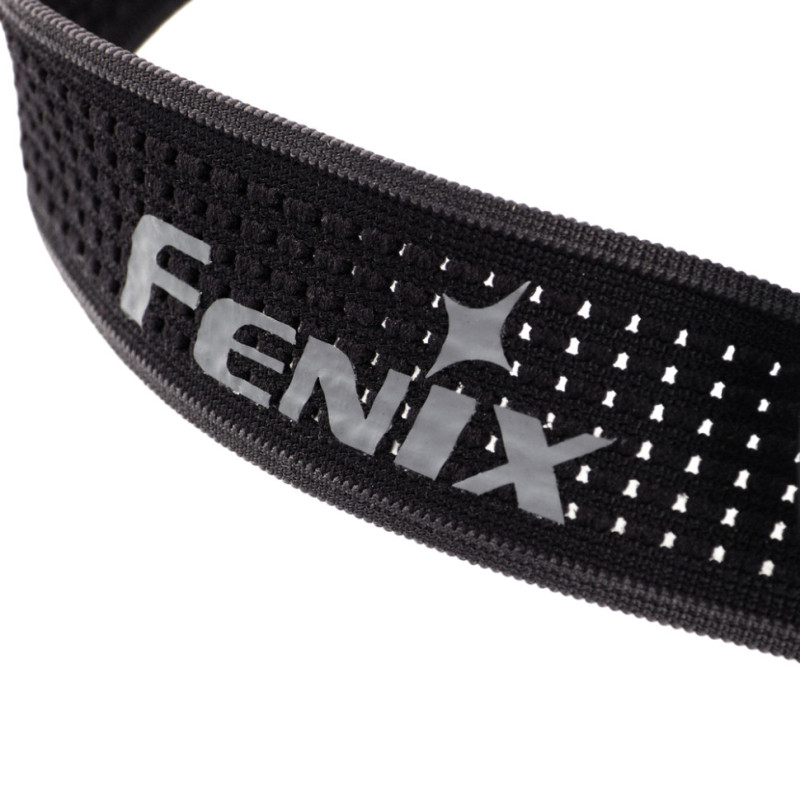

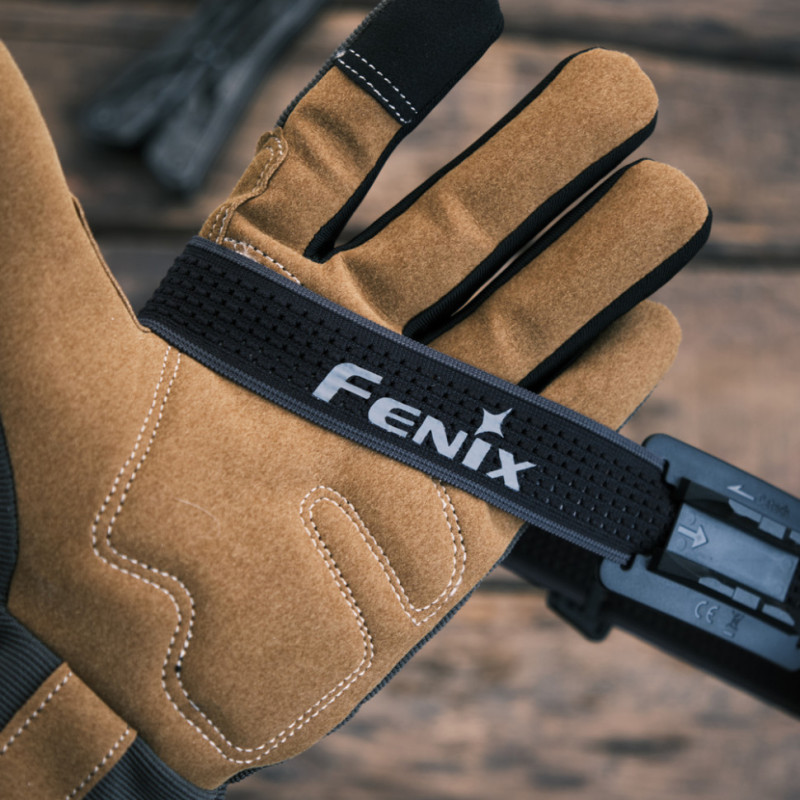

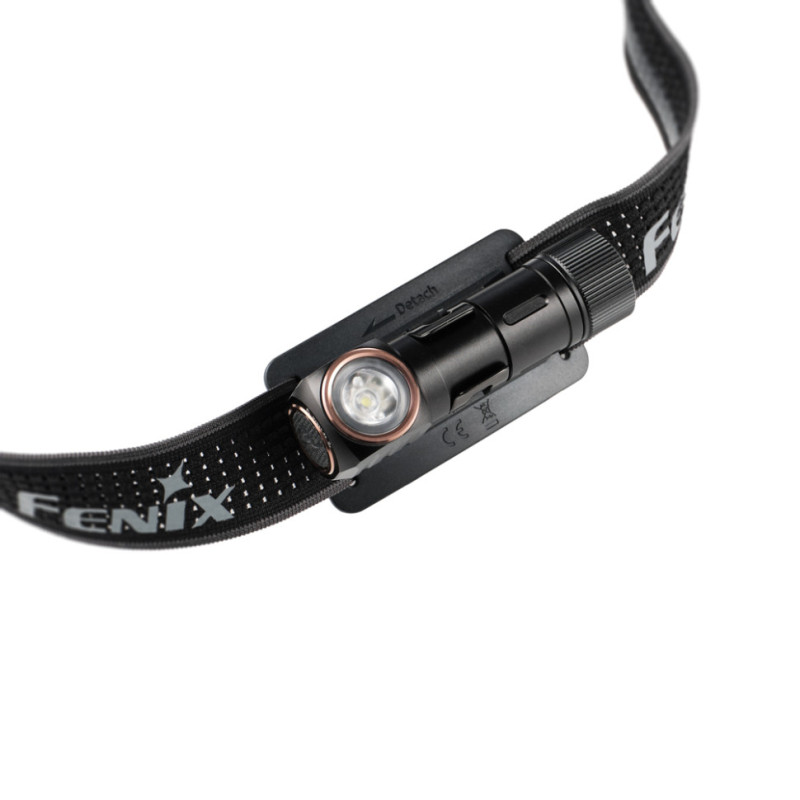

The model comes with a head mount with an adjustable black elastic strap without reflective inserts to maintain user anonymity.
Package Contents
The set includes: Fenix Scout headlamp, ARB-L14-2200U battery (2200 mAh), USB Type-C charging cable, spare O-ring, user manual, warranty card.

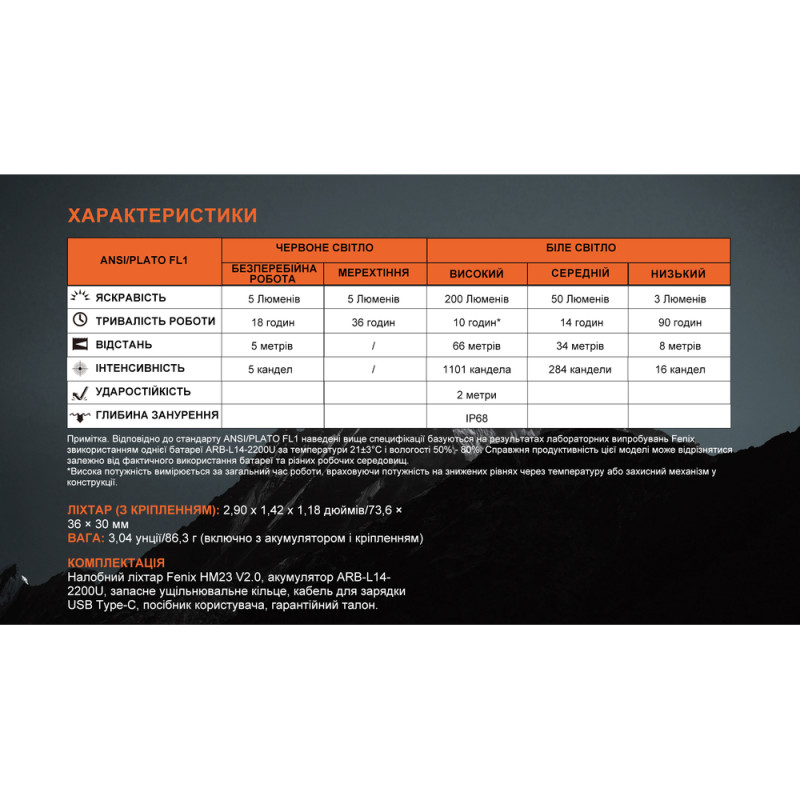

Technical Specifications
- Purpose: headlamp for tourists, fishermen, hunters, military personnel;
- Form Factor: headlamp or handheld flashlight;
- LEDs: 3 pcs. (white Luminus SST20 + 2 red 2835);
- Maximum Brightness: 200 lm;
- Illumination Distance: up to 66 m;
- Number of Modes: 5 modes, divided into 2 groups;
- Control: single button;
- Protections: overheating protection and headlamp lockout function;
- Power Source: 1 x 14500 battery (ARB-L14-2200U);
- Charging: via USB Type-C with charge level indicator (red during charging, green at 100%);
- Body Material: aluminum alloy;
- Impact Resistance: drops from up to 2 m;
- Water Resistance: IP68;
- Body Dimensions: 73.6 x 36 x 30 mm (including head mount);
- Weight: 86.3 g (including mount and battery);
- Official Warranty: 5 years;
- Manufacturer: Fenix.
The Fenix Scout (HM23 V2.0) headlamp is a reliable choice for those who need a compact, multifunctional light source with a red mode to preserve night vision and anonymity during outdoor activities or in tactical conditions.
