Electric Winch 1.4 t 12V (2.2 kW) BST 3000 LBS Husar Winch

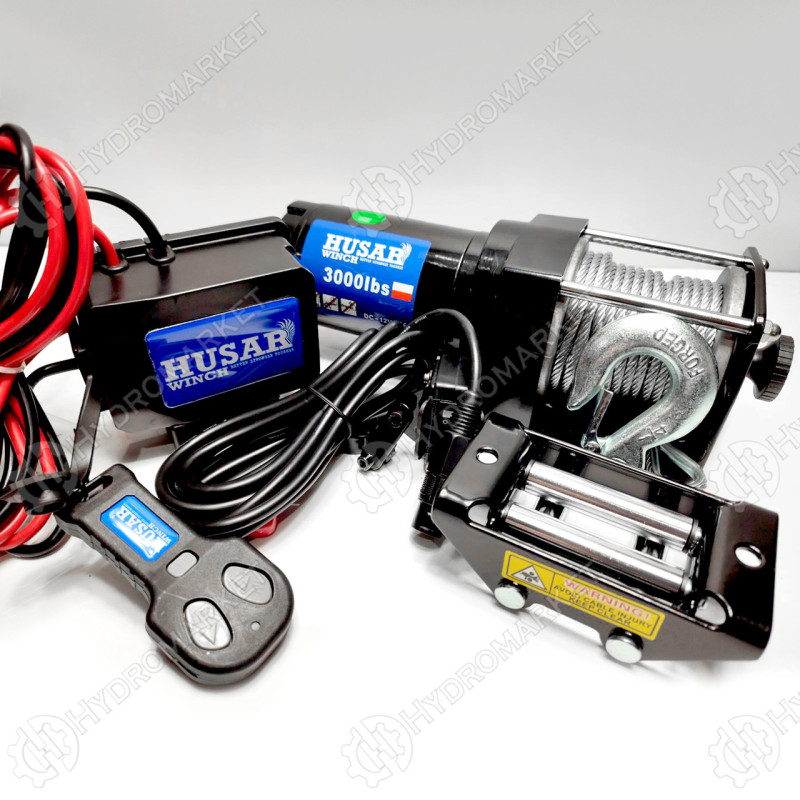

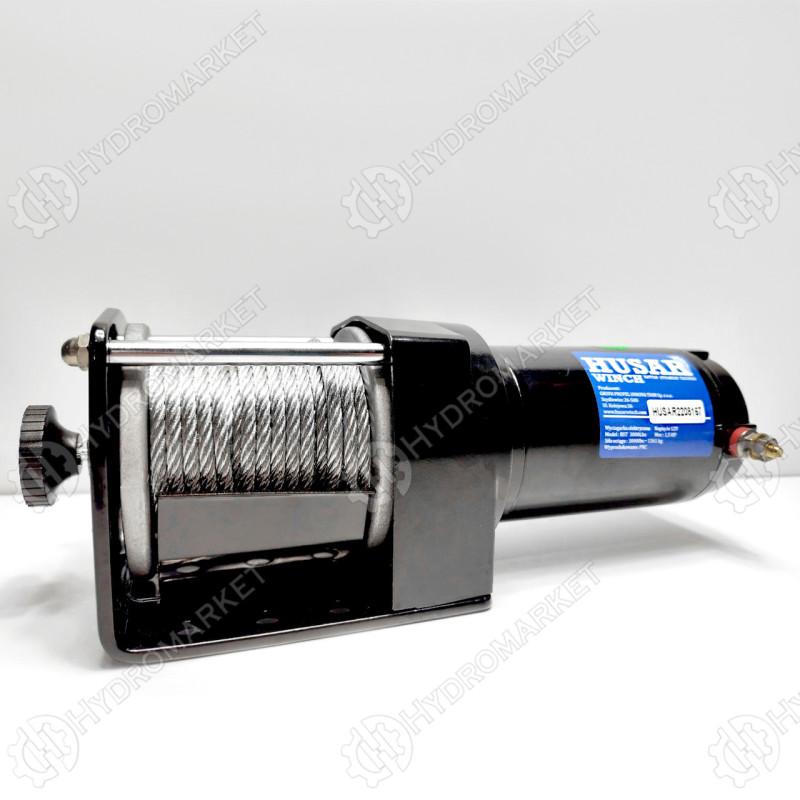

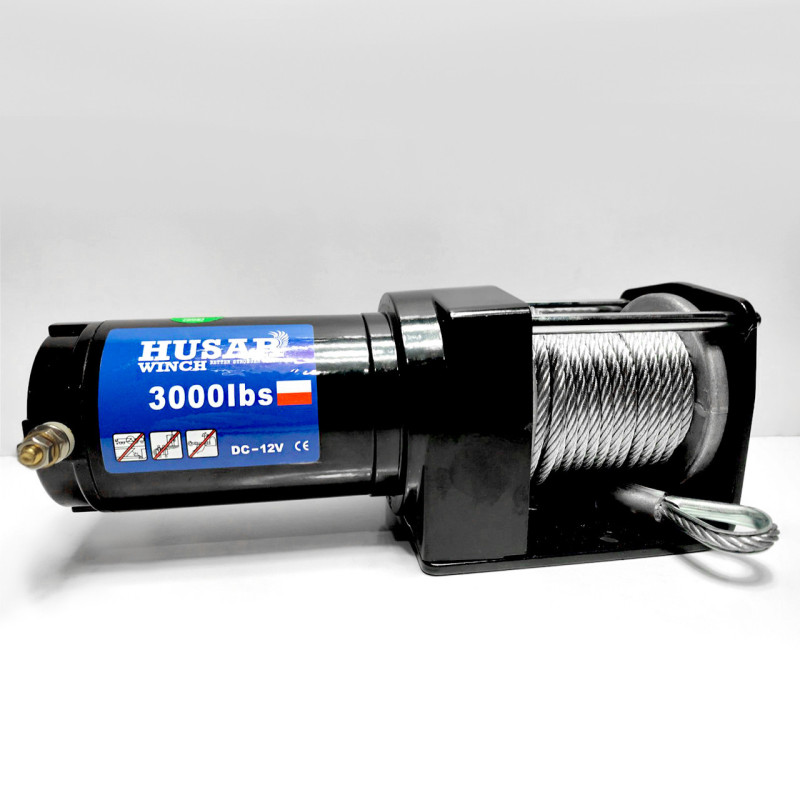

Husar BST 3000 LBS ATV Winch is a reliable and compact device designed for installation on lightweight ATVs, small specialized equipment, and plows. The model provides a maximum pulling force of 3000 lbs (1361 kg), making it a versatile assistant for both household tasks and vehicle towing.

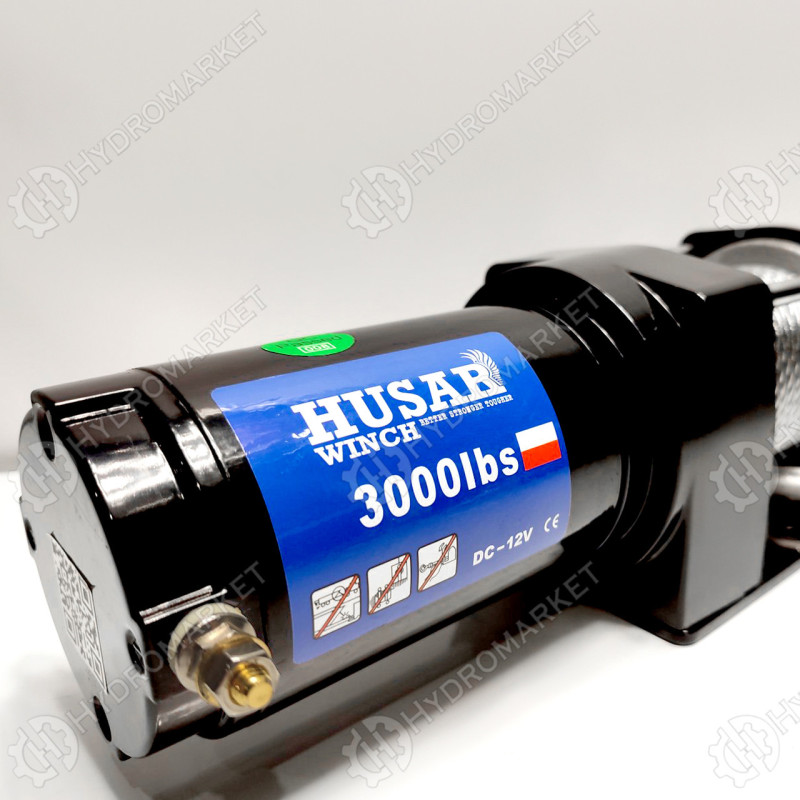

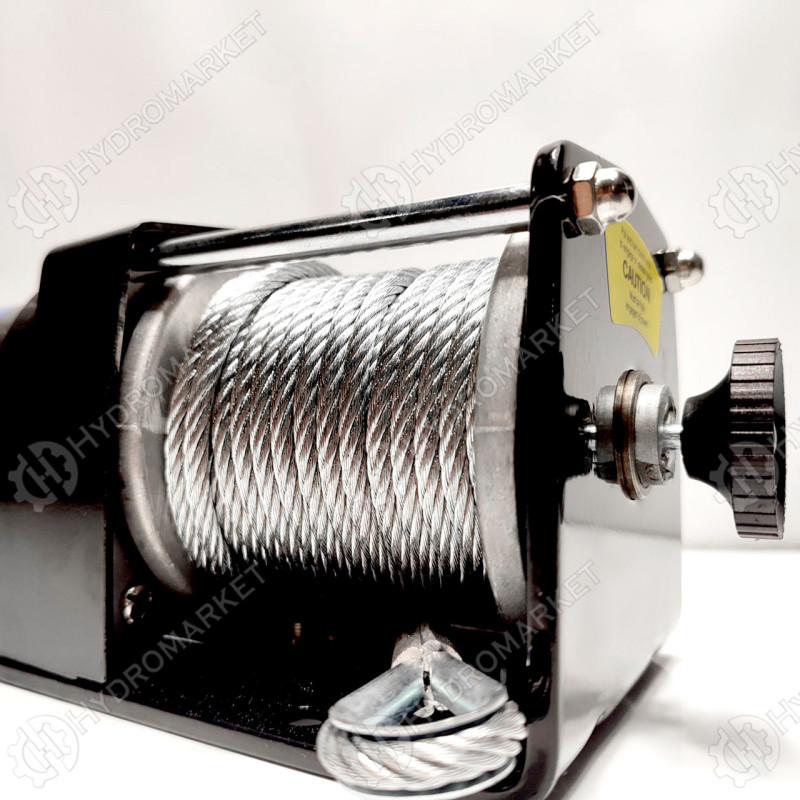

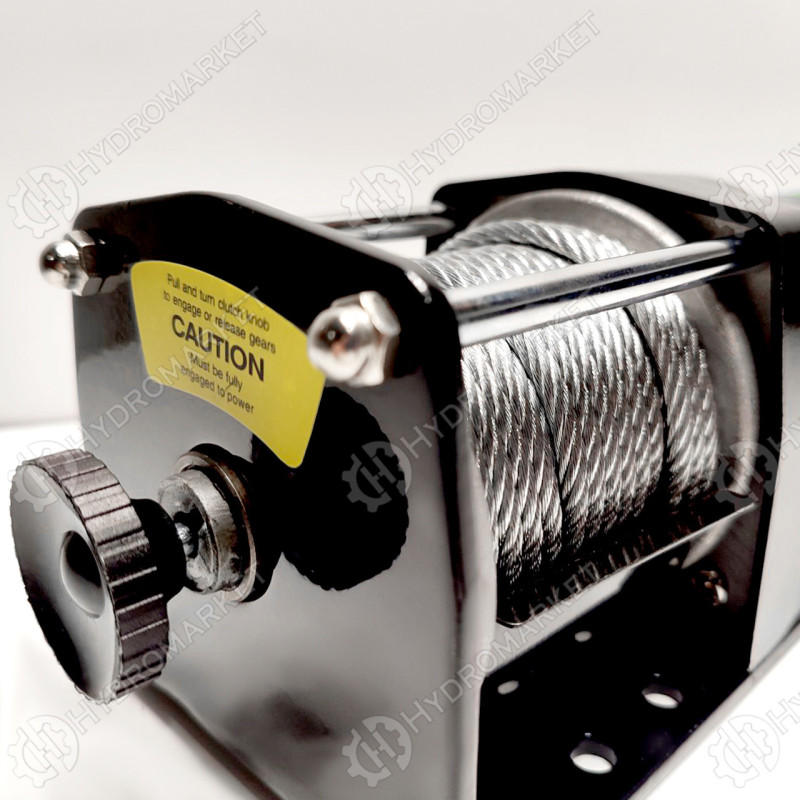

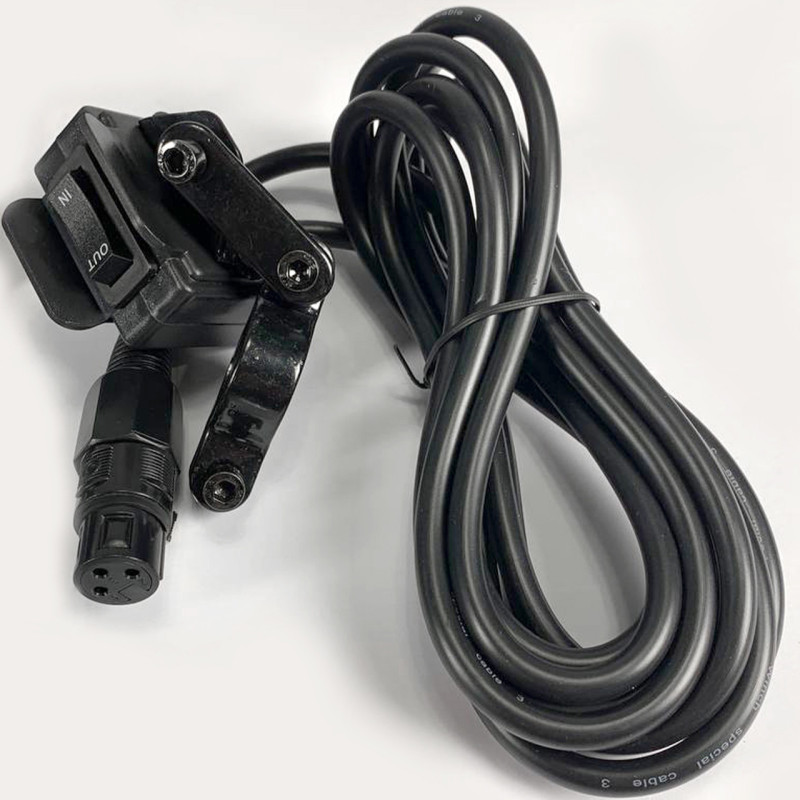

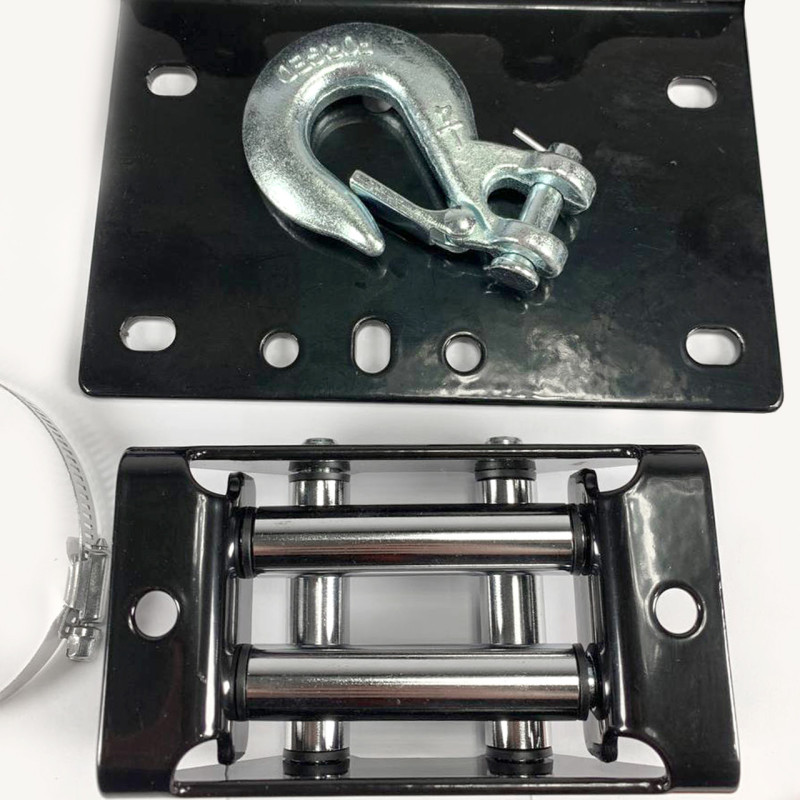

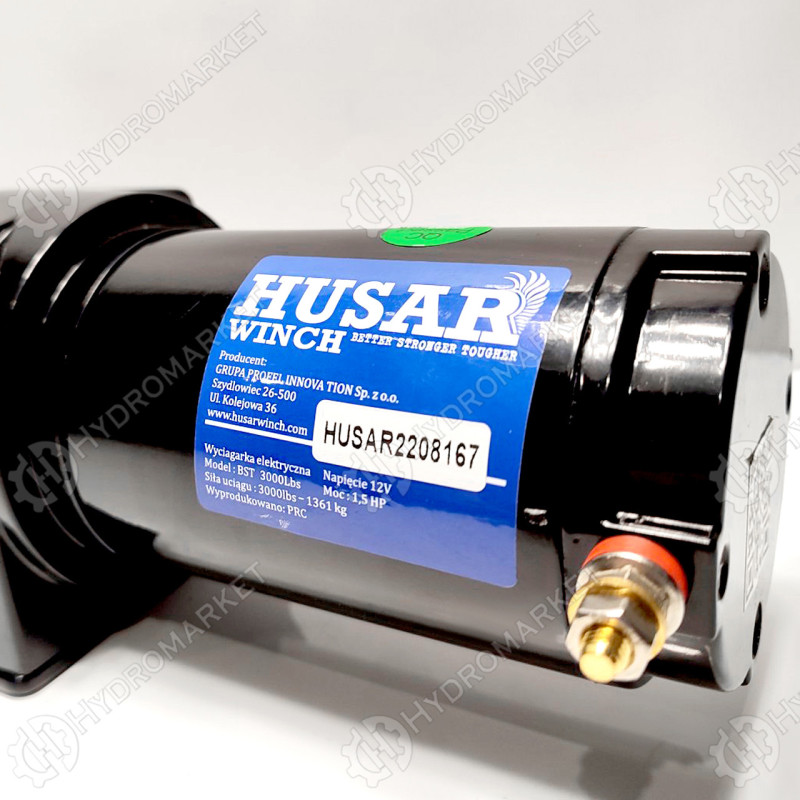

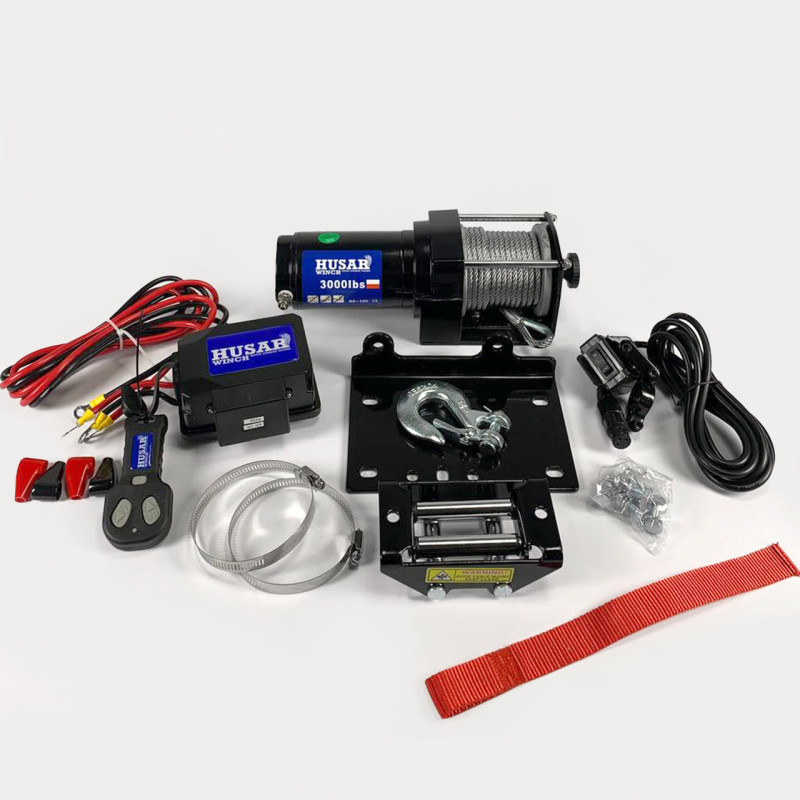

The electric motor operates on a 12-volt onboard power supply and has a power output of 2.2 kW (2.9 hp). The winch is equipped with a steel cable 4.8 mm in diameter and 14 m long, an automatic brake that securely holds the load, and a roller fairlead for even cable winding. The winding speed on the first layer at maximum load is 1.3 m/min, and control is implemented via a wired remote that attaches to the handlebars for user convenience.
The winch body has a sealed design that protects against moisture and dirt, and the equipment does not require complex maintenance. The gear ratio is 153:1, and the winch itself weighs 10 kg, which facilitates installation and operation. Manufacturer: Poland. Brand: Husar (Husar Winch) — a renowned Polish manufacturer that guarantees certified products and an official warranty.
Characteristics and Operational Data
| Line Speed and Motor Current (First Layer) | ||||||
| Rope Load | lbs | 0 | 500 | 1000 | 2000 | 3000 |
| kg | 0 | 227 | 454 | 907 | 1360 | |
| Line Speed | m/min | 3.2 | 2.8 | 2.3 | 1.8 | 1.3 |
| Current Draw | amps | 18 | 30 | 90 | 130 | 180 |
Pulling Performance on Layers
| Pulling Force Depending on Rope Layer | ||||||
| Rope Layer | 1 | 2 | 3 | 4 | ||
| Pulling Rope | lbs | 3000 | 2370 | 1670 | 1460 | |
| kg | 1361 | 1075 | 756 | 662 | ||
| Rope on Drum | M | 1.7 | 3.7 | 8.5 | 14 | |
| Technical Specifications | |
| Pulling Force | 3000 lbs / 1361 kg |
| Voltage | 12 volts |
| Motor | 2.9 hp |
| Cable Length | 14 m |
| Cable Diameter | 4.8 mm |
| Brake | automatic |
| Winch Weight | 10 kg |
| Fairlead | rollers |
| Gear Ratio | 153:1 |
| Wired Remote Control | Yes |
| Country of Manufacture | Poland |
| Motor Power | 2.2 kW |
The Husar BST 3000 LBS model has a nominal power consumption of 2.2 kW, as well as current and winding speed indicators listed in the table above, so you can correctly select the battery and evaluate operation in real conditions. A full-load speed of 1.3 m/min ensures controlled towing, and roller guides guarantee a long cable service life.
Our company offers professional installation services for winches by certified specialists, both at our service station and at the customer's site. Proper winch installation is crucial for safe and long-term operation. The estimated time for work depends on the type of winch and the availability of mounting space, and is approximately 8 hours, including bracket fabrication.
Additional information on winch installation and connection is available on the website or from a manager. The information is provided for informational purposes. Husar Winch offers a wide range of electric, hydraulic, manual, and industrial winches, as well as accessories: compressors, pulleys, shackles, cables, etc. — all products are certified and come with an official warranty.
