Electric Winch 11.79t 24V BST S 26000 LBS Husar Winch

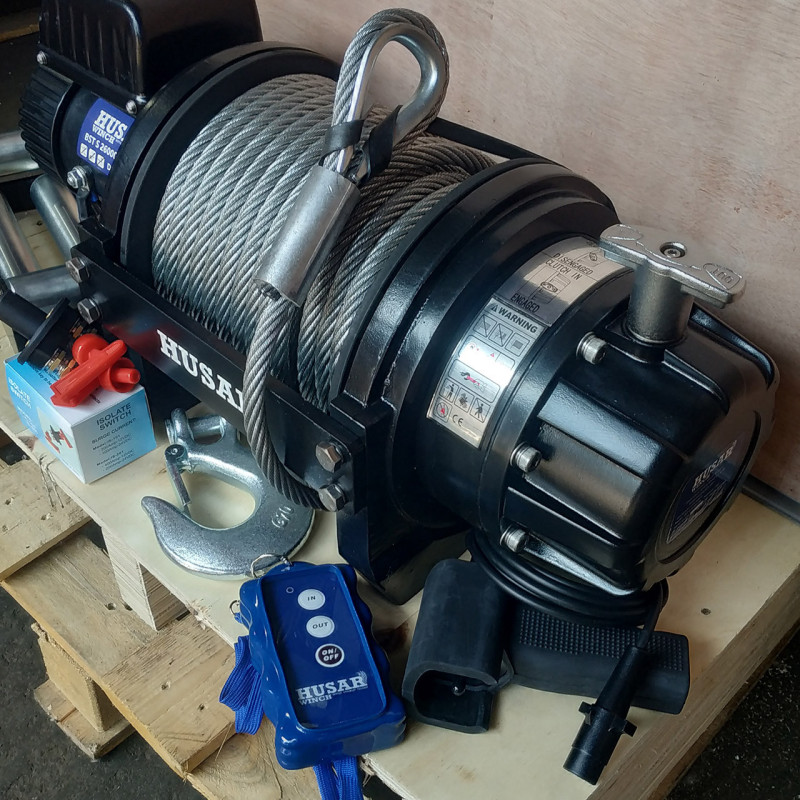

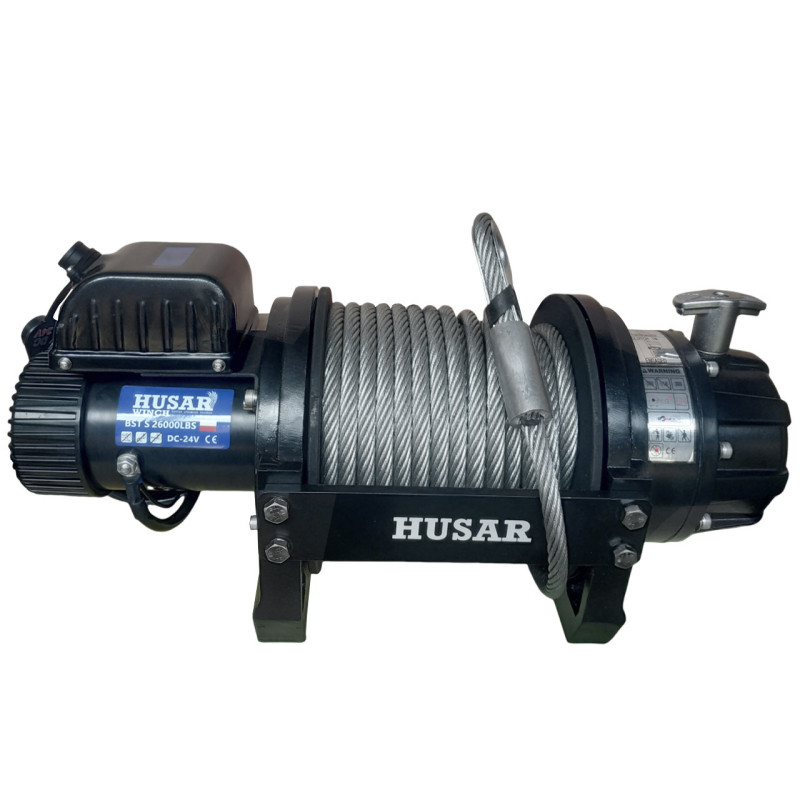

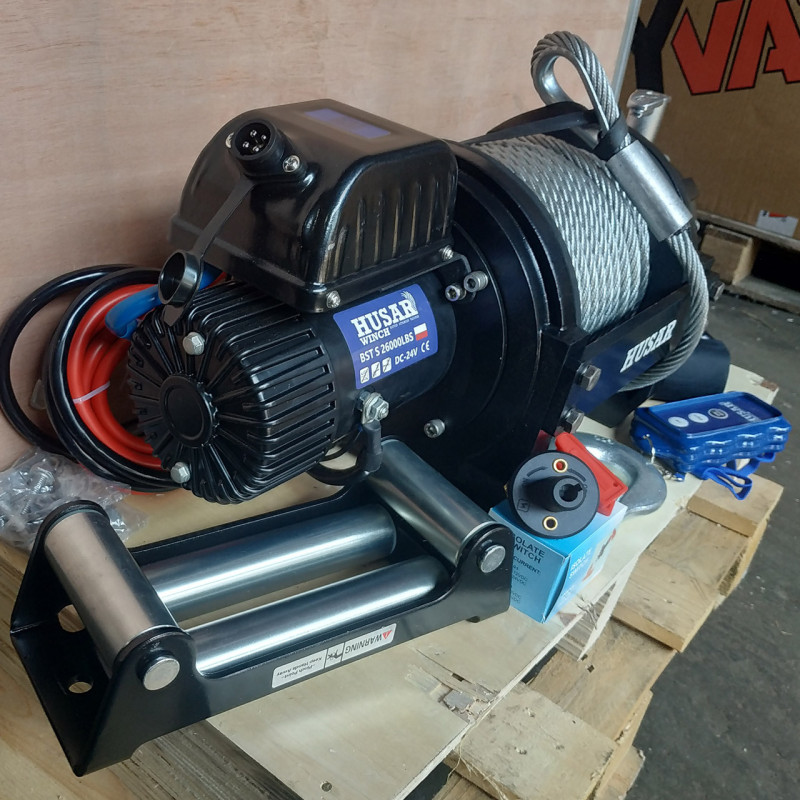

Introducing the Husar BST S 26000 LBS 24 electric winch — powerful professional pulling equipment with a nominal force of 11,793 kg (26,000 lbs). This model is ideal for SUVs, large special machinery, and other vehicles requiring a reliable and high-performance winch. Manufacturer: Husar (Husar Winch) — a renowned Polish brand supplying certified products with an official warranty.
Key advantages: high pulling capacity up to 11.79 t, 24V electric motor, reliable drum design, and a durable rope with a diameter of 13.8 mm and a length of 26.5 m. The winch is suitable for a wide range of applications — from recovery operations to installation and towing tasks.
Our company offers professional installation and mounting of winches by certified specialists both at our service station and on the customer's premises. Proper installation is critically important for safe and long-term operation. The estimated time for work depends on the type of winch and the availability of mounting space, usually about 8 hours including bracket fabrication. More about installation and winch connection can be found on our website or by contacting our manager.
Technical Specifications of the BST S 26000LBS Winch
| Pulling force (single line) | 11,793 kg (26,000 lbs) |
| 24V Motor | 6.1 kW / 8.2 hp |
| Gear ratio | 450:1 |
| Rope (diameter x length) | 13.8 mm x 26.5 m |
| Drum (diameter x length) | 120 mm x 198 mm |
| Mounting bolt pattern | 254 mm, 114.3 mm |
| Dimensions (length x width x height) | 638 mm x 298 mm x 300 mm |
| Net weight (kg) | 99.5 |
Rope speed and motor current (first layer):
| Rope load | 0 | 2268 kg | 4536 kg | 6804 kg | 9072 kg | 11793 kg |
| Rope speed | 9.3 m/min | 3.4 m/min | 2.5 m/min | 2 m/min | 1.6 m/min | 1.1 m/min |
| Current draw | 23 Amps | 90 Amps | 140 Amps | 180 Amps | 230 Amps | 280 Amps |
Pulling force depending on rope layer:
| Rope layer | 1 | 2 | 3 | 4 |
| Rope pull | 11793 kg | 9776 kg | 8348 kg | 7284 kg |
| Rope on drum | 5.4 m | 12 m | 19.7 m | 26.5 m |
Husar Winch is a proven Polish brand that has established itself in the European and Asian markets. The brand offers a wide range of electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, ropes, and other components. All Husar Winch products come with an official manufacturer's warranty.
Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches
Manufacturer: Husar
The Husar BST S 26000 LBS 24V winch is an optimal choice for those seeking powerful, reliable, and certified pulling equipment with the option of professional installation and service.
