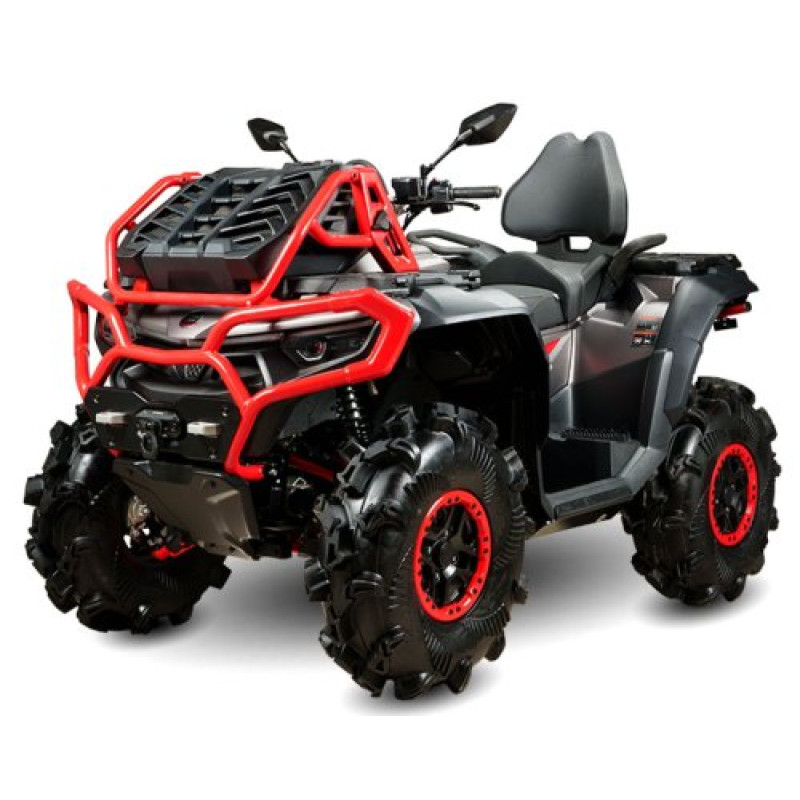

CFMOTO CFORCE 1000 MV Quad Bike

Brand: CFMOTO. The CFORCE 1000 MV model is a powerful, versatile quad bike from the category Motor Vehicles > Quad Bikes, combining modern electronics, reliable mechanics, and a well-thought-out configuration for touring, working in challenging conditions, hunting, fishing, and active recreation.

The heart of the machine is a 4-stroke, two-cylinder V-Twin gasoline engine with a displacement of 963 cm3 and a nominal power of 90 hp. The fuel delivery system is BOSCH electronic injection, the engine is started by an electric starter, and the cooling system is liquid. The nominal engine speed is 7500±150 rpm, and the maximum torque is 85 Nm at 5500 rpm, ensuring confident acceleration and high power reserve for climbs and towing.

The transmission is automatic, a V-belt variator with P/R/N/H/L modes. It features a rear differential lock and a direct final drive. The 4x4 all-wheel drive guarantees excellent off-road capability on difficult terrain and rough roads.

The front and rear braking system is hydraulic, 4-piston, dual-circuit, ensuring effective and safe braking on various surfaces. Wheelbase — 1480 mm; tire sizes: front 30x9-14, rear 30x11-14. Fuel tank capacity — 26 L. External dimensions (LxWxH) — 2491x1370x1390 mm.

The suspension is designed for harsh operating conditions: front — independent on double A-arms with gas-oil shock absorbers and a set of adjustments, travel 185 mm; rear — independent with trailing arms, travel 236 mm. This combination provides controlled and smooth riding at high speeds and when overcoming obstacles.

Configuration:

• adjustable radiator relocation kit;
• snorkels;
• handguards;
• touchscreen display with offline maps;
• electronic power steering (EPS) with 4 operating modes;
• improved shock absorbers with progressive springs and compression/rebound adjustment;
• hill descent assist system;
• wheels and tow hitch for towing.

Bodywork and Construction: The plastic bodywork is made of high-strength ABS (front bumper, side mudguards, fender flares), the metal bodywork is tubular, integrated into the frame with the possibility of installing additional storage boxes. This design combines lightness and stability, protects components, and allows the quad bike to be adapted for various tasks.

The CFORCE 1000 MV is suitable for users who value comfort, control, and reliability: it excels on touring routes, in challenging ground conditions, for towing, and performing tasks on rough terrain. The combination of a powerful engine, 4x4 all-wheel drive, high-tech electronics, and long-travel suspension makes this quad bike versatile and ready for extreme loads.
