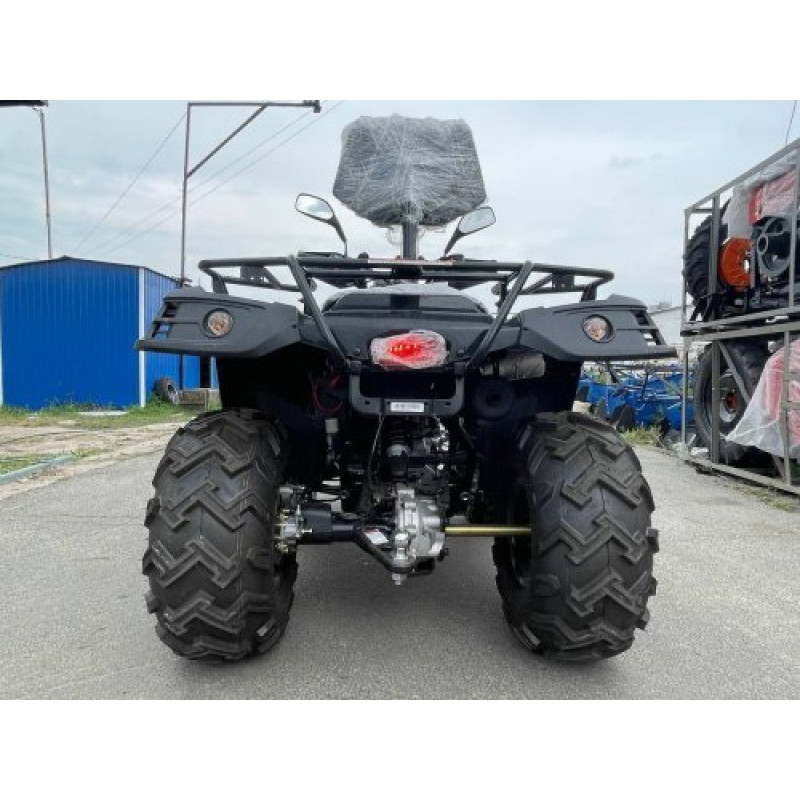

Linhai 300ATB-D (4x4) — LINHAI ATV

Introducing the Linhai 300ATB-D (4x4) — a reliable and versatile ATV from the LINHAI brand, designed for active recreation and practical work in challenging conditions. This model combines a gasoline 4-stroke engine with a carburetor and electric starter, thoughtful ergonomics, a durable transmission, and a wide range of equipment for working on a plot, in a household, or during off-road excursions.

Key technical specifications of the Linhai 300ATB-D:

• Engine power: 19 hp, 275 cm3 displacement.
• Engine type: gasoline, 4-stroke with carburetor and electric starter.
• Cooling: liquid — for stable operation under prolonged loads.

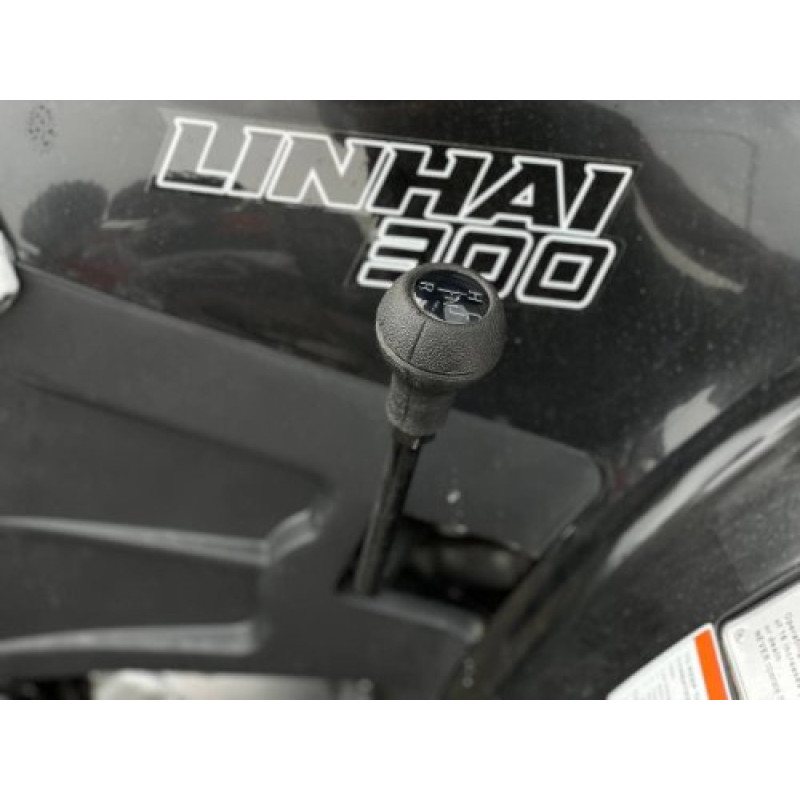

• Gearbox: automatic (V-belt variator) with L/H/N/R modes and 2WD/4WD switching capability.
• Fuel consumption: average 6 l/100 km; fuel tank capacity — 14.2 l.

The model's maneuverability and off-road capability are ensured by a 1290 mm wheelbase, dimensions of 2160x1170x1280 mm, and a tire set: front 24x8-12, rear 24x10-10. The independent front suspension with McPherson struts and the rear mono-shock absorber guarantee comfort when driving on various types of surfaces. The 4x4 wheel formula allows confident overcoming of difficult terrain sections.

Braking system and safety: front disc brakes are installed on each wheel with manual actuation (combined with the rear); rear disc brake on the axle with pedal actuation (combined with the front brakes). The parking brake locks the rear caliper and is equipped with manual actuation with a lock on the handlebars. Brake hoses are reinforced for increased reliability.

Electrical equipment includes front lenses with H4 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, and speedometer. Power is provided by a sealed lead-acid battery 12V 14Ah.

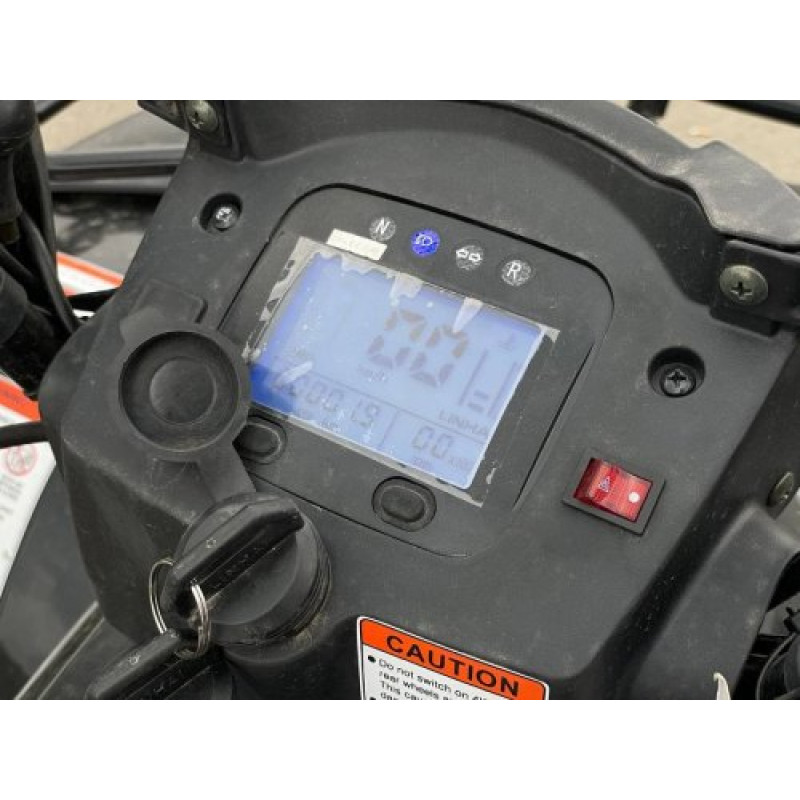

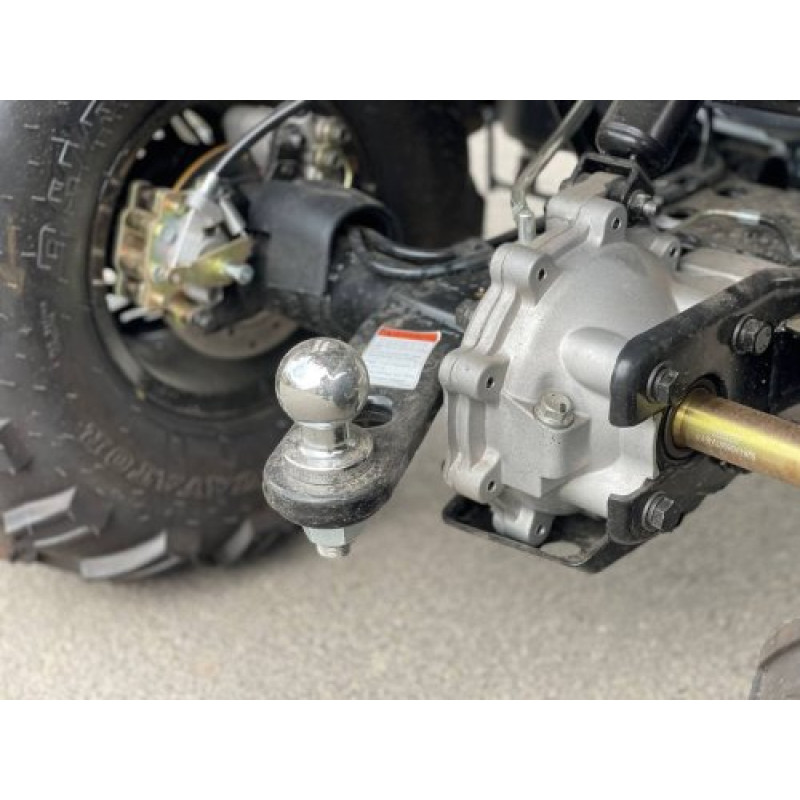

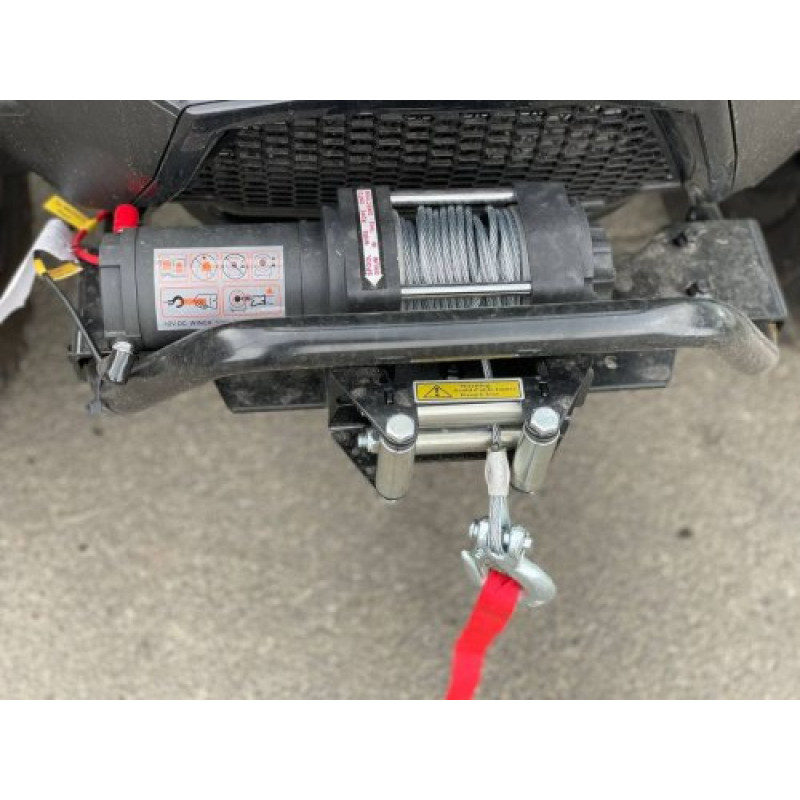

Configuration: the basic delivery includes rearview mirrors, handguards, an instrument panel with an LCD screen, a winch, alloy wheels, and a tow hitch. The plastic body kit is made of high-strength ABS (front bumper, side mudguards, fender flares). The metal body kit is tubular, integrated into the frame with the possibility of attaching additional cases.

Technical specifications in the table:

The Linhai 300ATB-D (4x4) is suitable for both recreational outdoor trips and household tasks: thanks to its robust construction, full-fledged transmission, and thoughtful configuration, you get a versatile ATV for work and leisure. The LINHAI brand guarantees reliable components and accessible service support.
