Description

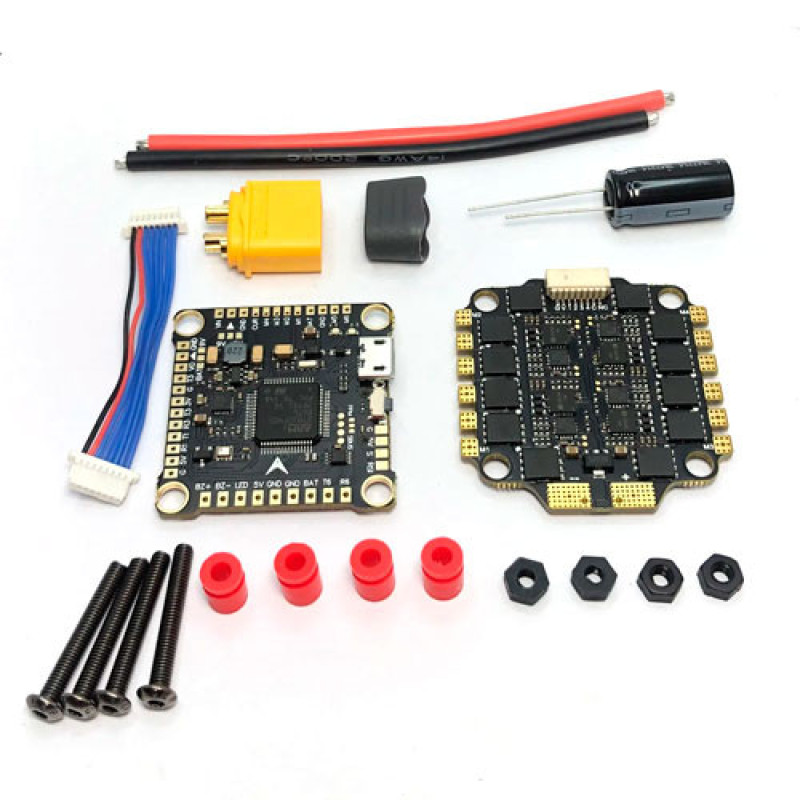

Specialized YSIDO controller, which includes the Omnibus F4 V3S PLUS flight stack and the BLS 60 A speed controller. Each module has its own functional characteristics and features.
The YSIDO F4V3S PLUS is equipped with various ports and connectors, allowing the integration of diverse FPV accessories and components such as cameras, video transmitters, and GPS modules. It also has built-in protection against overheating and short circuits.

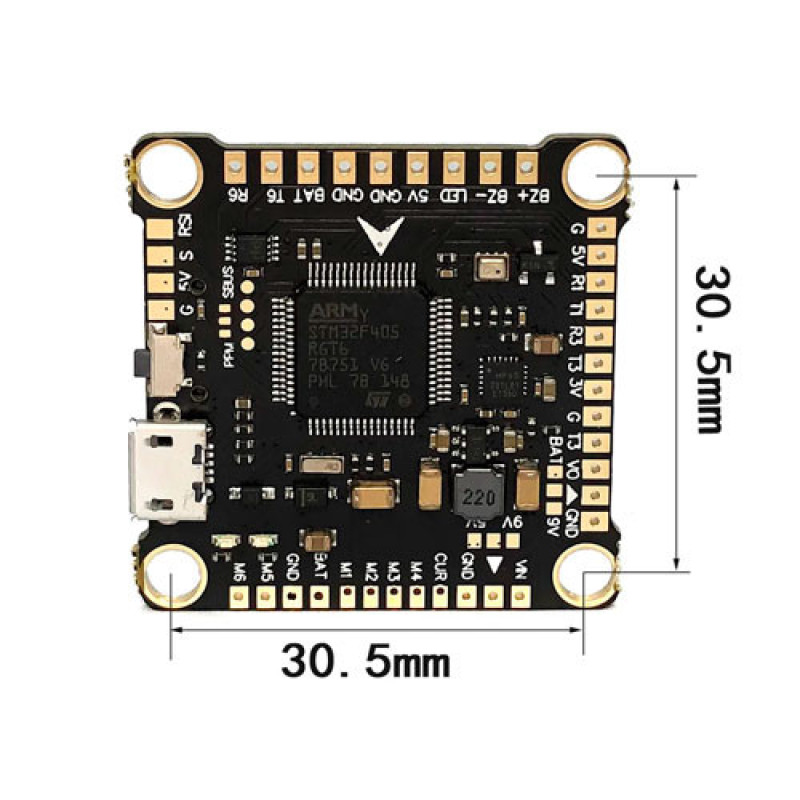

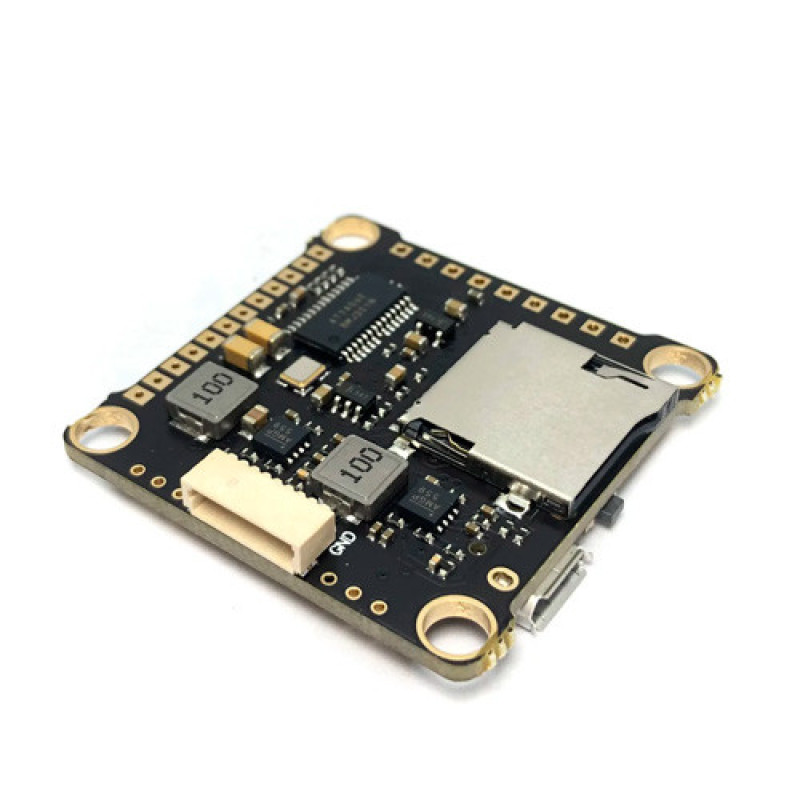

F4V3S PLUS Flight Stack Specifications:
Control chip: STM32F405
IMU (Gyro): BMI270
Built-in MicroUSB connector
Built-in BMP280 barometer
Dshot support
Drag and Drop OSD, configured with Betaflight
MicroSD card slot
SBUS / PPM AND Spketrum DSMX ports
BEC: 5V 3A / 9V 3A
Built-in video filters (5V to VTX camera only)
Mounting holes: 30.5 x 30.5 mm
Size: 36 x 36 mm
Weight: 7 g
Package contents: F4V3S PLUS flight stack, connecting cable, M3x7 rubber damping grommets (4 pcs)

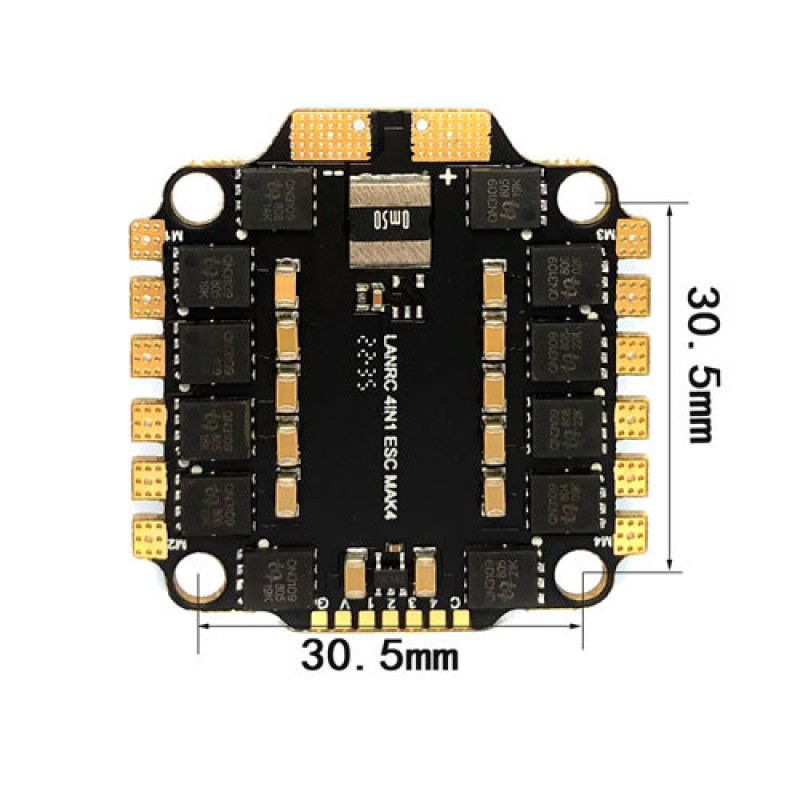

BLS 60 A 4-in-1 Speed Controller Specifications:
Firmware: BLS J_H_30_REV16_7
Onboard ESC current sensor
Continuous current: 60 A
Peak current: 70 A (up to 5 s)
Input voltage: 2-6 S LiPo
External capacitor: 680 µF (included)
Mounting size: 30.5 x 30.5 mm
Size: 41.4 x 42.2 x 4.3 mm
Weight: 12 g

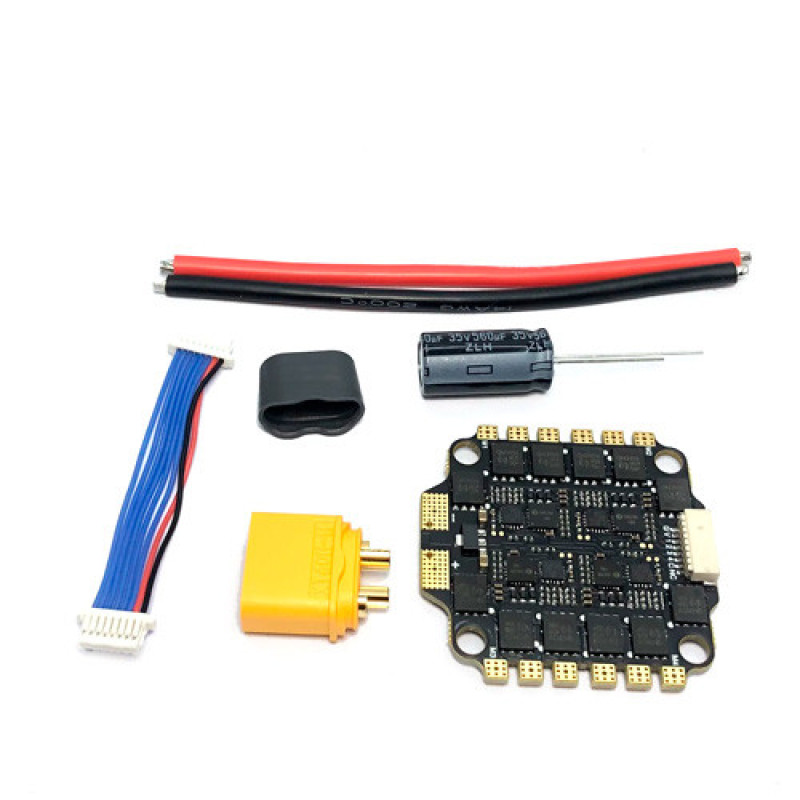

Package contents: BLS 60 A 4-in-1 speed controller, rubber damping grommets (4 pcs), capacitor, connecting cable, XT60 connector
The YSIDO F4V3S PLUS is equipped with various ports and connectors, allowing the integration of diverse FPV accessories and components such as cameras, video transmitters, and GPS modules. It also has built-in protection against overheating and short circuits.
F4V3S PLUS Flight Stack Specifications:
Control chip: STM32F405
IMU (Gyro): BMI270
Built-in MicroUSB connector
Built-in BMP280 barometer
Dshot support
Drag and Drop OSD, configured with Betaflight
MicroSD card slot
SBUS / PPM AND Spketrum DSMX ports
BEC: 5V 3A / 9V 3A
Built-in video filters (5V to VTX camera only)
Mounting holes: 30.5 x 30.5 mm
Size: 36 x 36 mm
Weight: 7 g
Package contents: F4V3S PLUS flight stack, connecting cable, M3x7 rubber damping grommets (4 pcs)
BLS 60 A 4-in-1 Speed Controller Specifications:
Firmware: BLS J_H_30_REV16_7
Onboard ESC current sensor
Continuous current: 60 A
Peak current: 70 A (up to 5 s)
Input voltage: 2-6 S LiPo
External capacitor: 680 µF (included)
Mounting size: 30.5 x 30.5 mm
Size: 41.4 x 42.2 x 4.3 mm
Weight: 12 g
Package contents: BLS 60 A 4-in-1 speed controller, rubber damping grommets (4 pcs), capacitor, connecting cable, XT60 connector
