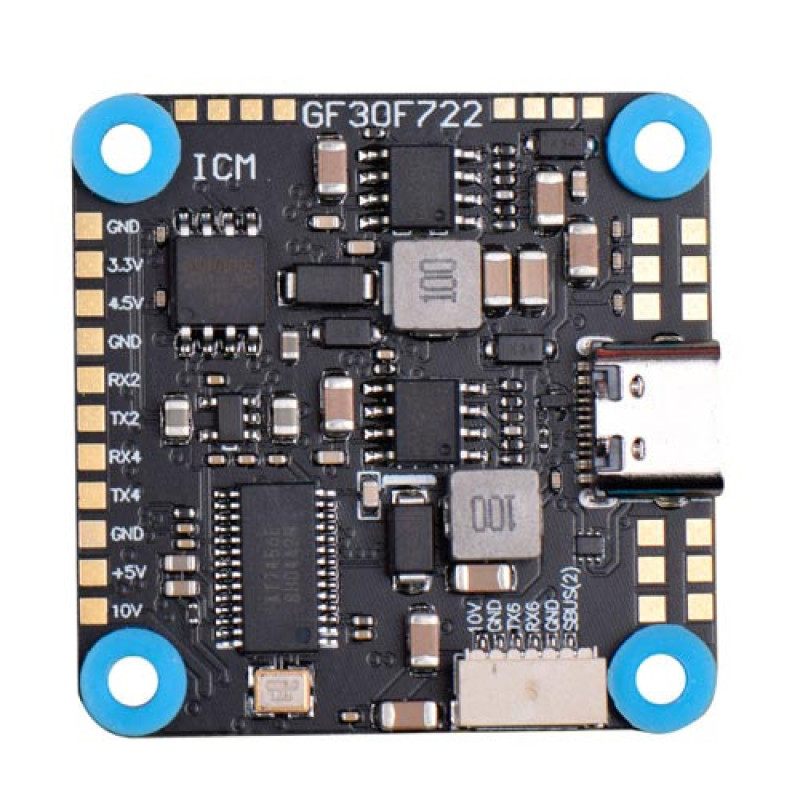

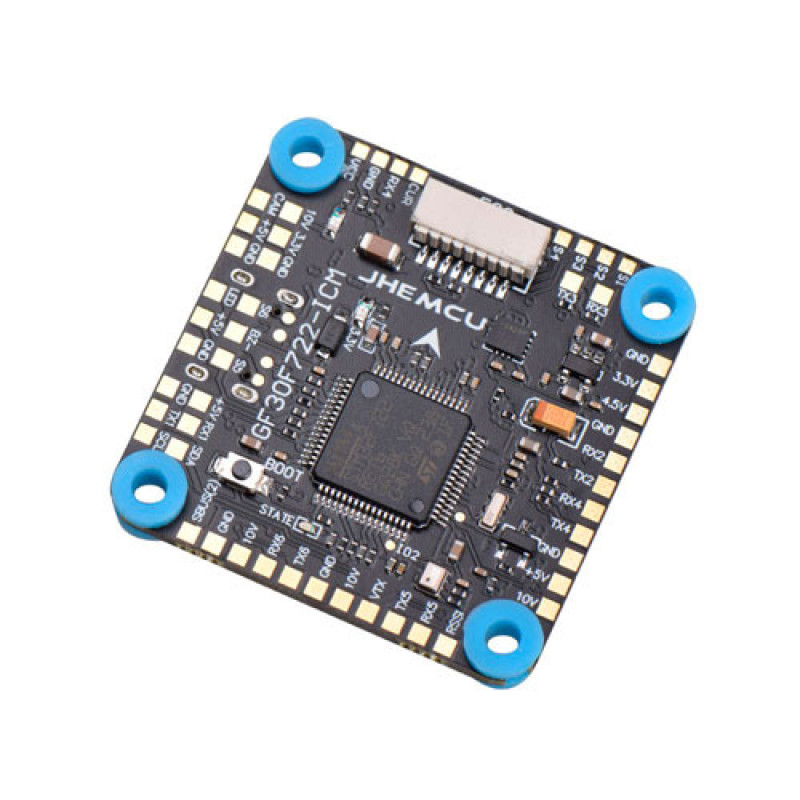

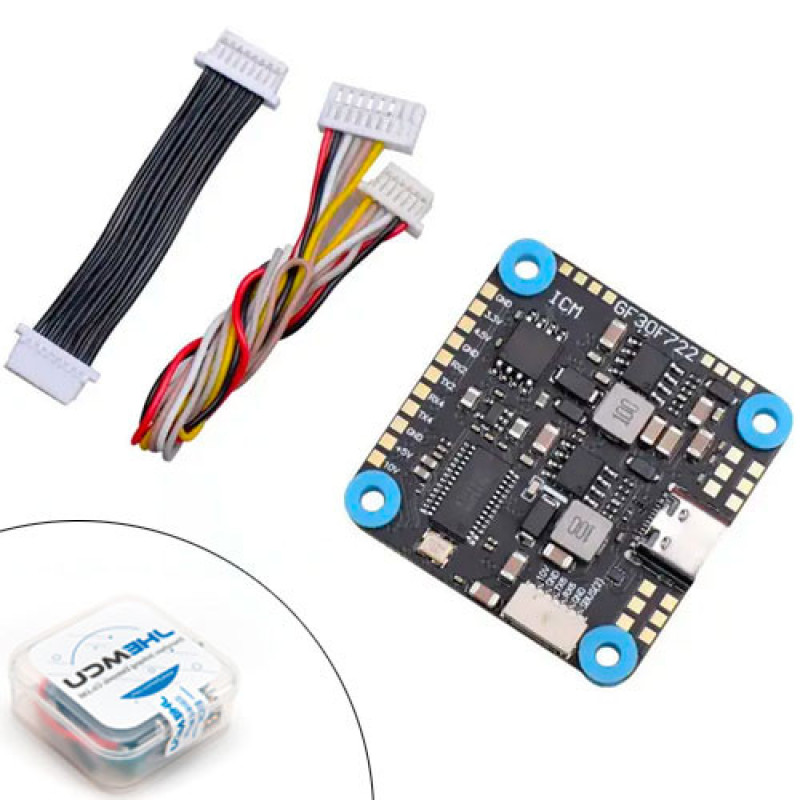

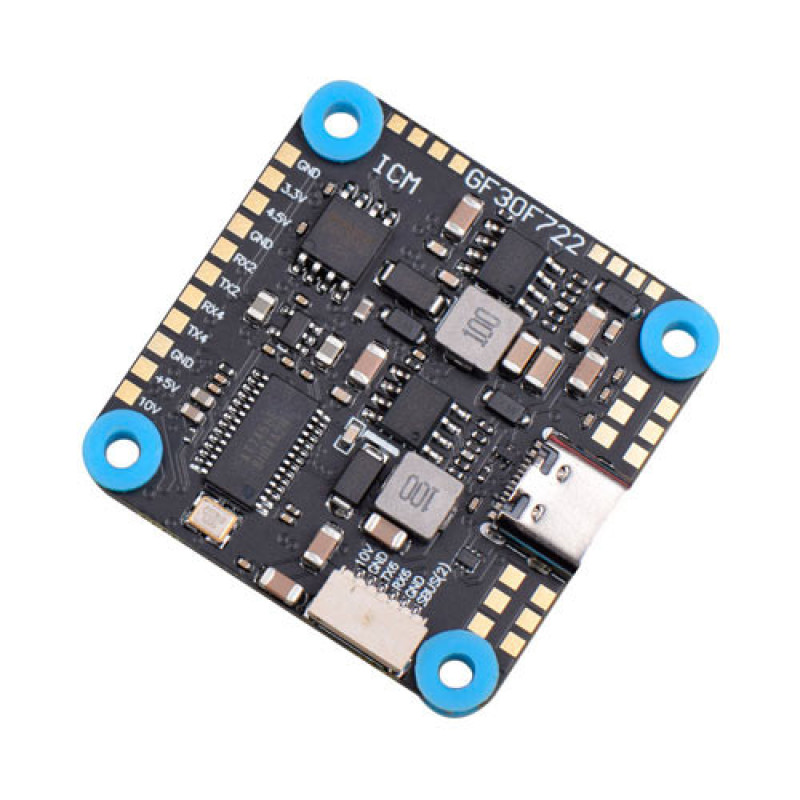

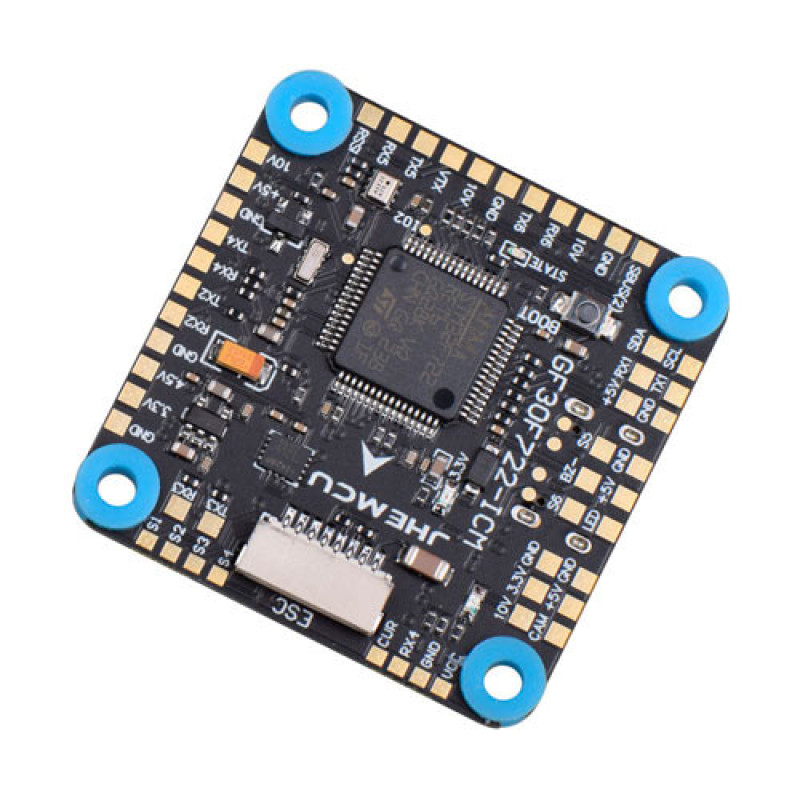

JHEMCU GF30F722 ICM F722 flight controller for drones with 3-8S LiPo batteries. The controller is built on the STM32F722RET6 chip and measures 30x30. It features an ICM-42688-P gyroscope for optimal motion detection, enhancing stability and sensitivity during flight, a barometer, and a Type-C connector. It also supports analog and digital video.
Model: GF30F722-ICM F722
MCU: STM32F722RET6
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Blackbox: 16 MB
Input Voltage: 3-8S LiPo (11.4 – 36 V)
BEC:
5 V 2.5 A ±0.1V
10 V 2 A
Receiver Support: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
UART Ports: URRT 1/2/3/4/5/6
IIC: 12C1
Led_Strip Support
Buzzer Support: 5 V
ESC Protocols: PWM, Oneshot123, Oneshot42, Multishot Dshot150, Dshot300, Dshot600
HD: Yes
Current Port: Yes
Voltage Sensor: Yes
DFU Button: Yes
Firmware: Betaflight_4.3.1 JHEF7DUAL.HEX
Size: 36 x 36 mm
Mounting Size: 30.5 x 30.5 x 4 mm
Weight: 8.8 g
Model: GF30F722-ICM F722
MCU: STM32F722RET6
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Blackbox: 16 MB
Input Voltage: 3-8S LiPo (11.4 – 36 V)
BEC:
5 V 2.5 A ±0.1V
10 V 2 A
Receiver Support: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
UART Ports: URRT 1/2/3/4/5/6
IIC: 12C1
Led_Strip Support
Buzzer Support: 5 V
ESC Protocols: PWM, Oneshot123, Oneshot42, Multishot Dshot150, Dshot300, Dshot600
HD: Yes
Current Port: Yes
Voltage Sensor: Yes
DFU Button: Yes
Firmware: Betaflight_4.3.1 JHEF7DUAL.HEX
Size: 36 x 36 mm
Mounting Size: 30.5 x 30.5 x 4 mm
Weight: 8.8 g
