The TZ series (Compact Inverter Premium) from Panasonic is a compact new product that operates on R32 refrigerant. R32 refrigerant is the latest trend in the world of air conditioning. The use of this gas allows for a 10% increase in the performance and energy efficiency of the air conditioner.

Panasonic TZ indoor units have a concise, modern design, and their main advantage is their compact size of 799 mm, which allows the air conditioner to be installed above a door. The new Panasonic CS/CU-TZ inverter models are powerful and efficient, with an energy consumption class of A++/A++. The Compact Inverter series air conditioner operates at air temperatures down to -15°C in heating mode and down to -10°C in cooling mode.

Key features of the Panasonic TZ series air conditioner:

- New compact design with a width of 799 mm

- Soft matte plastic - matte finish of the indoor unit casing

- Programmable timer

- R32 refrigerant

- Aerowings controls airflow direction

- PM2.5 filters for indoor cleanliness and comfort

- Very quiet operation, only 20 dB(A)

- Long piping length (from 15m to 30m)

- 5-year warranty on the compressor

- Heating down to -15°C

- Energy efficiency class A++

- Inverter

- High-quality twin-rotary R2 compressor (Panasonic production)

- NanoeX

- Built-in Wi-Fi module

- BMS connectivity (Smart Home connection)

- Optional: possibility to install a separate CZ-RD517C wall-mounted remote control

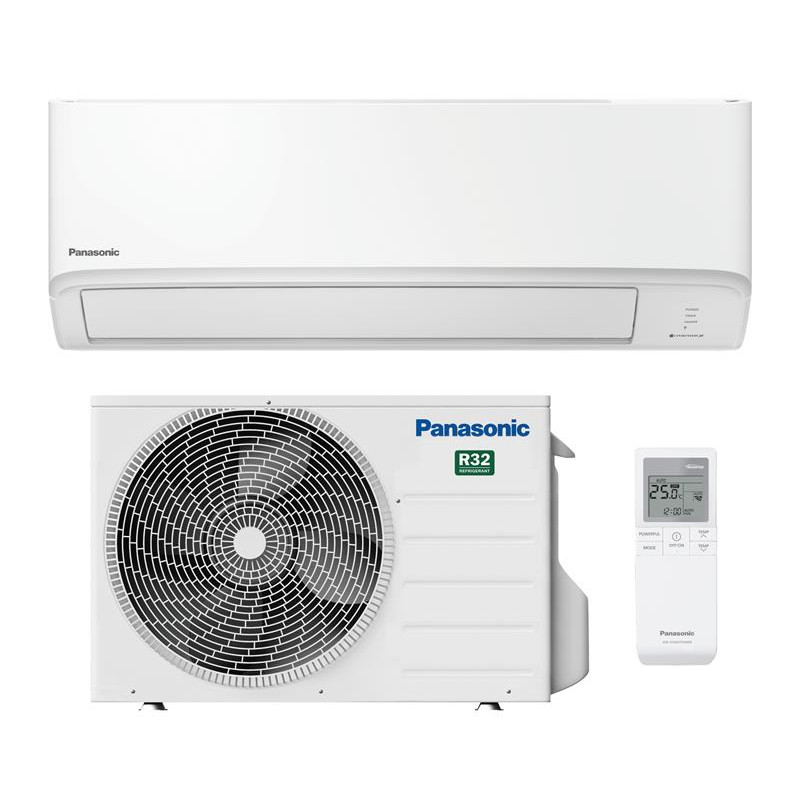

Panasonic Compact Inverter Split System Air Conditioner

The ultra-compact Panasonic Compact Inverter CS/CU-TZ* model with an inverter control system effectively handles cooling and heating of rooms in houses, apartments, offices, and small business buildings. The air conditioner perfectly manages the microclimate in the room, provides optimal temperature indicators, normal humidity, and air purity with economical resource consumption.

Innovative features of the Panasonic Compact Inverter series

The wall-mounted split system is equipped with a high-efficiency panel with a PM2.5 filter, which can capture pollutants and allergens with particle sizes up to 2.5 microns. This design neutralizes micro-components dangerous to the human body. A built-in Wi-Fi module allows for comfortable control of the air conditioner from anywhere in the house using a smartphone.

Operational reliability of Panasonic Compact Inverter

A comfortable indoor microclimate and device reliability are ensured by a combination of modern mechanical units and built-in electronics with a microprocessor for system control: The R2 Rotary compressor maintains a high level of performance and system operation in extreme conditions with outdoor temperatures ranging from -15 to +43°C. The outdoor unit with a special powder coating is protected from the destructive effects of a humid external environment. Heat exchangers with anti-corrosion coating are resistant to aggressive influences. The classic internal monoblock is made of practical white matte Soft Matt plastic, which is easy to clean from dirt. The ozone-safe R32 refrigerant with zero global warming potential is characterized by economical consumption and increases system performance. The Aerowings fan system has a double louver system with an asynchronous movement principle. The design of the dampers allows for more precise adjustment of the airflow direction in horizontal and vertical planes.

Functional operating ranges of Panasonic Compact Inverter

The household wall-mounted air conditioner with an A Inverter control system is distinguished by high precision in setting adjustments, a quiet sound level at minimum power, and high energy efficiency of the unit. The climate control equipment is equipped with a remote control with a monitor and an intuitive button panel. The split system perfectly handles standard functions of cooling, heating, dehumidification, ventilation, and air purification in the room. The device also has several convenient modes that allow selecting optimal indicators for each user:

Auto - the air conditioner is controlled by a processor that maintains a comfortable temperature for the body and adjusts the power of the device's operation.

Powerful - the system activates the maximum compressor power to quickly achieve desired temperature indicators. The forced cooling mode accelerates the temperature reduction in the room and creates a special horizontal airflow, similar in feel to cool rain.

Quiet - ultra-quiet operation of the unit at minimum indicators of 20 dB, which corresponds to the rustling of book pages.

Sleep - night operating mode, in which the device maintains optimal temperature parameters for sleep, sound, and light indication on the panel.

Timer - allows programming delayed switching on and off of the device within a 24-hour range.

Auto-restart - ensures the resumption of air conditioner operation while retaining all previously programmed settings. The self-cleaning function effectively eliminates accumulated condensate on the heat exchanger and prevents mold formation.

Advantages of installing Panasonic Compact Inverter series

The compact dimensions of the indoor unit allow it to be installed above a doorway or in places with limited installation space. The wall-mounted air conditioner can be connected to old, usable lines from R410 refrigerant. The unit is capable of operating with long piping lengths and high differences in the position of the system blocks.

With the built-in Wi-Fi and any smartphone supporting iOS/Android, it is possible to control the air conditioner remotely. All you need is to download the special Panasonic Comfort Cloud app and have internet access.

Through the app, the user gets full access to the functionality of the Panasonic air conditioner. It is possible to select the operating mode, adjust the air temperature and the intensity of the indoor unit's fan, the user can control electricity consumption, and also set an hourly timer.

TECHNICAL SPECIFICATIONS:

Cooling capacity, Nominal (min. - max.), kW: 2.00 (0.75 - 2.50)

EER, Nominal (min. - max.), W/W: 4.08 (4.17 - 3.91)

SEER: 7.00 (A++)

Pdesign (cooling), kW: 2.0

Input power, Nominal (min. - max.), kW: 0.49 (0.18 - 0.64)

Annual energy consumption, kWh: 100

Heating capacity, Nominal (min. - max.), kW: 2.70 (0.70 - 3.60)

Heating capacity at -7 °C, kW: 2.14

COP, Nominal (min. - max.), W/W: 4.15 (4.24 - 3.53)

SCOP: 4.60 (A++)

Pdesign at -10 °C, kW: 2.1

Input power, kW: 0.65 (0.17 - 1.02)

Annual energy consumption, kWh: 639

Indoor unit

Power supply, V: 230

Recommended fuse, A: 16

Connection indoor / outdoor, mm²: 4x1.5

Airflow, Cooling / Heating, m³/min: 9.9 / 10.4

Dehumidification volume, l/h: 1.3

Sound pressure

Cooling (Hi/Lo/Q-Lo), dB(A): 37/25/20

Heating (Hi / Lo / Q-Lo), dB(A): 38/26/22

Dimensions, H x W x D, mm: 290 x 779 x 209

Net weight, kg: 8

nanoe X Generator: Mark 1

Outdoor unit

Airflow, Cooling / Heating, m³/min: 29.7 / 29.7

Sound pressure, Cooling / Heating (Hi), dB(A): 46 / 47

Dimensions, H x W x D, mm: 542 x 780 x 289

Net weight, kg: 24

Piping diameter

Liquid, inch, (mm): 1/4 (6.35)

Gas, inch (mm): 3/8 (9.52)

Pipe length range, m: 3 ~ 15

Height difference (in/out) , m: 15

Pre-charged pipe length, m: 7.5

Additional gas quantity, g/m: 10

Refrigerant (R32) / CO2 equivalent, kg/T: 0.52 / 0.35

Operating range

Cooling, Min ~ Max, °C: -10 ~ +43

Heating, Min ~ Max, °C: -15 ~ +24
