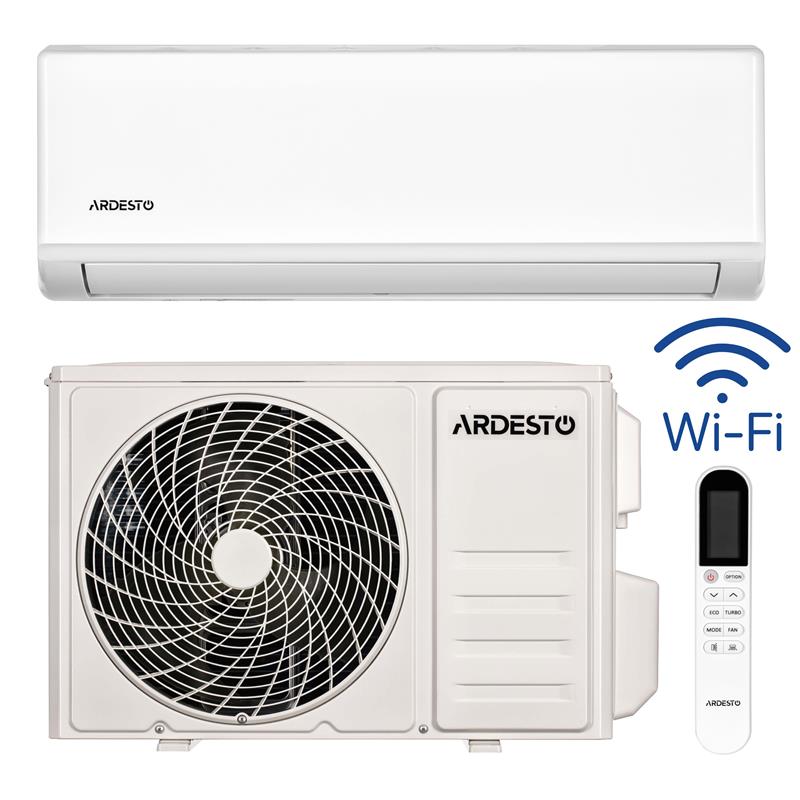

ARDESTO CoolSmart — smart air conditioners for the modern home

The ARDESTO CoolSmart series split systems are a combination of technology, aesthetics, and functionality. They are designed for those who seek to ensure stable comfort in their home in any weather.

Intelligent control via a mobile app allows easy integration of the device into the home Wi-Fi network and remote control of temperature, operating modes, and other functions — directly from a smartphone. This is an ideal solution for those who value convenience and modern technologies.

ARDESTO CoolSmart is not only for cooling in summer but also for efficient heating in winter, even at outdoor temperatures down to -15 °C. In addition, the models help maintain optimal indoor humidity thanks to the dehumidification mode, which promotes a healthy microclimate and protection against mold.

Thanks to their stylish design, the air conditioners harmoniously fit into any interior, adding a modern accent and comfort.

ARDESTO CoolSmart — where technology works for your well-being.

TECHNICAL SPECIFICATIONS

CoolSmart Series: ARD-ACS09-I

Indoor Unit: ARD-ACS09-I/IN

Outdoor Unit: ARD-ACS09-I/OUT

Power Supply, V/Ph/Hz: 220-240~/1/50

Cooling

Power Consumption, W: 2640 (700~3370)

Rated Capacity, BTU/h: 9000 (2400~11500)

Rated Current, A: 3.8 (1.3~7.1)

Energy Efficiency SEER (class): A

Heating

Power Consumption, W: 2780 (700~3660)

Rated Capacity, BTU/h: 9500 (2400~12500)

Rated Current, A: 3.6 (1.3~7.1)

Energy Efficiency SCOP (class): A

Rated Power Consumption, W: 820 (200~1600)

Maximum Current, A: 7.1

Indoor Unit Noise Level (S/H/M/L/Mute), dB(A): 38/35/30/27/24

Indoor Unit

Dimensions (WxDxH), mm: 698×255×190

Packaged Dimensions (WxDxH), mm: 764×325×257

Net / Gross Weight, kg: 6.5/8.5

Outdoor Unit Noise Level, dB(A): 48

Outdoor Unit

Dimensions (WxDxH), mm: 712×276×459

Packaged Dimensions (WxDxH), mm: 765×310×481

Net / Gross Weight, kg: 19.5/21.0

Refrigerant Type / Weight, grams: R32/400

Refrigerant Connecting Pipes, Liquid / Gas, mm (inch): 6.35(1/4'')/9.52(3/8'')

Maximum Piping Length, m: 15

Maximum Height Difference, m: 5

Operating Temperature Range (Cooling / Heating), °C: 0 to +53 / -15 to +30
