Product Code: FA94-21031-94
In Stock
78 885 грн.
Buy this product in 1 click:
Main specifications
4K Camera Support: yes
ANR function: is
Audio Input: 1
Audio Output: 1
Automatic Network Recovery: ANR
All specifications
We will deliver this product:
Payment
Description

Network Video Recorder NVR GV-N-I023/128 12MP

The GV-N-I023/128 network video recorder is used to build professional video surveillance systems. Up to 128/256 4K IP cameras with 12 MP resolution can be connected to the recorder.

The GV-N-I023/128 IP video surveillance recorder supports the ONVIF protocol with S, G, and T profiles, making it compatible with video cameras from leading global manufacturers.

ANR (Automatic Network Replenishment) technology is standard on the GV-N-I023/128. UltraAI series cameras with a MicroSD card slot can automatically store video on the memory card when the network is disconnected. After the network is restored, video recordings will be sent to the storage server. Thus, all archives will be saved even during a temporary network failure.

The network IP video recorder with hot-swappable HDD and RAID support has a configurable RAID0, RAID1, RAID5, RAID6, RAID10 storage scheme.

The GV-N-I023/128 network video recorder is equipped with intelligent search and playback with advanced video analytics features:

  • Face detection
  • Pedestrian detection
  • Vehicle detection
  • Cross-counting of objects
  • Heat map
  • Crowd density detection
  • Perimeter intrusion detection
  • Line crossing detection
  • Queue detection
  • License plate detection
  • Rare sound detection

H.265 technology for reduced storage volume and improved image quality cuts storage costs by 75% or more. This model has 16 SATA bays and accommodates up to 18 TB in each bay (hard drive not included), totaling 288 TB of storage.

The best IP video surveillance recorder GV-N-I023/128, available for purchase in Ukraine, has the following advantages:

  • Up to 128/256 IP cameras can be connected.
  • Video output with resolution up to 8K (7680*4320)
  • High network throughput for high-resolution recording up to 12MP (Input bitrate 1024Mbps)
  • Third-party IP cameras supporting ONVIF compatibility: Profile S, Profile G, Profile T
  • Supports storage capacity up to 18 TB per hard drive.
  • Built-in advanced RAID configuration with hot-swap capability
  • SMART HDD health monitoring
  • Remote backup to NAS
Specifications
4K Camera Support yes
ANR function is
Audio Input 1
Audio Output 1
Automatic Network Recovery ANR
Ethernet LAN, Mbit 2 RJ45 1000
HDD Interface Type SATA
HDMI Output Resolution 8K
Height, mm 149
Housing material metal/plastic
Input Throughput, Mbps 1024

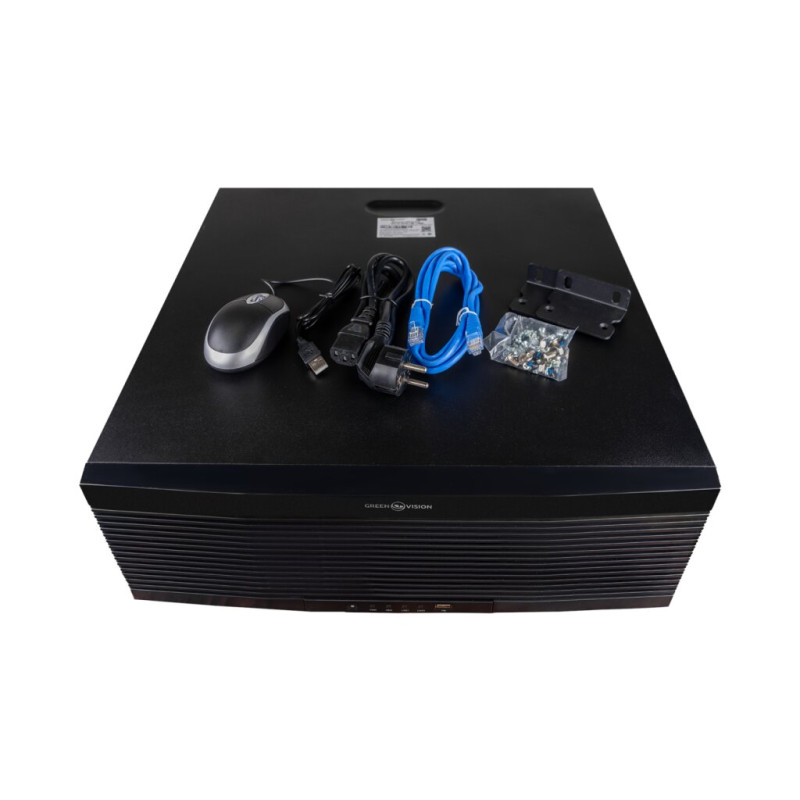

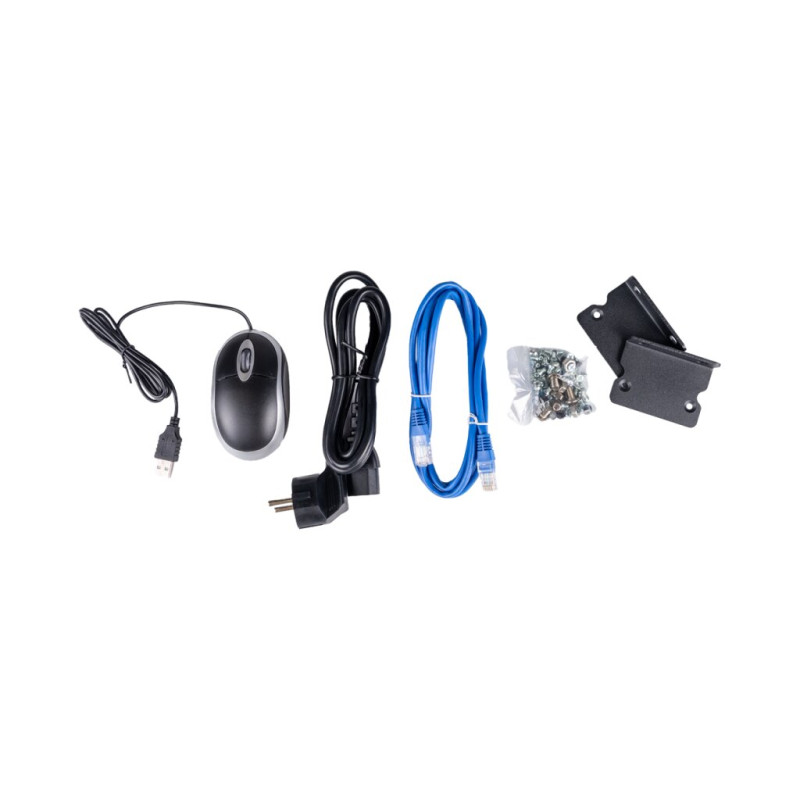

Kit Contents Recorder; Power supply; Power cable; Mouse
Length, mm 440
Max HDD capacity, TB 16 x 18
Max. number of channels simultaneously played from archive 16
Max. number of remote connections 160
Max. recording resolution, MP 12
Maximum supported camera resolution, MP 12
Megapixels, MP 12, 8, 5, 3, 2, 1.3, 1
Network Interfaces 2 RJ45 100/1000 Base-T
Number of alarm inputs 16
Number of alarm sorties 4
Number of channels played from archive depending on resolution 4K:240fps4MP:480fps2MP:960fps
Number of IP channels 128/256
Number of supported HDDs 16 Hot Plug
Number of USB ports 2 USB2.0 1 USB3.0
Operating humidity not more than 90%
Operating temperature, °C -10 ~ +55
Output throughput, Mbps 800
Power consumption, W 8
Power supply to cameras no
Power supply voltage 220V250W
Power, V/mA ATX 250W
Protocols ONVIF (Profile S/G/T)
RAID Type RAID0, RAID1, RAID5, RAID6, RAID10
Series Ultra AI
Type NVR
Use of IP protocols IPv4
Video Analytics (AI) Person Detection (FD); People and Vehicle Detection (PD & VD); Perimeter Intrusion Detection (PID); Line Crossing Detection (LCD); Per
Video Compression H.264, H.264+, H.265, H.265+
Video Output VGA, 3 HDMI
Video Transmission Technology IP
Warranty, months 18
Width, mm 460
Color black
