UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower UPS B1000 + Lithium (LiFePO4) 640W battery backup power kit has been developed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 1000/600 VA/W performs two main functions: voltage stabilization (input - 140-282, output - 220/230/240±5%V) and converting DC from the battery to an AC 220V source. The UPS system is controlled by a microprocessor. The battery provides power in backup mode.

The UPS+Battery backup power system is equipped with a LiFePO4 battery.

Battery with Smart BMS Board

The programmable management system for the lithium iron phosphate battery ensures maximum battery efficiency and extends its service life.

The SMART BMS Bluetooth board provides the battery with:

• Two-layer hardware and software protection during battery charging and discharging

• Static balance function for efficient automatic battery charging.

• Automatic heating function, which protects the battery when charging in cold weather.

• Effective temperature control of the battery operation is carried out by two external and one internal temperature detector.

LogicPower LiFePO4 batteries have several operational advantages: low self-discharge, fast charging, long cycle life, and compact size.

Connection Diagram for UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS to grid connection type – Euro plug
• Battery connection type – terminals
• Power consumer connection type – Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase.

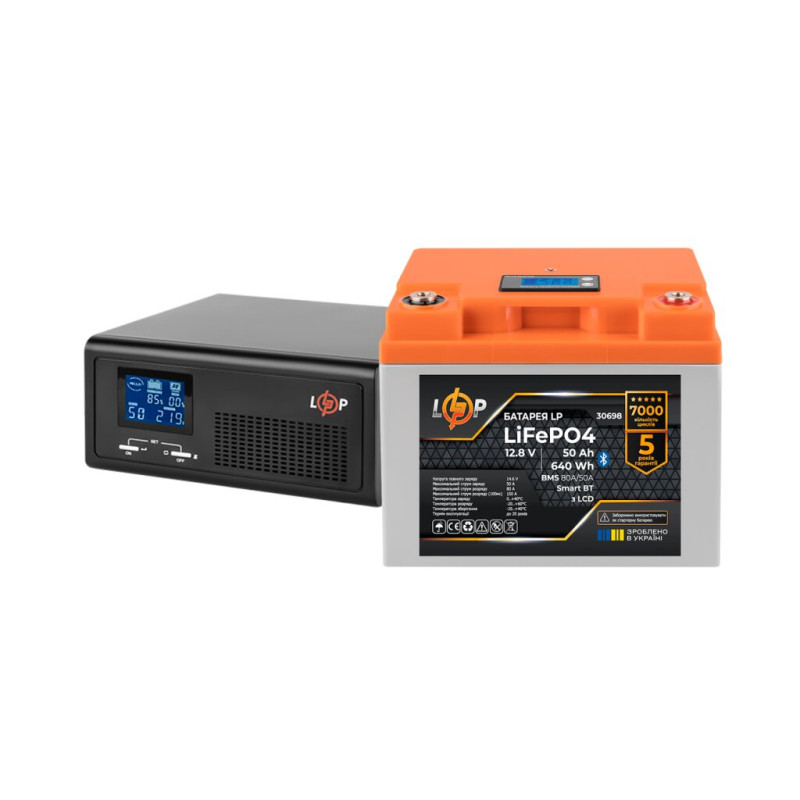

The kit includes:

Pure sine wave UPS 12V LPE-B-PSW-1000VA+ (600W) 1-30A - 1 pc.

Battery LP LiFePO4 12.8V - 50 Ah (640Wh) (BMS 80A/50A) plastic LCD Smart BT - 1 pc.
