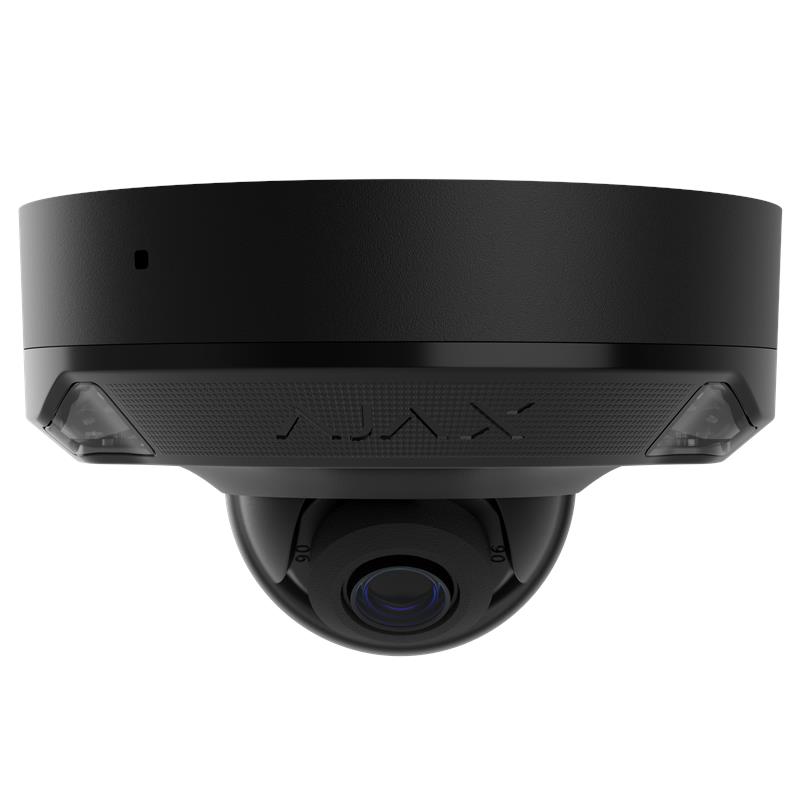

Ajax DomeCam Mini HL (5 MP, 2.8 mm) is a modern, compact dome-type IP camera designed for indoor and outdoor video surveillance. Thanks to its small size and elegant design, it easily blends into any interior or facade, remaining an inconspicuous yet effective part of the security system.

The camera is equipped with a 5-megapixel CMOS sensor, which provides a clear image with a resolution of 2880×1620 at up to 25 frames per second. The fixed 2.8 mm lens offers a wide viewing angle of approximately 100°–110°, making the model optimal for monitoring spacious rooms, corridors, or open areas.

Thanks to HybridLight technology, the DomeCam Mini HL automatically switches between infrared and white LED illumination, providing a color image even in complete darkness. The illumination range reaches up to 15 meters, which is sufficient for most standard tasks.

The True WDR function allows the camera to handle challenging lighting conditions, balancing bright and dark areas of the frame and ensuring high detail.

Built-in AI analytics identifies people, vehicles, and animals, significantly reducing false alarms and increasing the accuracy of the notification system.

The durable metal casing has an IP65 dust and moisture protection rating and an IK08 impact resistance standard, making the camera suitable for installation in areas with an increased risk of vandalism. The operating temperature range is from −30 °C to +60 °C, and humidity is up to 90%.

For video storage, the camera supports microSD cards up to 256 GB (recommended V30 class) and can also work in conjunction with an NVR that supports hard drives up to 16 TB.

Network capabilities include 100 Mbps Ethernet and PoE (802.3af/at) support, allowing power and data transmission over a single cable. Alternative power is 12 V DC. The camera uses modern H.264 and H.265 video compression algorithms.

Special attention is paid to data protection: mTLS authentication, Secure Boot technology, and secure OTA updates make the system highly resistant to unauthorized access.

The camera is equipped with a digital microphone, providing synchronous audio and video recording. G.711 μLAW/ALAW, G.726, and G.722 codecs are supported.

Integration with the Ajax ecosystem opens up additional possibilities: creating automation scenarios, push notifications, controlling lighting or sirens, working with NVRs, organizing "video walls," and setting up private zones.

Specifications Table
