X-UAV Talon EPO 1718mm Aircraft Model Assembly Kit — a professional FPV platform with a V-tail from the X-UAV brand, designed for enthusiasts who want to assemble and configure a stable and high-payload aircraft model themselves.

This model, known as the Talon FPV V-tail Drone, features an airframe made of lightweight and impact-resistant EPO material and comes as an assembly kit. The kit includes EPO parts and laser-cut plywood elements, ensuring precise fit and structural reliability. Version 2 (Talon RC Kit V3) is equipped with a reinforced plywood wing saddle frame, carbon support elements, and additional plywood parts to facilitate FPV equipment installation, as well as a reinforced plywood front wheel mount for better protection during hard landings.

Specifications

Brand: X-UAV
Model: Talon RC Kit V3
Material: EPO
Wingspan: 1718 mm
Length: 1100 mm
Flying Weight: 2500~3000 g
Wing Area: 60 d㎡
Wing Loading: 55~66 g/d㎡

Recommended Drive System

• Motor: 3720 KV1200
• Thrust: 3000 g
• ESC: 70A
• Servos: 2 × 9g and 2 × 17g
• Propeller: ≤ 12 inches
• Battery: 14.8V, 4S 10000 mAh Li-polymer
• Control System: FS-TH9X + R9B

Design Features

• The kit requires user assembly and equipment installation, providing complete customization freedom.
• The frame is made of lightweight, impact-resistant EPO for an optimal balance of weight and strength.

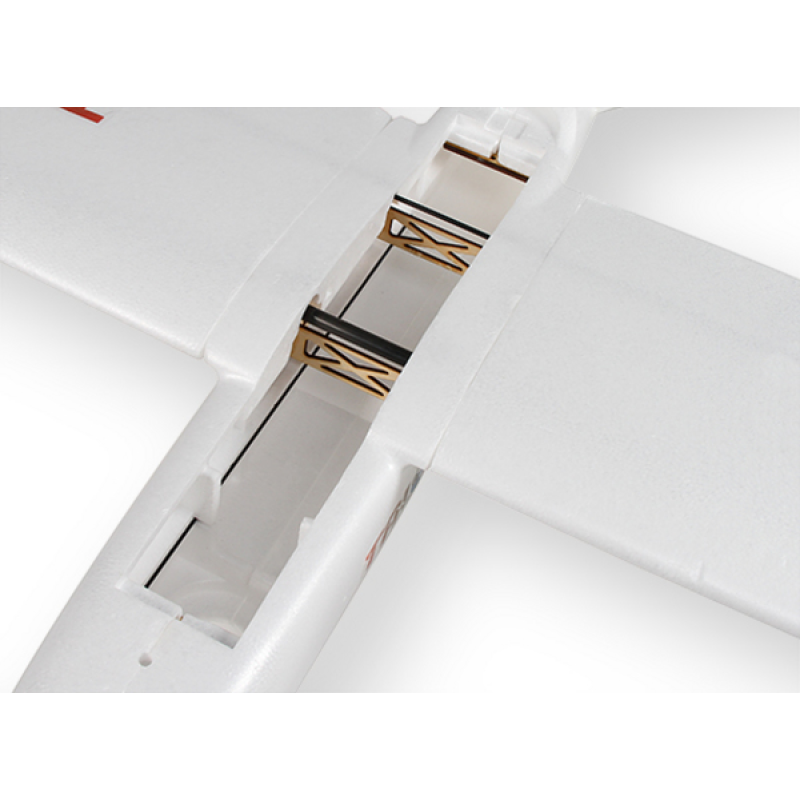

• Laser-cut plywood motor and wing frame ensures precise fit and reliable component fixation.
• Version 2 features a reinforced structure and improved FPV equipment mounting capabilities, including carbon inserts for increased rigidity.

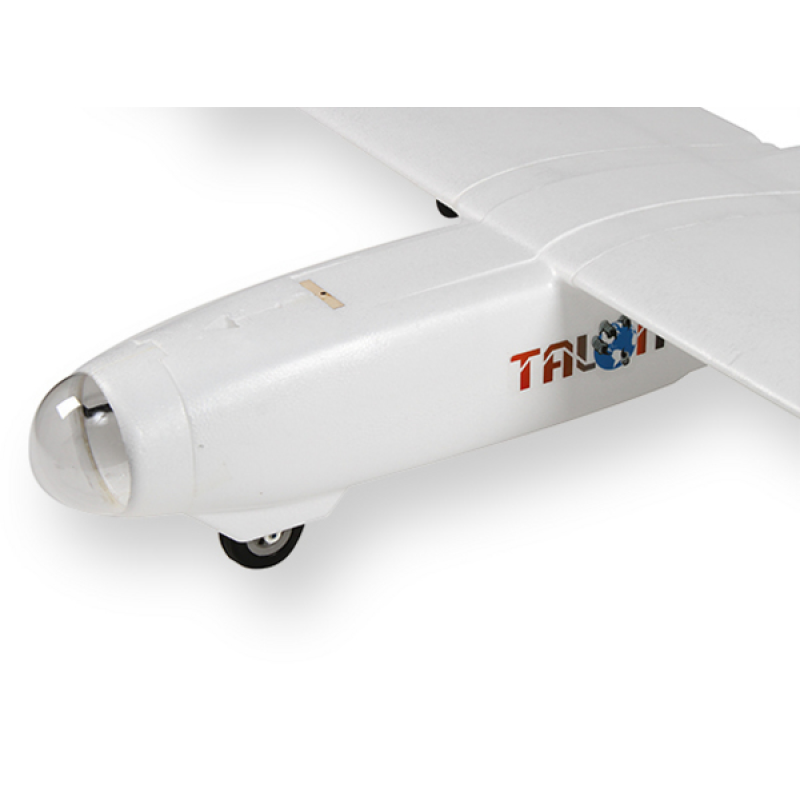

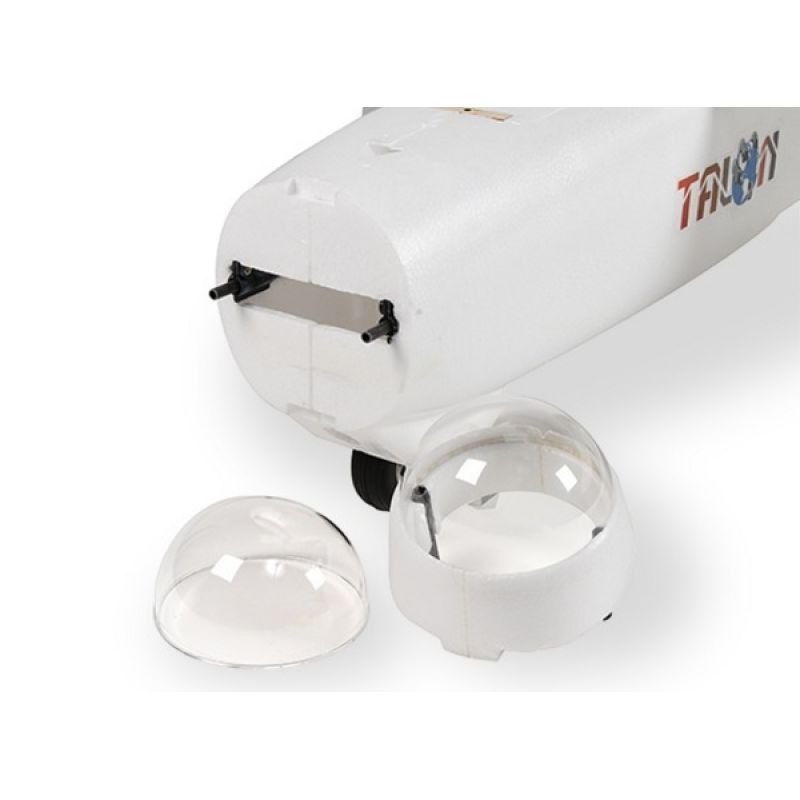

• The removable nose cone provides quick access to the camera and electronics, simplifying service and setup.
• The large fuselage compartment with a top hatch allows for various battery and electronics configurations, including large LiPo batteries.
• Two-piece wings with an insertable carbon tube ensure convenient transport and additional rigidity during flight.
• Detachable side wheels facilitate storage and transport of the model.

Note: The KIT version does not include a motor, ESC, or servos; the manufacturer has also removed wing wheels from the basic configuration. For users who want a partially assembled electronic filling, the PNP version is available.

Package Contents

KIT version:

• 1 x X-UAV Talon RC Kit

PNP version:

• 1 x X-UAV Talon RC Kit
• Motor: 2814 KV900
• ESC: 40A
• 4 ES08 Servos
• Propeller: 11×7

Thanks to the recommended 4S 14.8V 10000 mAh LiPo battery and large wing area, the Talon provides long flight times with moderate payload. The model is suitable for both long FPV flights and aerial photography, where stability, payload capacity, and the ability to accommodate additional equipment are important. If you are looking for a reliable platform for customization to your needs, the X-UAV Talon EPO 1718mm will be an excellent choice for a hobby pilot or a team working with FPV and aerial photography.
