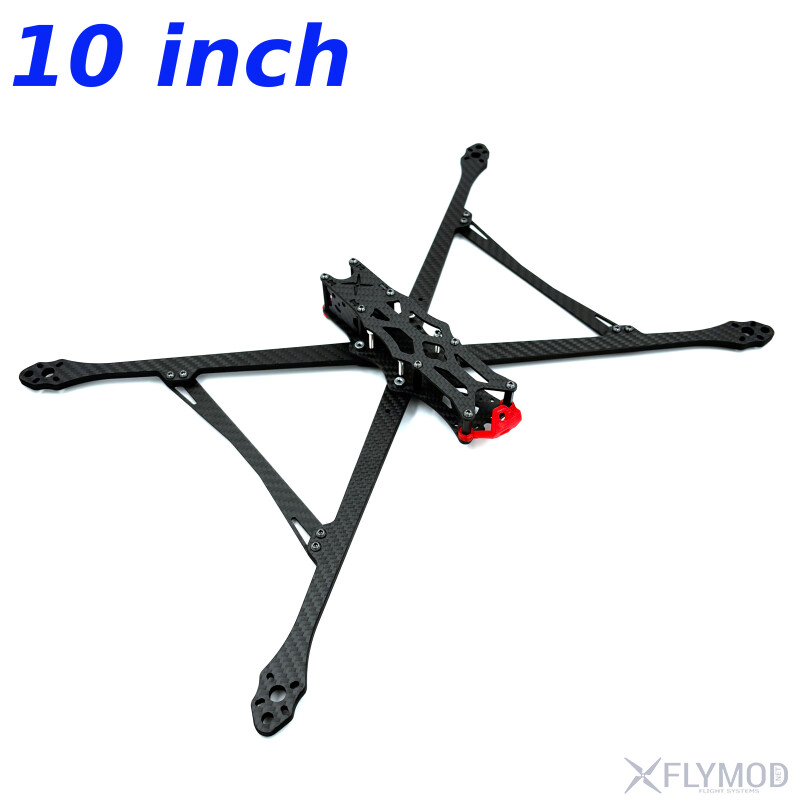

APEX HD Carbon Frame 5/7/8/9/10 inch Flymod Edition

*** Minimum order - 3000 UAH! Ships from a remote warehouse. Shipping times 2-5 days.

High-quality and affordable carbon fiber frame APEX HD, modified Flymod Edition - a reliable option for 5"/7"/8"/9''/10'' inch quadcopter builds (see options for selection). The frame has excellent diagonal stiffness across the arms, ensuring easy drone setup and quality flight. The package also includes a 3D model for antenna mounts (up to 2 pcs). A 30x30mm mounting bracket has been added to the rear stack.

In the V2 version, a hole has been added to the top plate for vertical capacitor mounting.

Specifications

• Frame size by motor axes (specified in option):
  • V1 versions: 224mm (5 inches) / 315mm (7 inches) / 362mm (8 inches) / 407mm (9 inches) / 457mm (10 inches)
  • V2 versions: 315mm (7 inches) / 362mm (8 inches) / 407mm (9 inches) / 457mm (10 inches)
• Arm thickness: 5.5 mm
• Top plate: 2 mm
• Bottom plate: 2.5 mm
• Side plates: 2 mm
• Camera mounting size: mini 22mm / micro 19mm (via included spacer)
• Central mounting pattern: 20x20 M3 / 30.5x30.5mm M3
• Rear mounting pattern: 20x20 M2 / 30.5x30.5mm M2
• Weight (with all parts, including 3D):
  • 7-inch version (295mm): 160g
  • 8 inches (8 inch V2): 181 g
  • 10 inches (10 inch V2): 222 g

Files

• Assembly instructions for APEX HD 8-inch carbon fiber frame (APEX HD 8inches)
• Assembly instructions for APEX HD 8-inch carbon fiber frame (APEX HD 9inches)
