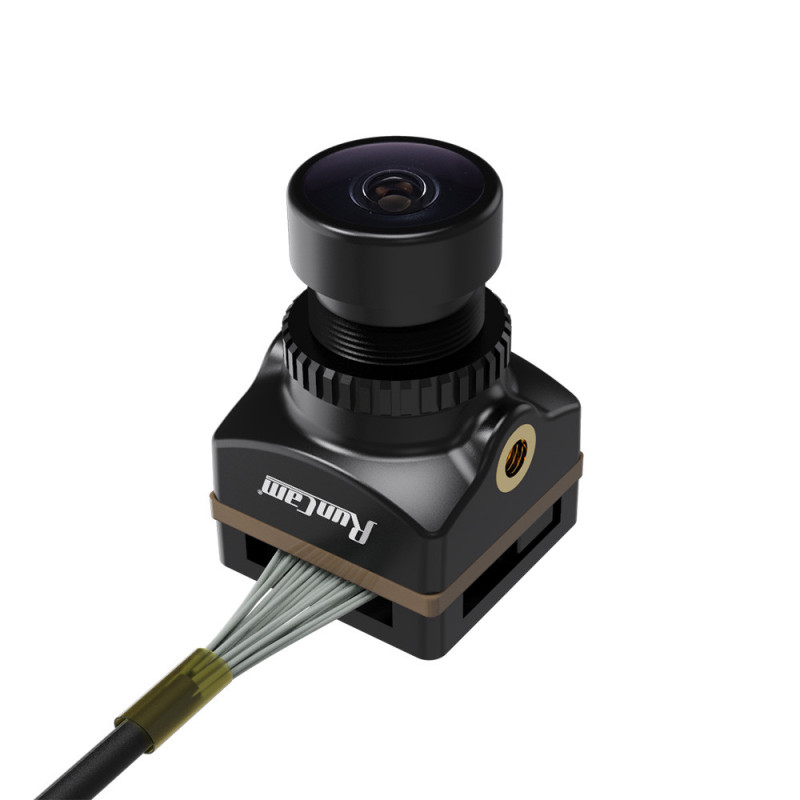

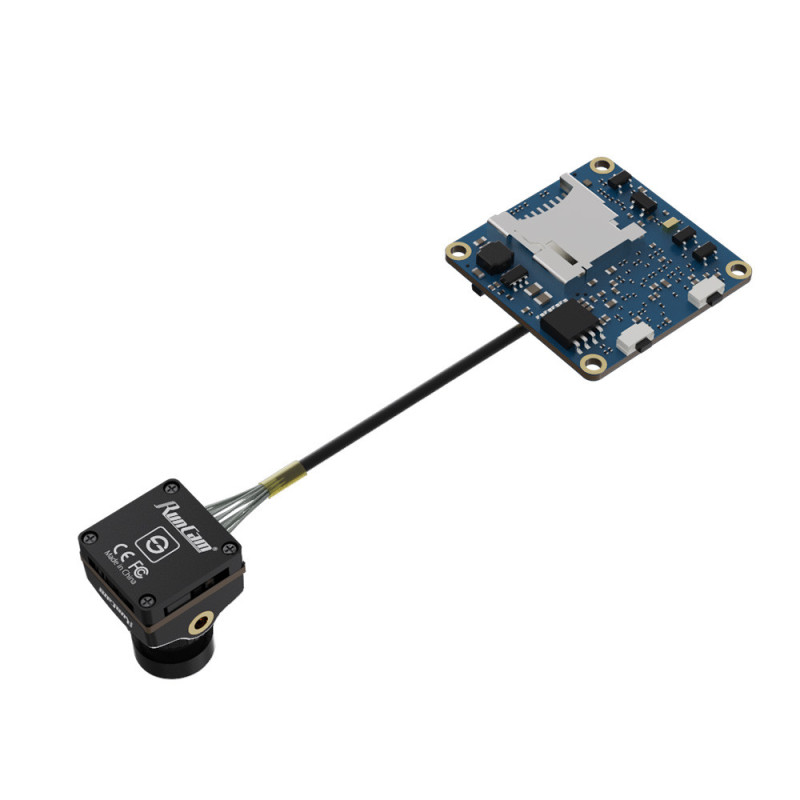

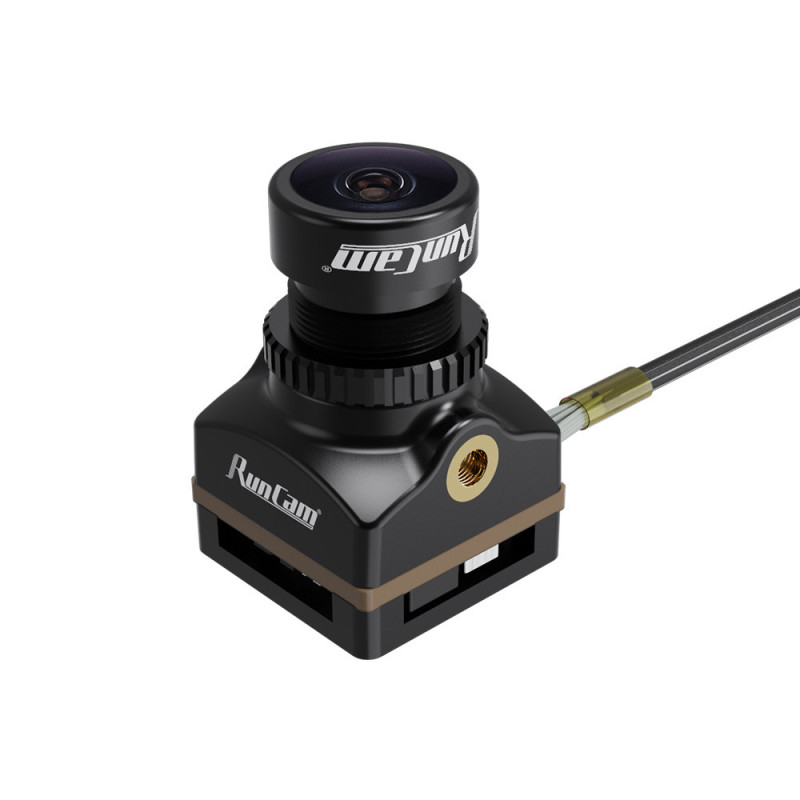

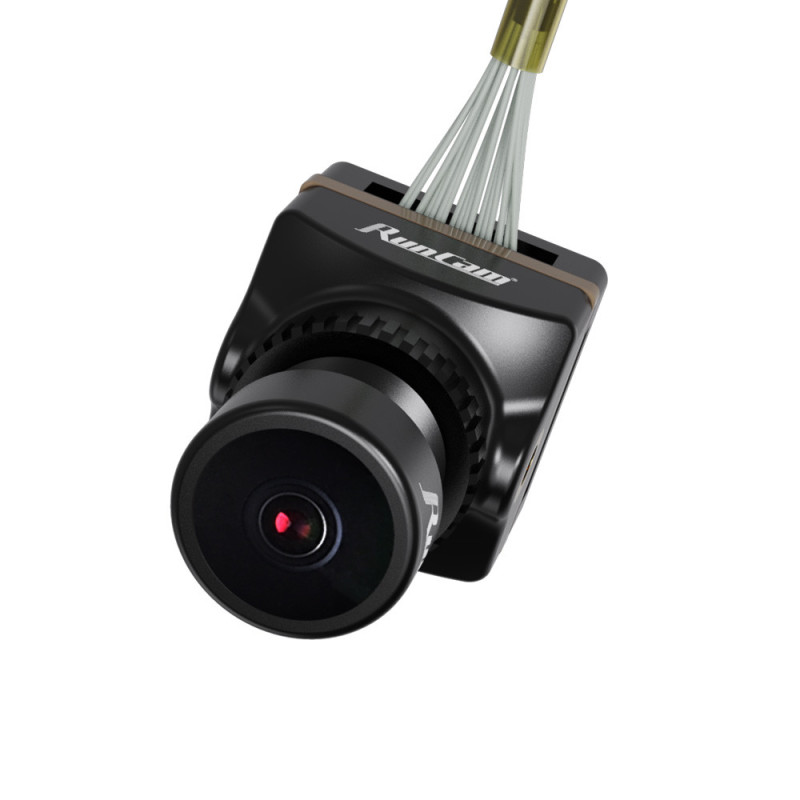

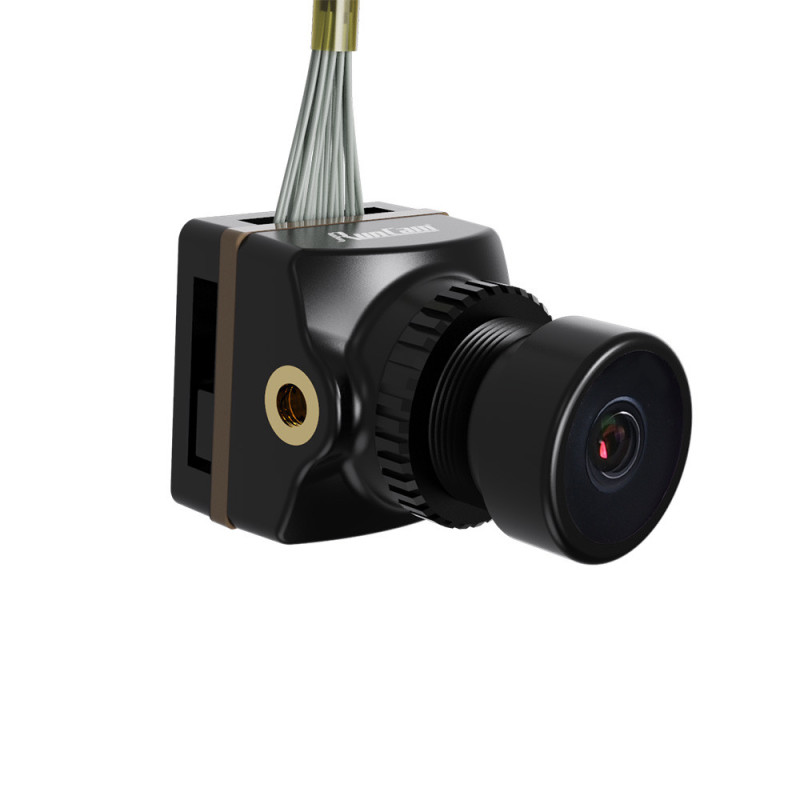

RunCam Split 4 Camera from RunCam — a compact and lightweight module for drones and quadcopters that combines real FPV feed and high-quality video recording for subsequent editing. This camera is ideal for racing and freestyle drones, as well as for lightweight cinematic platforms where weight, size, and functional versatility are important.
Below are the technical specifications and capabilities of the RunCam Split 4, ensuring compatibility with modern flight controllers and convenient operation:
| Feature | Description |
|---|---|
| Image Sensor | SONY 13MP, provides clear images |
| Field of View | 140°, ideal for wide panoramic shots |
| Video Resolution | 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@60fps — variety of shooting options |
| Video File Format | MP4, convenient for playback and editing |
| TV Mode | NTSC (720×480) / PAL (720×576), switchable |
| Interface | UART, ensures easy connection and data transfer |
| Micro SD Card Support | Up to 128GB; SAMSUNG 128GB U3 recommended for high recording modes |
| Important | SD card file format must be exFAT |
| Power Supply | DC 5-20V; direct connection to battery is not recommended |
| Lens Module Size | 14×14 mm |
| Mounting Hole Distance | 25.5×25.5 mm |
| Board Size | 29×29 mm |
| Operating Current | Max 450 mA at 5V |
| Weight | 10.2 grams — very light for takeoff and maneuvering |
Key advantages of RunCam Split 4:
- SONY 13MP sensor for clear photos and videos.
- Wide 140° field of view for panoramic shots.
- Supports video up to 4K@30fps, 2.7K@60/50fps, and 1080P@60fps for various shooting tasks.
- MP4 format ensures easy playback and processing of footage.
- NTSC/PAL TV mode switching for equipment compatibility.
- UART interface for reliable connection to flight controllers and other devices.
- microSD support up to 128GB; U3 or higher cards (e.g., SAMSUNG 128GB U3) recommended for 2.7K60/2.7K50/1080P120 modes.
- SD card file system must be exFAT, otherwise recording errors may occur.
- DC 5-20V power supply; direct connection to the battery is not recommended due to the risk of voltage spikes that could damage the camera.
- Compact dimensions: 14×14 mm lens module, 25.5×25.5 mm mounting hole distance, 29×29 mm board — easy integration into drone frames.
- Low power consumption: max 450 mA at 5V.
- Weight of 10.2 g makes the camera suitable for competitions and long flights.
Additional features and applications:
- 1. High-quality video: with 4K@30fps and 2.7K@60fps, the RunCam Split 4 is suitable for amateur and semi-professional drone videography where frame detail is important.
- 2. FPV function: the built-in FPV module provides a real-time video feed to the pilot for precise control of the aircraft in flight.
- 3. WDR (Wide Dynamic Range) image processing improves visibility in challenging lighting conditions, balances contrast, and preserves details in shadows and highlights.
- 4. microSD recording: convenient file storage on the card for later copying to PC or mobile devices and editing.
- 5. Easy installation: well-designed mounting dimensions and low weight ensure quick integration of the camera into various types of frames and platforms.
The RunCam Split 4 — a balanced solution for users who want to simultaneously get a high-quality FPV feed and high-resolution recording without significantly increasing the weight and size of the platform. The camera is suitable for freestyle, racing drones, and cinematic projects on lightweight quadcopters.
Key data: Name — RunCam Split 4 Camera; Manufacturer — RunCam; Product category — Drones & Quadcopters > Cameras.
