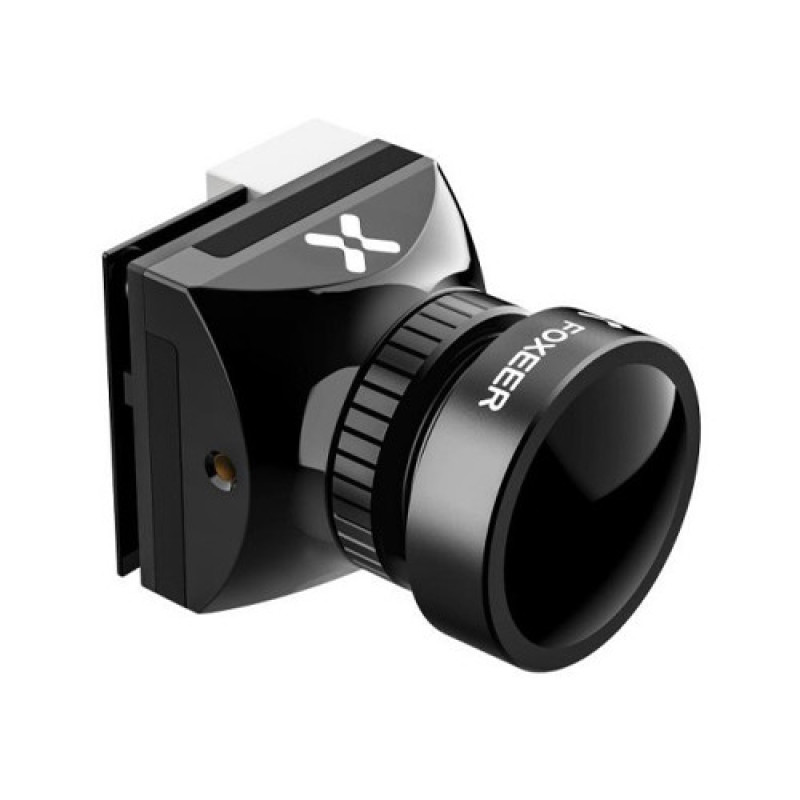

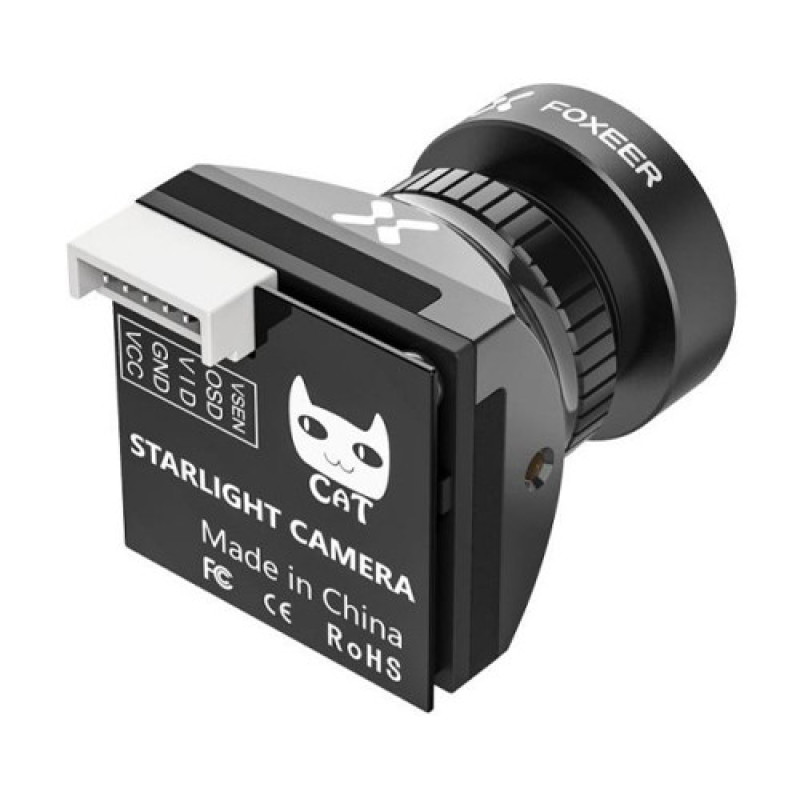

Foxeer Cat 3 Micro — a high-quality camera for quadcopters/FPV drones, designed specifically for night flights. It supports Super Starlight technology, which allows it to adapt to low light levels. Miniature size and light weight allow the camera to be installed on various aircraft models, and low-latency image transmission ensures maximum real-time performance.

Sensor type: Sony CMOS 1/3"
Image format: 4:3 (default), switchable to 16:9 mode
TV standard: PAL / NTSC
Resolution: 1200 TVL
Lens: 2.1 mm M12
FOV:

4:3 FOV-H: 100°, FOV-D: 125°
16:9 FOV-H: 100°, FOV-D: 115°

Shutter speed:

PAL: 1/25 ~ 1/10000 s
NTSC: 1/30 ~ 1/10000 s

Video output: analog CVBS
Minimum illumination: 0.00001 lux
3DNR support
WDR: 100 dB
Voltage: 4.6 – 20 V
Operating temperature: -10 to 50 °C at 20 to 80% humidity
Consumption: 95 mA ± 15%, DC 12 V
Dimensions: 18.7 x 18.7 x 18.6 mm
Camera weight (without cable): 11 g
Kit weight: 22 g
Package contents: Foxeer Cat 3 Mini camera, OSD remote with cable, screws with O-rings, and servo cable
