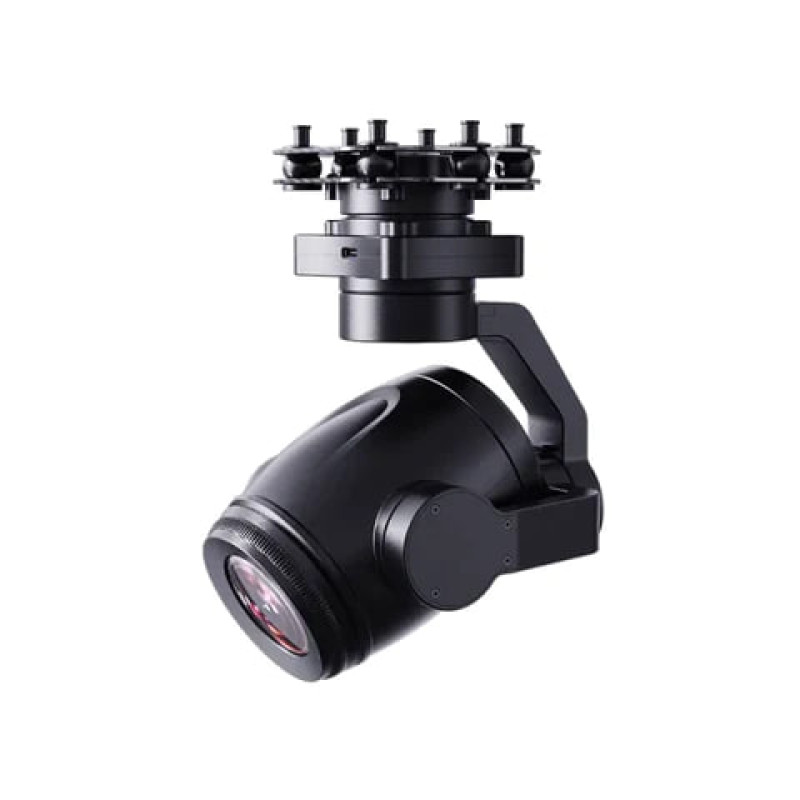

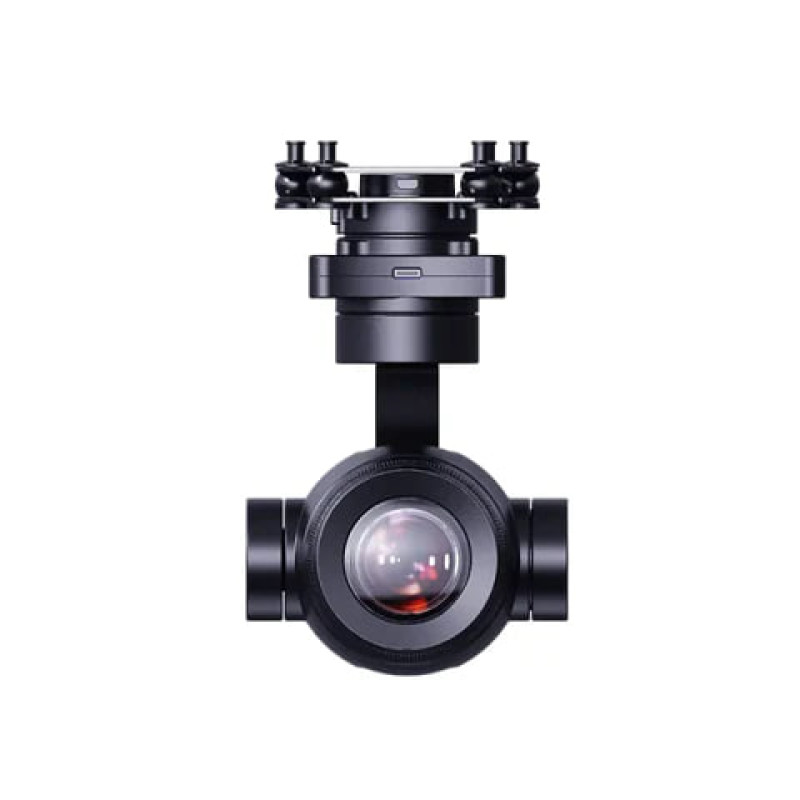

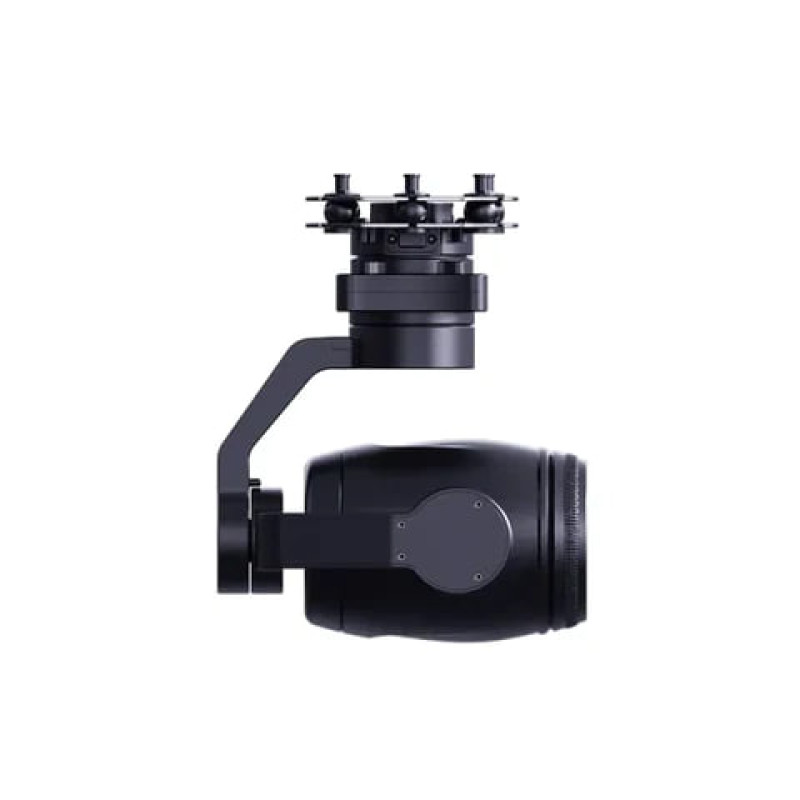

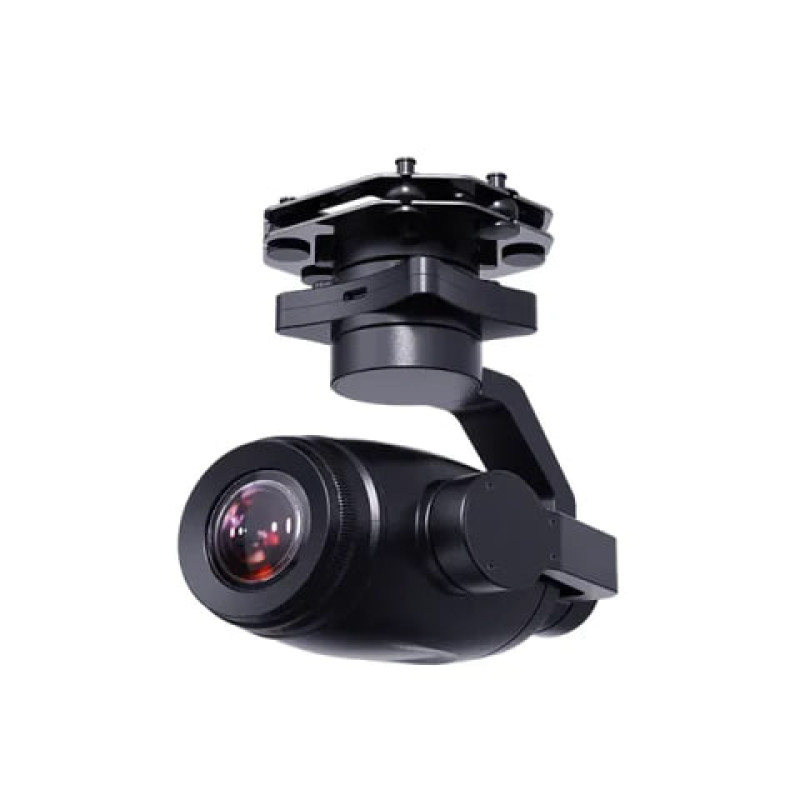

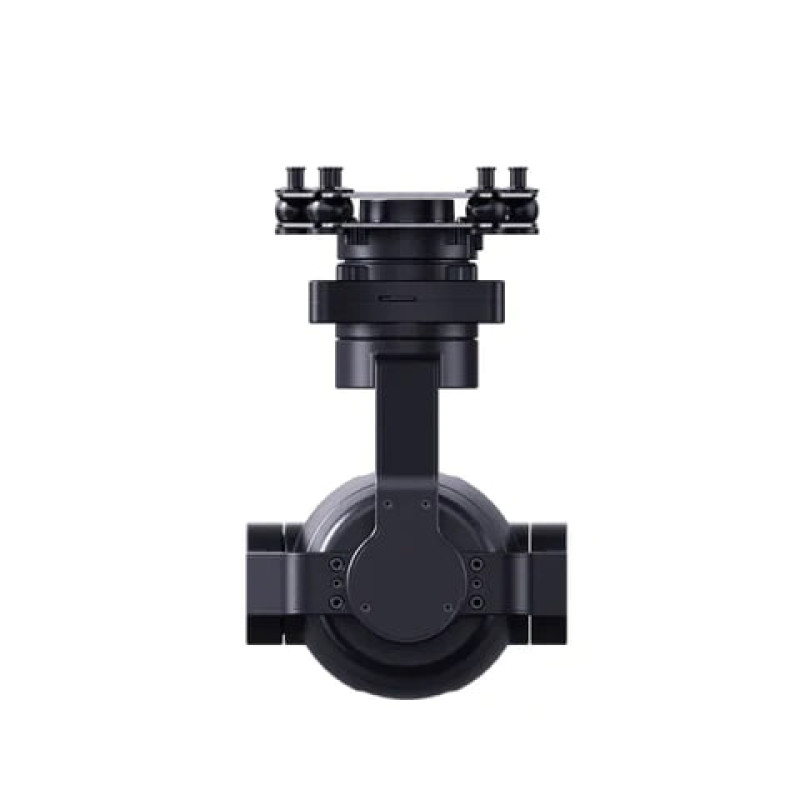

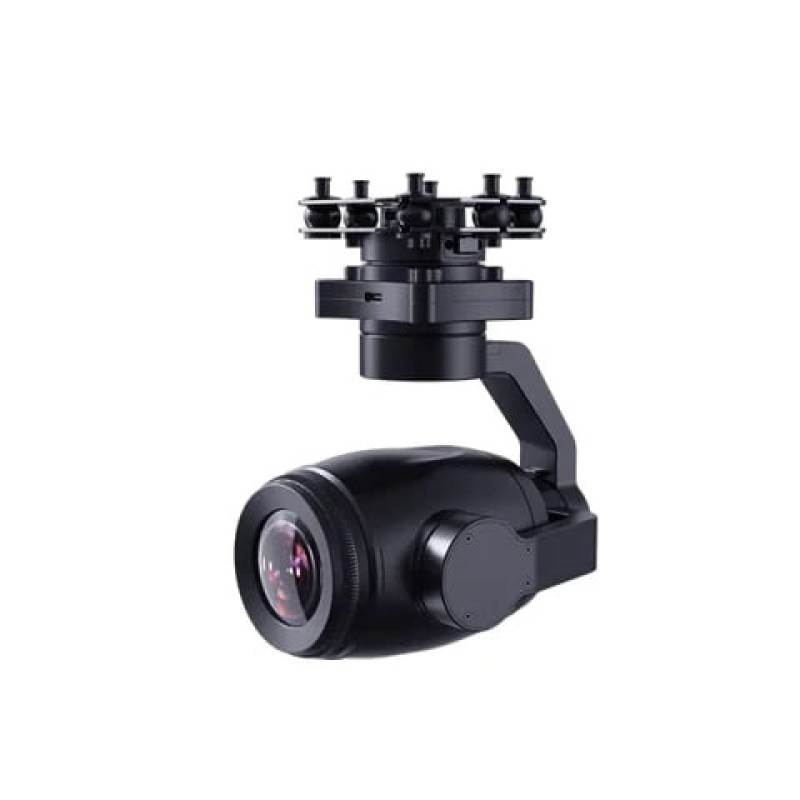

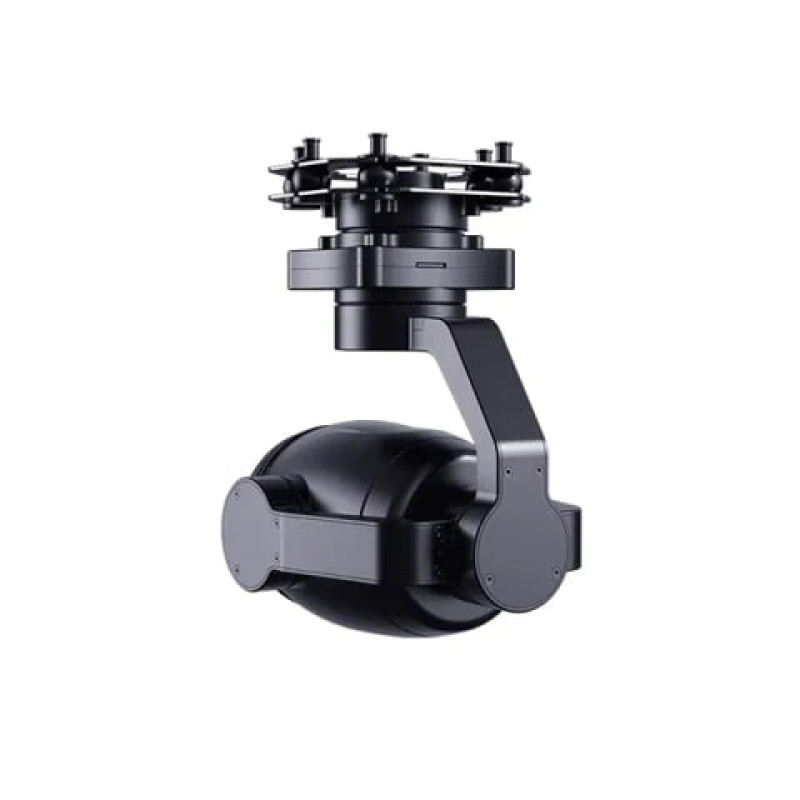

SIYI ZR30 4K 8MP Ultra HD 180X Hybrid 30X Optical Gimbal Camera

Brand: SIYI
Model: ZR30
A powerful 3-axis gimbal camera for drones, ground, and marine platforms with high-quality 30x optical zoom and 180x hybrid magnification. The device combines 4K recording, intelligent object recognition and tracking, Starlight night vision, and a quick-release mounting system for rapid payload changes.

Key Specifications

• Video Output Port: Ethernet, Micro-HDMI
• Control Signal Input Port: S.Bus, UART, UDP (Ethernet)
• Operating Voltage: 11 to 25.2 V
• Power Consumption: Summit 20 W
• Operating Temperature: -10 ~ 50 °С
• Size (with quick-release plate): 132*100*159 mm
• Weight (with quick-release plate): 628 g

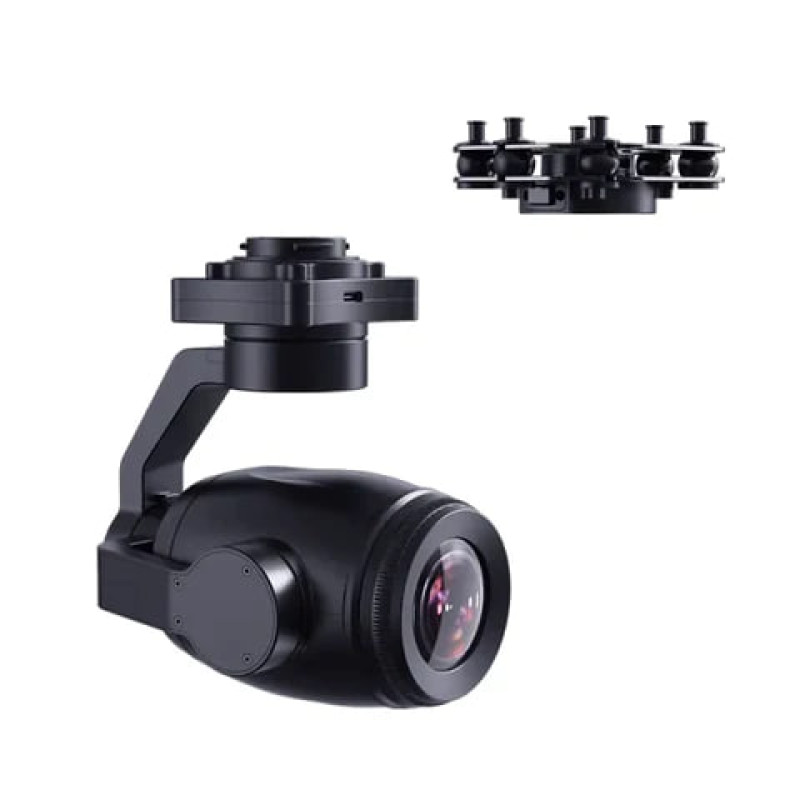

Quick Release Plate

• Size: 82*65*18 mm
• Weight: 38 g

Gimbal

• Angular Vibration Range: ±0.01°
• Pitch Angle: -90° to +25°
• Yaw Angle: -270° to +270°
• Roll Angle (additional parameter): -45° to +45°

Camera

• Lens: 30x optical zoom, 180x hybrid zoom
• Focal Length: 4.5±5% to 148.4±5% mm
• Image Sensor: 1/2.7 inch, effective resolution 8 MP (Sony CMOS 1/2.7")
• Aperture: F1.3±5% to F2.8±5%
• Field of View: Diagonal 65.4°, Horizontal 58.1°
• TF Card Recording Resolution: 4K (4096 x 2160) at 25 fps; 2K (2560 x 1440) at 30 fps; 1080p (1920 x 1080) at 30 fps; 720p (1280 x 720) at 30 fps
• Video Storage Bitrate: 12 Mbps (H.265 codec)
• File Storage Format: FAT32
• Image Format: JPG
• Video Format: MP4
• Supported MicroSD Cards: MicroSD Class10, max. 128 GB
• Photo Mode: Single shot
• Metering Mode: Evaluative metering

Additional Features and Capabilities

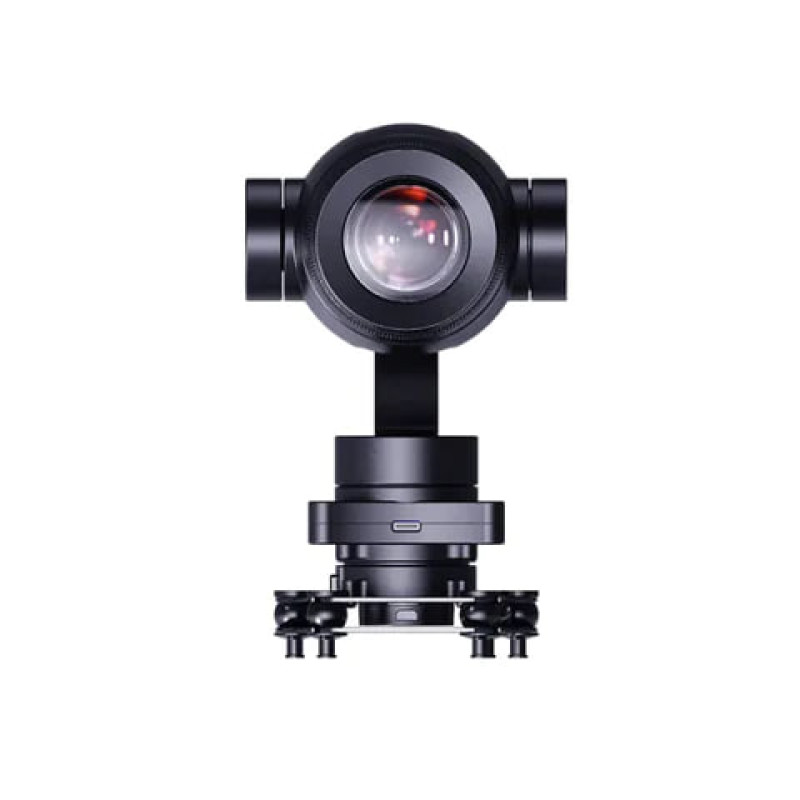

The SIYI ZR30 is equipped with AI Smart Identify and Tracking for automatic object recognition and tracking, making it ideal for reconnaissance, surveillance, and inspection tasks. Starlight night vision and HDR mode enable detailed imaging even in challenging lighting conditions. The camera supports an inversion mode for mounting in various configurations, features yaw axis rotation up to 540° for maximum coverage, and stabilization that ensures clear video during flight or platform movement.

This camera is designed for use on UAVs, UGVs, and USVs as a payload for inspection and monitoring — from infrastructure inspections to tactical operations. The Quick Release mounting system allows for rapid equipment changes without complex disassembly.

Ethernet and Micro-HDMI connectivity provide flexible video transmission options and integration with ground systems. S.Bus, UART, and UDP control input protocols make it compatible with a wide range of controllers and management systems.

Thanks to its compact size and weight of 628 g (with quick-release plate), the SIYI ZR30 integrates conveniently into platforms with limited space, while its power parameters of 11–25.2 V and consumption of approximately 20 W make it energy-efficient for long-duration operations.

The SIYI ZR30 4K 8MP Ultra HD 180X Hybrid 30X Optical Gimbal Camera with AI Smart Identify and Tracking, 1/2.7" Sony Sensor, HDR, Starlight Night Vision, 3-axis stabilizer — a versatile solution for professional video surveillance and aerial photography tasks.
