Sectional Hydraulic Control Valve 3PC100 Badestnost (Bulgaria)

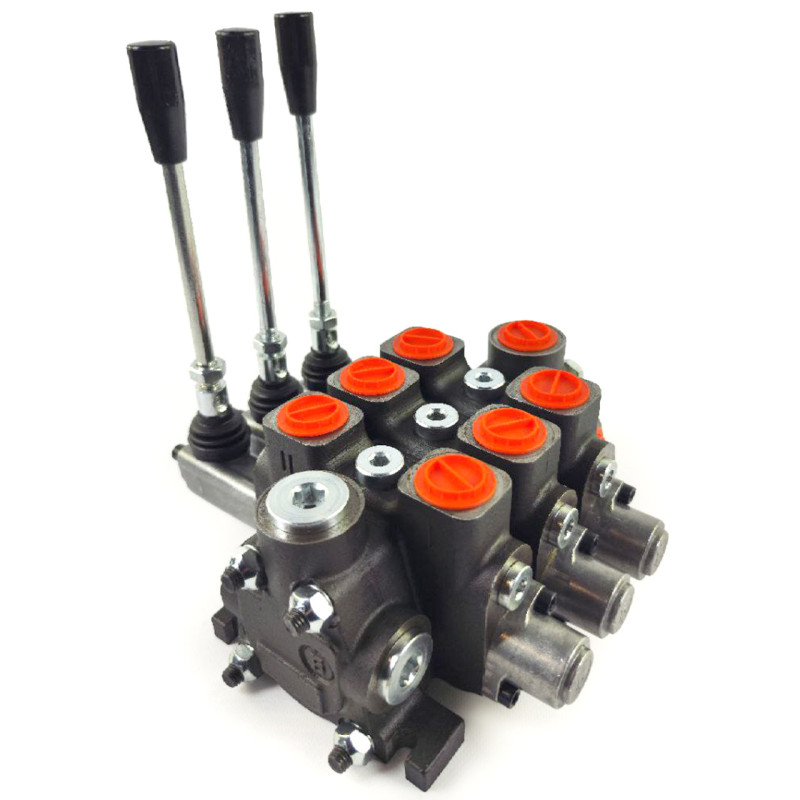

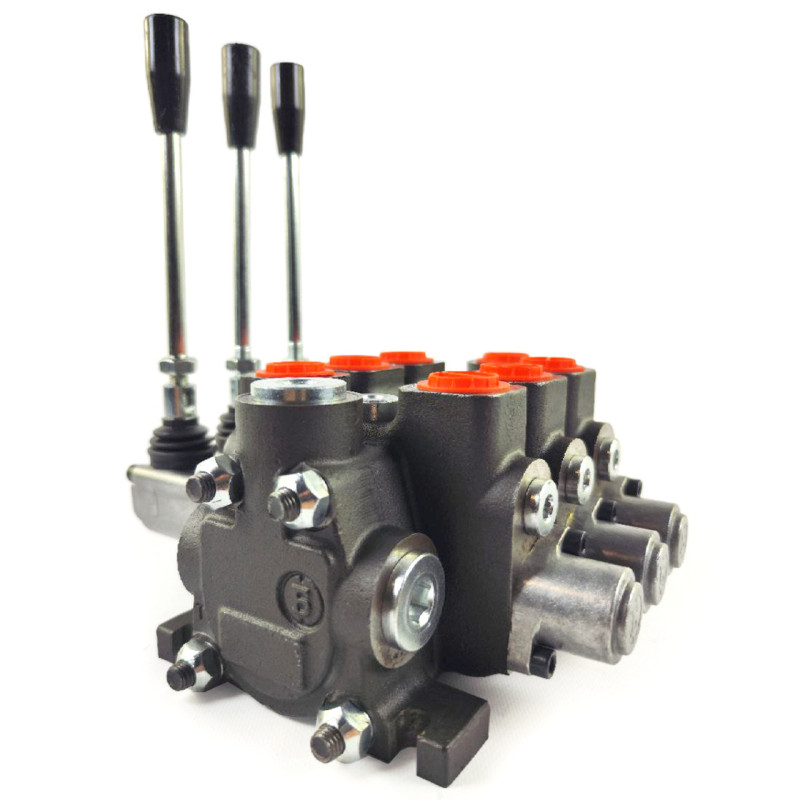

The Badestnost 3PC100 sectional hydraulic control valve (manufactured in Bulgaria) with manual control is a reliable component of hydraulic systems, designed for starting, stopping, and regulating the flow of working fluid between hydraulic pumps and consumers (hydraulic cylinders, hydraulic motors, etc.). The valve is equipped with manual spools with a handle, which can be switched to three operating positions, ensuring simple and intuitive control. Installation is carried out using three M8 bolts.

Description and Advantages

The sectional design allows combining modules and changing the number of sections according to the needs of the hydraulic system. Each section has independent operating modes and functions, making the 3PC100 a universal solution for loaders, knuckle boom cranes, combines, tractors, and other special equipment. The valve withstands a wide operating temperature range and is compatible with conventional mineral hydraulic oils. Manufacturer: Badestnost (Bulgaria). Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves.

Technical Specifications

• Number of sections: 3
• Nominal flow rate: 80 l/min
• Maximum flow rate: 100 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil/hydraulic oil
• Viscosity: 20...100 mm²/s
• Fluid temperature: -15°C...+80°C
• Maximum operating pressure: P=210; T
• Mounting: 3 M8 bolts

The 3PC100 hydraulic control valve from Badestnost combines simple design with the ability to scale sections, allowing the hydraulic system to be optimized for specific tasks. Manual control of the spools in three positions gives the operator quick control over the direction and supply of fluid. The use of mineral oils and a wide range of viscosities ensures compatibility with typical hydraulic circuits, and operating temperature limits from -40°C to +80°C guarantee stable operation in various climatic conditions. The 3PC100 is suitable for use on tractors, loaders, knuckle boom cranes, combines, and other special equipment where reliable distribution of working fluid flow is required.

If you are looking for a sectional hydraulic control valve with simple installation and reliable manual control, the 3PC100 Badestnost is a practical choice for a wide range of agricultural and industrial machinery. The specified technical parameters allow for precise selection of the valve according to your system's requirements, taking into account flow rate (80 l/min nominal, up to 100 l/min maximum) and operating pressures.
