Sectional Hydraulic Distributor 2PC70 Badestnost (Bulgaria)

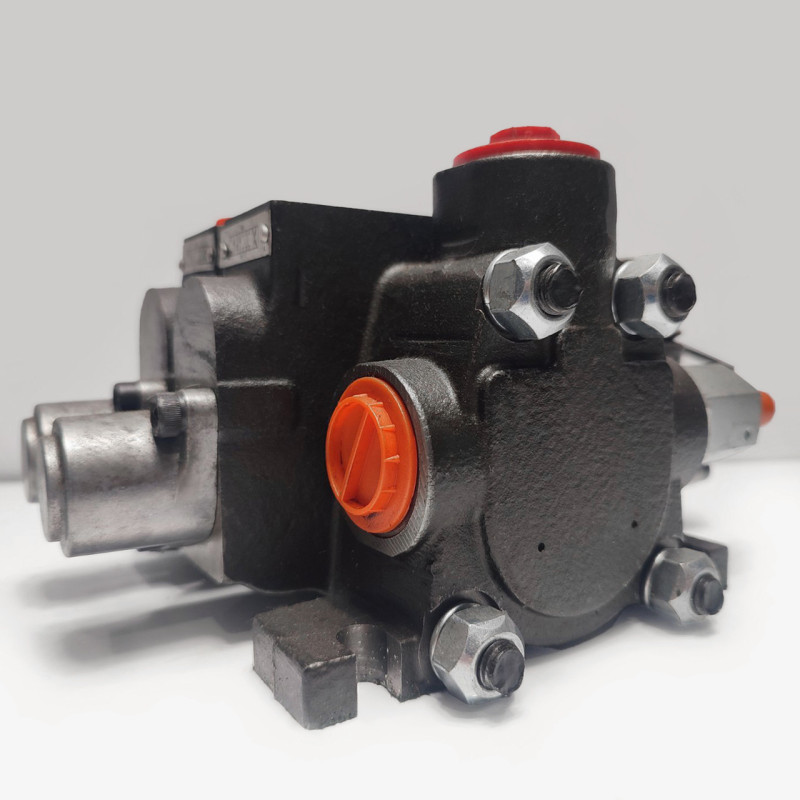

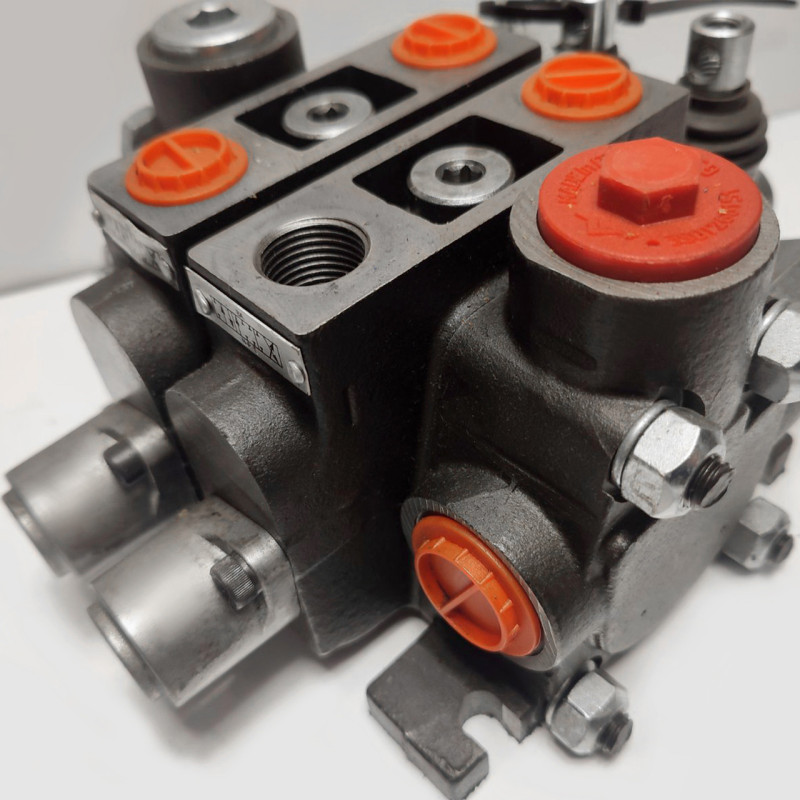

The Badestnost 2PC70 sectional hydraulic distributor is a two-section mechanical distributor with manual control, designed to engage, stop, and regulate the flow of working fluid between a pressure source (hydraulic pump) and consumers (hydraulic cylinders, hydraulic motors). The model is equipped with manual spools with three operating positions, switched by a conveniently located handle, and secured during installation by three M8 bolts for quick and reliable mounting on a base plate or machine body.

Key Advantages

• Manual Control: Three-position spools with an ergonomic handle ensure ease of operation and quick switching of operating modes.


• Modular Design: The sectional architecture allows adding or removing sections according to hydraulic system requirements, simplifying modernization when changing attachments or technological tasks.


• Reliable Mounting: Securing with three M8 bolts guarantees a strong and stable installation.


• Versatile Application: Suitable for special machinery, agricultural machines, and industrial installations requiring precise control of fluid direction and supply.

Areas of Application

The 2PC70 sectional hydraulic distributor from Badestnost is widely used in hydraulic systems of loaders, crane manipulators, combines, tractors, and other agricultural and special equipment, as well as in industrial mechanisms that require reliable and precise control of working components.

Technical Specifications

• Manufacturer: Badestnost (Bulgaria)


• Type/Model: Sectional hydraulic distributor 2PC70


• Number of Sections: 2


• Flow Rate: 70 l/min


• Ambient Temperature: -40°C...+60°C


• Hydraulic Fluid: Mineral oil / hydraulic oil


• Viscosity: 10...100 mm²/s


• Fluid Temperature: -10°C...+80°C


• Max. Operating Pressure: P = 250 bar; T < 50 bar; A, B = 300 bar


• Leakage (A, B-T): 18 cm³/min at 120 bar


• Spool Travel: 7 mm


• Actuation Force: < 200 N


• Mounting: Secured by three M8 bolts


• Detailed Documentation: PDF

The 2PC70 model combines design simplicity with technical reliability: the two-section configuration provides basic functionality for small and medium hydraulic systems, while a wide range of operating temperatures, permissible fluid viscosity, and high operating pressures allow the distributor to be used in harsh climatic conditions. Increased wear resistance of components and moderate actuation force make control comfortable even under load.

The modular design allows for quick adaptation of the hydraulic system to new attachments or changed technological tasks, making the Badestnost 2PC70 an economical and functional choice for service and repair departments.
