Monoblock Directional Control Valve with Detents 2P40 Badestnost (Bulgaria)

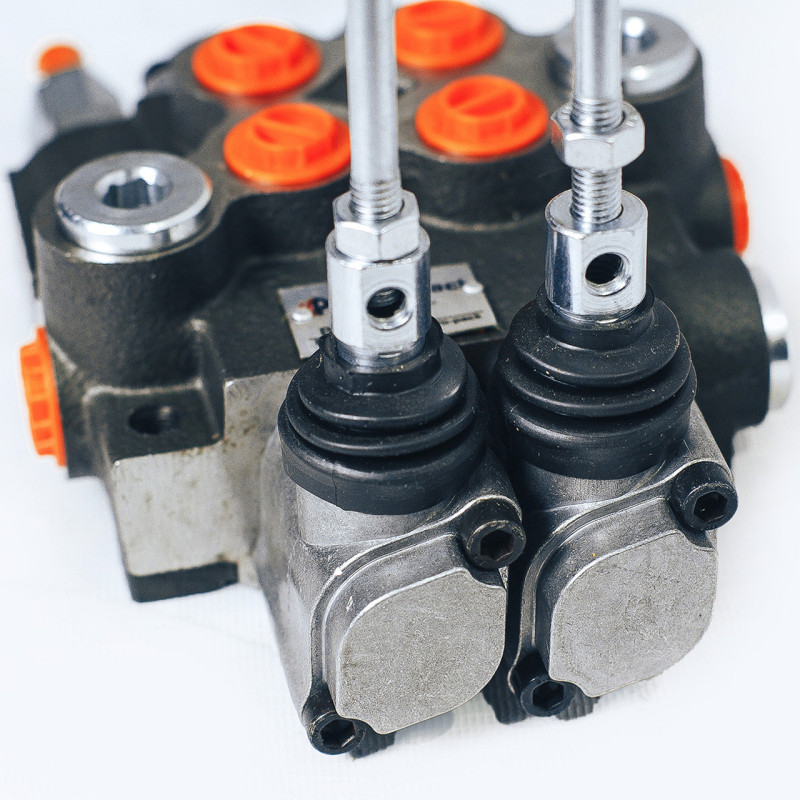

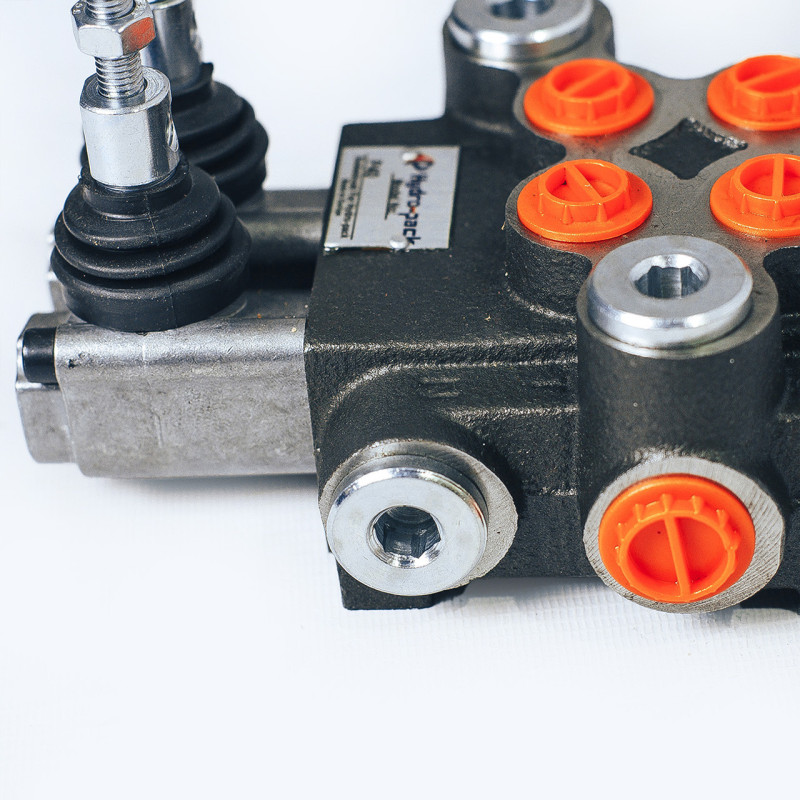

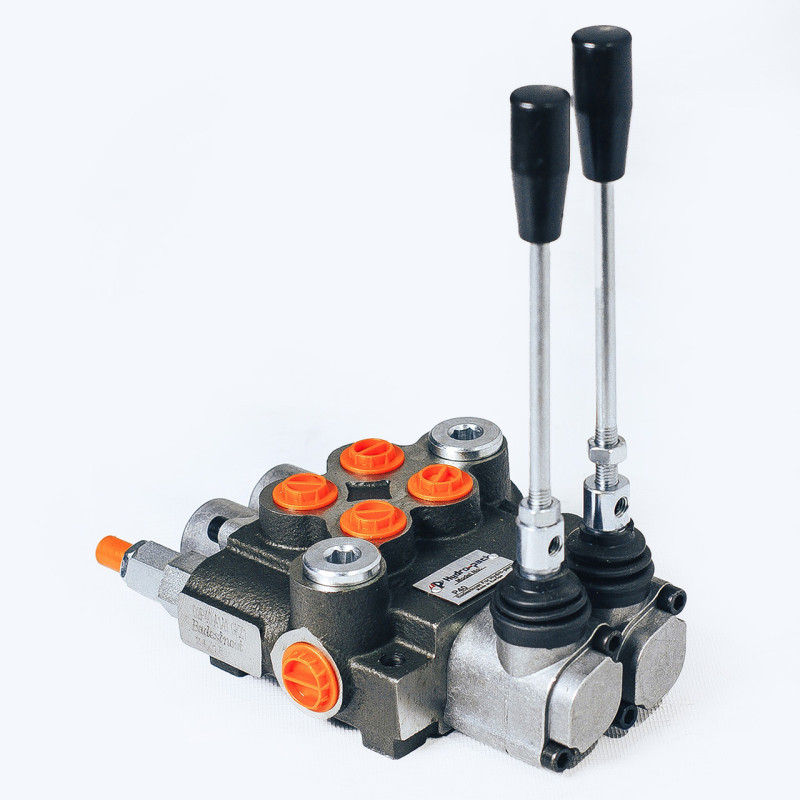

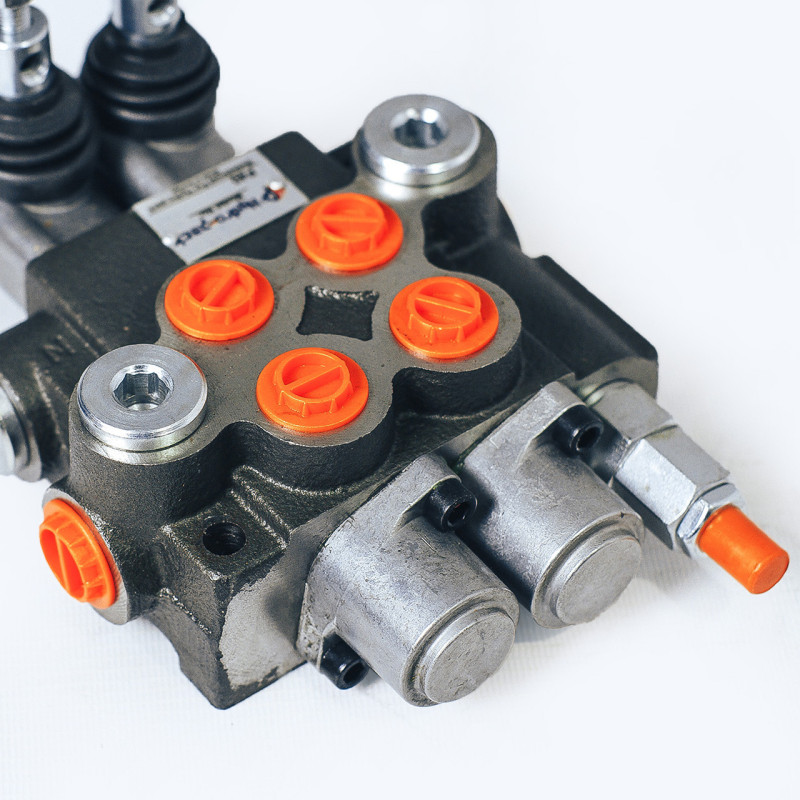

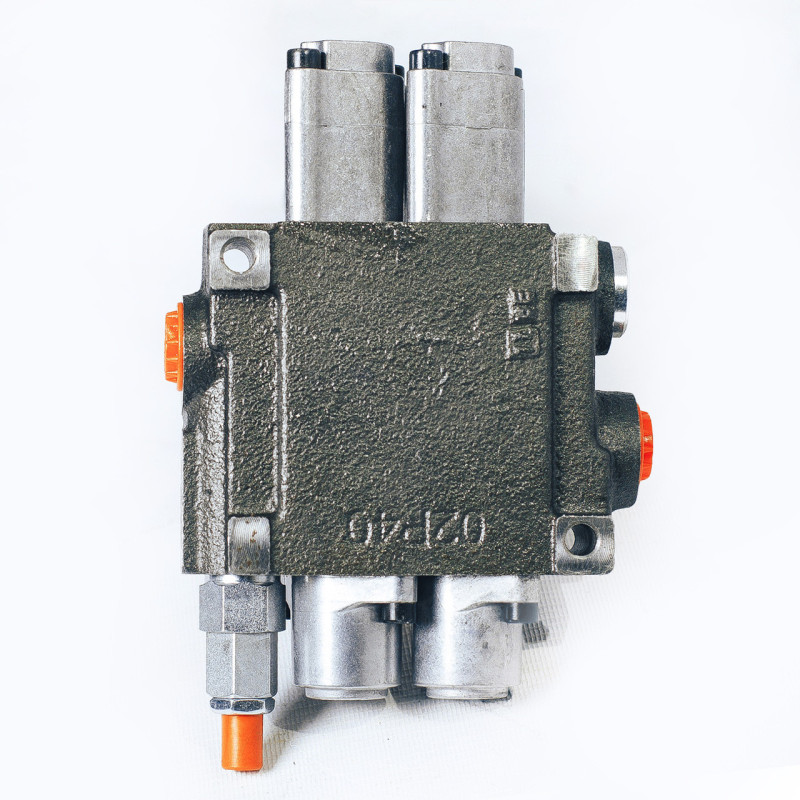

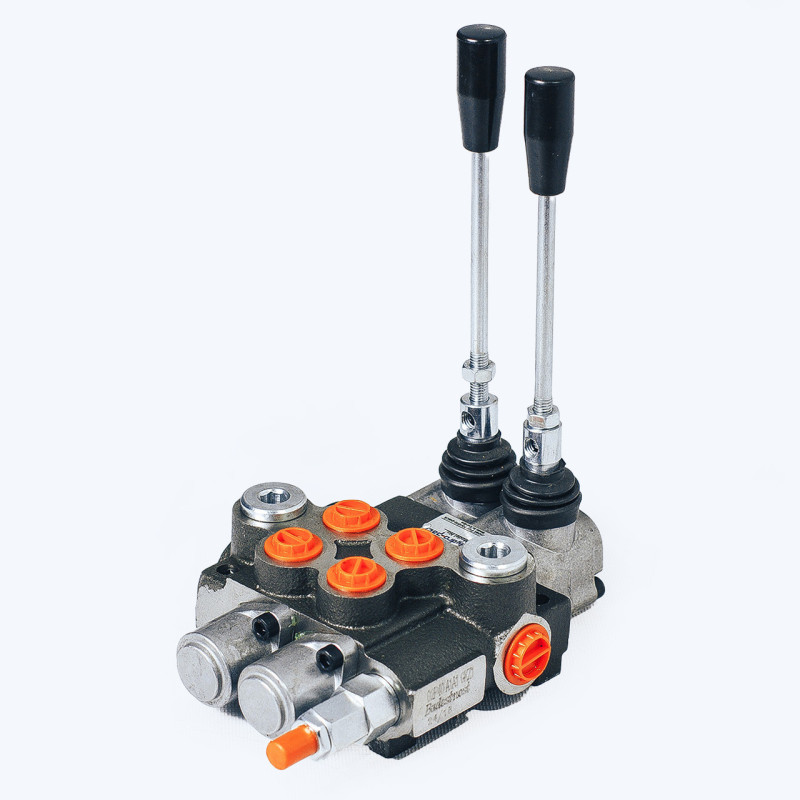

Overview: The Bulgarian monoblock directional control valve Badestnost 2P40 with manual control is a two-section valve with lever position detents, designed to control the flow of working fluid between a hydraulic pump and consumers (hydraulic cylinders, hydraulic motors). The 2P40 model has a flow capacity of 40 l/min and is equipped with manual spools that switch between three positions using a handle. The body is made of EN-GJL300 cast iron, and the plungers are made of carburized steel with hard chrome plating. The valve is mounted using two M8 bolts.

Application

Monoblock directional control valves 2P40 with detents are widely used in mobile hydraulics: construction and agricultural machinery, loaders, trailed and self-propelled units. The "with detent" mode allows the lever position to be fixed, including the float position, which increases ease of operation and operator safety.

Key Features and Parameters

• Number of working sections: 2
• Flow capacity: 40 l/min
• Ambient temperature: -40°C...+60°C
• Fluid temperature: -15°C...+80°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A, B - T): 5 cm³/min at 100 bar, 46 cSt
• Spool travel: 6 mm
• Actuation force: < 200 N
• Mounting: two M8 bolts
• Materials: body — EN-GJL300 cast iron; plungers — carburized steel with hard chrome plating
• Detailed technical data: PDF, PDF2

Operation Features: The lever position detent allows mechanisms to be held in a set state without additional mechanical clamps, which is especially convenient when performing repetitive operations or prolonged load holding. Reliable body materials and chrome-plated plungers ensure high wear resistance even during intensive operation. The 2P40 series devices withstand a wide range of temperatures and various viscosity classes of working fluids, making them versatile for field and industrial conditions.

Package Contents and Recommendations: Before installation, ensure that the system's operating parameters (pressure, viscosity, temperature) comply with the stated values. It is recommended to provide filtration according to NAS 1638 class 10 requirements to extend the service life of components and prevent intensive wear of spools and plungers. For mounting, use two M8 bolts of appropriate strength and follow the instructions for connection tightness.

Manufacturer: Badestnost. Product type: Hydraulic Systems > Directional Control Valves. Model: monoblock directional control valve 2P40, two-section, with detents, manual control, flow capacity 40 l/min.

If you need a reliable and easy-to-use directional control valve for mobile equipment or stationary hydraulic systems — Badestnost 2P40 will be an optimal solution due to its convenient position detents, robust design, and wide range of operating conditions.
