Monoblock Hydraulic Distributor 3P80, 3 Sections, 80 l/min

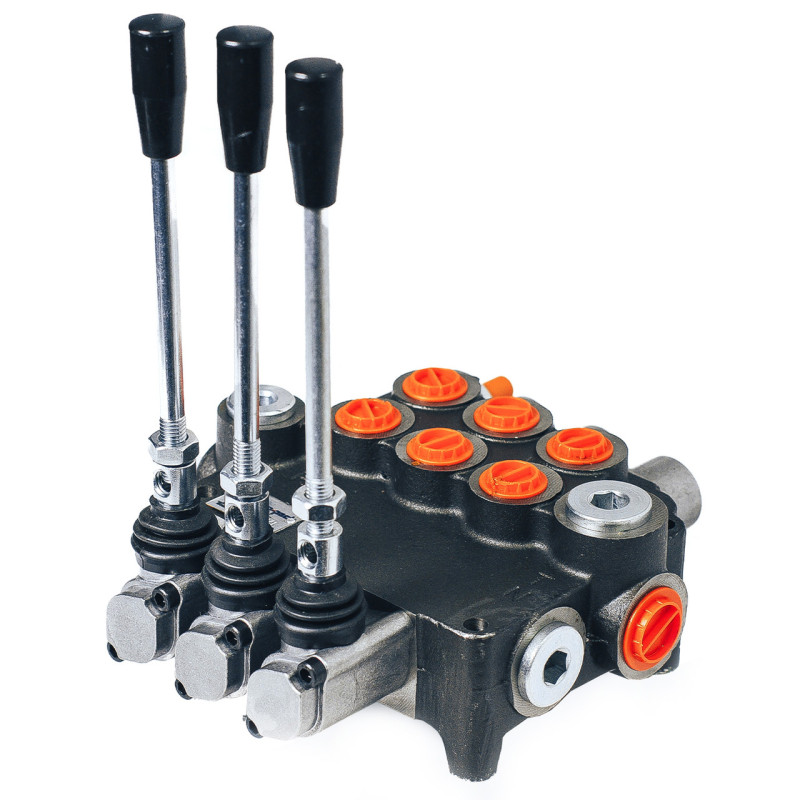

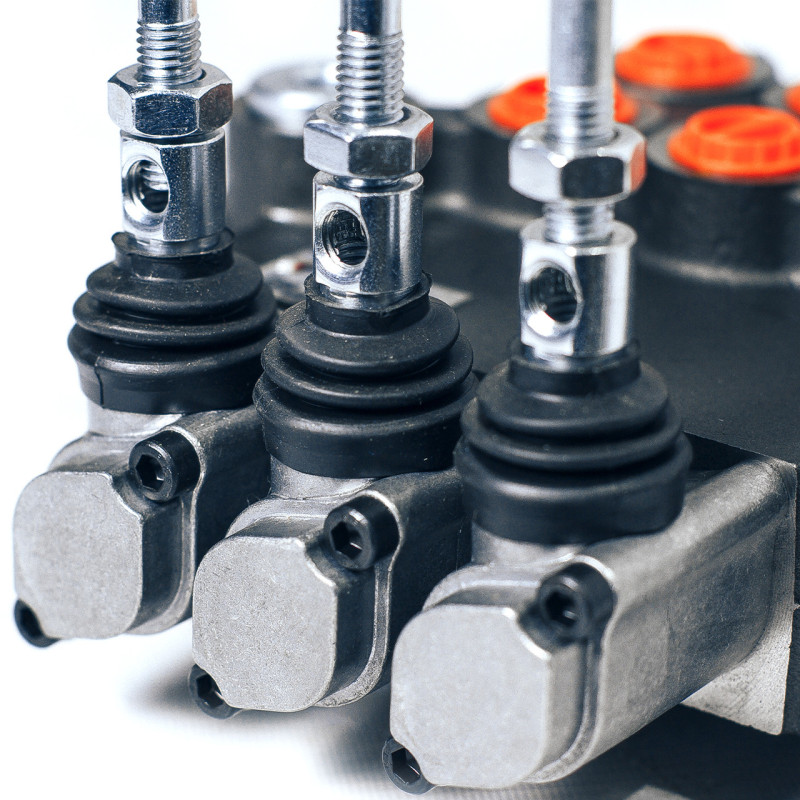

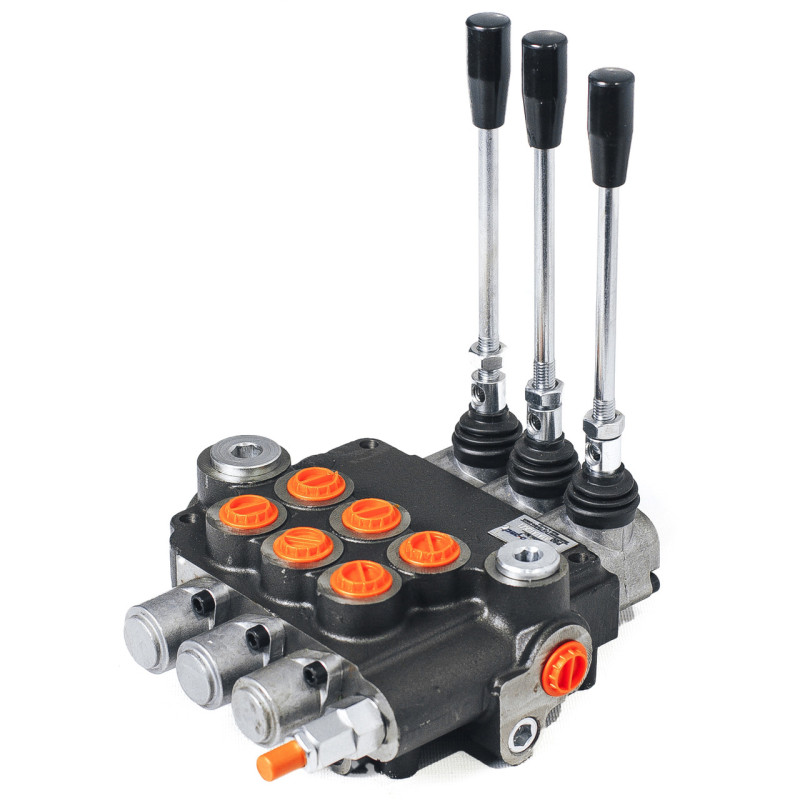

Badestnost (Bulgaria) offers the reliable and easy-to-use 3P80 model — a monoblock hydraulic distributor with manual control, designed to start, stop, and control the flow of working fluid between hydraulic pumps and consumers (hydraulic cylinders, hydraulic motors). The distributor is equipped with manual spools that switch in three positions using a convenient handle, ensuring quick operator response even in field conditions.

The body is made of EN-GJL300 cast iron, which guarantees high strength and durability of the structure. The plungers (spools) are made of carburized steel with hard chrome plating for increased wear resistance and long service life. The hydraulic distributor is mounted with three M8 bolts, providing a simple and reliable fastening unit on the equipment.

Key Parameters

• Number of working sections: 3
• Flow rate: 80 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
• Spool travel: +/- 7 mm
• Actuation force: < 220 N
• Detailed information: PDF, PDF2

Thanks to its design and technical characteristics, the 3P80 monoblock hydraulic distributor is often used in mobile hydraulics — on construction, agricultural machinery, and other machines operating in harsh conditions. The device allows the operator to control the direction of fluid flow, regulate the intensity of supply, and fix the spool position for ease of operation and increased safety. Simple manual control simplifies maintenance and reduces the likelihood of errors during operation.

The main advantages of the 3P80 model: durable EN-GJL300 cast iron body, wear-resistant chrome-plated plungers, reliable fastening with three M8 bolts, wide operating temperature range, and compatibility with typical mineral hydraulic oils. High flow rate of 80 l/min and maximum operating pressure up to 315 bar make this distributor suitable for intensive tasks and upgrading existing hydraulic systems.

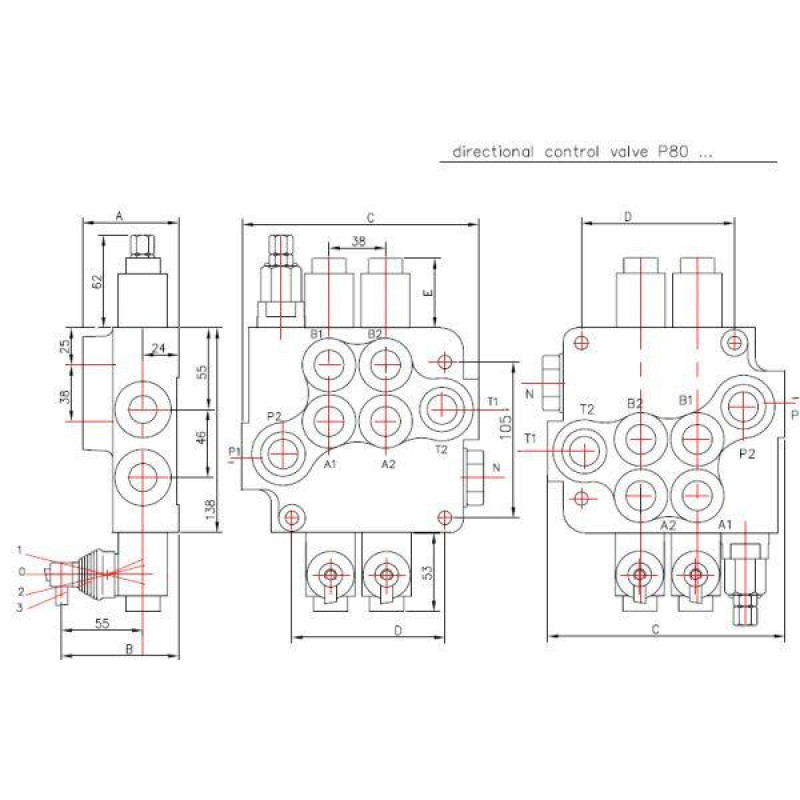

Below are the mounting and dimensional parameters in tabular form for ease of design and installation on equipment.

If you need a reliable monoblock hydraulic distributor to replace an old unit or for installation in a new hydraulic system — Badestnost 3P80 meets the requirements of mobile hydraulics and professional applications. Reliable materials, simple manual control, and the ability to fix the spool position make this model an optimal choice for servicing and repairing agricultural and construction equipment.
