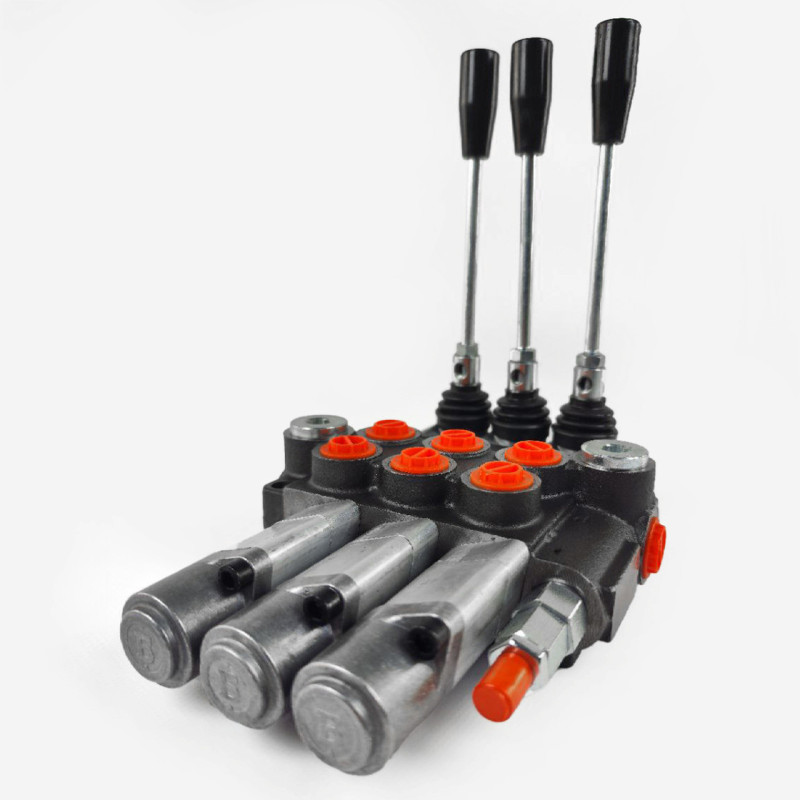

Monoblock Hydraulic Distributor 3P40 All Sections Floating Badestnost (Bulgaria)

The Badestnost 3P40 monoblock hydraulic distributor is designed for manual control of the direction and flow rate of hydraulic fluid between pressure sources (hydraulic pumps) and consumers (hydraulic cylinders, hydraulic motors). Manufacturer: Badestnost (Bulgaria). The body is made of EN-GJL300 cast iron, and the spools are made of carburized steel with hard chrome plating for increased wear resistance and long service life. The distributor is mounted using two M8 bolts, ensuring secure fixation on the equipment.

The distributor's design with manual spools allows switching sections in three positions using a lever, with all sections having a floating position, which is especially useful for agricultural and municipal machinery, such as harrows, trailed equipment, or other mobile machinery where "float" modes and locking for operator safety are required.

Key Features and Parameters

• Number of working sections: 3
• Flow capacity: 40 l/min
• Ambient temperature: -40°C...+60°C
• Working fluid temperature: -15°C...+80°C
• Recommended hydraulic fluid: mineral oil / hydraulic oil
• Kinematic viscosity: 12...800 mm²/s
• Filtration: 10 per NAS 1638
• Maximum operating pressure: P = 315 bar; at T = 50: A, B = 300 bar
• Leakage (A, B - T): 5 cm³/min at 100 bar, 46 cSt
• Spool stroke: 6 mm
• Actuation force: < 200 N
• Control type: manual, three-position
• Materials: body — EN-GJL300 cast iron; spools — carburized steel with hard chrome plating
• Mounting: 2 M8 bolts
• Application: mobile hydraulics, construction and agricultural machinery, municipal equipment
• Detailed technical information: PDF, PDF2

The 3P40 hydraulic distributor from Badestnost is a reliable technical solution for users who require simple and durable mechanical control of a hydraulic system with float mode support. The model demonstrates stable operating characteristics across a wide range of temperatures and working fluid viscosities, provides precise flow switching, low leakage, and long service life thanks to high-quality body materials and chrome plating of the spools. The distributor is well-suited for applications in agriculture, construction, and municipal machinery, where reliability, ease of maintenance, and the ability to operate in harsh conditions are important.

Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors. Manufacturer: Badestnost (Bulgaria). Model: 3P40, monoblock design, all sections floating, manual three-position control.
