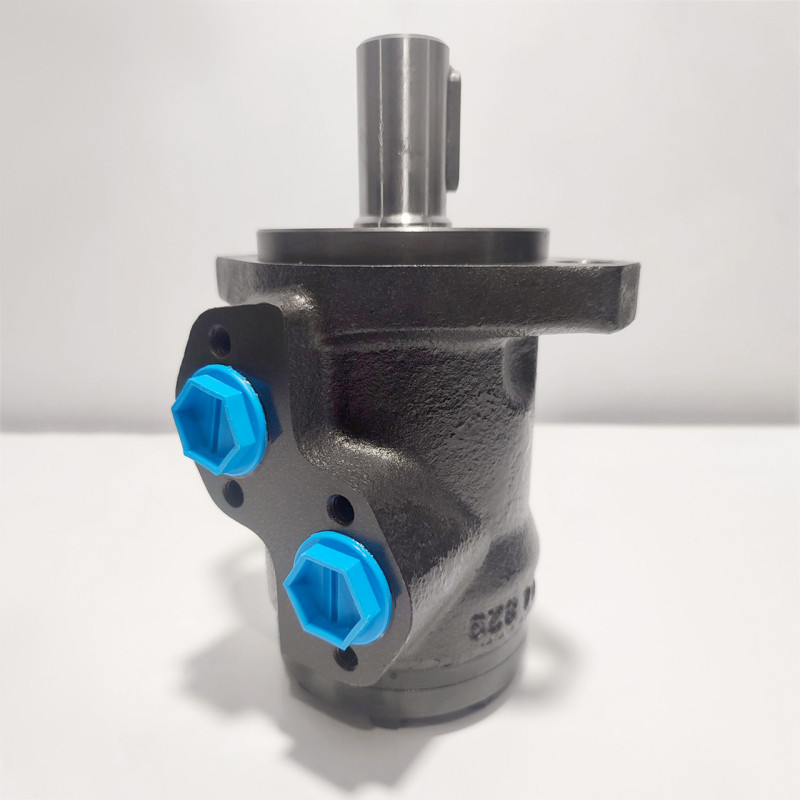

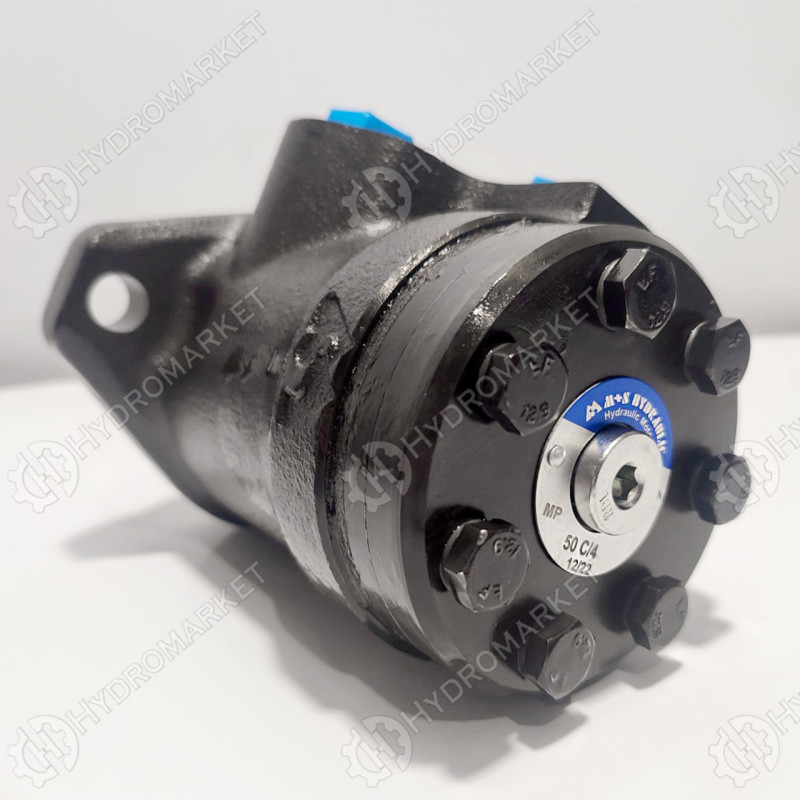

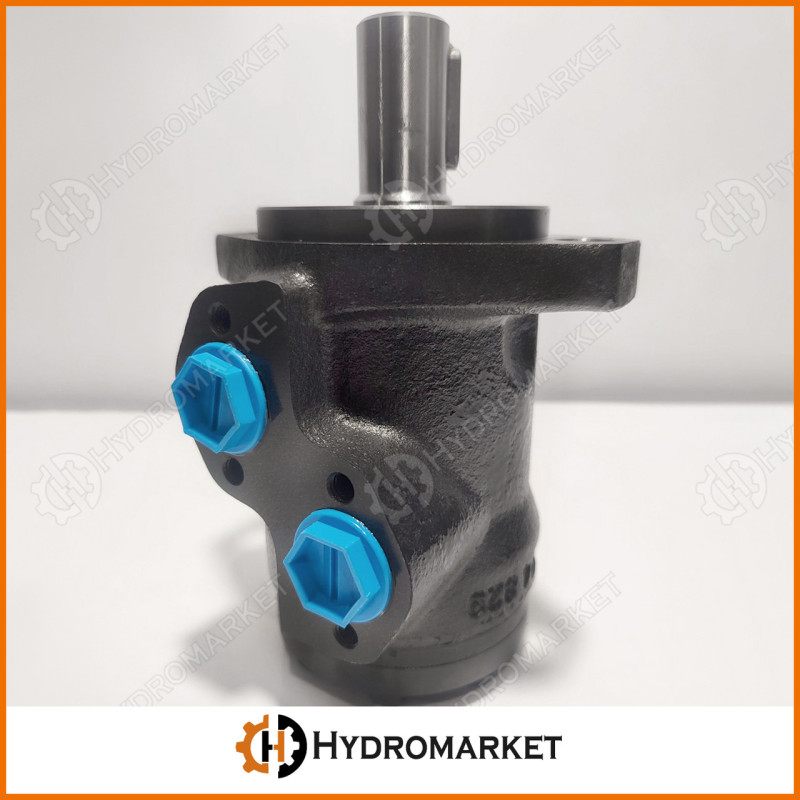

Gerotor Hydraulic Motor MP 50 C by M+S Hydraulic (Bulgaria)

The M+S Hydraulic MP 50 C gerotor hydraulic motor with a displacement of 49.5 cm³/rev is a high-speed, compact unit designed for continuous operation at moderate pressure and intermittent operation at elevated pressure. Manufacturer: M+S Hydraulic (Bulgaria). This motor has a maximum power of 10.1 kW and is intended for use in various special machinery and industrial equipment.

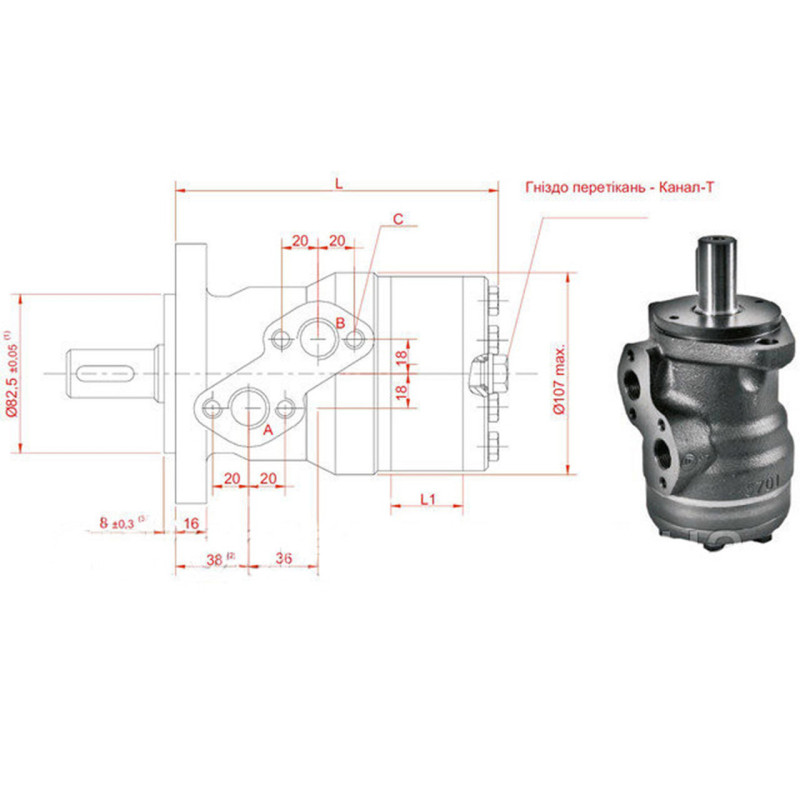

Design Features, Shaft, and Seals:

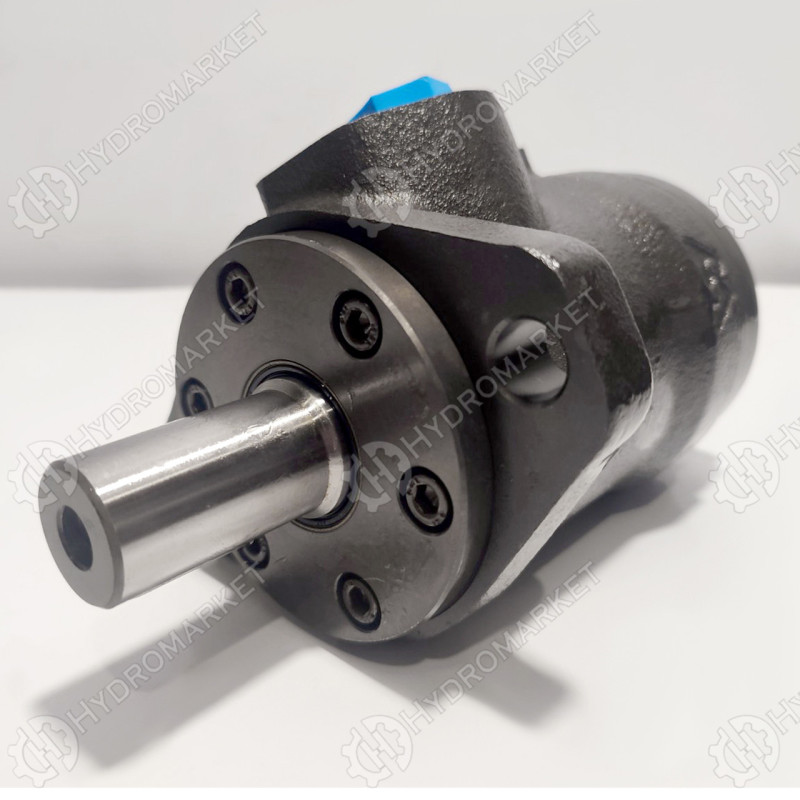

• Straight cylindrical shaft Ø25 mm for key A8x7x32 DIN6885.
• Standard shaft seal ensures reliability in typical applications.
• Other shaft options are available upon request (see specifications in the PDF document).
• By default, MP series hydraulic motors are supplied with an additional shaft seal (option D).

Key Parameters

• Displacement: 49.5 cm³/rev.
• Maximum speed: 1210 rpm.
• Maximum torque: 94 Nm.
• Maximum power: 10.1 kW.
• Maximum operating pressure: 140 bar.
• Maximum oil flow: 60 l/min.
• Weight: 5.8 kg.
• Detailed information: PDF

The MP series from M+S Hydraulic is characterized by its compactness, enhanced reliability, and is designed for applications requiring low torque at high speeds. The MP 50 C is suitable for actuating working parts, vehicle propulsion, and other hydraulic drives in mobile and stationary equipment.

Operating Recommendations

• Brief high speed and brief high pressure should not occur simultaneously.
• Recommended system cleanliness according to ISO code 20/16. Nominal filtration — 25 microns or more.
• It is recommended to use high-quality mineral-based hydraulic oil: HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum oil viscosity: 13 mm²/s (70 SUS) at 50°C (122°F).
• Recommended maximum system operating temperature: 82°C (180°F).
• To ensure optimal service life, before maximum load, fill the system with fluid and allow the hydraulic motor to operate at moderate load and speed for 10–15 minutes.

Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors. Model: Gerotor Hydraulic Motor MP 50 C M+S Hydraulic (49.5 cm3, 10.1 kW, 1210 rpm). This device is ideal for design solutions where compact dimensions, high rotational speed, and stable operation under variable load are important.

If you need other shaft options or additional seal options, please refer to the manufacturer's technical documentation or our support service. All technical parameters provided correspond to the manufacturer's specifications and allow for a quick assessment of the MP 50 C's suitability for your tasks.
