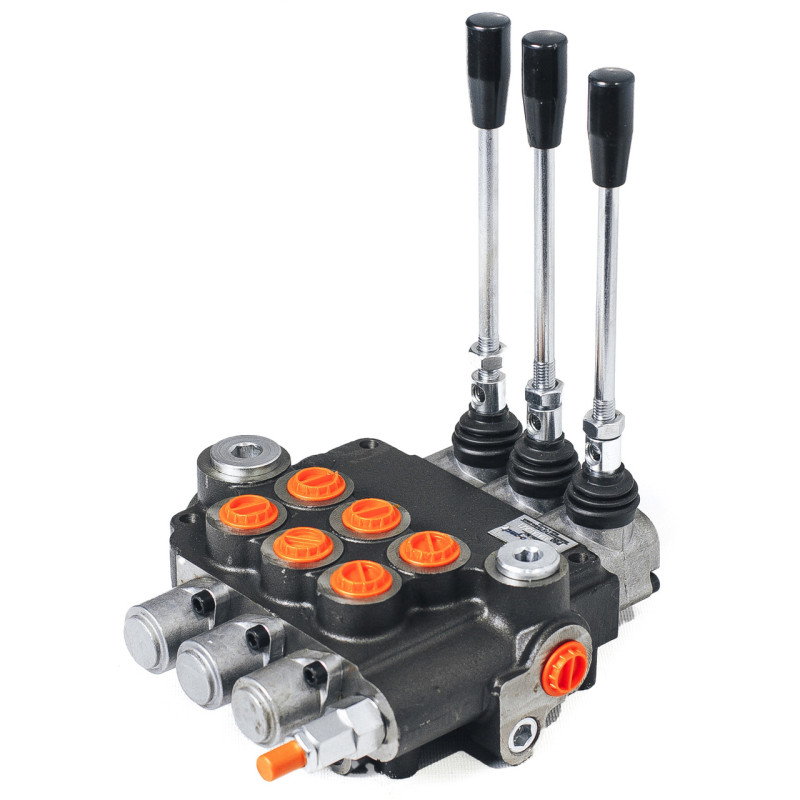

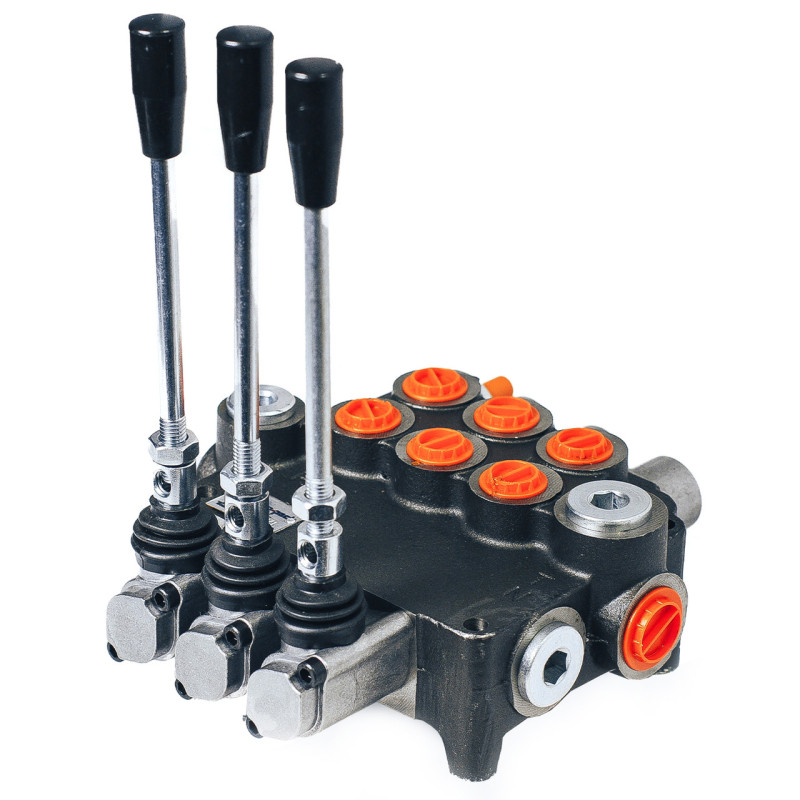

Monoblock Directional Control Valve 3P120 Badestnost (Bulgaria)

The Badestnost 3P120 monoblock directional control valve with manual control is designed to start, stop, and control the flow of working fluid between the pressure source (hydraulic pump) and consumers (hydraulic cylinders, hydraulic motors). The valve is equipped with manual spools with a handle that can be switched to three positions, ensuring simple and reliable control of the direction and supply of working fluid during operation. The monoblock design ensures compactness and ease of integration into existing hydraulic systems.

The product body is made of EN-GJL300 cast iron, which guarantees high mechanical strength and resistance to loads. The plungers (spools) are made of carburized steel with hard chrome plating to reduce wear and extend service life. The valve mounting involves three M10 bolts, simplifying installation in assembly units and on mobile machinery. Manual control makes the valve easy to use and maintain, allowing the operator to fix the position and safely return the mechanism to the neutral position.

Key Parameters

• Number of working sections: 3
• Flow capacity: 120 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 250 bar; at T = 50: A, B = 300 bar
• Leakage (A,B-T): 8 cm³/min at 100 bar, 46 cSt
• Spool travel: 10 mm, L12 +/-10/6
• Actuation force: < 300 N
• Detailed information: PDF, PDF2

Thanks to its design and characteristics, the 3P120 is widely used in mobile hydraulics, particularly in construction, agricultural, and municipal machinery. Devices in this series allow the operator not only to change the direction of flow but also to regulate intensity and fix positions for ease of operation and safety. High flow capacity combined with a durable cast iron body makes the 3P120 suitable for intensive use in demanding operating conditions.

Technical solutions applied in the 3P120 include chrome-plated plungers for reduced wear and long service life, as well as standard M10 mounting holes for quick integration of the valve into existing units and mobile machinery. A wide operating temperature range and permissible operating viscosities ensure compatibility with various hydraulic fluids and operation in different climatic conditions.

Manufacturer: Badestnost. Product category: Hydraulic Systems > Directional Control Valves. The 3P120 monoblock module is designed for quick integration into existing control systems where manual control of mechanism movement, position locking, and safe return to the neutral position are required. The valve is suitable for replacing or upgrading hydraulic systems on tractors, motorcycles, ATVs, and other mobile machines.

If you need a reliable manual directional control valve with high flow capacity, a cast iron body, and wear-resistant spools, the Badestnost 3P120 is an optimal solution. It ensures long-lasting operation under intensive use and simple installation thanks to standard M10 fasteners. Leakage, pressure, and temperature parameters make it versatile for use in various hydraulic systems.

Product information: name — Monoblock Directional Control Valve 3P120 Badestnost (Bulgaria); manufacturer — Badestnost; category — Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Directional Control Valves.
