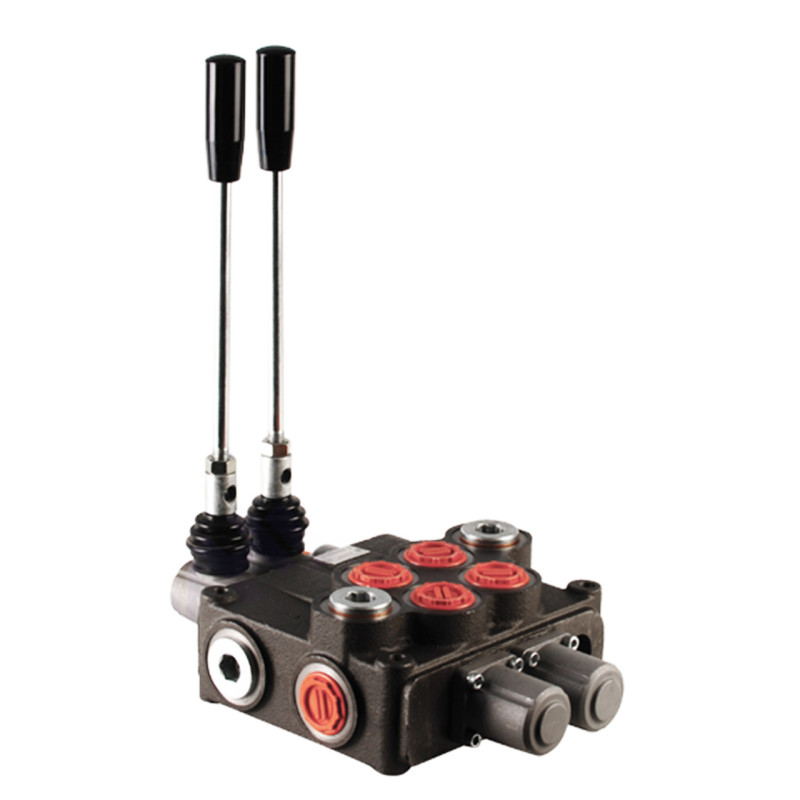

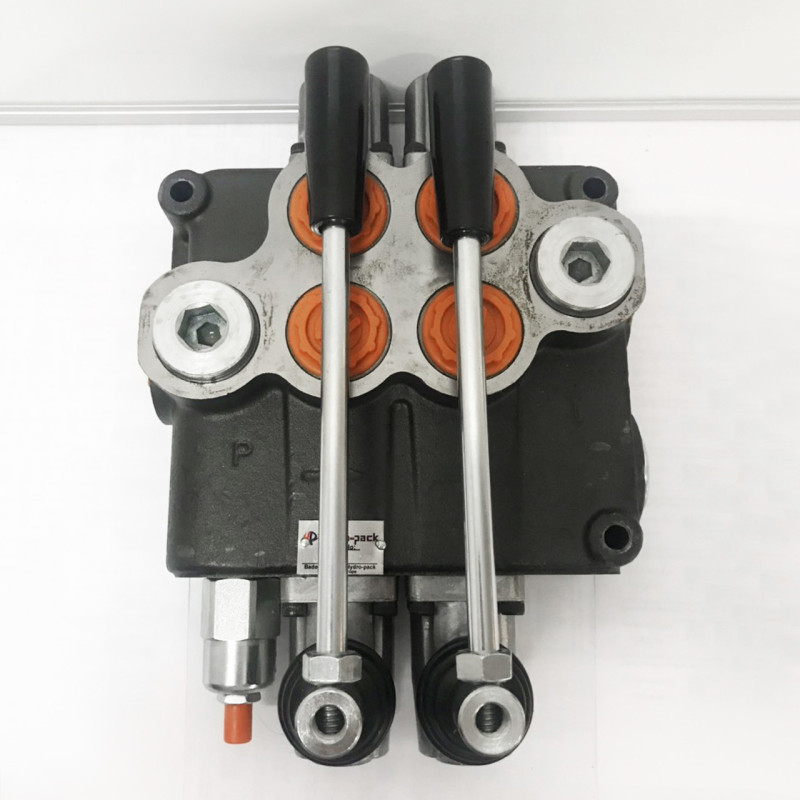

Monoblock Hydraulic Distributor 2P120 Badestnost (Bulgaria)

The Badestnost 2P120 monoblock hydraulic distributor is a two-section (2 sections) mechanical distributor with manual control, designed to start, stop, and control the flow of working fluid between hydraulic pumps and actuators (hydraulic cylinders, hydraulic motors). Manufacturer: Badestnost (Bulgaria). Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors.

Design and Materials

The body is made of EN-GJL300 cast iron, ensuring high strength and resistance to mechanical loads; plungers (spools) are made of carburized steel with hard chrome plating for increased wear resistance and reduced leakage. The spools are controlled by a handle and can be switched to three positions, allowing quick redirection of flows between lines A, B, and tank T. Mounting: the distributor is secured by three M10 bolts, ensuring reliable fixation on equipment.

Key Parameters

• Number of working sections: 2
• Flow rate: 120 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 250 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 8 cm³/min at 100 bar, 46 cSt
• Spool stroke: 10 mm, L12 +/-10/6
• Actuation force: < 300 N

Monoblock hydraulic distributors of the 2P120 series are often used in mobile hydraulics: construction equipment, agricultural machinery, special vehicles. They allow the operator to control the direction and intensity of flow, fix the spool position for ease of operation and safety during use. The distributor is suitable for both replacement and modernization of hydraulic systems in mobile equipment where a flow rate of up to 120 l/min and an operating pressure of up to 250 bar (300 bar for lines A,B at T=50°C) are required.

Materials and design features: the EN-GJL300 body ensures durability and resistance to mechanical stress; carburized steel plungers with hard chrome plating increase component life and reduce internal leakage; manual control with three positions provides intuitive and reliable switching. For proper selection, it is recommended to consider the operating temperatures of the fluid and environment, filtration requirements, and oil viscosity.

Detailed technical information and drawings are available in the official documentation: PDF, PDF2

Technical dimensions and port compatibility are provided in the table below:

This 2P120 monoblock from Badestnost is a reliable choice for various mobile applications with performance and pressure requirements. Before installation, it is recommended to verify compatibility with existing A, B, P, and T lines, check filtration according to NAS 1638, and ensure the working oil viscosity is appropriate.
