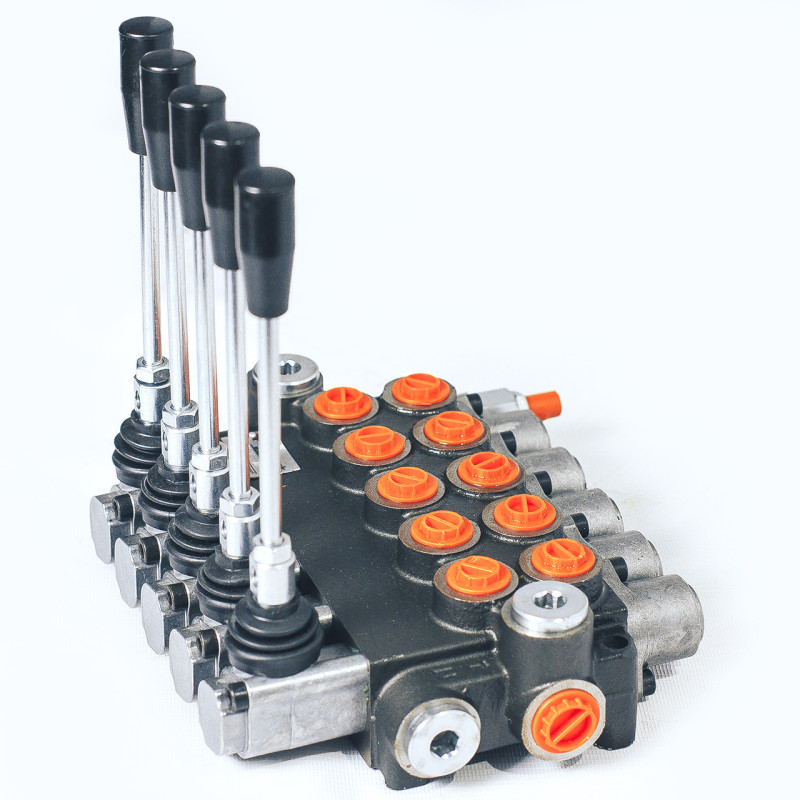

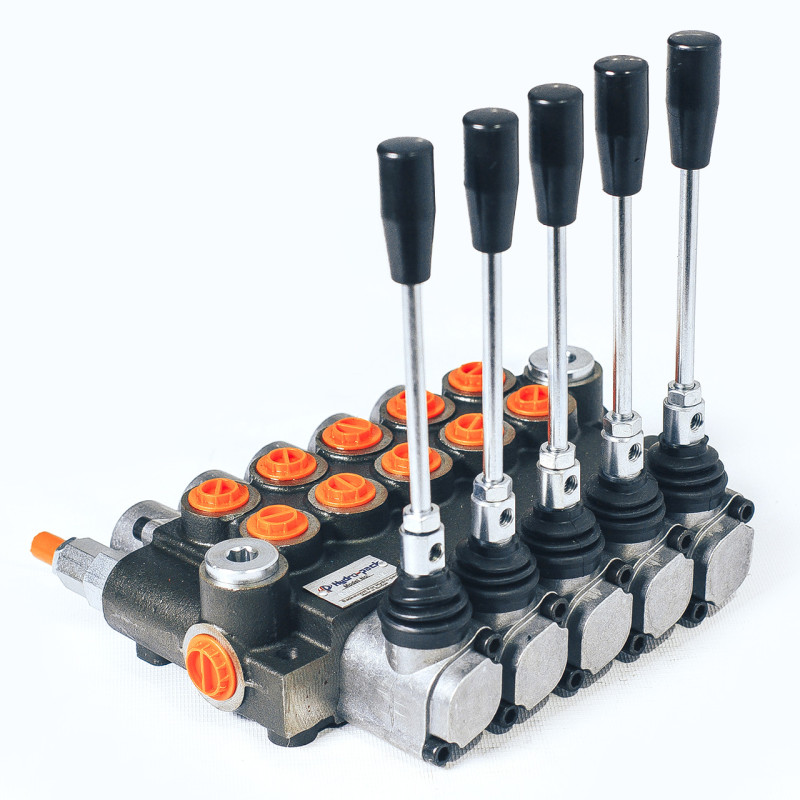

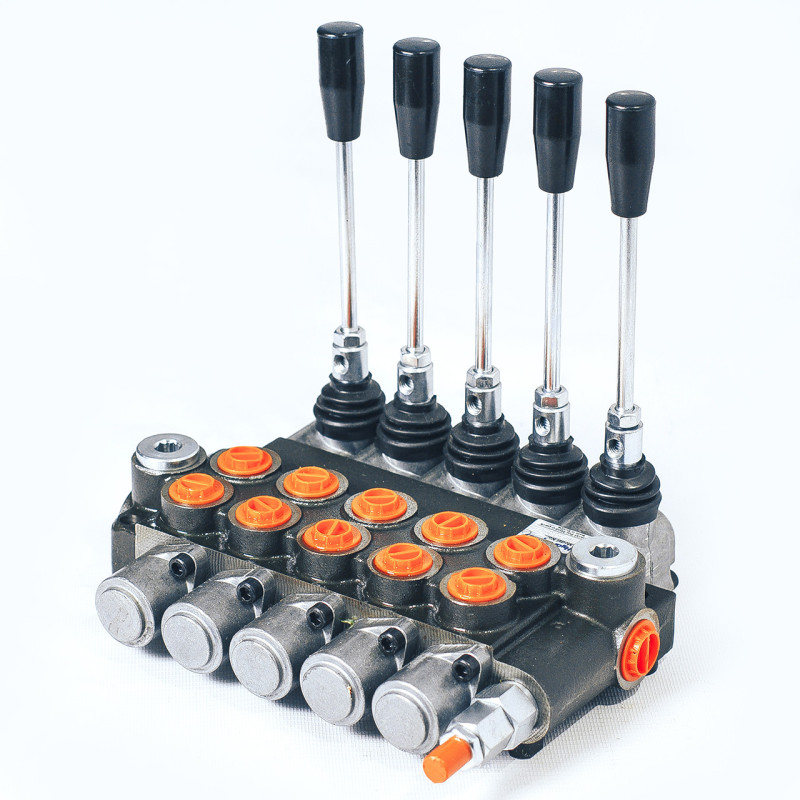

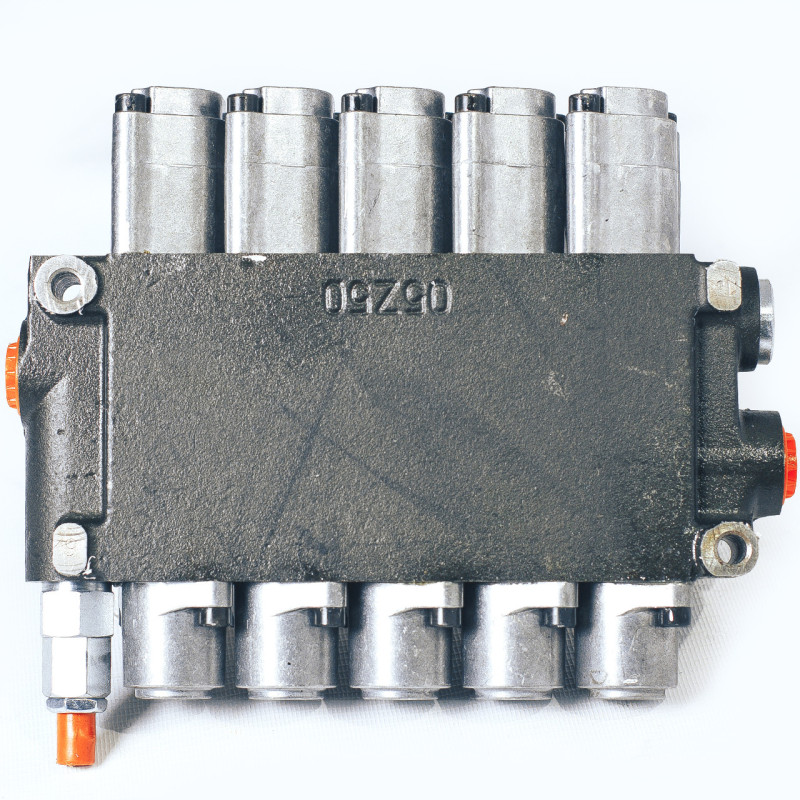

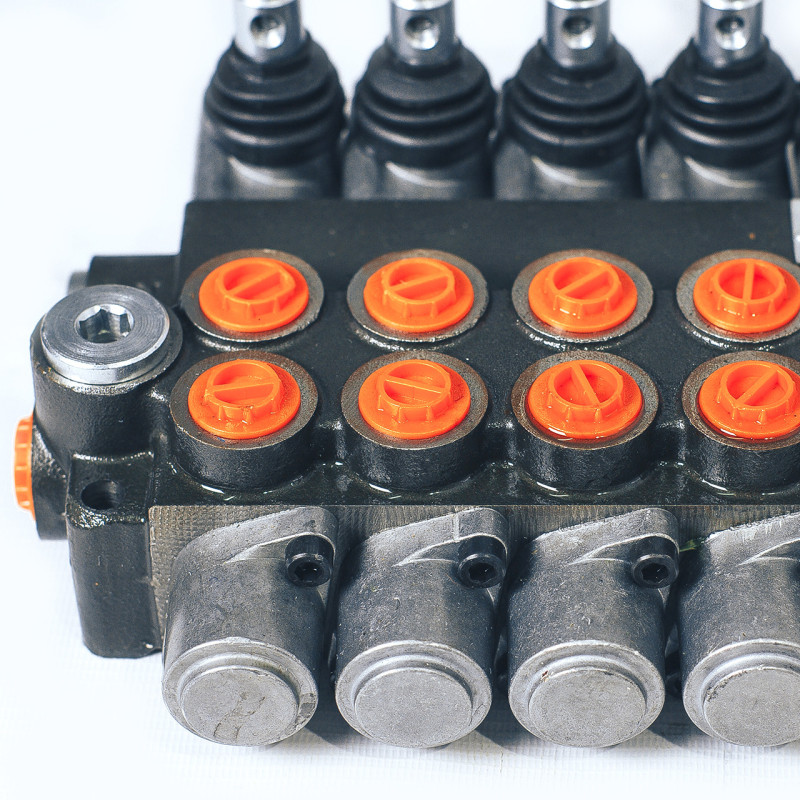

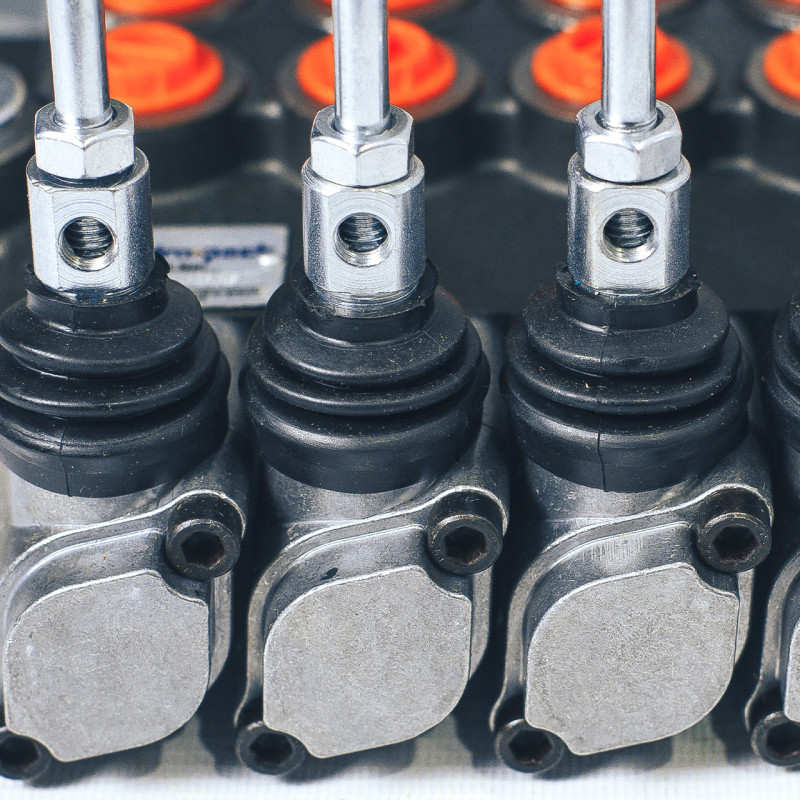

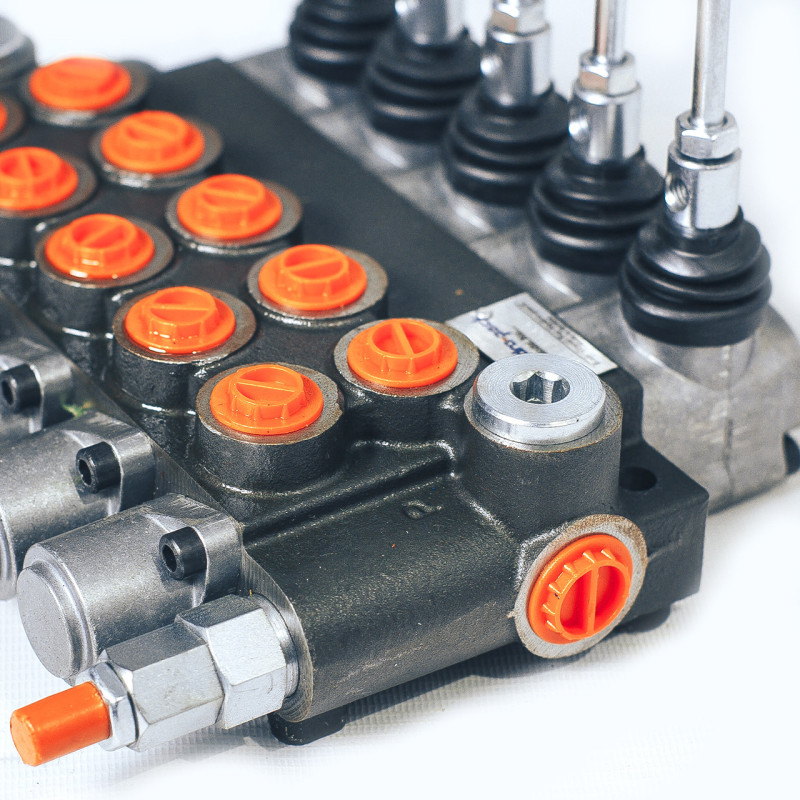

Monoblock Hydraulic Distributor 5P40 Badestnost (Bulgaria)

Monoblock hydraulic distributor 5P40 Badestnost (Bulgaria) is a reliable manual distributor for mobile and stationary hydraulic systems. Manufacturer: Badestnost. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors. The device is designed to start, stop, and control the direction and flow of working fluid between the hydraulic pump and actuators (hydraulic cylinders, hydraulic motors). The design is monoblock, the body is made of EN-GJL300 cast iron, and the plungers are made of carburized steel with hard chrome plating, which guarantees high wear resistance and long-term operation.

The distributor is equipped with manual spool valves with three working positions, controlled by a lever with position locking capability. Mounting is done with two M8 bolts. The compact monoblock design makes the 5P40 model popular for use in construction and agricultural machinery, as well as in various mobile and stationary hydraulic systems where simple and reliable flow direction control and minimal leaks are required.

Key Parameters

• Number of working sections: 5
• Flow capacity: 40 l/min
• Ambient temperature: -40°C...+60°C
• Working fluid temperature: -15°C...+80°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Recommended filtration: 10 per NAS 1638
• Maximum operating pressure: P = 315 bar; at T = 50°C: ports A, B = 300 bar
• Leakage (A,B → T): 5 cm³/min at 100 bar, 46 cSt
• Spool stroke: 6 mm
• Actuation force: < 200 N
• Mounting: two M8 bolts
• Materials: body — EN-GJL300 cast iron; plungers — carburized steel with hard chrome plating
• Control: manual spools, three positions
• Application: mobile hydraulics (construction, agricultural machinery), stationary hydraulic systems
• Detailed information: PDF, PDF2

The 5P40 model from Badestnost combines simple design with technical characteristics that meet the requirements of modern hydraulic systems: high maximum permissible pressure load, wide operating temperature range, wide working fluid viscosity range, and moderate leaks at operating pressure. The cast iron body and chrome-plated plungers ensure reliability in aggressive conditions and a long service life, while manual control allows the operator to quickly and accurately direct the flow and lock the desired position for safe operation of mechanisms.

This distributor is well-suited for replacement in a typical hydraulic control unit where a simple and reliable valve with position locking capability is required. When choosing, we recommend checking the compliance of operating parameters (pressure, temperature, viscosity) with the conditions of the specific system and adhering to filtration requirements (10 per NAS 1638) to reduce wear and ensure longevity.
