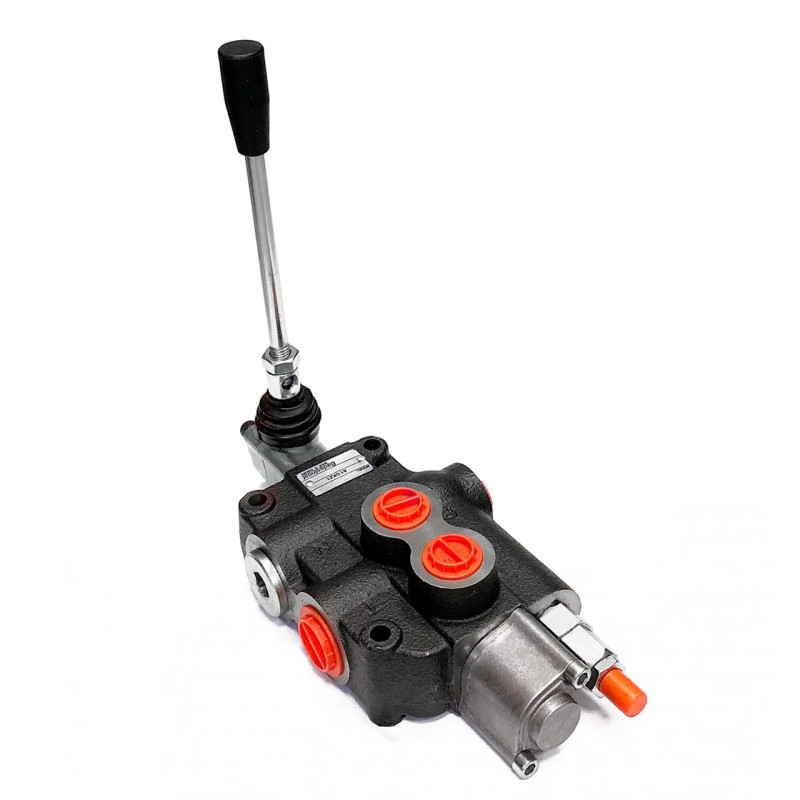

Monoblock Hydraulic Distributor 1P80 with Detent Badestnost (Bulgaria)

The Badestnost 1P80 monoblock hydraulic distributor is a manual single-section distributor designed to control the flow of working fluid between a hydraulic pump and consumers (hydraulic cylinders, hydraulic motors). The model is ideal for mobile hydraulics, particularly construction and agricultural machinery, where reliable direction switching, flow intensity regulation, and lever position detent are required.

Manufacturer: Badestnost (Bulgaria). Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors.

The design ensures durability and reliability: the body is made of EN-GJL300 cast iron, guaranteeing strength and resistance to mechanical loads. The spools (plungers) are made of case-hardened steel with hard chrome plating for increased wear resistance. Mounting is done with three M8 bolts, ensuring simple and reliable attachment to the frame or hydraulic system. Manual control is implemented via a handle with three-position switching.

The "with detent" mode allows the lever to be fixed in any position, including floating, until mechanically switched to another position. This increases ease of operation and safety when working with mounted or trailed equipment.

Key Parameters

• Number of working sections: 1
• Flow capacity: 80 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil/hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T=50°C: A, B = 300 bar
• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
• Spool stroke: +/- 7 mm
• Actuation force: < 220 N
• Detailed information: PDF, PDF2

Monoblock hydraulic distributors of the 1P80 series are widely used where simple and reliable manual flow control is required. They allow the operator to precisely control the flow direction, regulate the intensity of actuator operation, and fix the lever position for accurate and safe operations. Thanks to the cast iron construction and chrome-plated plungers, the distributor has increased wear resistance and a long service life.

The hydraulic distributor is suitable for installation in various hydraulic systems where precise manual coordination of drive operation is important. For installation, pay attention to M8 bolt fastening, adhere to filtration requirements (10 per NAS 1638), and maximum permissible operating pressures for safe operation. Detailed technical specifications and schematic data are available in the manufacturer's PDF files at the provided links.
