UPS+Battery backup power kit for electrical equipment and emergency lighting with external battery

The LogicPower B1500 + lithium (LiFePO4) battery 29440 Watt (19408+31170 230 Ah) backup power kit was developed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 1500/1000 VA/W performs 2 main functions: voltage stabilization (input - 150-282, output - 220/230/240±5%V) and conversion of DC from the battery to an AC 220V source. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+Battery kit - is equipped with a multi-gel AGM battery.

Connection diagram for the UPS + Battery backup power kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase. Before buying a UPS, be sure to consult with specialists.

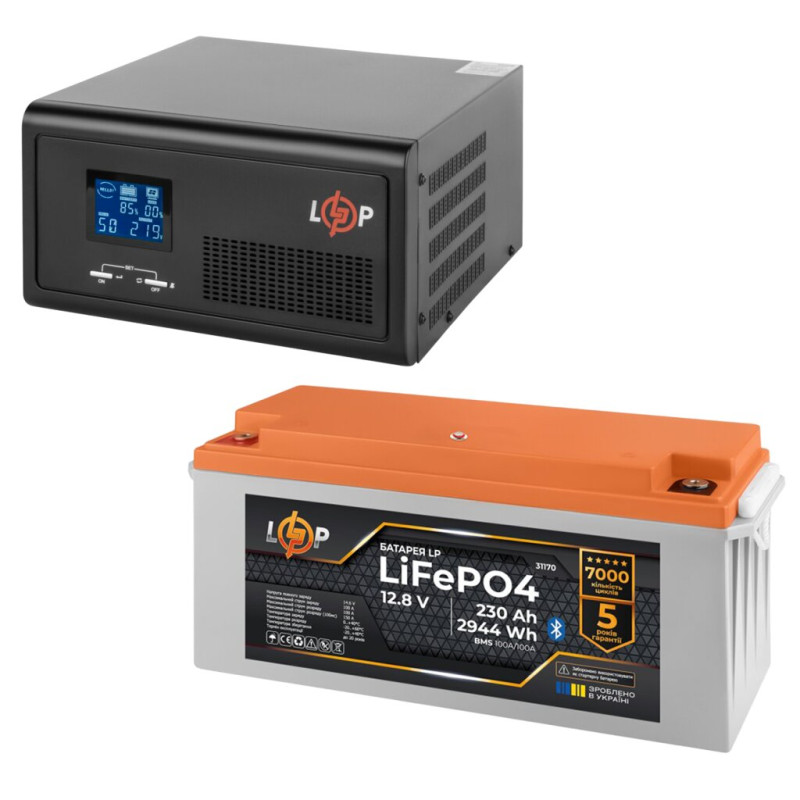

The kit includes:

• Pure sine wave UPS 12V LPE-B-PSW-1500VA+ (1000W) 1-35A

• Battery LP LiFePO4 12.8V - 230 Ah (2944Wh) (BMS 100A/100A) plastic Smart BT
