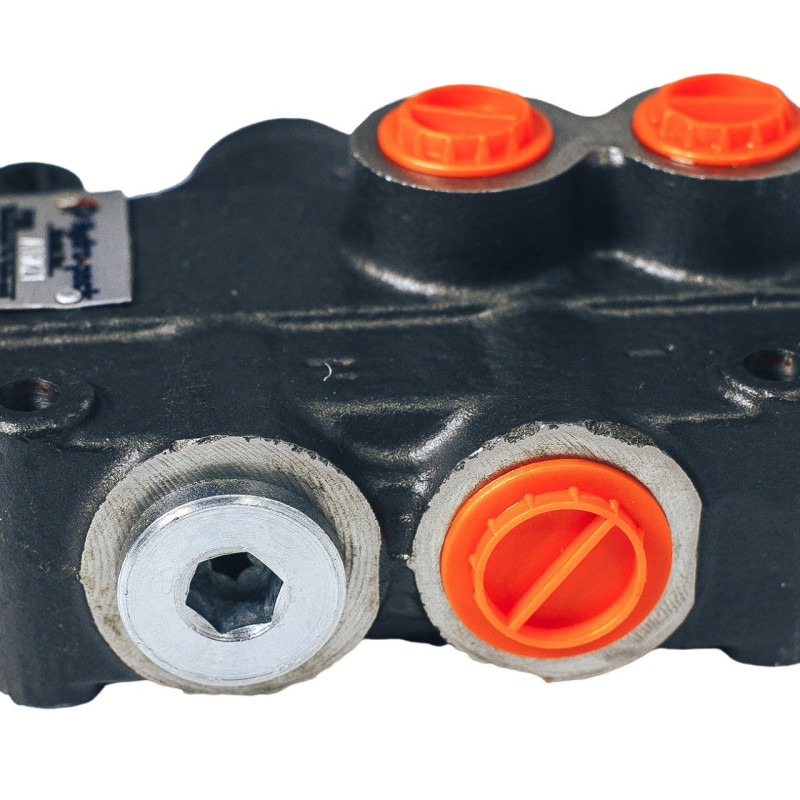

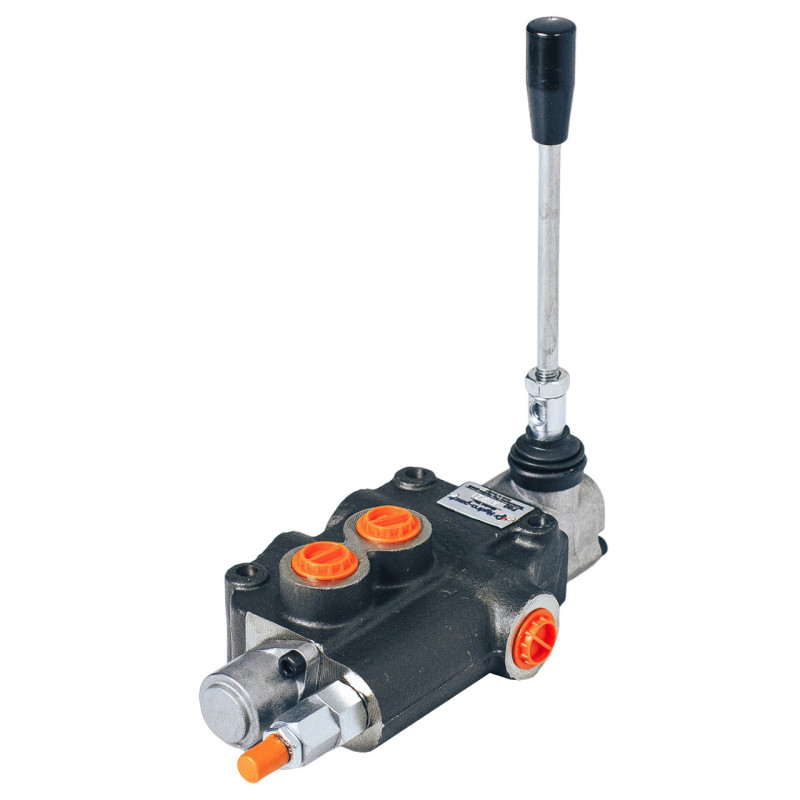

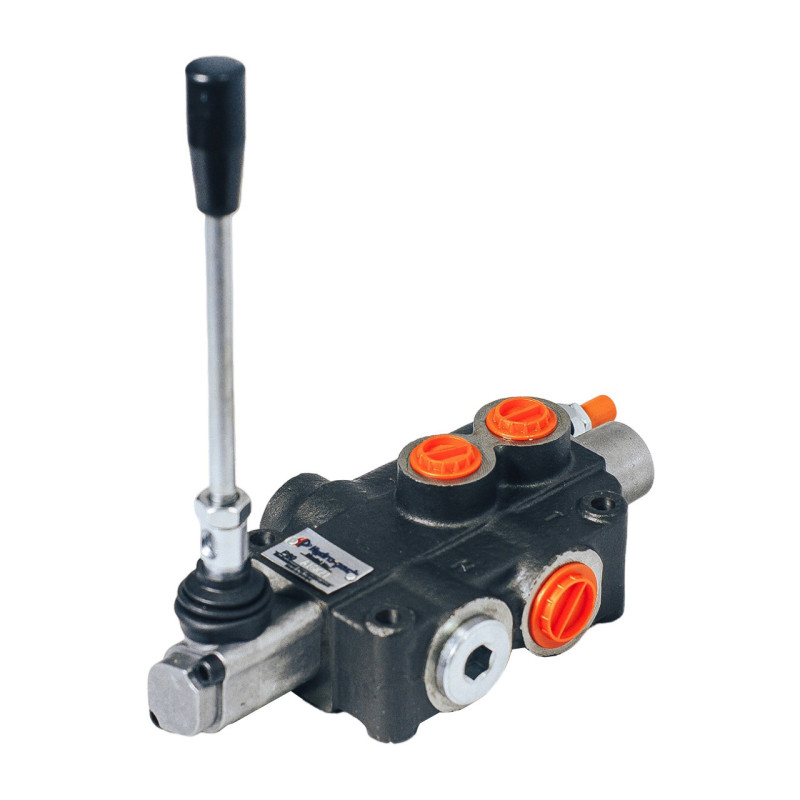

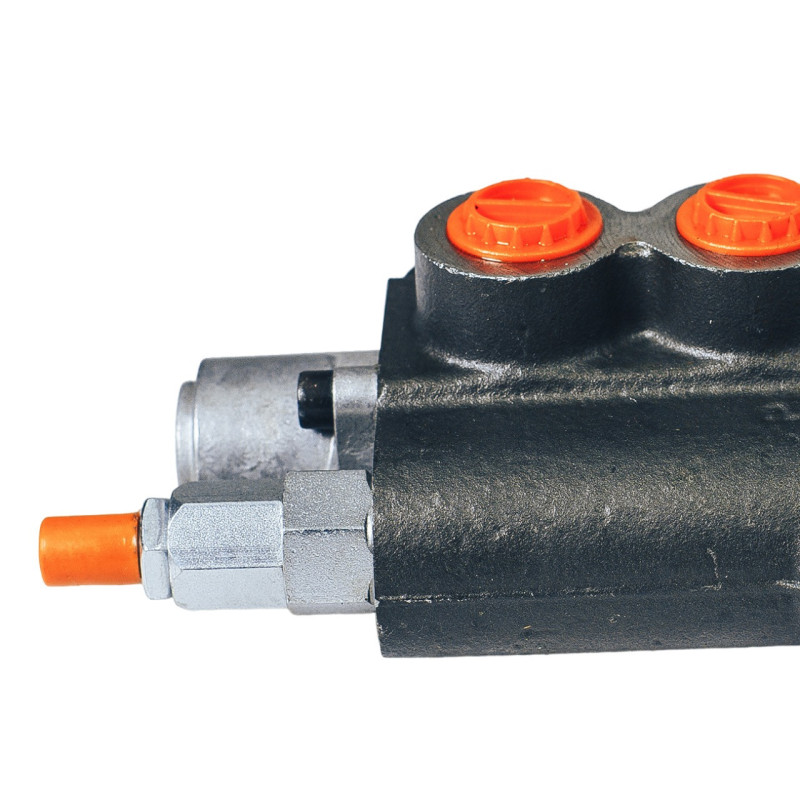

Monoblock Hydraulic Control Valve 1P80 Badestnost (Bulgaria)

The Badestnost 1P80 monoblock hydraulic control valve, manufactured in Bulgaria, is a reliable component for hydraulic systems in mobile and stationary equipment. It is designed to start, stop, and precisely control the direction of working fluid flow between the pump and actuators (hydraulic cylinders, hydraulic motors). The model features manual control and one working section with a flow capacity of 80 l/min, making it optimal for medium to high-performance tasks.

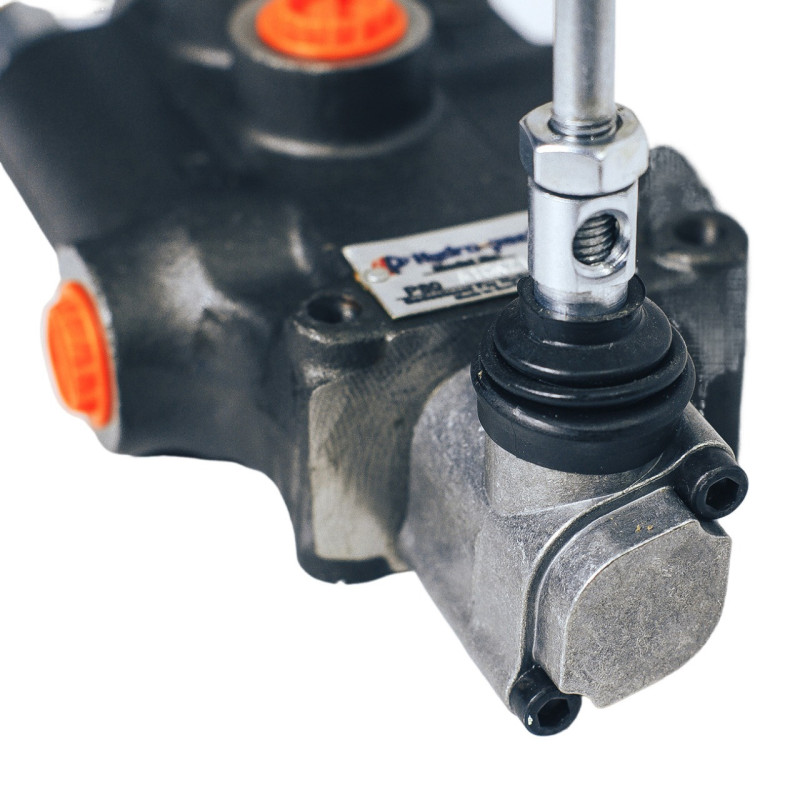

Construction and Materials: The body is made of EN-GJL300 cast iron for enhanced strength; the plungers (spools) are made of carburized steel with hard chrome plating, ensuring high wear resistance and a long service life under intensive use. The spools have manual three-position switching via a lever, with a spool stroke of ±7 mm. Mounting involves four support points, with actual fastening by three M8 bolts.

Area of Application

The 1P80 hydraulic control valve is widely used in mobile hydraulics: construction, agricultural, and municipal machinery, as well as in stationary installations. The device allows the operator to control flow direction, regulate intensity, and fix positions, enhancing ease of operation and work safety.

Key Parameters

• Number of working sections: 1
• Flow capacity: 80 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm2/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 6 cm3/min at 100 bar, 46 cSt
• Spool stroke: ±7 mm
• Actuation force: < 220 N
• Detailed information: PDF, PDF2

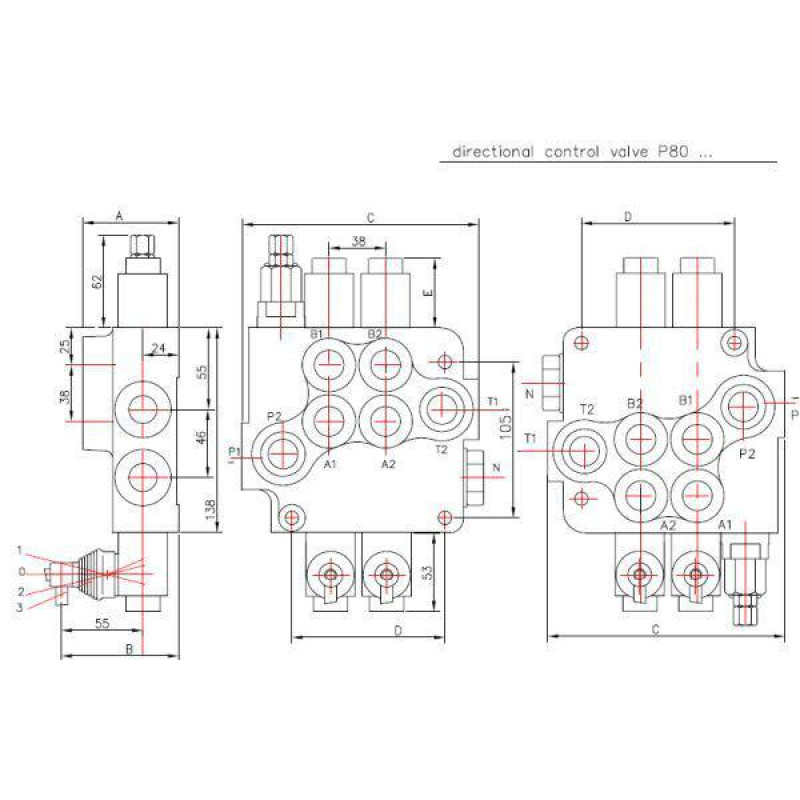

The valve is notable for its compact dimensions and design features that facilitate integration into various hydraulic systems where reliability and durability are important. The use of EN-GJL300 cast iron and hard chrome plating of the plungers guarantee stable operation even under heavy loads and in abrasive operating conditions.

Advantages of the Badestnost 1P80 model: simple manual control, durable EN-GJL300 cast iron body, high flow capacity of 80 l/min, wide operating temperature range, and compatibility with mineral hydraulic oils. The valve allows effective flow control in hydraulic systems of tractors, excavators, loaders, and other equipment.

Manufacturer: Badestnost (Bulgaria)

Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves

If you need an easy-to-use and durable monoblock hydraulic control valve for mobile equipment or stationary installations, the Badestnost 1P80 is an effective solution for ensuring direction and flow control of working fluid under intensive use.
