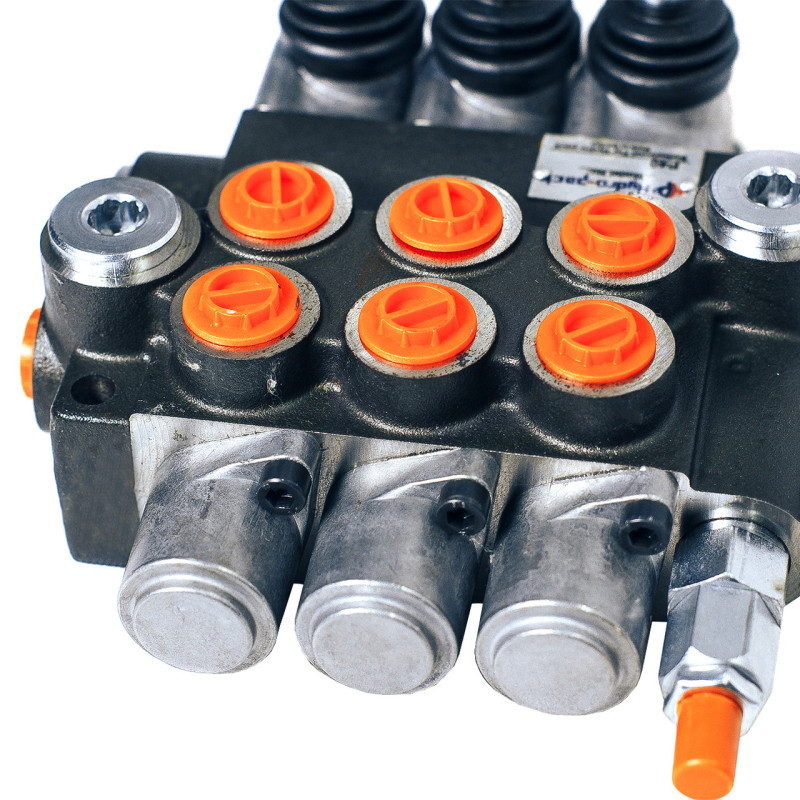

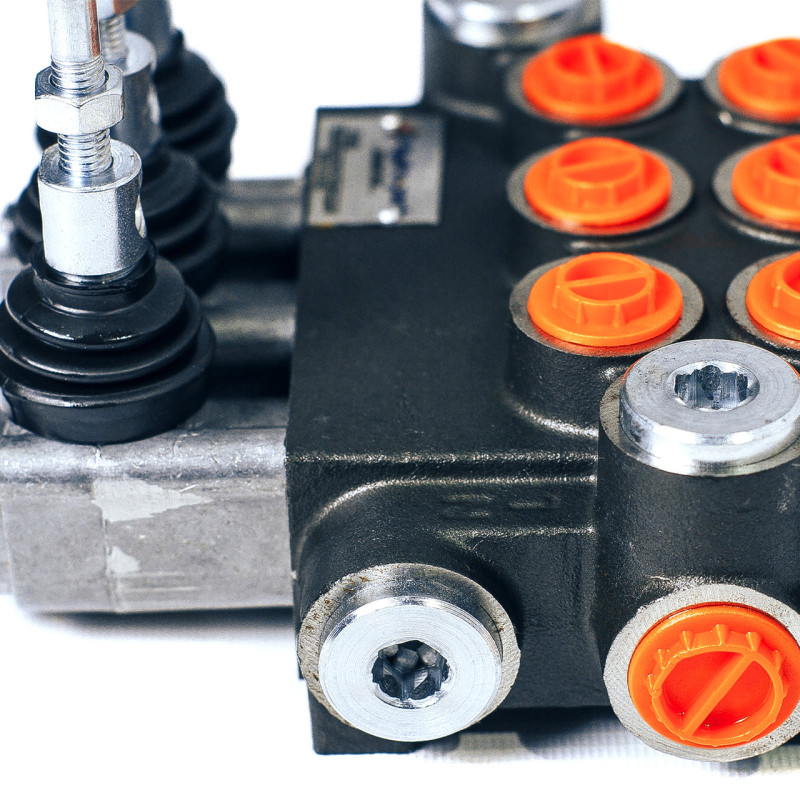

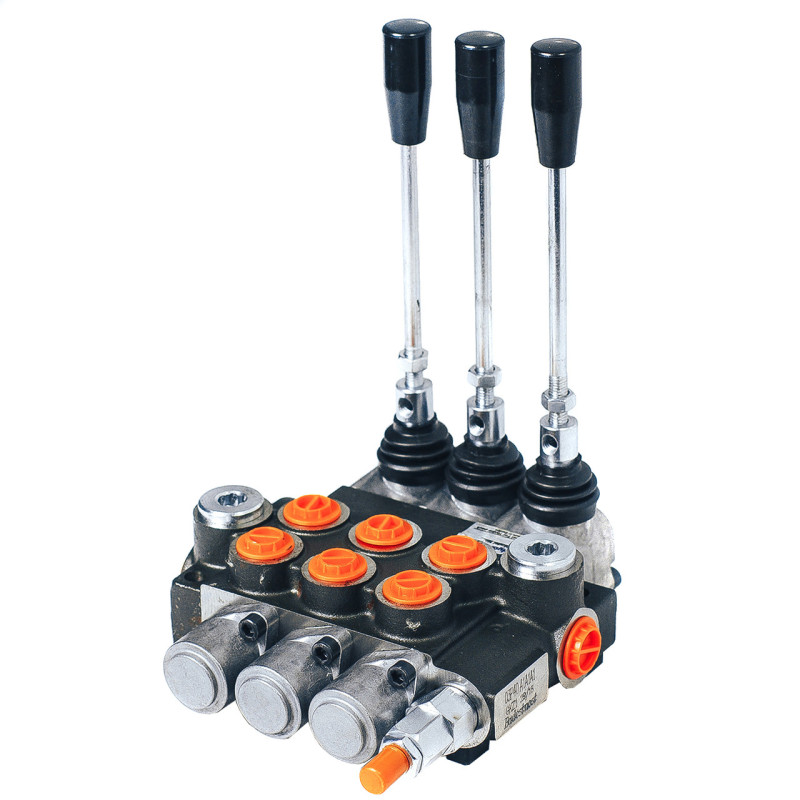

Monoblock Hydraulic Distributor 3P40 Badestnost (Bulgaria)

The Badestnost 3P40 monoblock manual hydraulic distributor is designed to control the direction and intensity of working fluid flow in hydraulic systems of mobile and stationary machinery. The model has three working sections and a flow capacity of 40 l/min, making it suitable for construction, agricultural, and other specialized equipment where simple and reliable manual control is required.

Design and Materials

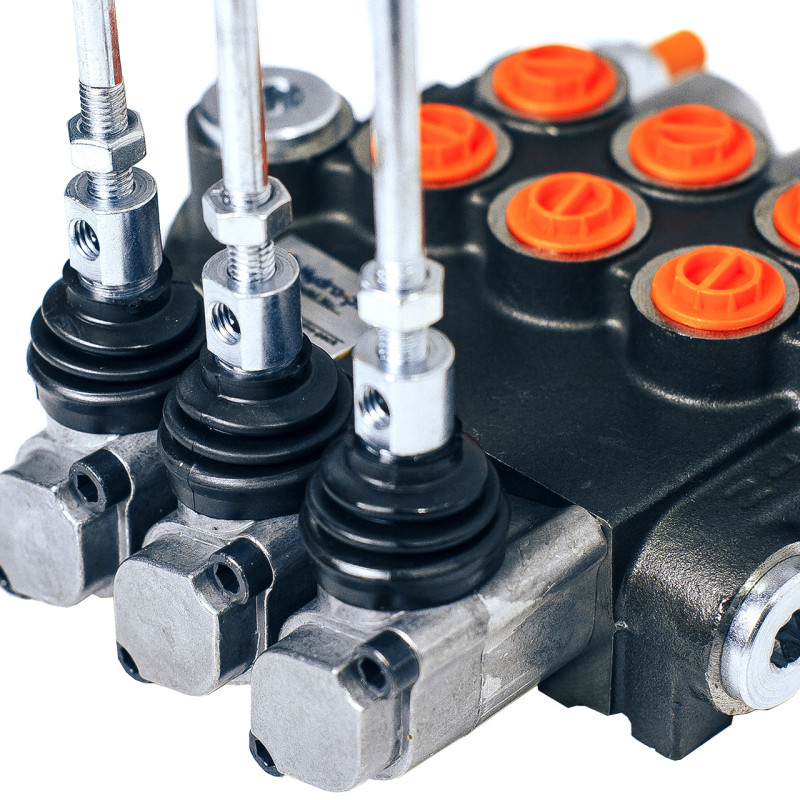

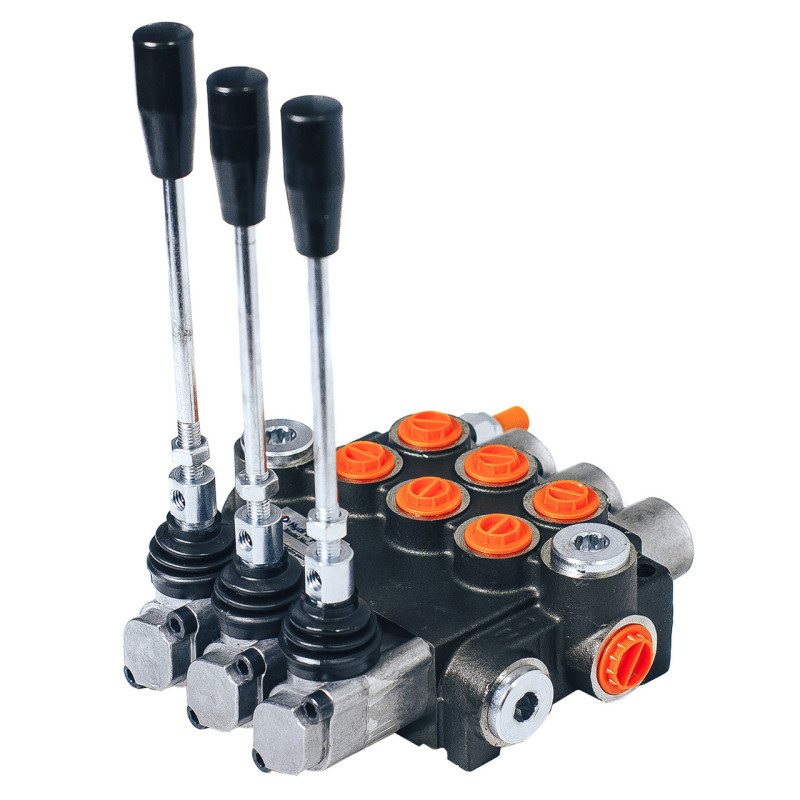

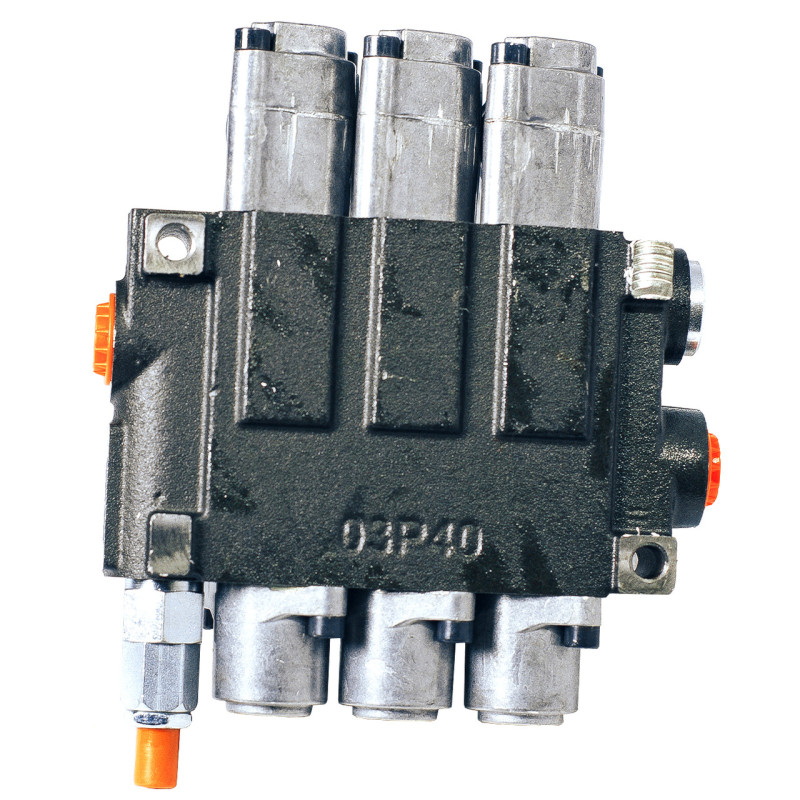

The body is made of EN-GJL300 cast iron, ensuring high strength and resistance to mechanical loads. The plungers (spools) are made of carburized steel with hard chrome plating for increased wear resistance and long-lasting operation in harsh conditions. Switching is performed by a manual lever with three-position locking, allowing the operator to precisely position the spool.

Application

The 3P40 is often used in mobile hydraulics: on tractors, excavators, loaders, and other specialized equipment, as well as in stationary installations where reliable manual flow direction control for hydraulic cylinders and hydraulic motors is required. Its ease of installation and maintenance makes the distributor a versatile solution for limited installation spaces.

Key Parameters

• Number of working sections: 3
• Flow capacity: 40 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: Class 10 according to NAS 1638
• Maximum operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 5 cm³/min at 100 bar, 46 cSt
• Spool travel: 6 mm
• Actuation force: < 200 N
• Mounting: 2 M8 bolts

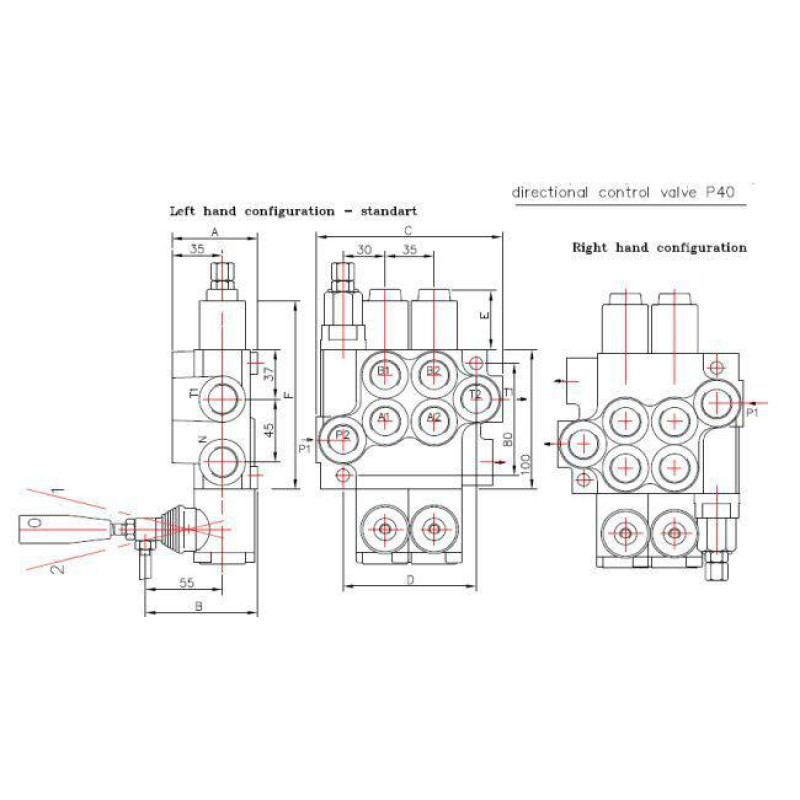

• Detailed technical data and diagrams: PDF, PDF2

The monoblock design and standard mounting dimensions allow for quick integration of the distributor into existing systems. Reliability is ensured by the combination of a cast iron body and chrome-plated plungers, providing a long service life when operating instructions are followed.

If you need an easy-to-operate and durable manual hydraulic distributor for mobile or stationary equipment, the Badestnost 3P40 is a reliable choice. It combines robust construction, convenient manual control with position locking, and technical characteristics that meet the requirements of modern hydraulic systems.

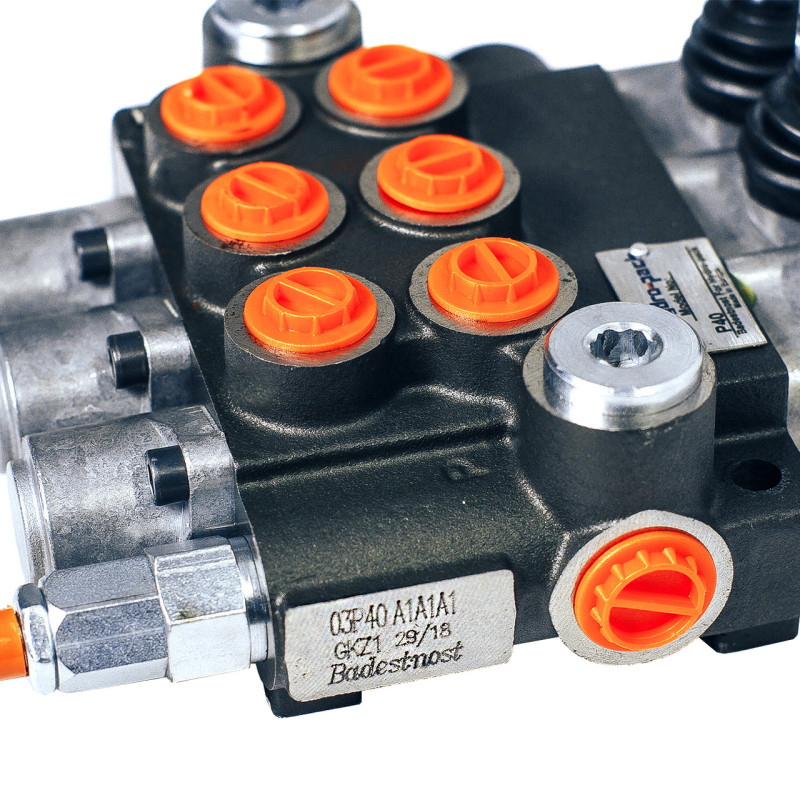

Manufacturer: Badestnost (Bulgaria). Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors
