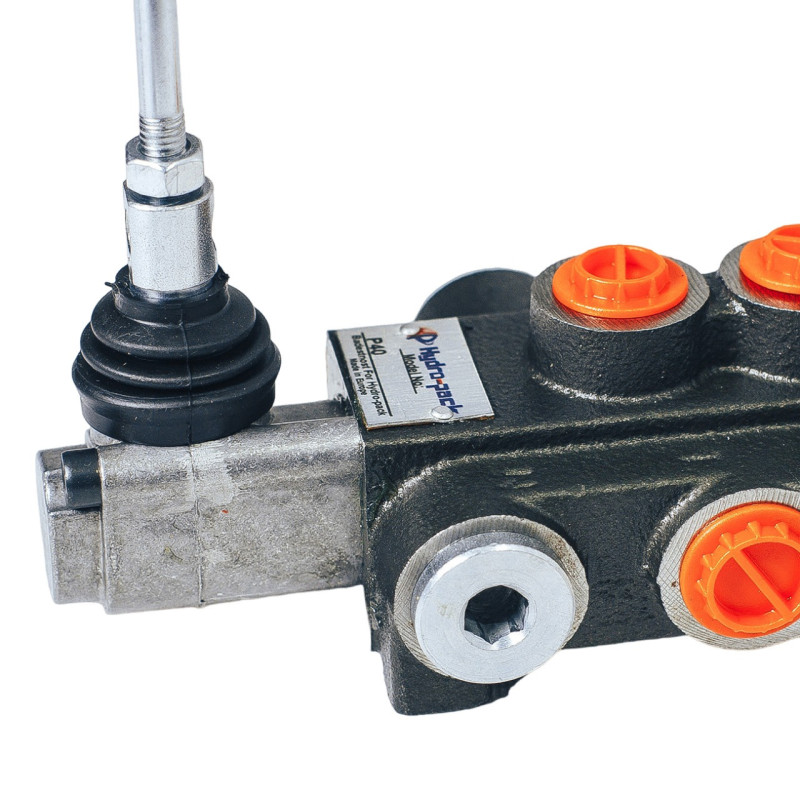

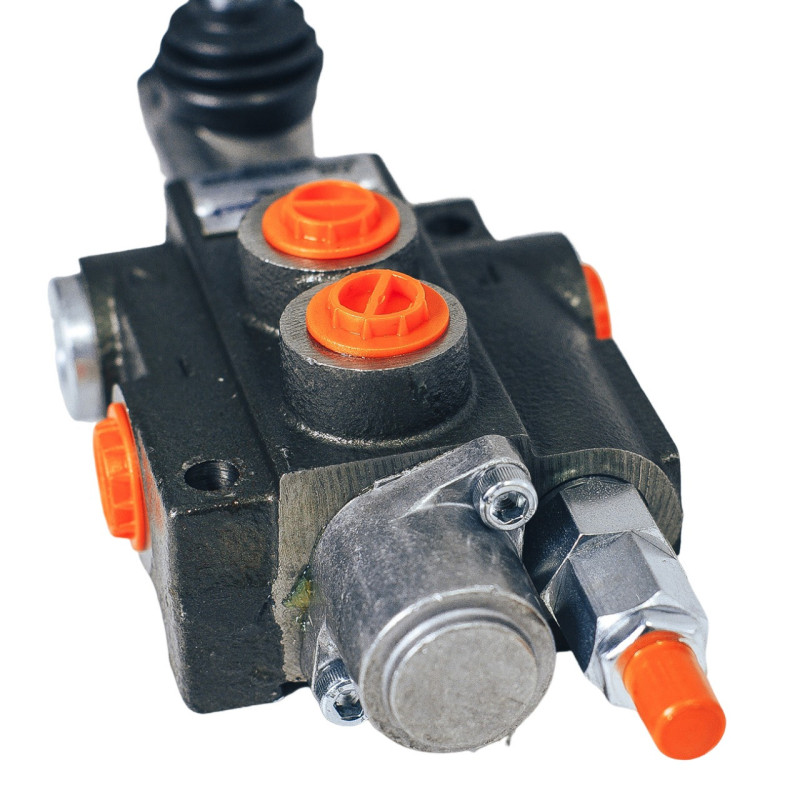

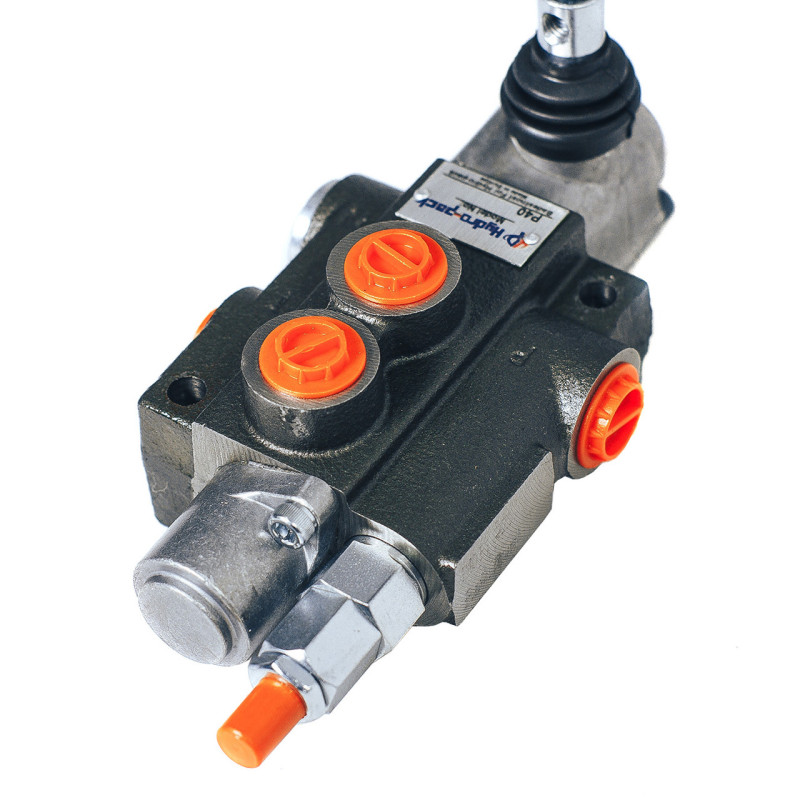

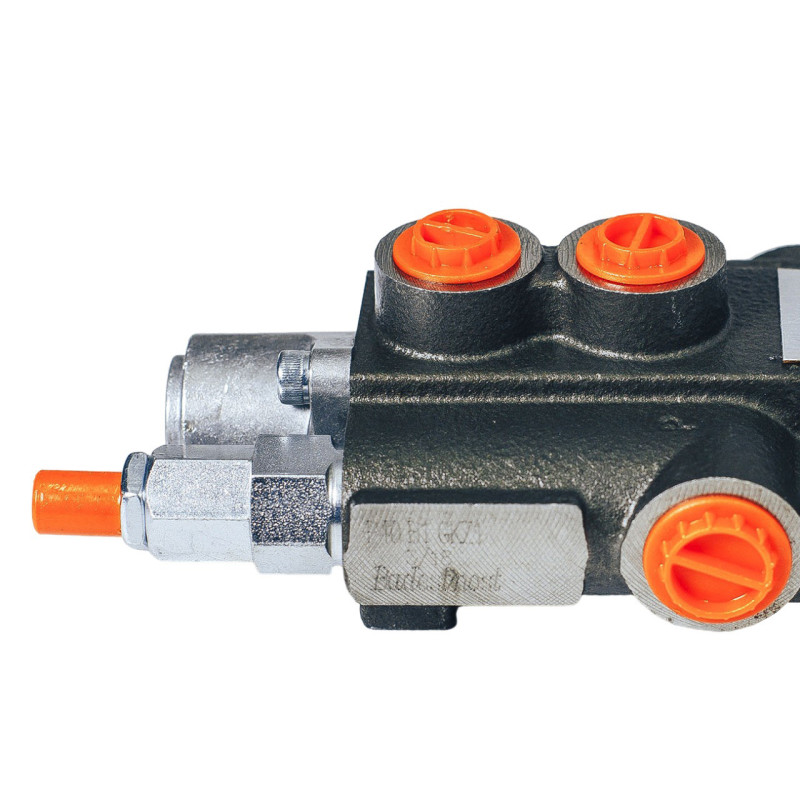

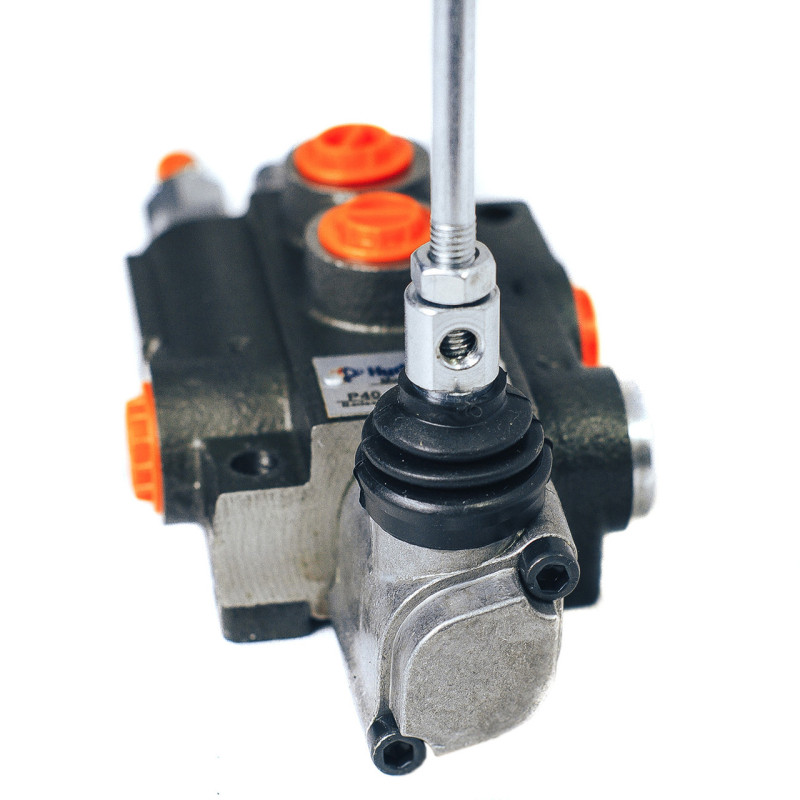

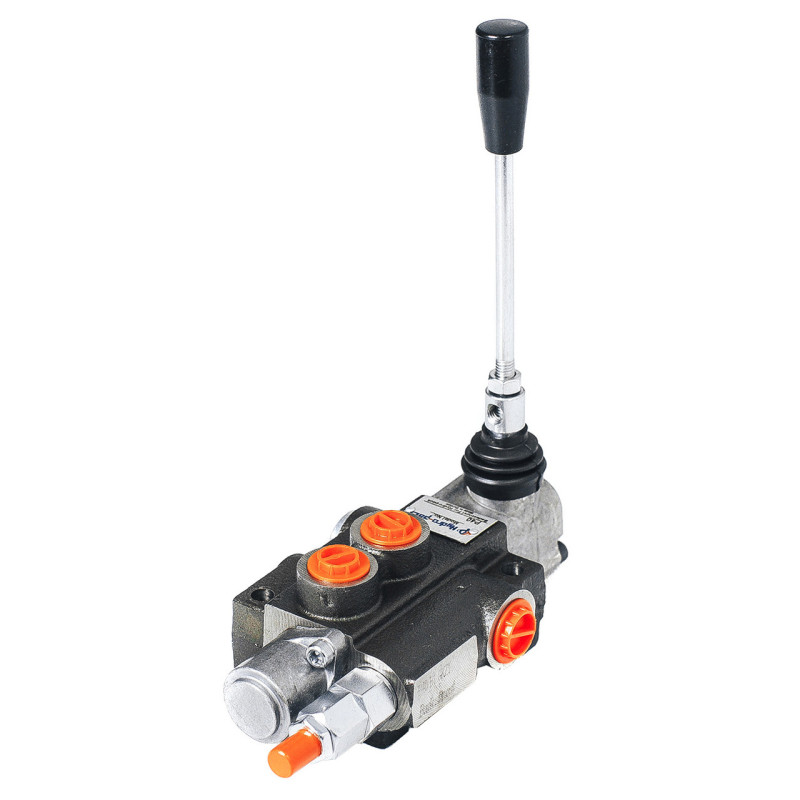

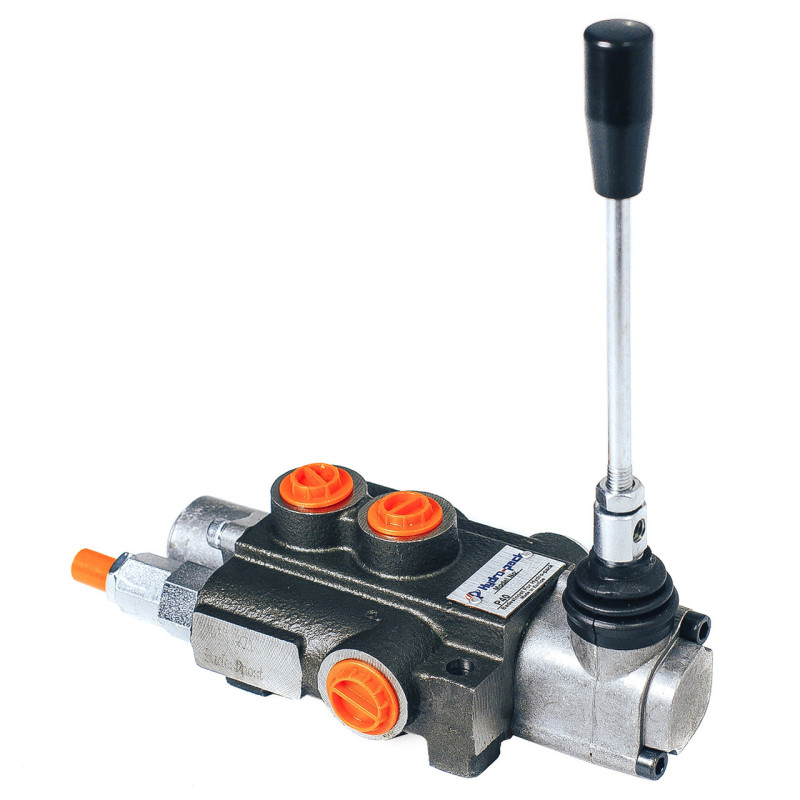

Monoblock Hydraulic Distributor 1P40 Badestnost (Bulgaria)

The 1P40 monoblock hydraulic distributor from Badestnost (Bulgaria) is an effective and reliable solution for mobile hydraulic systems used in construction and agricultural machinery. The device is designed to start, stop, and directionally control the flow of working fluid between the hydraulic pump and the actuators (hydraulic cylinders, hydraulic motors). Manual control is performed using a spool with three positions and a convenient handle, which allows for position locking for safe and stable equipment operation.

The distributor body is made of EN-GJL300 cast iron, ensuring high mechanical strength, while the plungers are made of case-hardened steel with hard chrome plating for increased wear resistance and a long service life under intensive use. Installation is done with two M8 bolts, guaranteeing reliable fixation in the machine's structure.

Key Characteristics and Parameters

• Number of working sections: 1
• Flow rate: 40 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50: A, B = 300 bar
• Leakage (A,B-T): 5 cm³/min at 100 bar, 46 cSt
• Spool stroke: 6 mm
• Actuation force: < 200 N
• Mounting: two M8 bolts
• Materials: body — EN-GJL300 cast iron; plungers — case-hardened steel with hard chrome plating
• Detailed information: PDF, PDF2

The 1P40 hydraulic distributor provides the operator with precise control over the direction and intensity of the flow with the ability to lock the spool position, which is important for stable operation of units under load. Thanks to its compact monoblock design, the product is easily integrated into existing hydraulic systems of mobile machinery and withstands operating loads typical for the construction and agricultural sectors.

Manufacturer: Badestnost (Bulgaria). Category: Hydraulic Systems > Hydraulic Distributors.

Advantages of this distributor include simple and intuitive manual control, the use of durable body and plunger materials, versatility for mobile machinery, resistance to a wide range of temperatures and viscosities, and compliance with filtration and operating pressure requirements. Before installation, always check that your hydraulic system's parameters (pressure, viscosity, filtration) match the specified characteristics and ensure correct M8 bolt fastening for tightness and reliable operation.
