Hydraulic Distributor 3P80 with Floating Sections and Detent — Badestnost (Bulgaria)

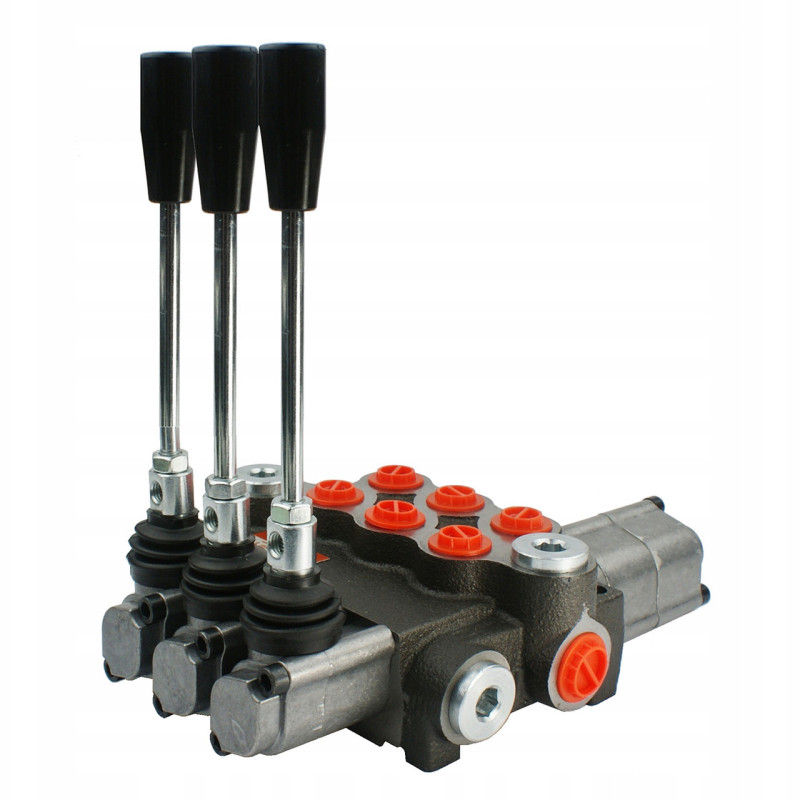

Badestnost 3P80 is a monoblock manual hydraulic distributor designed to control the start, stop, and direction of working fluid flow between hydraulic pumps and consumers (hydraulic cylinders, hydraulic motors). The model features three working sections with a floating position option and mechanical lever detent, ensuring versatile application in mobile and stationary hydraulics.

The device body is made of EN-GJL300 cast iron, the plungers are made of case-hardened steel with hard chrome plating, and the distributor is mounted with three M8 bolts. The manual spools are switched in three positions using a shoulder handle; the floating position is useful for agricultural and municipal machinery, such as harrows and other implements requiring a free-run mode. The detent mode allows the lever position to be secured for prolonged operation or during transport, enhancing operator convenience and safety.

Key Characteristics

• Number of working sections: 3
• Flow capacity: 80 l/min
• Ambient temperature: -40°C... +60°C
• Working fluid: mineral hydraulic oil
• Working fluid viscosity: 12... 800 mm2/s
• Fluid temperature: -15°C... +80°C
• Filtration: 10 per NAS 1638
• Maximum operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 6 cm3/min at 100 bar, 46 cSt
• Spool stroke: +/- 7 mm
• Actuation force: < 220 N
• Materials: body — EN-GJL300 cast iron; plungers — case-hardened steel with hard chrome plating
• Mounting: three M8 bolts
• Detailed technical information: PDF, PDF2

The 3P80 distributor from Badestnost provides reliable control of flow direction and intensity with a flow capacity of 80 l/min. Thanks to the floating position, this model is convenient for use on implements where free movement of the working element is required, while mechanical detent allows the lever position to be secured for stable operation or safe transport. The monoblock design makes the device robust and durable for operation in harsh conditions of construction, agricultural, and municipal machinery.

The model is suitable for operations where precise direction control, minimal leaks, and reliability under high loads are important: hydraulic cylinder control, hydraulic motor operation, and attachment drives. For proper operation, recommended working fluids should be used, and filtration requirements (10 per NAS 1638) and temperature regimes should be observed.

Manufacturer: Badestnost (Bulgaria). Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors. If you need a reliable monoblock hydraulic distributor with floating sections, the 3P80 model combines the simplicity of manual control with a robust design and is suitable for a wide range of applications in mobile and stationary hydraulics.
