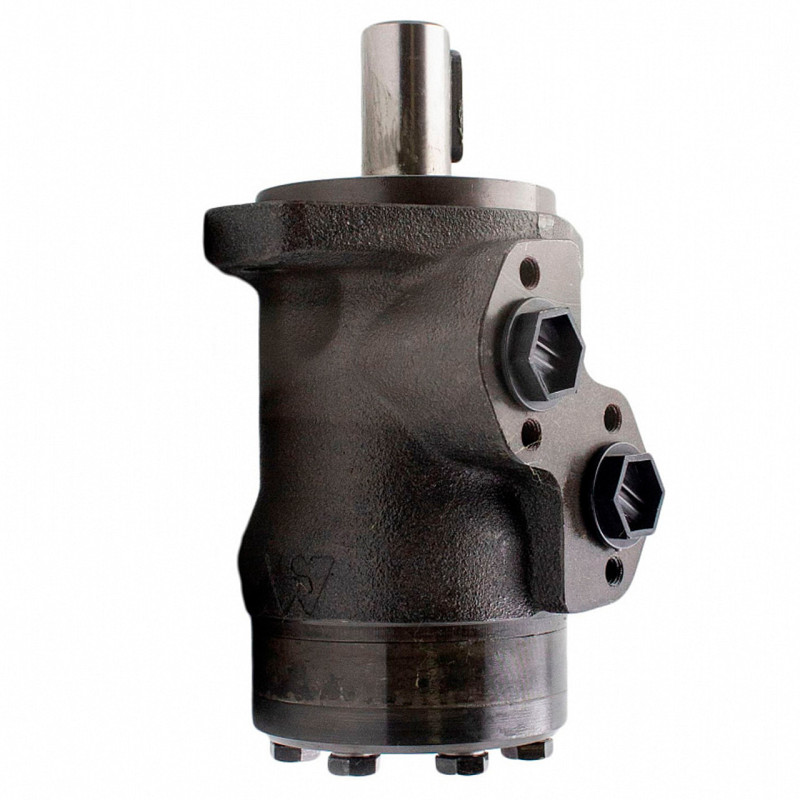

Gerotor Hydraulic Motor MP 125 C M+S Hydraulic (125 cm3, 10.2 kW, 486 rpm)

The M+S Hydraulic MP 125 C gerotor hydraulic motor, presented by the Hidros brand (manufacturer M+S Hydraulic, Bulgaria), combines compact dimensions with high rotational speed and reliable operation. The technical description specifies a displacement of 123.8 cm3 and a maximum power of 10.2 kW, making this motor suitable for a wide range of special and industrial machinery. The MP series is characterized as low-torque and high-speed, designed for continuous operation at moderate pressure or short-term operation under high loads.

Ports and Design Features: The main ports are located on the side with G 1/2" threads, and the drain port is G 1/4". The shaft is a straight cylindrical ø25 for a A8x7x32 DIN6885 key. A standard shaft seal is used; other shaft options are available upon request (see detailed specification in PDF).

Application: Various special and industrial machinery requiring a combination of high rotational speed and compact drive.

Main Parameters:

• Displacement: 123.8 cm³
• Max Speed: 486 rpm
• Max Torque: 237 Nm
• Max Power: 10.2 kW
• Max Operating Pressure: 140 bar
• Flow Rate: 60 l/min
• Weight: 6.2 kg
• Detailed Information: PDF

MP series hydraulic motors are supplied with an additional shaft seal (option D) by default.

Shaft and Seal

• Straight cylindrical shaft ø25 for A8x7x32 DIN6885 key
• Standard shaft seal
• Other shaft options available upon request (see specification in PDF)

Operating Recommendations

• Short-term speed and short-term pressure should not occur simultaneously.
• Recommended filtration corresponds to ISO 20/16 cleanliness class; nominal filtration is 25 microns or higher.
• It is recommended to use high-quality mineral hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum oil viscosity is 13 mm2/s [70 SUS] at 50°C [122°F].
• Recommended maximum system temperature is 82°C [180°F].
• To ensure a long service life of the hydraulic motor, before maximum load, the fluid must be filled, and the device should be allowed to operate under moderate load and speed for 10–15 minutes.

This gerotor motor is ideal for applications requiring reliable operation under variable load conditions, compact installation, and easy integration thanks to standardized ports and shaft. The MP 125 C model combines the characteristics of the MP series – an economical design for continuous operation and the ability for short-term operation at elevated pressures.
