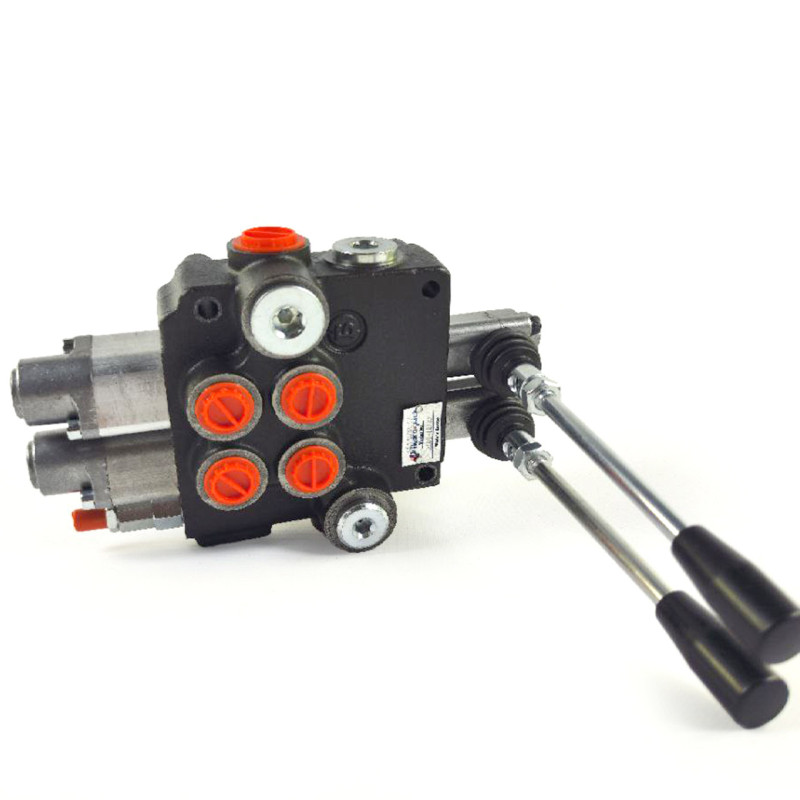

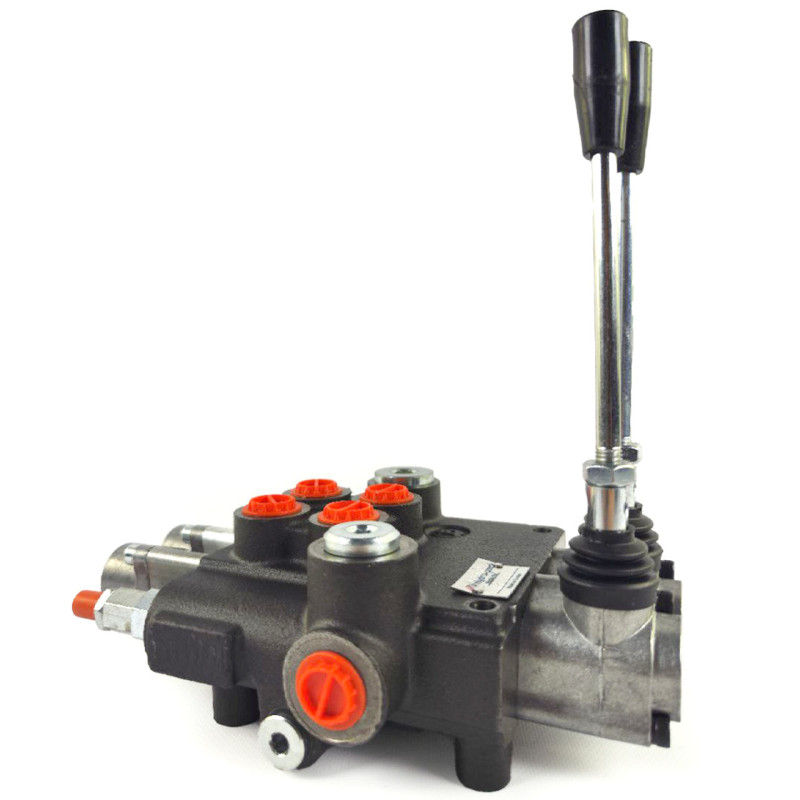

2P80 Hydraulic Control Valve with Floating Sections Badestnost (Bulgaria)

The Badestnost 2P80 monoblock hydraulic control valve is designed for manual control of working fluid flow in mobile and stationary hydraulic systems. Manufacturer: Badestnost (Bulgaria). Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves. This model with floating sections allows starting, stopping, and precisely regulating the direction and intensity of flow between hydraulic pumps and actuators (hydraulic cylinders, hydraulic motors), ensuring reliable operation under intensive use.

The valve is equipped with manual spools that switch between three positions using a lever; a floating position is provided for specialized operating modes on agricultural, municipal, or construction machinery (harrows, towed equipment, etc.). The body is made of EN-GJL300 cast iron, and the plungers are made of carburized steel with hard chrome plating. Mounting is achieved with three M8 bolts, simplifying installation and ensuring secure fastening.

Key Parameters

• Number of working sections: 2
• Flow rate: 80 l/min
• Ambient temperature: -40°C...+60°C
• Fluid temperature: -15°C...+80°C
• Hydraulic fluid: mineral oil/hydraulic oil
• Viscosity: 12...800 mm²/s
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
• Spool stroke: +/- 7 mm
• Actuation force: < 220 N
• Mounting: three M8 bolts
• Materials: body — EN-GJL300 cast iron; plungers — carburized steel with hard chrome plating
• Control: manual, three lever positions; includes floating position
• Detailed technical information: PDF, PDF2

Thanks to its robust design and wide range of working fluid viscosities, the 2P80 from Badestnost is ideal for use in construction, agricultural, and municipal machinery where reliable directional control and position locking of actuators are required. The floating position allows for a temporary free-moving connection or automatic unlocking of mechanisms, which is particularly relevant for towed equipment and work tools.

The 2P80 hydraulic control valve is an optimal combination of ease of operation, quality materials, and technical characteristics that meet the requirements of mobile hydraulics. If you need a monoblock valve with floating sections and manual control at 80 l/min, the Badestnost 2P80 model will satisfy most professional tasks.
