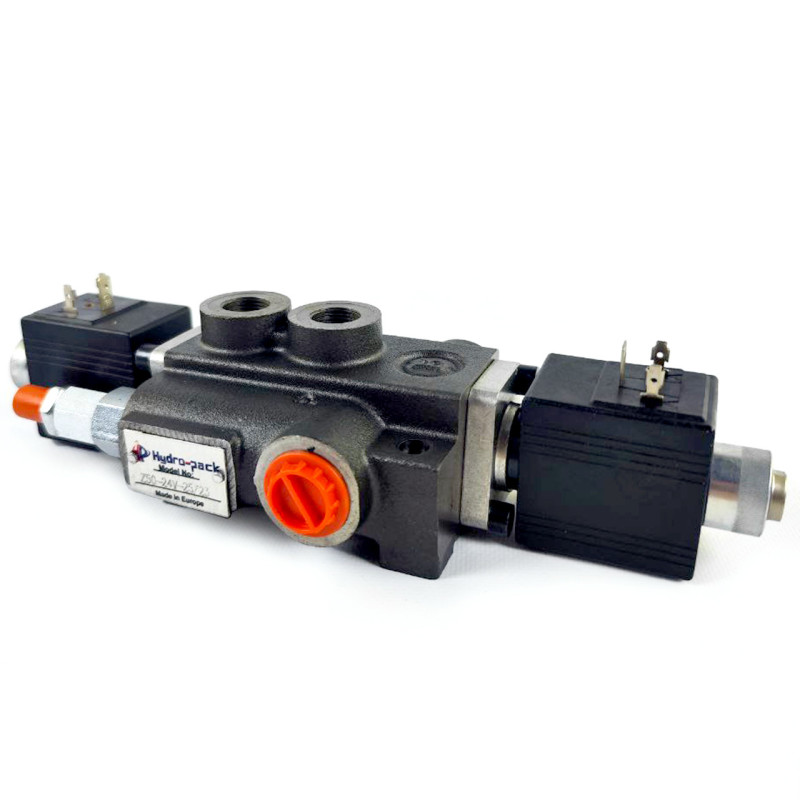

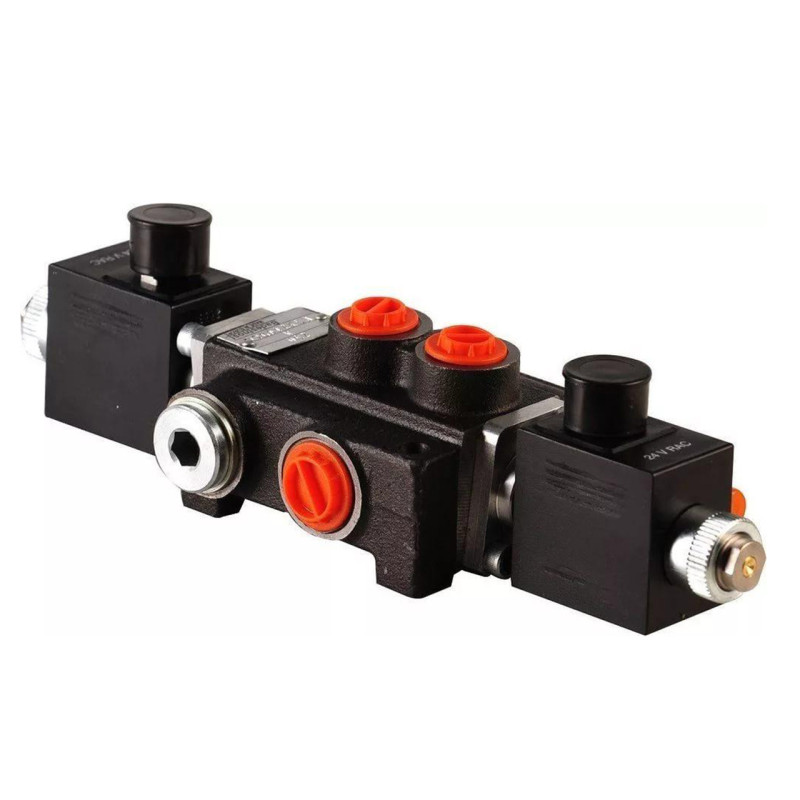

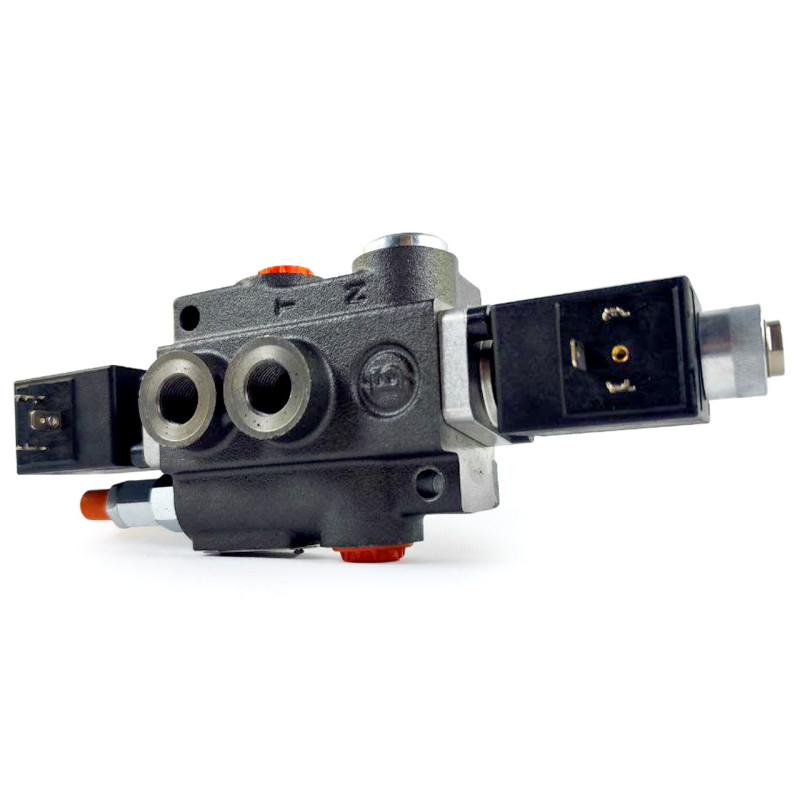

Hydraulic Control Valve 1Z50 24V with Solenoid Control Badestnost

The Badestnost 1Z50 monoblock solenoid hydraulic control valve is designed for use in modern hydraulic systems, both in new projects and when upgrading existing units. The model features a single-section design with a flow capacity of 50 l/min and a control voltage of 24 V, making it a versatile solution for agricultural, construction, and industrial machinery where reliable solenoid flow switching is required.

Precise honing of bores and grinding of spools ensure reduced internal leakage and lower energy losses. The design allows for the use of interchangeable spools for quick and simple maintenance without the need to replace the entire assembly. Installation is standard, using M8 bolts or a full set of studs, which simplifies integration into existing systems and allows for prompt on-site service.

Key Characteristics

• Product Code: Z50-A-ES3-24VDC-G
• Number of Spools: 1
• Spool Type: Open center "A" type with return spring
• Control: Double-acting P-B with return to neutral position
• Control Voltage: 24 V
• Flow Capacity: 50 l/min
• Max Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
• Max Leakage: max. 18 cm³/min at 100 bar (from A, B to T)
• Operating Fluid Temperature Range: -10 °C to +80 °C
• Operating Fluid: Mineral-based hydraulic oil
• Operating Fluid Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, T - G 1/2; A, B - G 3/8

Additional Information

The hydraulic control valve provides double-acting control in three spool positions, allowing for complex hydraulic circuits with precise control of actuators. Operational reliability is enhanced by modern surface treatment, which reduces wear and internal leakage, as well as by the possibility of quick component replacement without disassembling the entire block. Mounting dimensions and connection options comply with generally accepted standards for monoblock valves, making this distributor convenient for integration into existing units.

Documentation and technical materials are available as electronic files: PDF, PDF2

Manufacturer: Badestnost. Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves.

The 1Z50 24V monoblock hydraulic control valve combines high flow capacity, high operating pressure, and ease of maintenance. Thanks to precise machining and reliable solenoid control, the device is optimally suited for applications where positioning accuracy, minimized leakage, and long service life are important across a wide range of operating fluid temperatures and viscosities.
