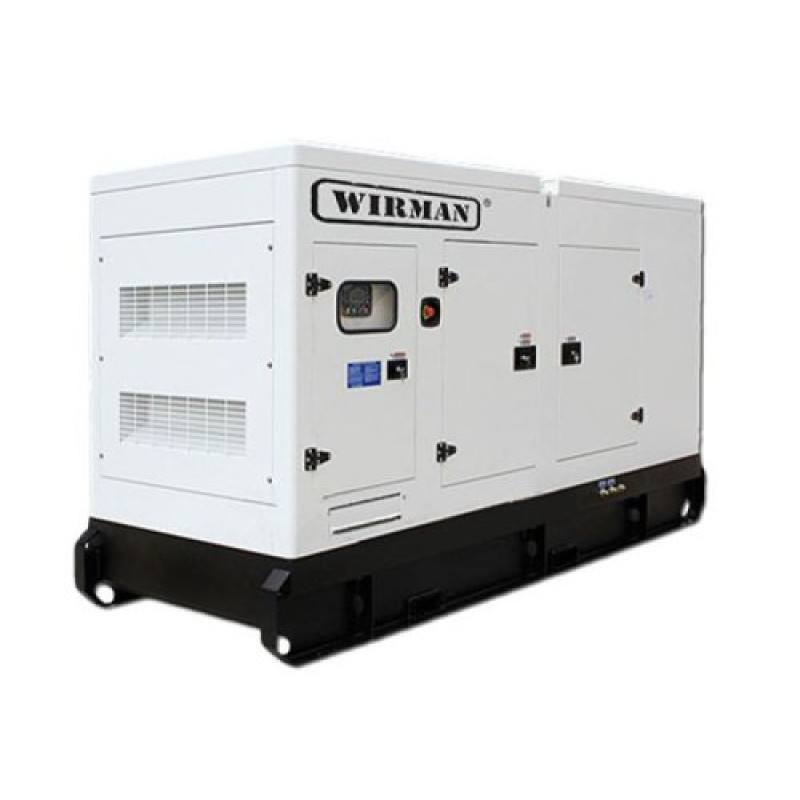

Wirman 180 KVA (144 kW) Diesel Generator
Product Description: The Wirman 180 KVA Diesel Generator is a reliable power solution for industrial facilities, construction sites, and as a backup power source for commercial and municipal needs. This model from Wirman combines a powerful 6-cylinder engine and a three-phase generator, providing stable electrical energy during intensive operation.
Advantages and Key Features:
- Voltage: 230/400V — compatibility with industrial electrical grids.
- Engine Type: 6-cylinder, four-stroke, water-cooled WIRMAN W6105ZLD — a powerful and durable unit.
- Starting System: electric starter with automatic start — ease of use and quick readiness for operation.
- Fuel Tank: 200 L — extended autonomy without frequent refueling.
- Peak Power: 144 kW; Continuous Power: 138 kW — high performance under peak loads and stable operation in continuous modes.
- Generator Type: three-phase, nominal power factor 0.8 cos φ, frequency 50 Hz.
- Fuel Consumption at 75% Load: 26.7 L/h — economical for its power class.
- Noise Level: 75 dB — acceptable for outdoor or isolated applications.
- Insulation Class H and Protection Rating IP22 — reliable protection of electrical components under normal operating conditions.
- Dimensions 2950x1050x1800 mm, Weight 2710 kg — a mobile but heavy aggregate unit requiring thoughtful installation.
Technical specifications are provided in the table below:
| Voltage: | 230/400V |
| Engine Type: | 6-cylinder, four-stroke, water-cooled WIRMAN W6105ZLD |
| Starting System: | electric starter, automatic start |
| Fuel Tank Capacity: | 200 L |
| Peak Power: | 144 kW |
| Continuous Power: | 138 kW |
| Generator Type: | three-phase |
| Nominal Power Factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise Level: | 75 dB |
| Fuel Consumption (75% load): | 26.7 L/h |
| Insulation Class: | H |
| Protection Rating: | IP22 |
| Dimensions, LxWxH: | 2950x1050x1800 mm |
| Weight: | 2710 kg |
This generator is suitable for enterprises requiring high specific power during continuous operation, as well as a backup system for hospitals, shopping centers, and other critical facilities. The Wirman model stands out with the combined reliability of the W6105ZLD engine and optimal fuel consumption for its class.
If you need additional technical consultations, installation options, or project-specific configurations — our specialists will help you choose the optimal solution considering operating conditions.
