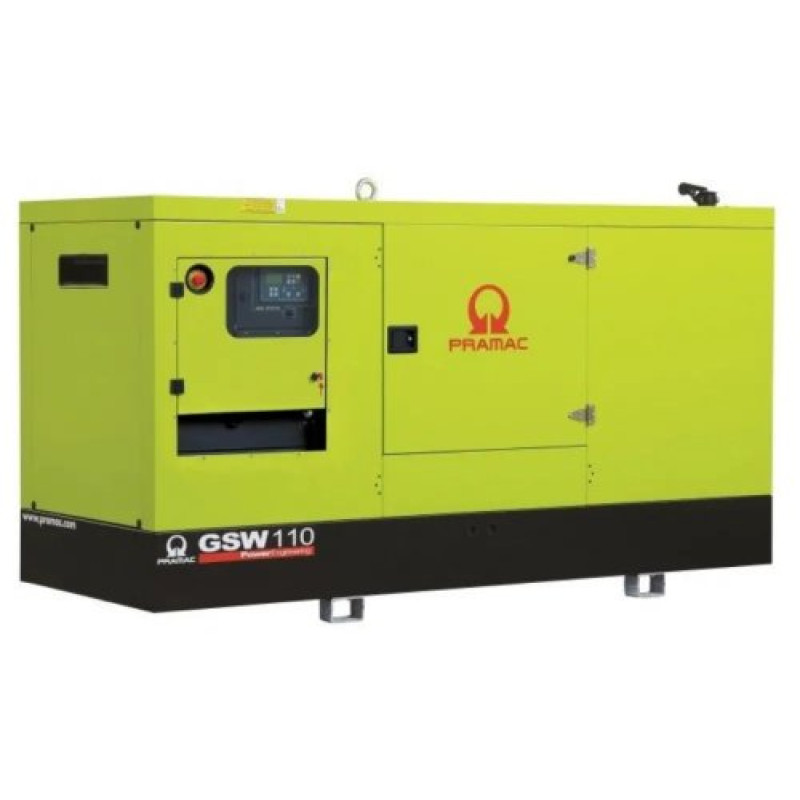

PRAMAC GSW110D Diesel Generator (86.8 kW)
The PRAMAC GSW110D diesel generator is a powerful and reliable solution for industrial and commercial facilities requiring continuous power supply and load resilience. This 3-phase unit from the Italian brand PRAMAC combines a proven Deutz engine design with an efficient power generation system: nominal voltage 400/230V, frequency 50 Hz, nominal power factor 0.8 cos φ. The GSW110D provides a peak power of 86.8 kW and continuous power of 84.3 kW, making it ideal for backup power, construction sites, factories, and warehouse complexes.
The unit is equipped with a 4-cylinder, four-stroke, water-cooled Deutz BF4M 1013 EC engine with a displacement of 4760 cm3 and an electric starter for quick startup. A large 350 L fuel tank, combined with a fuel consumption of 22.2 L/h (at 100% load), ensures long autonomous operation without frequent refueling. The operating noise level is 66 dB, allowing the generator to be used in work areas with acoustic requirements.
Structurally, the unit has an insulation class H and an IP23 protection rating, which guarantees the reliability of electrical equipment in outdoor use conditions, provided basic operating requirements are met. The device's compact dimensions of 3000x1150x1680 mm and weight of 1690 kg make it relatively convenient for placement and transportation compared to other units of similar power.
Key advantages of the PRAMAC GSW110D:
- High power: peak 86.8 kW, continuous 84.3 kW.
- Reliable Deutz BF4M 1013 EC engine, 4 cylinders, 4760 cm3.
- Large 350 L fuel tank for long autonomous operation.
- Electric starter for quick startup.
- Efficiency and economy: consumption 22.2 L/h at full load.
- Industrial protection and insulation standards: IP23, class H.
- Comfortable acoustics: 66 dB noise level.
Technical specifications:
| Voltage: | 400/230V |
| Engine type: | 4-cylinder, four-stroke, water-cooled |
| Engine model: | Deutz BF4M 1013 EC |
| Engine displacement: | 4760 cm3 |
| Starting system: | electric starter |
| Fuel tank capacity: | 350 L |
| Peak power: | 86.8 kW |
| Continuous power: | 84.3 kW |
| Generator type: | 3-phase, Pramac |
| Nominal power factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise level: | 66 dB |
| Fuel consumption (100% load): | 22.2 L/h |
| Insulation class: | H |
| Protection rating: | IP23 |
| Dimensions, LxWxH: | 3000x1150x1680 mm |
| Weight: | 1690 kg |
| Brand country: | Italy |
The PRAMAC GSW110D generator is suitable for those who need stable power supply under high loads and prolonged operation. Thanks to the combination of a powerful Deutz engine, a large fuel tank, and optimized fuel consumption, this unit provides an efficient and economical solution for backup or primary power. The PRAMAC brand guarantees quality and service support, and the brand's country — Italy — confirms the European level of production. For optimal configuration selection or ordering, contact specialists who will help you choose equipment based on your load and operating conditions.
