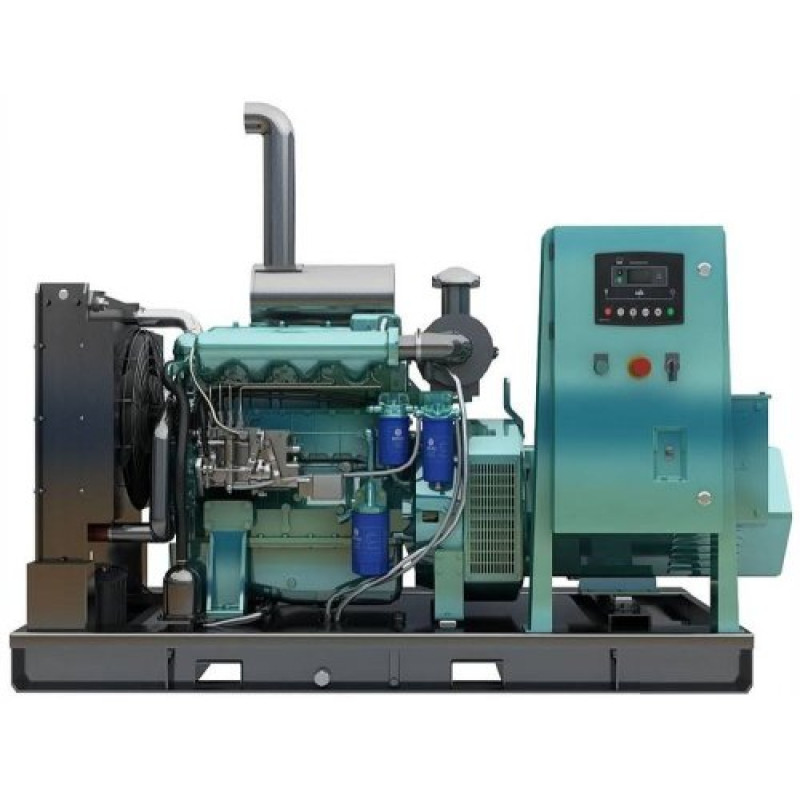

WEICHAI 100 KW Diesel Generator
The WEICHAI 100 KW diesel generator is a reliable power solution for industrial, commercial, and backup needs. This model from the WEICHAI brand is designed to provide uninterrupted long-term operation and is suitable for facilities requiring a stable 100 kW output. The device belongs to the category: Energy Independence > Generators and is intended for operation under increased loads, ensuring high efficiency and durability.
Technical Specifications:
| Voltage: | 400V |
| Engine Type: | 6-cylinder, water-cooled |
| Engine Model: | WP6D132E200 |
| Starting System: | Electric starter |
| Continuous Power: | 100 kW |
| Generator Type: | Three-phase |
| Rated Power Factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise Level: | 75 dB |
| Fuel Consumption (75% load) | 257 g/kWh |
| Insulation Class: | H |
| Protection Class: | IP23 |
| Dimensions, LxWxH | 2470x930x1560 mm |
| Weight: | 1550 kg |
This generator provides 400V in a three-phase configuration at 50 Hz frequency and a rated power factor of 0.8 (cos φ). The heart of the unit is the WP6D132E200 diesel engine, a 6-cylinder, water-cooled model that guarantees stable operation under prolonged loads. The engine is started using an electric starter, simplifying operation and reducing commissioning time.
With a continuous power output of 100 kW, the generator is suitable for powering large consumers, production lines, construction sites, shopping complexes, and as a backup power source. Fuel consumption at 75% load is 257 g/kWh, which meets the economic requirements for equipment of this class. A noise level of 75 dB allows the unit to be operated in environments where a balance between power and environmental comfort is important.
Structurally, the generator has an IP23 protection class, H insulation class, overall dimensions of 2470x930x1560 mm, and a weight of 1550 kg — these parameters are important to consider when planning the installation site and transportation. The three-phase scheme and rated power make the model versatile for connecting various electrical equipment.
Advantages of the WEICHAI 100 KW model:
- Reliable 6-cylinder WP6D132E200 engine with water cooling.
- Electric starter for quick start-up.
- High continuous power of 100 kW for industrial needs.
- Economical fuel consumption — 257 g/kWh at 75% load.
- Protection and insulation according to standards — IP23, class H.
The WEICHAI 100 KW diesel generator is an ideal choice for those seeking a powerful, efficient, and durable autonomous power source from the renowned manufacturer WEICHAI. If you are planning an installation on an industrial site, building a backup power system, or require mobile power supply, this model will ensure reliable operation in the most challenging conditions.
