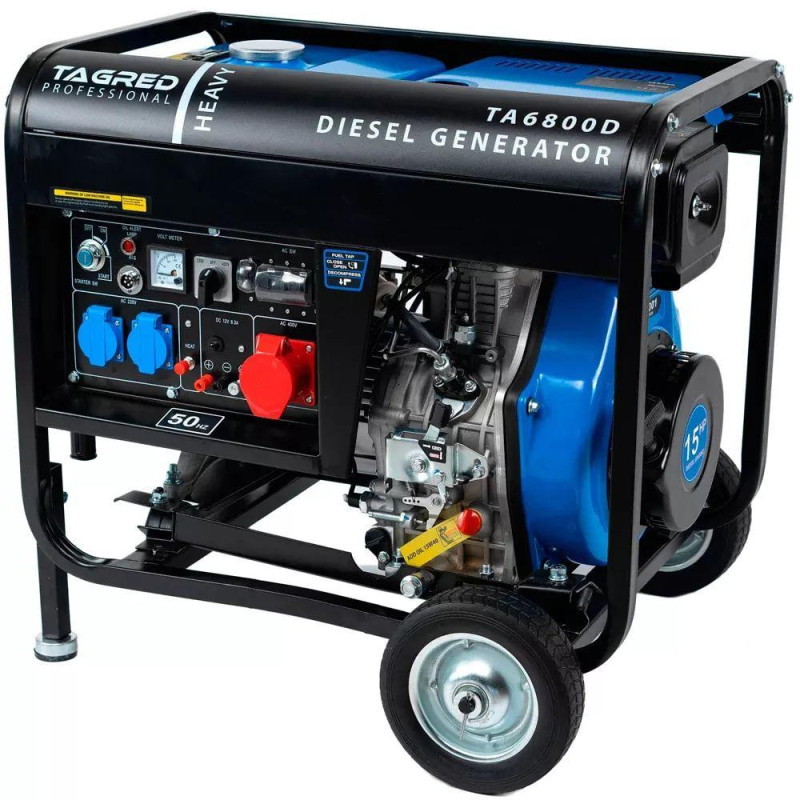

TAGRED TA6800D Diesel Generator from the Tagred brand is a powerful and reliable solution in the category Power Independence > Generators for working with single-phase and three-phase consumers. This model provides two types of output voltage: 230 V and 400 V, making it versatile for home use, construction sites, or small businesses. The rated power is 4.6 kW at 230 V and 6.3 kW at 400 V, with a maximum power reaching 6.8 kW. The generator is equipped with a durable 15 hp 4-stroke single-cylinder air-cooled engine with electric starter. An optional ATS unit for automatic start is available if needed.

Key Features of TAGRED TA6800D

• Two output voltage modes: 230 V and 400 V.

• Rated power: 4.6 kW (230 V) and 6.3 kW (400 V).

• Maximum power: 6.8 kW.

• Engine: 4-stroke, single-cylinder, 15 hp, air-cooled.

• Start: electric starter.

• Option: possibility of installing an ATS unit for automatic start.

• Alternator: synchronous with copper winding for stable power quality.

• Automatic Voltage Regulator (AVR) ensures minimal voltage fluctuations.

• Control sensors: oil level and fuel level for safe operation.

• Protection: against overload to prevent equipment damage.

• Outlets: 2 single-phase 230 V outlets, 1 three-phase 400 V outlet, and a 12 V output for charging batteries or powering electronics.

• Design: open frame housing with 2 wheels for easy movement.

The TAGRED TA6800D features a synchronous alternator with copper winding and a built-in AVR module, which guarantees high voltage quality and protects sensitive equipment from surges. The presence of oil and fuel indicators allows monitoring the unit's condition during operation, and overload protection increases operational safety. Thanks to direct deliveries from the manufacturer, the cost of this model on the website is affordable and competitive.

Frequently Asked Questions

Below are answers to common questions about diesel generators that will help you choose and properly operate the TAGRED TA6800D.

What are the advantages of diesel generators over gasoline generators?

• Lower fuel consumption for the same power output.

• Ability for longer continuous operation.

• Higher reliability under intensive use conditions.

• Longer engine service life.

Do diesel generators have disadvantages?

Disadvantages include higher initial purchase costs, increased noise levels, and higher emissions compared to gasoline counterparts; however, for many applications, the advantages outweigh these drawbacks.

What criteria should be used to choose a generator for home?

When choosing a generator, pay attention to the following parameters:

• 1. Power — should cover the total load of your appliances with a 20–30% reserve for starting peaks.

• 2. Phase type — single-phase mode is suitable for most households; three-phase is needed if there is corresponding equipment.

• 3. Alternator type and winding material — synchronous alternators with copper winding are more reliable and stable.

• 4. Fuel tank volume — determines the duration of operation without refueling.

• 5. Noise level — for installation near residential buildings, models with sound insulation are better.

• 6. Presence of AVR — important for safe power supply to sensitive electronics.

• 7. Additional functions — electric starter, digital panels, possibility of connecting an automatic transfer switch (ATS) unit, etc.

How to facilitate starting a diesel generator in freezing weather?

For reliable starting in cold weather, use winter diesel fuel and special additives that prevent fuel thickening. Storing the generator in a heated room or workshop during long periods of inactivity also increases the likelihood of easy starting.

How to maintain a diesel generator to extend its service life?

Regular maintenance extends the service life and reduces the risk of breakdowns. We recommend performing the following actions:

• 1. Regular checking of oil level and timely replacement according to manufacturer's recommendations.

• 2. Using high-quality clean fuel and storing it in sealed containers.

• 3. Cleaning and timely replacement of fuel and air filters.

• 4. Periodic test starts in case of long periods of inactivity to maintain system functionality.

If you need a reliable, powerful, and versatile power station capable of powering both household and industrial equipment, the TAGRED TA6800D is an excellent choice. For additional questions regarding configuration or ordering the ATS option, please contact our managers on the website.
