UNIVERSAL UND-BD 90 KVA Diesel Generator

UNIVERSAL UND-BD 90 KVA is an industrial power plant for autonomous and emergency power supply, designed for backup and continuous power supply to offices, private households, industrial and agricultural enterprises, banking institutions, state and municipal facilities, etc. Category: Energy Independence > Generators. Manufacturer: Universal.

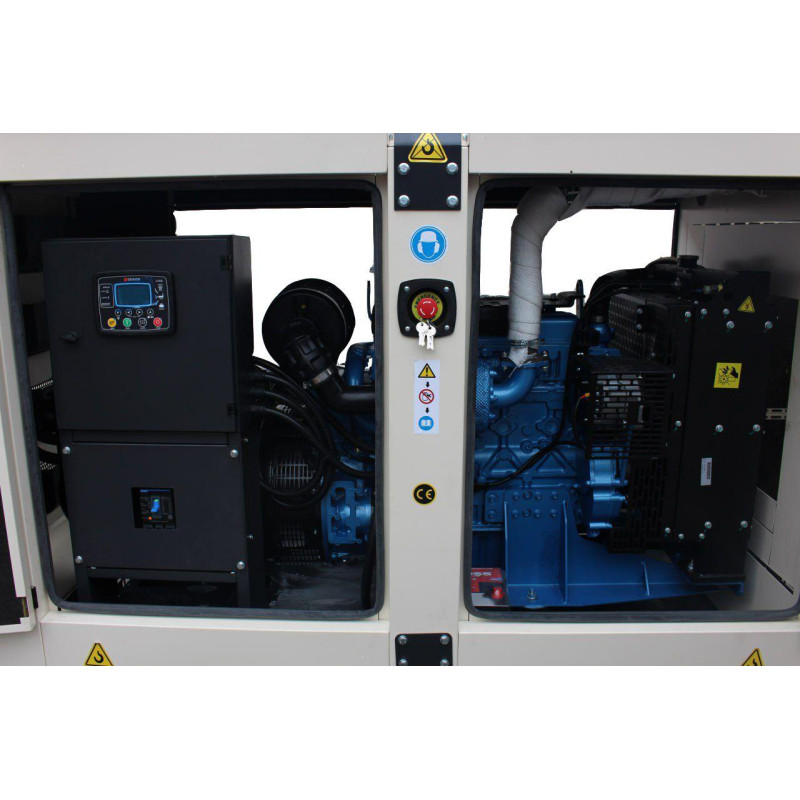

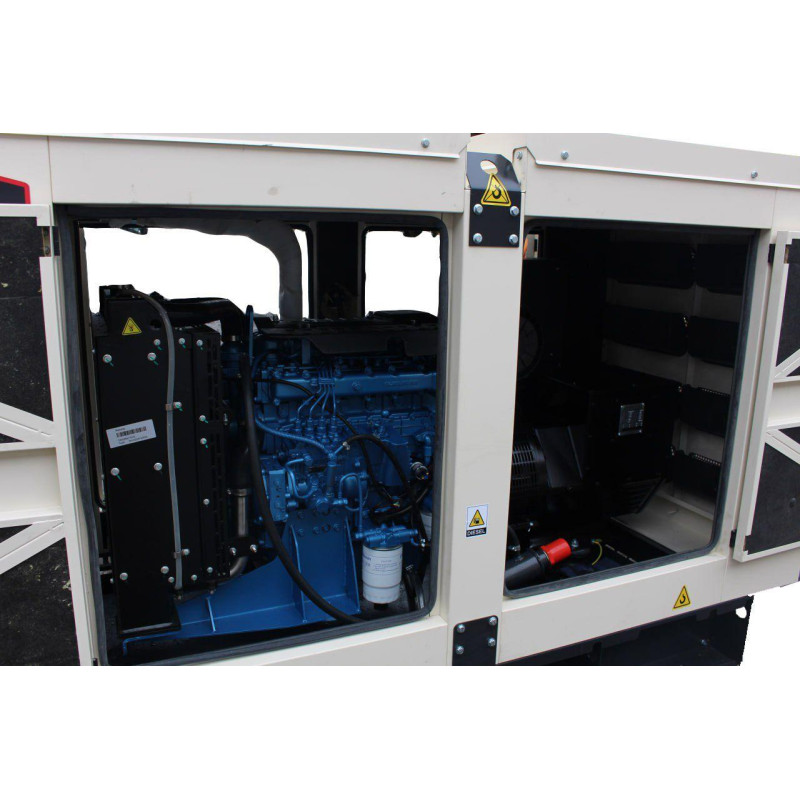

The generator is equipped with a versatile BAUDOUIN engine, ensuring high performance and low fuel consumption; depending on the modification, a mechanical or electronic governor is available. BAUDOUIN is a French engine brand used in military and quarry equipment, as well as in shipbuilding, which confirms their reliability and durability.

The Surirella alternator, installed as part of the unit, is an analog of Stamford products. Such alternators allow for high quality of generated electricity; available with a self-excitation system or with a permanent magnet (PMG). AVR regulators are well-sealed, protected from dust and moisture ingress.

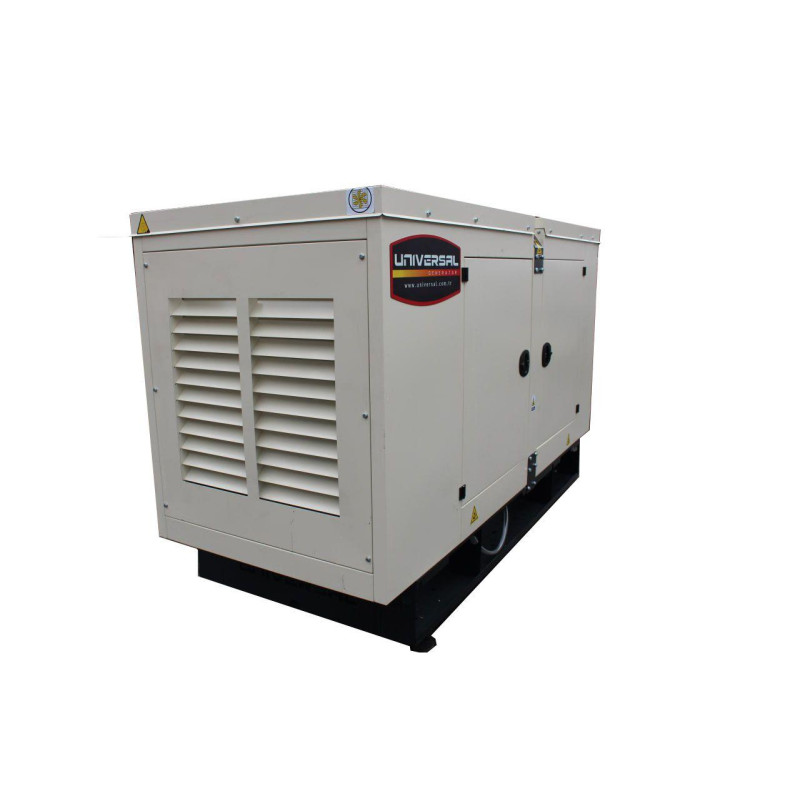

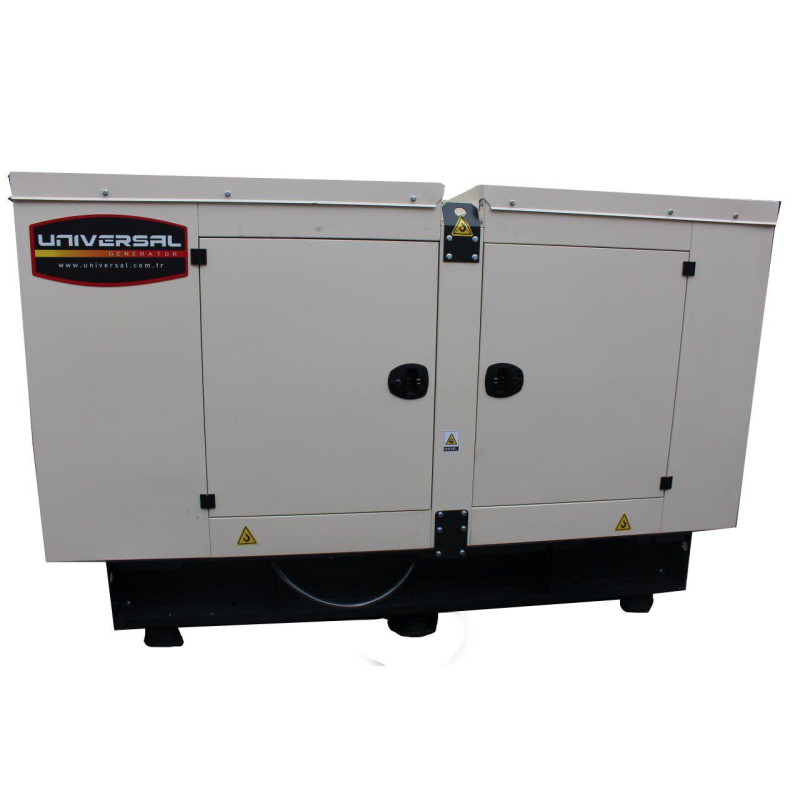

Sound Insulation and Casing

The delivery set includes a sound-absorbing all-weather casing that protects internal components and allows the generator to be operated outdoors without additional covers. The sound insulation is made of special fiberglass layers, the casing is made of galvanized steel with stiffening ribs, painted with powder polyester paint, which minimizes the risk of corrosion and moisture ingress into the device.

Cold Start and Battery Charging

Automatic coolant preheating and battery charging functions guarantee reliable startup of the power generator in winter. The automatic charging station constantly monitors the battery status and recharges it as needed.

Control System

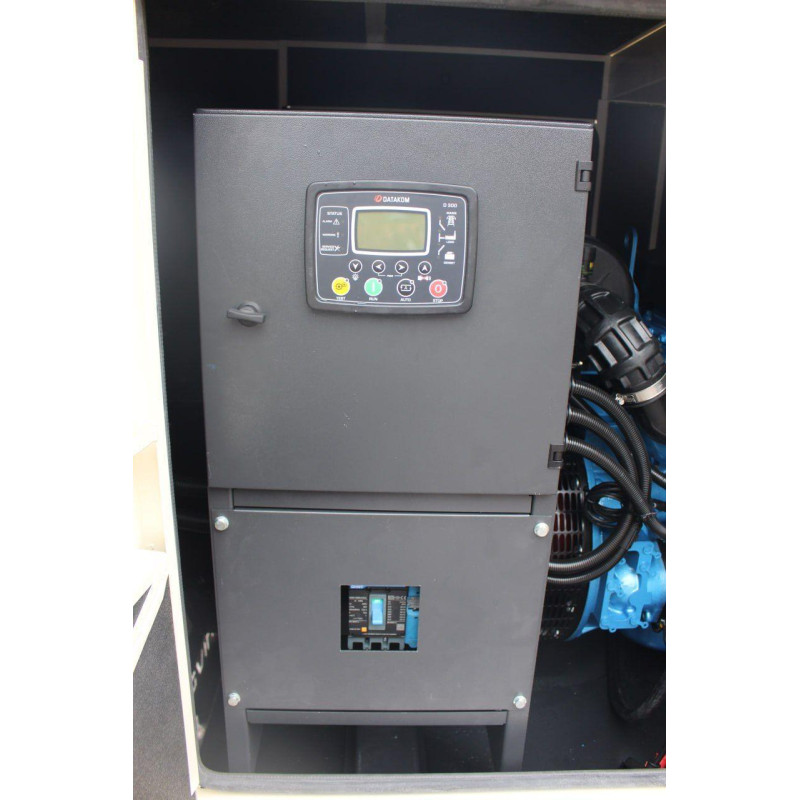

DATAKOM control panels make operation simple: the screen displays the status and all parameters of the engine and the power generator unit as a whole. Control system features:

• Automatic control system with LCD screen
• Remote monitoring capability (optional)
• Multifunctional capabilities for business
• Multilingual support
• Programmable via USB, RS-232, and GSM (optional)
• Combines optimal performance, ease of use, and reliability

Configuration and Standards

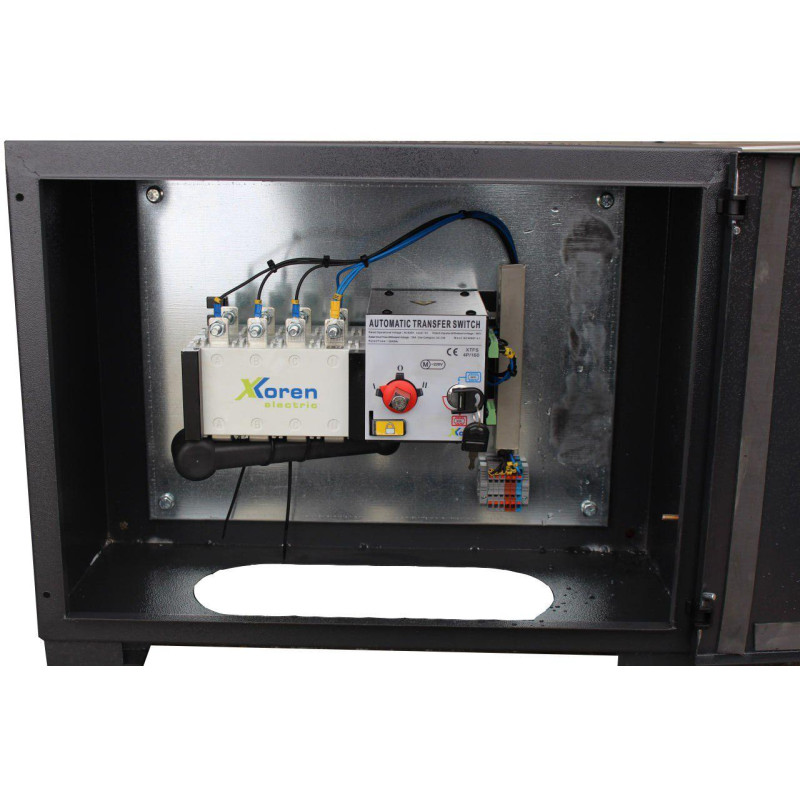

Included: automatic transfer switch (ATS) unit and coolant preheater. The generator is made of galvanized steel and coated with powder paint for increased resistance to external factors. The production of the UND-BD 90 KVA model complies with high quality standards: the enterprise is certified according to ISO 9001 and ISO 14001. All generators come with a 12-month warranty against factory defects that may arise during operation.

UNIVERSAL UND-BD 90 KVA is a solution for those looking for a reliable, productive, and easy-to-operate diesel generator with the ability to customize for specific tasks and options for remote monitoring and programming. Thanks to the combination of a high-quality BAUDOUIN engine, a high-class alternator, and a well-designed cooling and sound insulation system, this model is suitable for intensive operation in various conditions.
