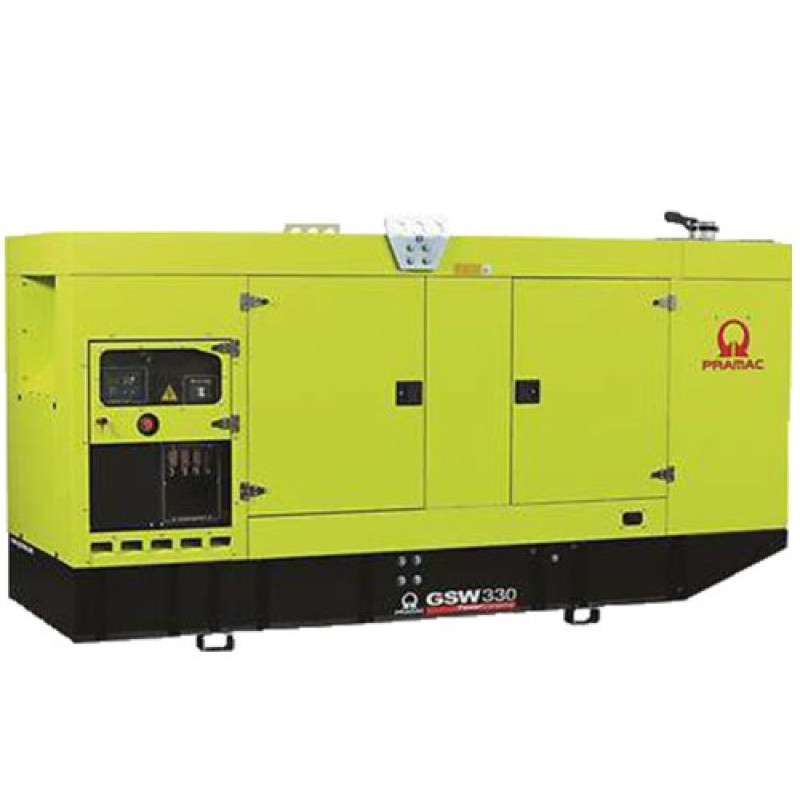

PRAMAC GSW330V Diesel Generator (264 kW)
Model Description: The PRAMAC GSW330V diesel generator, with a peak power of 264 kW and continuous power of 252 kW, is a reliable solution for ensuring energy independence for commercial, industrial, and municipal facilities. Brand: PRAMAC (Italy). This model is equipped with a high-performance Volvo Penta TAD1342GE engine, guaranteeing stable operation under heavy loads and long operating cycles. The generator is designed for a three-phase 380V/220V network, 50 Hz frequency.
Advantages and Applications: A reliable electric starter ensures quick startup, and a large 636 L fuel tank allows for extended operation without refueling. The model is suitable for backup and autonomous power supply for production sites, construction sites, data centers, medical facilities, and other objects with high demands for power quality.
Technical Specifications:
| Voltage: | 380V / 220V |
| Engine Type: | 6-cylinder, four-stroke, water-cooled |
| Engine Model: | Volvo Penta TAD1342GE |
| Engine Displacement: | 12780 cm3 |
| Starting System: | Electric starter |
| Fuel Tank Capacity: | 636 L |
| Peak Power: | 264 kW |
| Continuous Power: | 252 kW |
| Rated Current: | 143 A |
| Generator Type: | 3-phase, 4-pole, synchronous, brushless, single-bearing, terminal box, power busbars |
| Generator Voltage Regulator: | Electronic, automatic, all-mode |
| Frequency: | 50 Hz |
| Noise Level: | 87 dB |
| Fuel Consumption (100% load): | 67 L/h |
| Dimensions, LxWxH: | 3951x1438x2085 mm |
| Weight: | 3670 kg |
| Brand Country: | Italy |
Additional Features and Operational Nuances: The generator is equipped with a synchronous brushless alternator with four poles, ensuring voltage stability and reliable operation under varying loads. The electronic automatic all-mode voltage regulator maintains optimal output voltage parameters during transient processes. A noise level of 87 dB allows the unit to be used in industrial areas; however, for use in densely populated areas, additional sound insulation is recommended.
Recommendations for Selection and Maintenance:
- Before operation, check the level and quality of engine oil and coolant.
- Calculate operating time from the fuel tank: at 100% load, a consumption of 67 L/h provides approximately 9.5 hours of continuous operation from the standard 636 L tank.
- Scheduled maintenance of the Volvo Penta engine according to the manufacturer's recommendations will extend the unit's service life.
Who it's for: The PRAMAC GSW330V is ideal for businesses requiring a powerful source of autonomous power with high reliability and the ability for long-term continuous operation. Category: Energy Independence > Generators.
