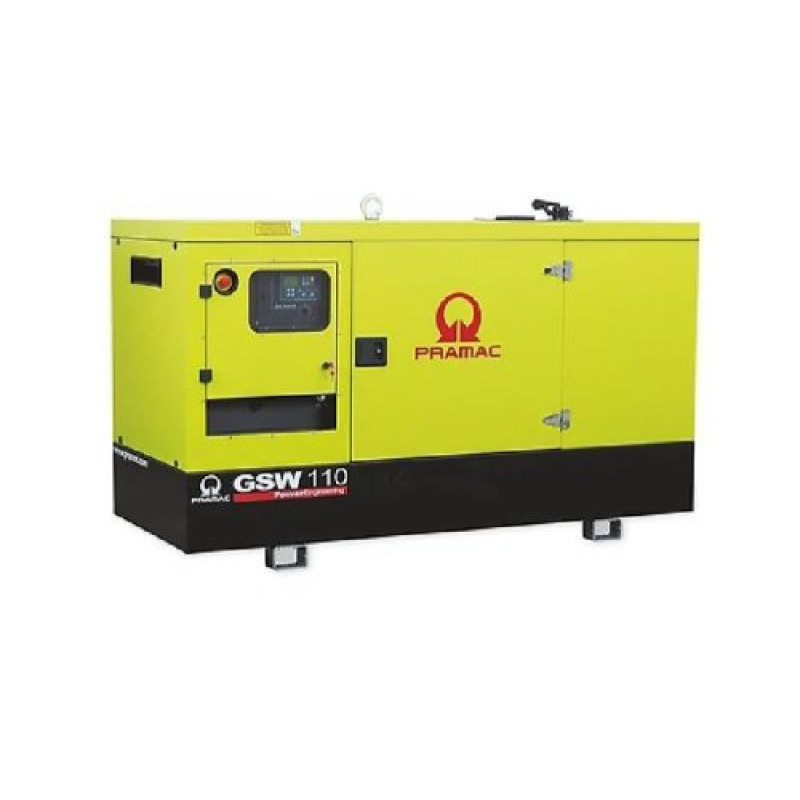

PRAMAC GSW110P Diesel Generator (88 kW)
The powerful and reliable PRAMAC GSW110P diesel generator (brand: PRAMAC, brand country: Italy) is designed to provide energy for commercial and industrial facilities, backup power for enterprises, and operation in conditions where centralized electricity supply is unavailable. The model offers a high peak power of 88 kW and a stable continuous output of 83.07 kW at 50 Hz, making it optimal for 3-phase loads with a nominal power factor of 0.8 cos φ.
Description and Advantages
The generator is equipped with a proven Perkins 1104C-44TAG2 diesel engine — a 4-cylinder, four-stroke, water-cooled engine with a displacement of 4410 cm3. Starting is performed by an electric starter, ensuring ease of operation. The built-in 209 L fuel tank allows for long autonomous operation without frequent refueling, and fuel consumption at 100% load is 23 L/h.
Technical Specifications
- Voltage: 400/230V
- Engine type: 4-cylinder, four-stroke, water-cooled
- Engine model: Perkins 1104C-44TAG2
- Engine displacement: 4410 cm3
- Start: Electric starter
- Fuel tank capacity: 209 L
- Peak power: 88 kW
- Continuous power: 83.07 kW
- Generator type: 3-phase, Mecc Alte ECP34-2S/4
- Nominal power factor: 0.8 cos φ
- Frequency: 50 Hz
- Noise level: 72 dB
- Fuel consumption (100% load): 23 L/h
- Insulation class: H
- Protection degree: IP23
- Dimensions, LxWxH: 2400x1000x1530 mm
- Weight: 1400 kg
This model combines an efficient Perkins engine and a high-quality power generation unit from Mecc Alte, guaranteeing stable voltage of 400/230 V and long operational life. Insulation class H and protection degree IP23 ensure reliability in conditions of moderate external exposure, and a noise level of 72 dB makes the generator acceptable for use in various environments, including urban facilities.
The technical parameters are provided in the table below for easy reference:
| Voltage: | 400/230V |
| Engine type: | 4-cylinder, four-stroke, water-cooled |
| Engine model: | Perkins 1104C-44TAG2 |
| Engine displacement: | 4410 cm3 |
| Start: | Electric starter |
| Fuel tank capacity: | 209 L |
| Peak power | 88 kW |
| Continuous power: | 83.07 kW |
| Generator type: | 3-phase, Mecc Alte ECP34-2S/4 |
| Nominal power factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise level: | 72 dB |
| Fuel consumption (100% load) | 23 L/h |
| Insulation class: | H |
| Protection degree: | IP23 |
| Dimensions, LxWxH | 2400x1000x1530 mm |
| Weight: | 1400 kg |
| Brand country: | Italy |
The PRAMAC GSW110P is ideal for enterprises requiring stable backup power or a primary power source at facilities without centralized electricity supply. Its robust construction, large fuel tank, and economical fuel consumption ensure long-lasting and efficient operation in challenging conditions.
