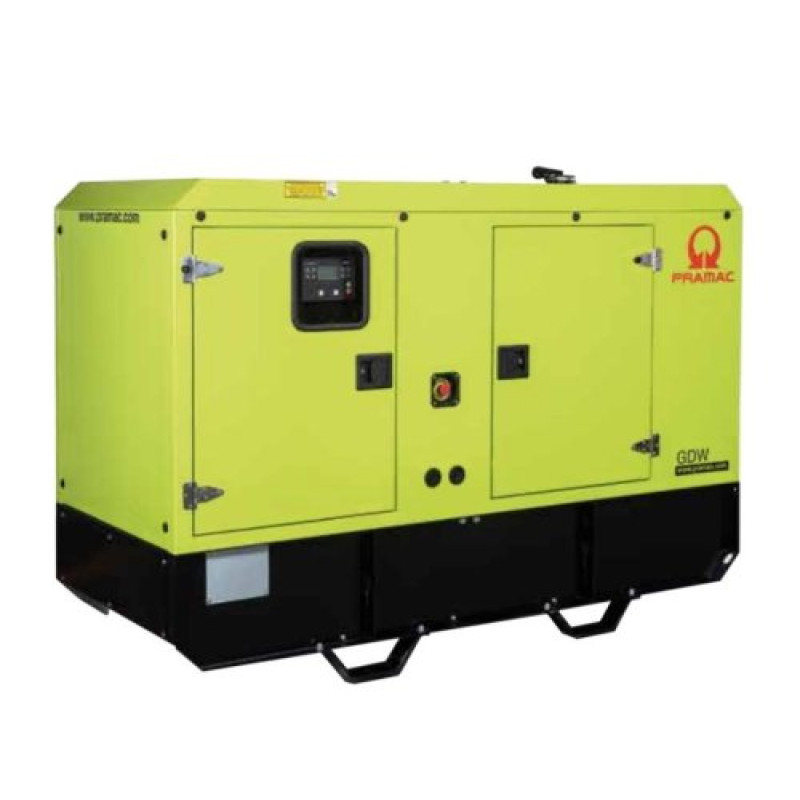

PRAMAC GDW65P/FNE Diesel Generator (53 kW)
Brand: PRAMAC. This GDW65P/FNE diesel generator with a power output of 53 kW is designed to provide energy independence in industrial and commercial applications, as well as for backup power for facilities requiring stable 3-phase 400/230V voltage. Its reliable design and proven components make it a cost-effective choice for enterprises, construction sites, and large infrastructure facilities.
Description and Purpose
The Perkins 1103A-33TG2 engine installed in this model is a 3-cylinder, four-stroke, water-cooled engine with a displacement of 3300 cm3. Starting is accomplished via an electric starter, ensuring quick and reliable startup under all operating conditions. A large 209 L fuel tank guarantees extended autonomous operation without frequent refueling. The generator is a 3-phase unit based on the Mecc Alte ECP32-2M4 C alternator, which provides high-quality voltage at a frequency of 50 Hz and a nominal power factor of 0.8 cos φ.
Technical Specifications
| Voltage: | 400/230V |
| Engine Type: | 3-cylinder, four-stroke, water-cooled |
| Engine Model: | Perkins 1103A-33TG2 |
| Engine Displacement: | 3300 cm3 |
| Starting System: | Electric starter |
| Fuel Tank Capacity: | 209 L |
| Peak Power: | 53 kW |
| Continuous Power: | 48.1 kW |
| Generator Type: | 3-phase, Mecc Alte ECP32-2M4 C |
| Nominal Power Factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise Level: | 66 dB |
| Fuel Consumption (100% load): | 13.9 L/h |
| Insulation Class: | H |
| Protection Rating: | IP23 |
| Dimensions, LxWxH: | 2400x1000x1530 mm |
| Weight: | 1299 kg |
| Country of Brand: | Italy |
Key advantages of this model include: high peak power of 53 kW and continuous power of 48.1 kW, efficient operation at a nominal power factor of 0.8, a low noise level of 66 dB for a unit of this power, and economical fuel consumption — 13.9 L/h at 100% load. Insulation class H and IP23 protection rating ensure reliable operation in standard outdoor conditions. Dimensions of 2400x1000x1530 mm and a weight of 1299 kg make the unit compact for its class but require appropriate site preparation for installation and transport.
- Purpose: Backup and primary power for industrial facilities, construction sites, and commercial areas.
- Reliability: Perkins engine — a world-renowned manufacturer of industrial diesel units.
- Autonomy: Large 209 L fuel tank for extended operation without refueling.
The PRAMAC GDW65P/FNE is a balanced solution for those seeking a powerful and reliable diesel generator from an Italian brand with proven components and good fuel economy. It is suitable for use in conditions where voltage stability and uninterrupted operation of electrical equipment are critical.
