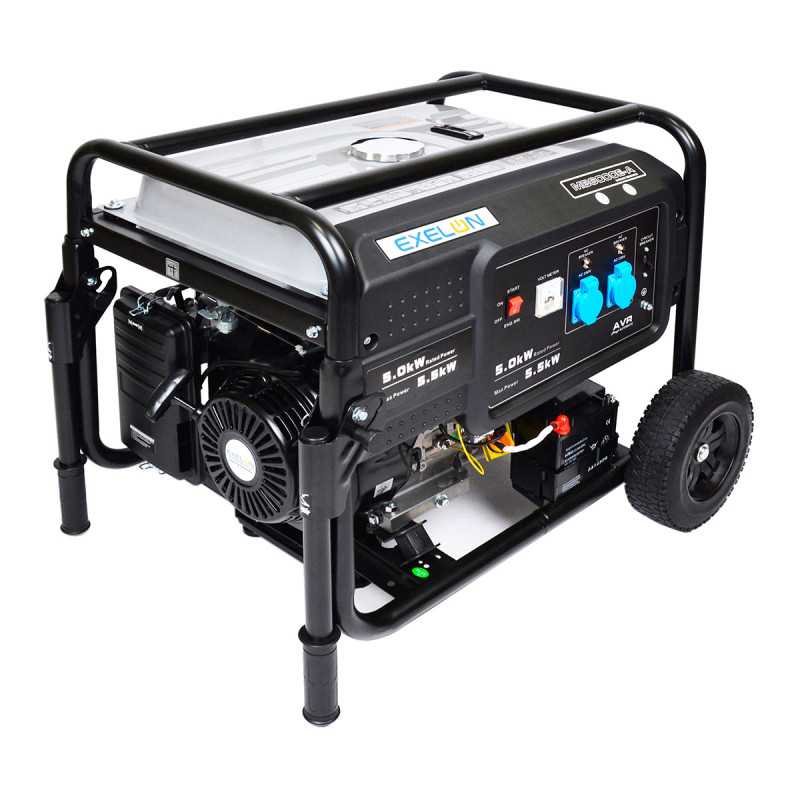

Exelon MB6000E-A Gasoline Generator — Reliable 5.0/5.5 kW Power Source

Brand: EXELON. The Exelon MB6000E-A model is a single-phase 230V (50Hz) AC gasoline generator, designed as a backup and autonomous power source with a nominal output power of 5.0 kW and a maximum power of 5.5 kW. Thanks to the built-in AVR voltage stabilization system, the device is suitable for powering sensitive electronics: computers, medical equipment, office equipment, and home audio-video devices. Recommended for private homes, offices, shops, and small production facilities.

Design Features

• Electric starter for comfortable starting with the option of manual start if necessary.
• AVR voltage stabilization system ensures a stable output signal under load.
• Alternator with copper winding increases durability and improves electrical conductivity.
• Overload protection guarantees safe operation during peak loads.

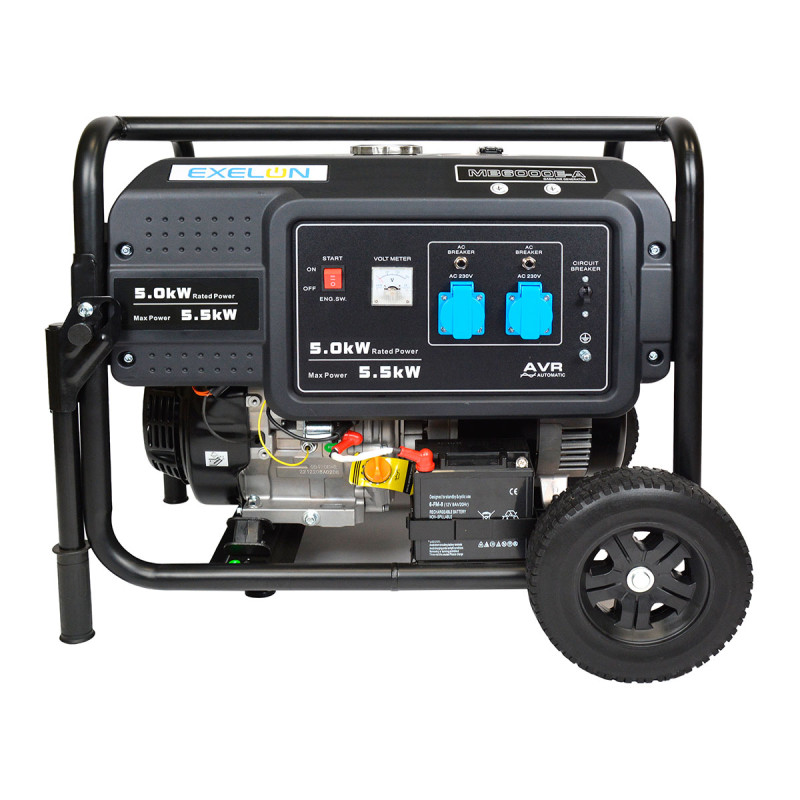

• Two 2x16A 230V sockets with IP44 protection class allow simultaneous connection of multiple consumers.
• Mobile tubular frame on wheels with folding handles for convenient transport and storage.
• Silent blocks reduce vibrations, making operation quieter and more comfortable.

Engine

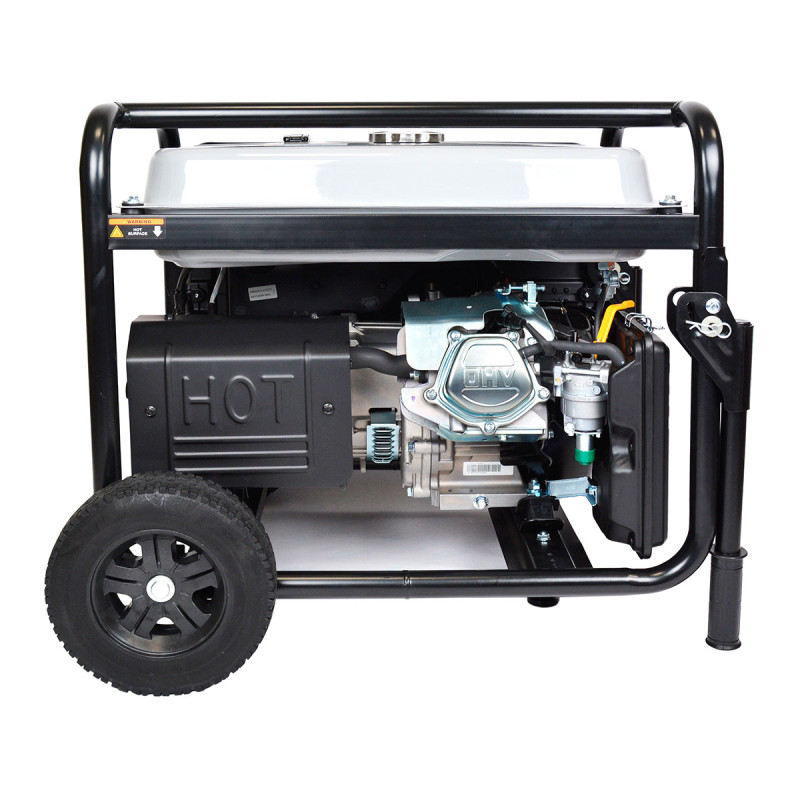

The generator is equipped with a modern 1-cylinder 4-stroke air-cooled engine model GB420(E)-2 (OHV). The overhead valve (OHV) design increases combustion efficiency, optimizes thermal balance, and reduces fuel consumption. The engine complies with Euro-5 environmental requirements. Engine technical parameters: displacement 420 cm³, oil volume 1.1 L, recommended oil SAE 10W-30, ignition type TCI.

Technical Specifications

• Voltage: 230V (50Hz)
• Power (nominal): 5.0 kW
• Power (maximum): 5.5 kW
• Start: electric starter/manual
• Alternator winding: copper
• THD (total harmonics): ≤ 25 %
• Fuel tank capacity: 21 L
• Continuous operation time: up to 19 hours at 50% load
• Noise level: 74–97 dB(A)
• Insulation class: F
• Operating temperature: from -5 to +40 ℃

Fuel Consumption

• At 50% load: 1.1 L/hour.
• At 100% load: 2.3 L/hour.

Dimensions, Weight, and Certification

• Box dimensions: 715x545x605 mm
• Dry weight: 84 kg
• Certification: CE, Euro V

Package Contents

• Exelon MB6000E-A Generator
• Mounting kit
• Wheels and metal support
• Tool kit
• 16A 230V plugs (2 pcs.)
• User manual

The Exelon MB6000E-A combines a reliable Euro-5 standard engine, a copper alternator, and a well-designed mobile structure on wheels, making it a versatile solution for power supply in various conditions — from prolonged power outages to field work and remote sites. Thanks to AVR, the generator provides a relatively clean output signal for sensitive equipment, and the large 21 L fuel tank and economical engine allow it to operate for up to 19 hours at half load. Reliability, overload protection, and convenient package contents make this model attractive for private users and professionals.
