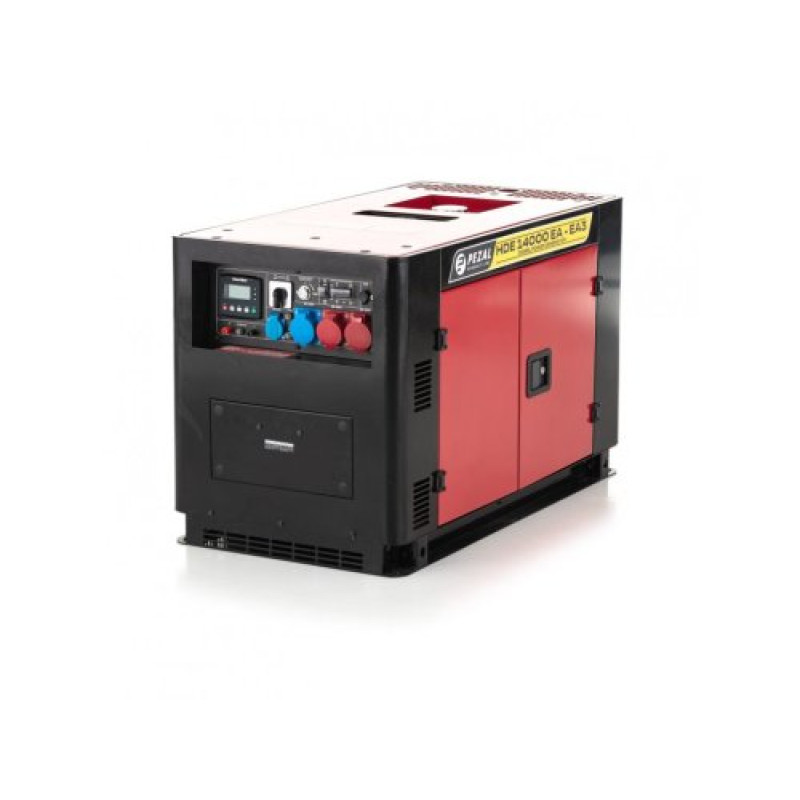

Pezal PDE14000SA-SA3 Diesel Generator (11 kW)
Brand: Pezal. Category: Energy Independence > Generators. This Pezal PDE14000SA-SA3 diesel generator is designed to provide reliable power supply in both industrial and domestic conditions — for construction sites, private homes, commercial facilities, and emergency backup power. The model combines power and efficiency, with peak and continuous power ratings of 11 and 10 kW, respectively.
Key Features and Benefits
The generator is equipped with an 875 cm3 2-cylinder air-cooled engine with electric start, ensuring ease of operation and reliable starting in various conditions. The 26 L fuel tank capacity allows for extended autonomous operation. The 50 Hz frequency and 400/230 V voltages enable the generator to be used in both three-phase and single-phase modes.
| Voltage: | 400 / 230 V |
| Engine type: | 2-cylinder air-cooled |
| Engine displacement: | 875 cm3 |
| Start: | electric |
| Tank capacity: | 26 L |
| Peak power (3-phase mode): | 11 kW |
| Continuous power (3-phase mode): | 10 kW |
| Rated current [A] (3-phase mode): | 18.04 |
| Rated voltage [V] (3-phase mode): | 400 |
| Peak power (1-phase mode): | 11 kW |
| Continuous power (1-phase mode): | 10 kW |
| Rated current [A] (1-phase mode): | 43.4 |
| Rated voltage [V] (1-phase mode): | 230 |
| Frequency: | 50 Hz |
| Dimensions, LxWxH | 1270x670x770 mm |
| Weight: | 210 kg |
| Additionally: | sockets: 1 x 400V/16A, 1 x 230V/32A, 1 x 230V/16A with fuses, ATS/SZR socket (for automatic transfer switch system), SmartGen logical control panel, oil sensor with alarm, DC terminal with protection, power station lifting hook, battery |
In three-phase mode, the model provides a rated voltage of 400 V and a rated current of 18.04 A, making it suitable for powering industrial loads. In single-phase mode, the generator provides 230 V and a maximum current of 43.4 A, allowing for the connection of powerful household and commercial appliances. Dimensions of 1270×670×770 mm and a weight of 210 kg make the unit relatively mobile for its power, and the included lifting hook and battery facilitate installation and startup.
The SmartGen logical control panel and the presence of an ATS/SZR socket enable the generator to be integrated into automatic power transfer systems, which is especially important for the continuous operation of critical facilities. An oil sensor with an alarm protects the engine from damage due to low oil levels. Fused sockets ensure safe connection of external consumers.
Summary: The Pezal PDE14000SA-SA3 diesel generator (11 kW) is a reliable choice for those seeking a powerful and functional backup or primary power source with automation capabilities and a wide range of sockets and protections.
