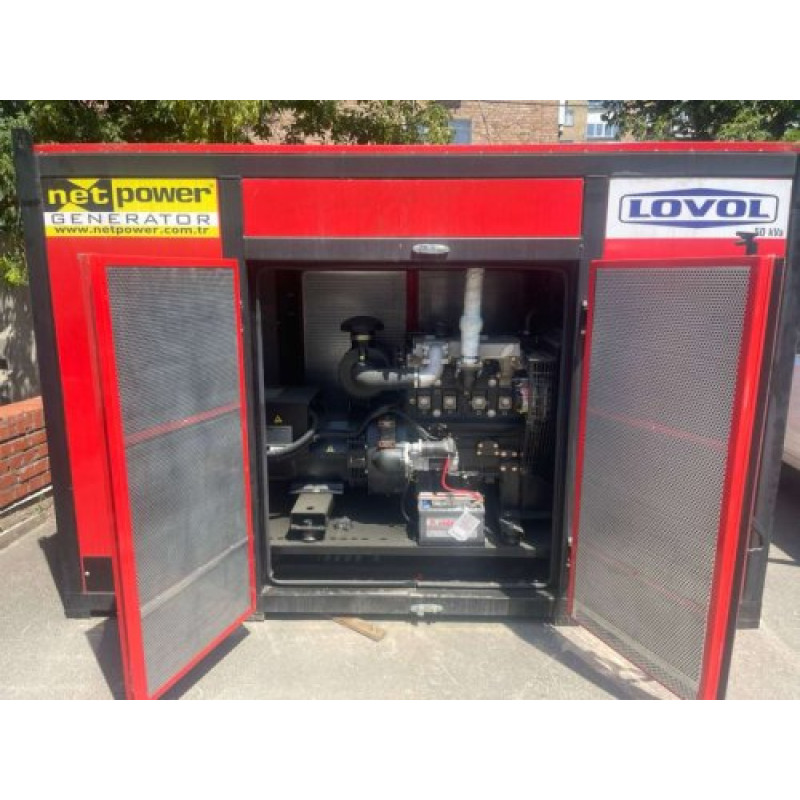

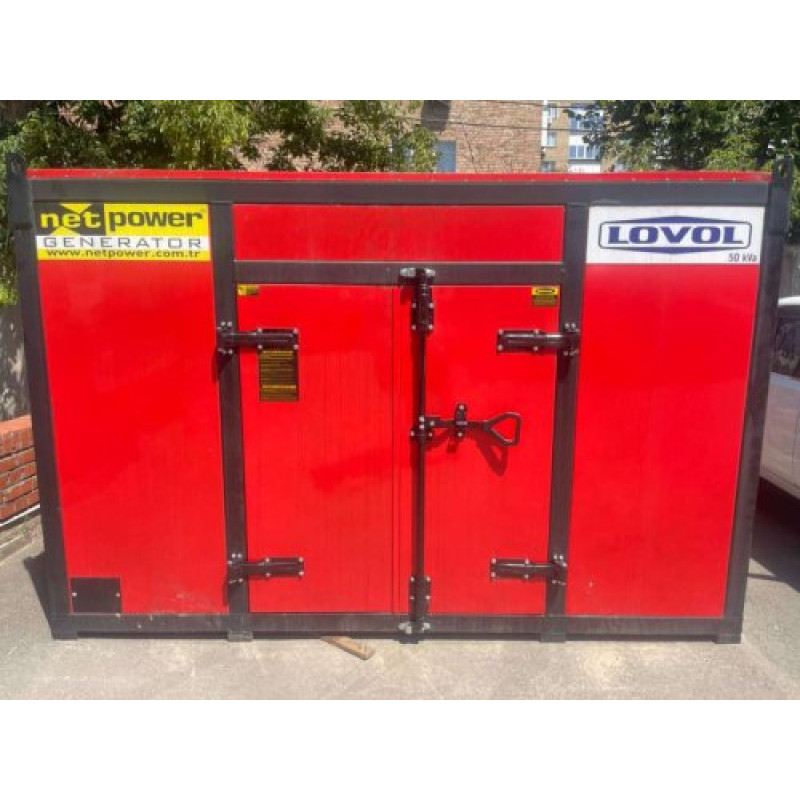

NETPOWER NPL-154 Diesel Generator (110.5 kW)
Brand: NETPOWER. Category: Energy Independence > Generators. The NETPOWER NPL-154 diesel generator is a reliable solution for providing autonomous and backup power to industrial and commercial facilities. The model offers a stable continuous power of 110.5 kW and a peak power of 123.2 kW, making it suitable for high-energy consumption facilities, construction sites, medical institutions, data centers, and critical infrastructure enterprises.

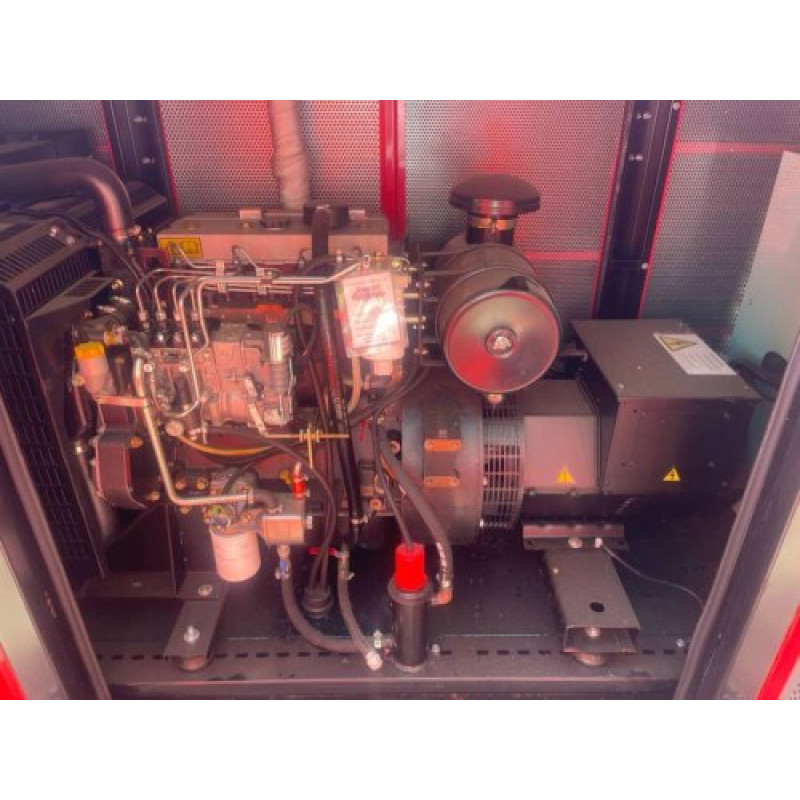

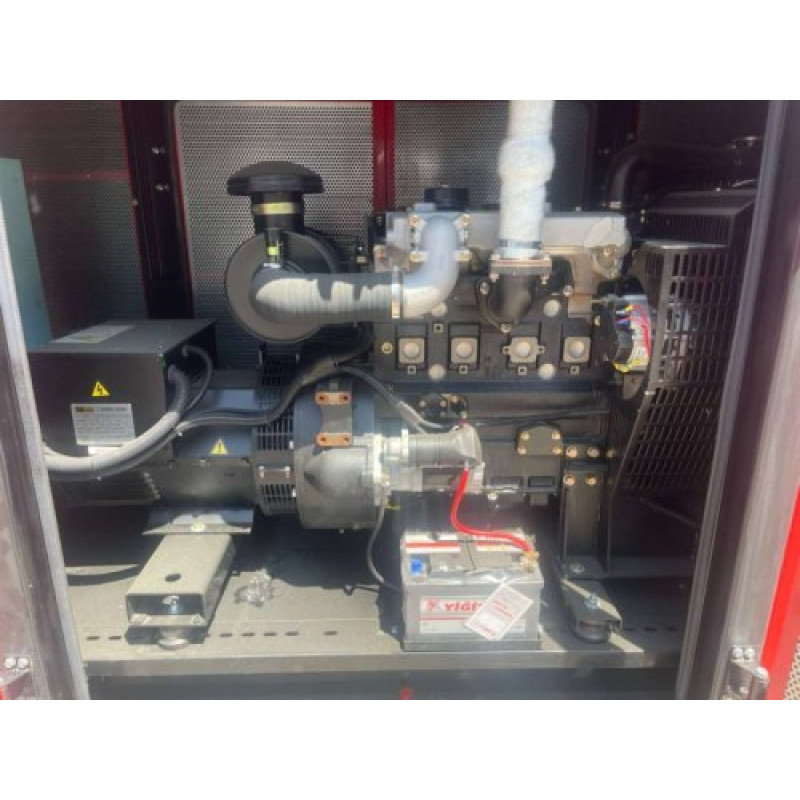

Engine and Generator Description: The engine is a 6-cylinder, four-stroke, water-cooled model Evol 1006TAG14. It is started by an electric starter. The generator is a three-phase A.C.SYNCHRONOUS GEN&LG274E with a nominal power factor of 0.8 cos φ and a frequency of 50 Hz. The output voltage is 380V.
Technical Specifications:
| Voltage: | 380V |
| Engine type: | 6-cylinder, four-stroke, water-cooled |
| Engine model: | Evol 1006TAG14 |
| Starting system: | Electric starter |
| Fuel tank capacity: | 240 L |
| Peak power: | 123.2 kW |
| Continuous power: | 110.5 kW |
| Generator type: | Three-phase, A.C.SYNCHRONOUS GEN&LG274E |
| Nominal power factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise level: | 75 dB |
| Fuel consumption (100% load): | 31.5 L/h |
| Insulation class: | H |
| Protection degree: | IP22 |
| Dimensions, LxWxH: | 3150x1100x1900 mm |
| Weight: | 1750 kg |
Advantages of NETPOWER NPL-154
- High reliability of the Evol 1006TAG14 6-cylinder diesel engine.
- Continuous power of 110.5 kW and peak power of 123.2 kW for demanding loads.
- Large 240 L fuel tank ensures long autonomous operation without refueling.
- Three-phase synchronous generator provides stable voltage quality at cos φ 0.8.
- Electric starter for quick and convenient startup.
- Fuel consumption of 31.5 L/h at 100% load allows for planning operating costs.
Thanks to insulation class H and protection degree IP22, this model is suitable for operation in typical industrial environments. The noise level of 75 dB makes it acceptable for use on construction sites and production facilities where there are no strict requirements for acoustic comfort. Dimensions of 3150x1100x1900 mm and a weight of 1750 kg indicate that the unit requires thoughtful logistics during installation and transportation.
NETPOWER NPL-154 is an optimal choice for enterprises seeking a balance between power, economy, and reliability. If you need a generator for uninterrupted power supply to complex systems and equipment, this model will ensure stable operation in harsh conditions.
